Prod Model: |
WY1502C |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Control System: |
Topwisdom |
Display: |
8" Touch Screen |
Main Motor: |
Servo Motor |
Hook: |
Japan Koban Hook |
Belts: |
Italy Belts |
Warranty: |
12 Months |
Package: |
Wooden Case/as Customer Required |
Weight: |
450kg |
Volume: |
3 Cbm |
Rail: |
Linear Rail |
Knitting Product Type: |
Hat |
Knitting Method: |
Double |
Computerized: |
Computerized |
Certification: |
SGS |
Condition: |
New |
Type: |
Embroidery Machine |
Knitting Machine Cut: |
Wy1502c |
Knitting Style: |
Tubular |
Product Description

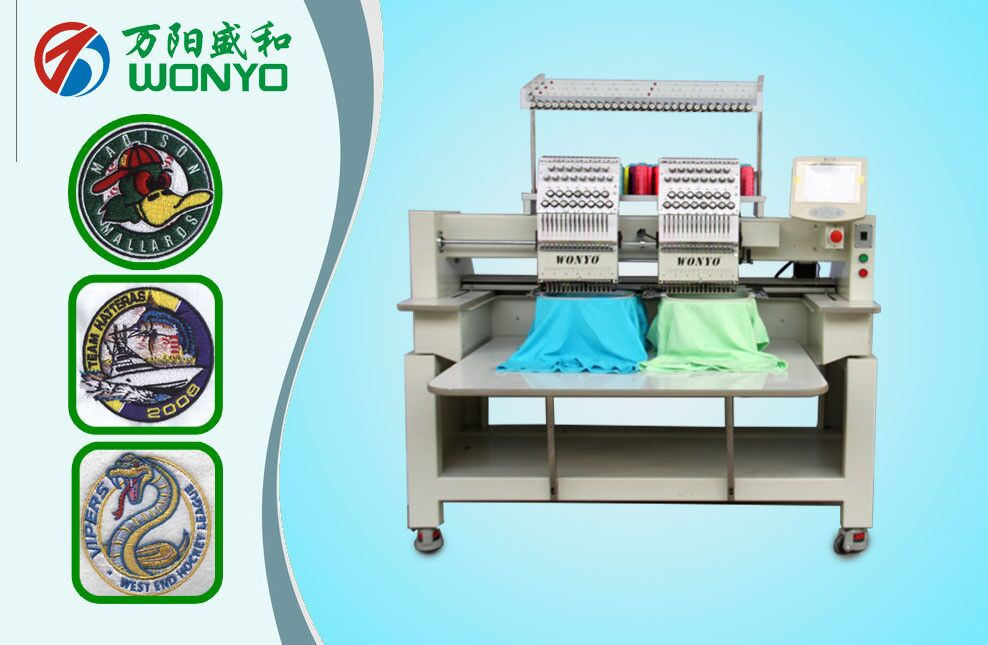

2 Heads multi color 15 Colors High Speed Embroidery Machine
is 2 heads 15 needles computerized embroidery suitable for cap, t-shirt and flat embroidery, speed as high as 1000RPM, 8 inch LCD touch screen with as many as 12 languages, 400*450mm embroidery area with some other optional device suitable for socks, pants, pockets, sequin and cording embroidery etc...
Product Description:
1.2 Head Embroidery Machine

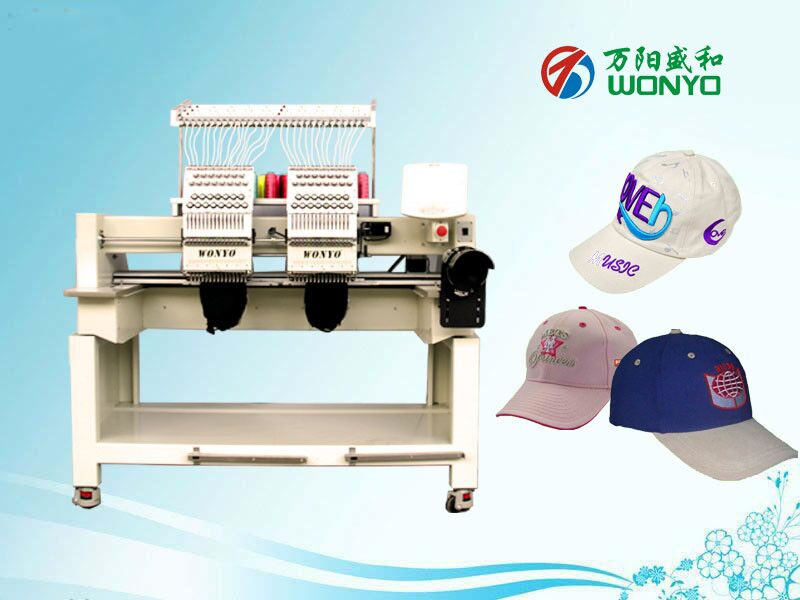

2. Cap embroidery machine
3. New embroidery machine
I. Main features of the embroidery machine.
1.9 needles, 2 heads, suitable for flat bed embroidery, cap
Embroidery and finished garments embroidery
2. Embroidery area: 400 X 450 mm, or 15.7" X 17.7"
3. Automatic thread trimmer
4. Maximum speed 850 SPM
5.270° Wide cap frame unit
6.8" color LCD display showing real time stitching
7. USB port ready
8. Auto color change
9. Thread break detection
10. Pre-Sew Design Trace capable
11. Memory size: 1, 000, 000 stitches
12. Electricity: 110V/60Hz or 220V/50Hz available
13. Start, Stop, and Emergency Stop
14. On-board lettering
II. Full coler control panel
1.8" High Definition color LCD display showing real time stitching
2. Function keys including Menu, Speed up and slow
Down (also Page Up and Page Down), Help, USB-
Input, Parameter Settings, Clear, ESC, Enter, etc.
3. Numeric keys for selection of needles
4. Frame-moving keys
5. Manual Trimming
6. Manual Color Change
7. Embroidery Status
8. Embroidery Method
9. DOT Key to return to 100 degrees
10. Mutli languages available

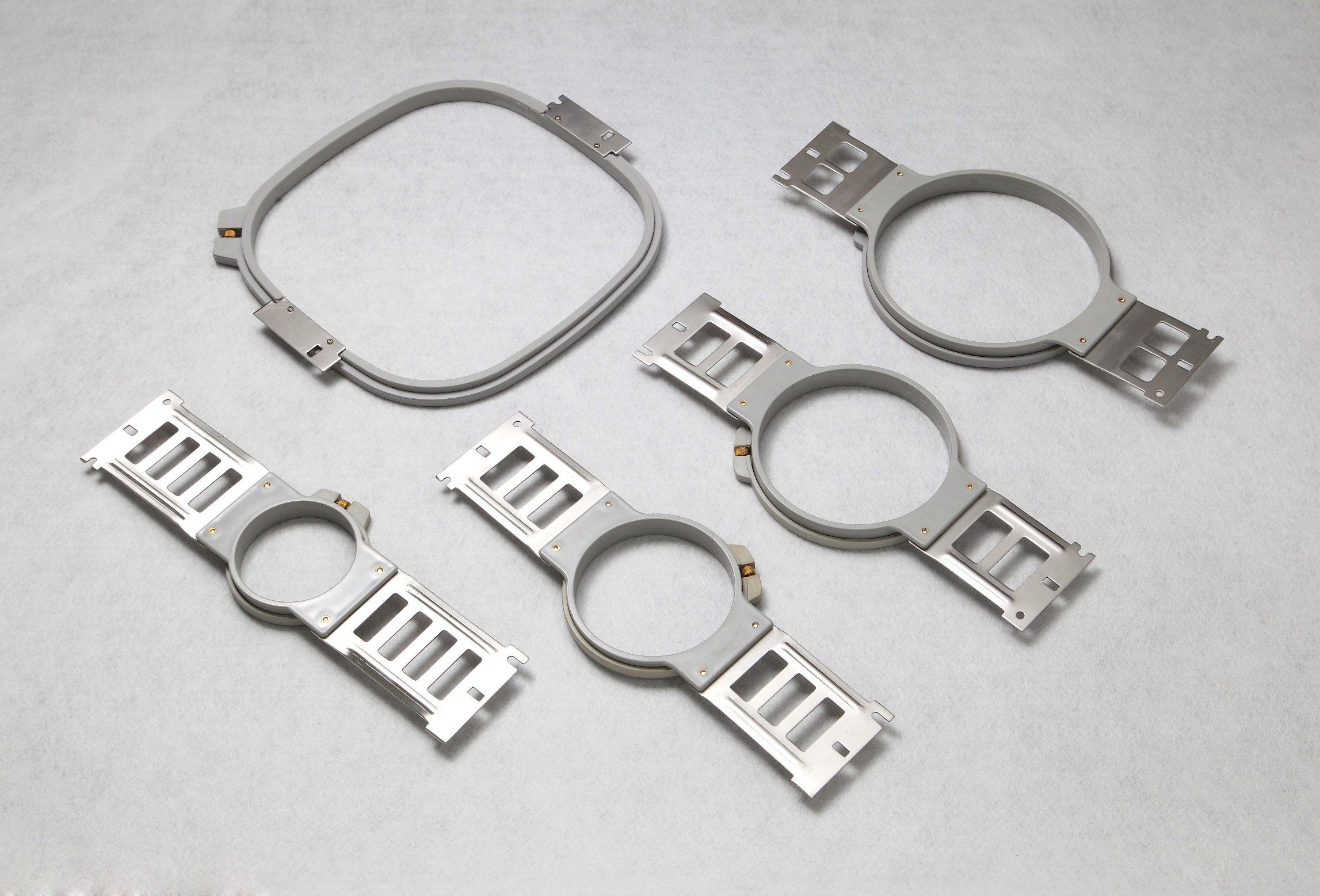

III. Frames/hoops
1 Sash Frame: 40.5cm X 48cm (16" X 19") for single head, 81cm X 48cm (32" X 19") for 2 head
2 sets of back hoops for 30cm X 30cm (11.80" X 11.80") for each head
2 sets of front hoops of 19cm (7.50") for each head
2 sets of front hoops of 15cm (5.90") for each head
2 sets of front hoops of 12cm (4.70") for each head
2 sets of front hoops of 9cm (3.50") for each head
Cap attachment;
IV. Accessories
Table top
Operation Manual
Tool Kit
Optional Devices:

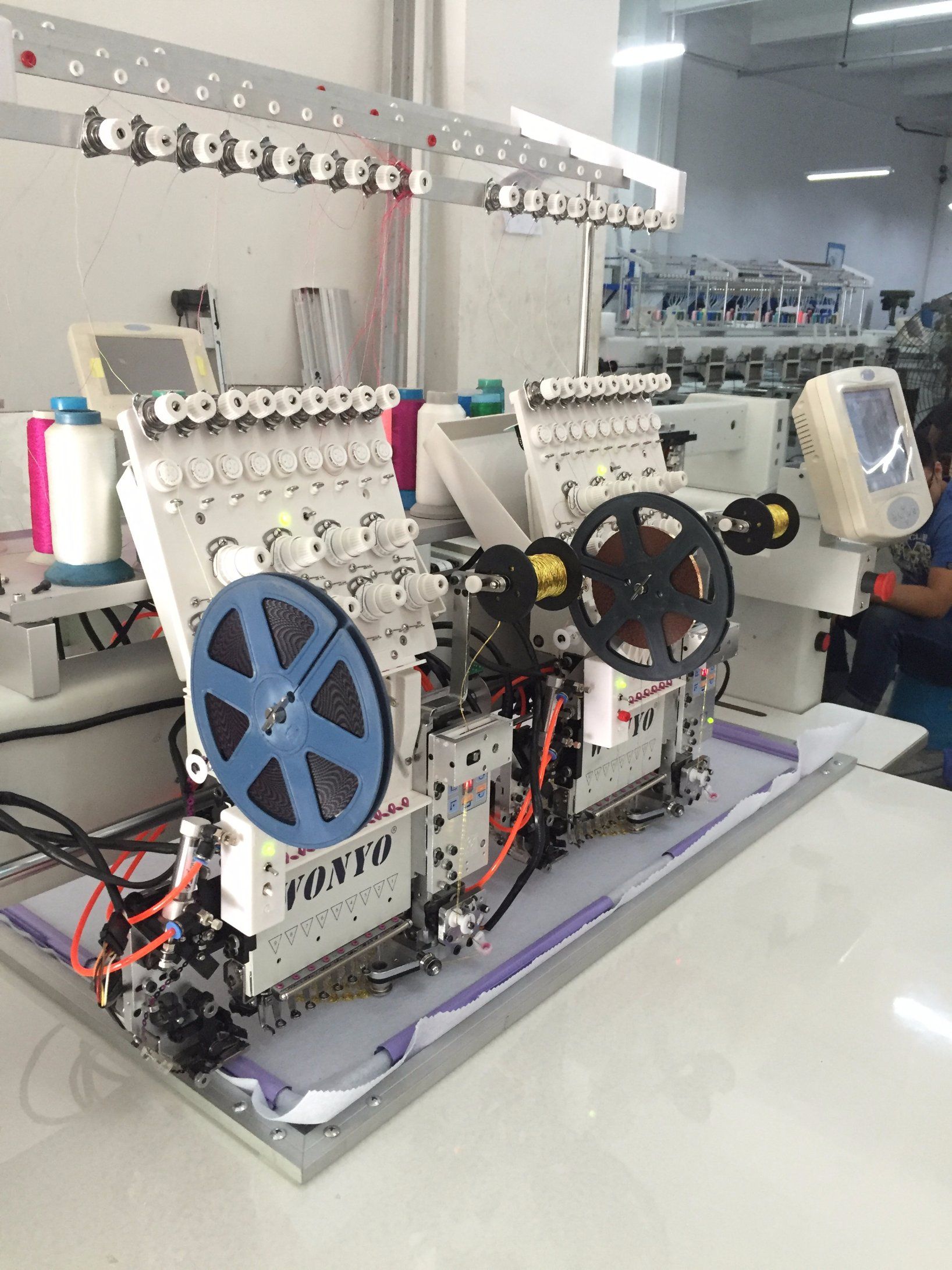

Single sequin device: install on both side of the head (first needle or end needle) | Simple coiling/cording device: install on both side of the head (first needle or end needle) |
Eight in one device: install on hoop frames (embroidery on pocket, sock,ect) | Simple taping device: install on both side of the head (first needle or end needle) |
Boring device: install on each needle | laser position device: install on all single head machine |
Models:
Model | Needle | Head | N.weight | Embroidery area |
WY1202C/902C | 12/9 | 2 | 450kg | 400*450mm |
WY1204C/904C | 12/9 | 4 | 700kg | 400*450mm |
WY1206C/906C | 12/9 | 6 | 1100kg | 400*450mm |
WY1208C/908C | 12/9 | 8 | 1200kg | 400*450mm |
WY1212C/912C | 12/9 | 12 | 1800kg | 400*450mm |
