Prod Model: |
WY1201CS |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Warranty: |
12 Months |
Main Motor: |
Panasonic Servo Motor |
Xy Motor: |
Stepper Motor |
Rail: |
Linear Rail |
Belt: |
Italy Brand Belt |
Bobbin Core: |
Aluminum Bobbin Core |
Embroidery Size: |
360*510/360*1200mm |
Control Panel: |
7 Inch Dahao/Topwisdom LCD Screen with 12 Language |
Needles: |
Groz-Beckert Needles |
Knitting Product Type: |
Hat |
Knitting Style: |
Flat |
Knitting Method: |
Single |
Computerized: |
Non-Computerized |
Certification: |
ISO9001: 2000 |
Condition: |
New |
Type: |
Embroidery Machine |
Knitting Machine Cut: |
Wy1501c/1201c |
Product Description

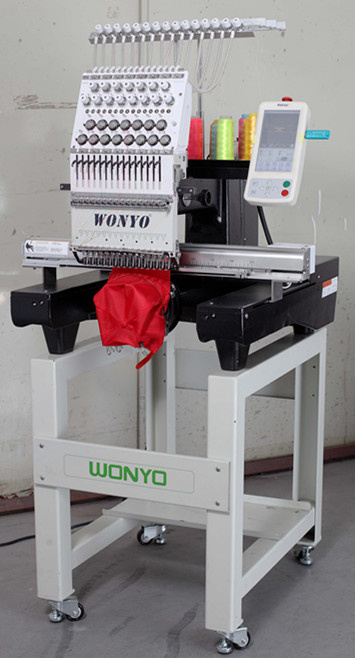

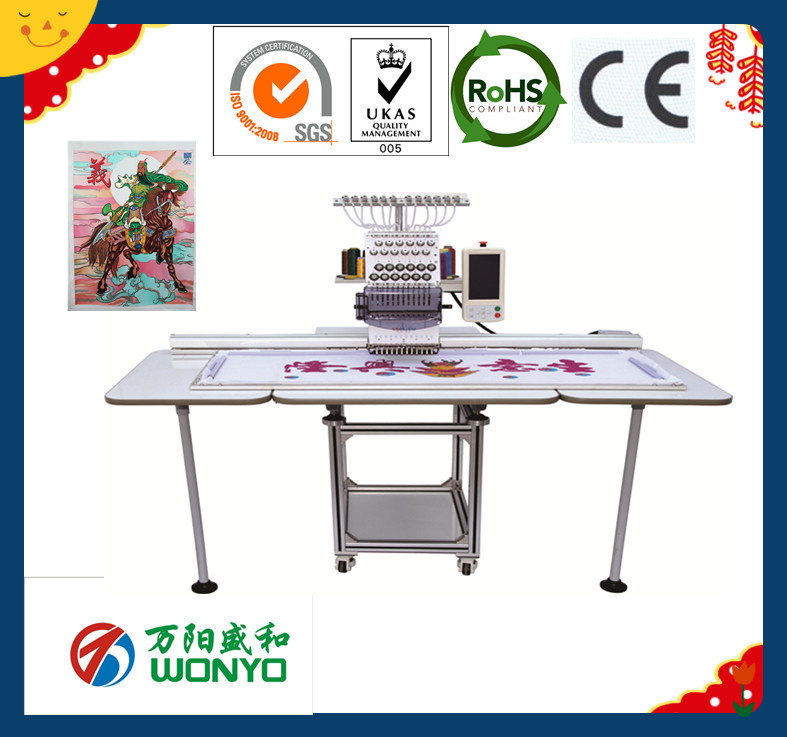

2017 New Flat and Cap Computerize Embroidery MachineSingle head embroidery machine with 3 different models: 360*510mm, 360*1200mm, 500*1200mm
Suitable for cap embroidery, tshirt embroidery and flat embroidery, mixed sequin embroidery, cording/coiling embroidery, taping embroidery, bead embroidery ...
7" LCD touch screen with 12 languages including English, Spanish, Portuguese, French and etcPlease feel free to contact us:
Sales contact: Nicki Wang
Look for agent all over the world!
Flexible embroidering, auto-trimmer, auto color-change, and could be set manually.
Single head could choose 12/15 needle.
Max Speed could be adjusted to 1200RPM.
Continue to operate the machine when the power is unexpected failure, designs own the function of tracing, with thread-broken inspection, after the electricity failure, computer show the error information and protect the designs.
With three functions: T-shirt, Cap and flat, also with automatic winding device. Option device: Cording device, boring device and sequins device.
Outfit:
One head, 1215 needle(colors), BMW painting, Dahao new type high-tech color computer, Panasonic Servo Motor, Japan Hirose hook, NSK bearing, Japan original screw, Organ needle, Italy belt, Auto-trimmer, Arm-type tubular/cylindrical frame machine, big wheel for movement, wooden package.
NEEDLES | HEAD | EMBROIDERY SPACE(L*W) | LENGTH(mm) | WIDTH(mm) | HEIGHT(mm) | WEIGHT(kg) |
12/15 | 1 | 360*510/360*1200mm | 1130 | 830 | 900 | 150 |
Model1: 360*510mmModel2: 360*1200mmModel3:500*1200mmPlease feel free to contact us:
