| Prod Model: |
D-3000I |
| Function: |
Bed Sheet Folding |
| OEM: |
Available |
| Air Consumption: |
500L\Min |
| Material: |
Metal |
| Service: |
Engineer Available Service Machine Overseas |
| Classification: |
Professional Folding Machine |
| Folding Type: |
Double Parallel Fold |
| Computerized: |
Computerized |
| Automatic Grade: |
Automatic |
| Paper Inputting Type: |
Flatwork Feeding |
| Type: |
Bed Sheet Folding Machine |
Product Description

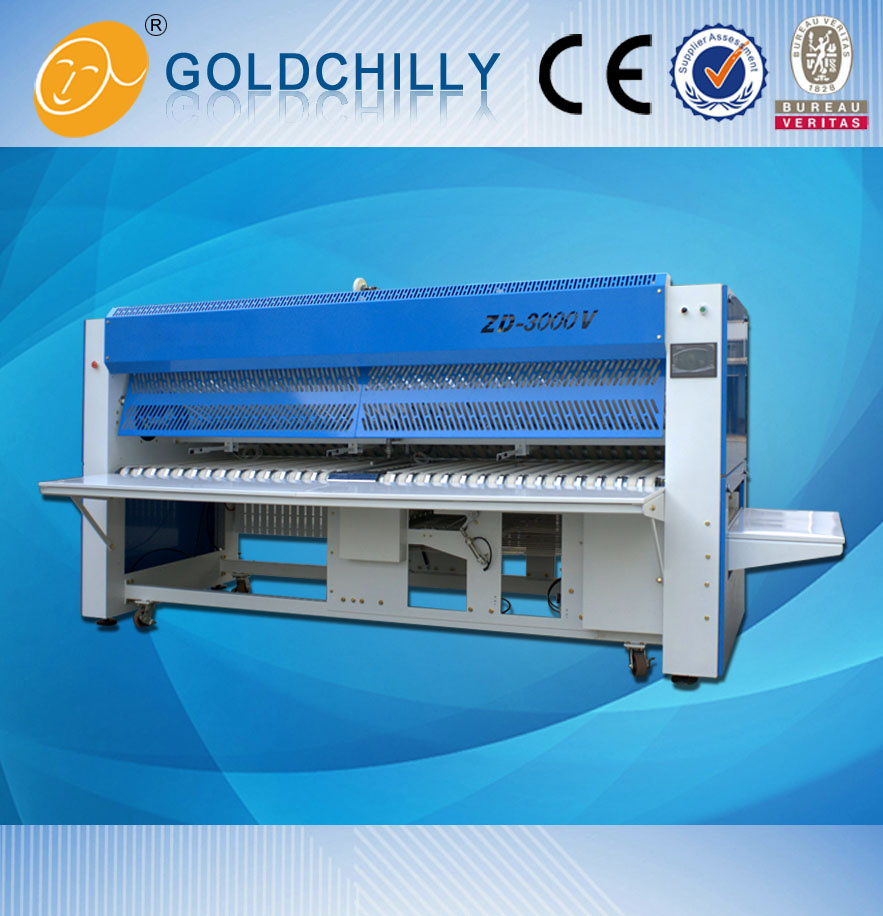

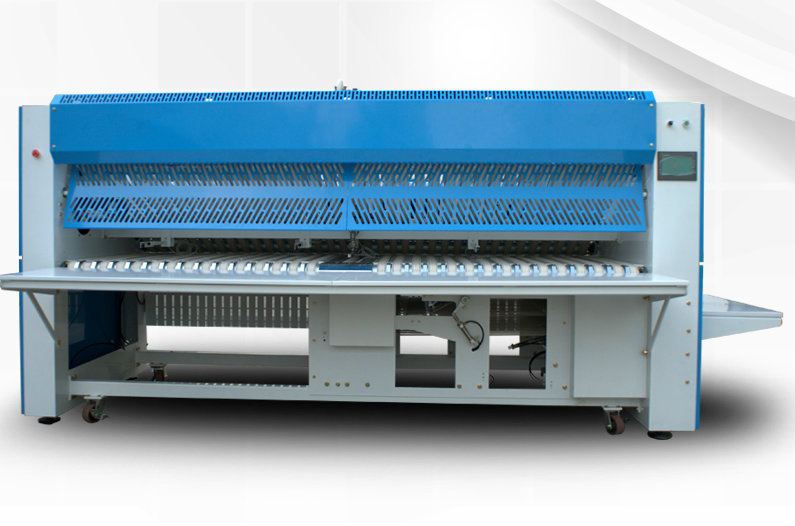

3.0m Industrial Bedding Folder Tablecloth Folding Machine for Sale
3.0M industrial bedding folder tablecloth folding machine for sale is suitable for connecting with all kind of flatwork ironer; it can automatically fold output flat fabric from flatwork ironer.
Performance and features:
1.Adopting big LCD screen and intelligent control system for ensuring perfect dialogue of human-machine.
2.Dual-transverse and three longitudinal system result in 5 times of fold, max folding function can be 32 layers.
Finishing fold task by intersection of airflow and strobe for ensure folder quality.
3.Adopting intellectual PLC control system, frequency converter andmicro computer control system for ensuring
calculation accuracy, output accuracy of judgement and action, so that result in accuratefold quality.
4.Imported photo-electricity checking and sensor spare parts, acute and accurate,control circuitry of 24V low
voltage, safety and reliability, convenient maintenance.
5.Customer can randomly select one-fold, two-folder and five-fold according to sheet area.
6.This equipment is suitable for connecting with all kinds of palletizer.
7.Dual channel and four channel folder can be fabricated according to customer demand.
Main parameters
Model | Unit | D-3000I | D-3300I |
| Capacity | kg | 25 | 35 |
| Maximum folding width | mm | 3000 | 3300 |
| Maximum folds times /layer | | 5/32 | 5/32 |
| Max folding speed | m | 50 | 50 |
| Rated voltage | V/Hz | AC380/50 | AC380/50 |
| Motor power | Kw | 1.3 | 1.3 |
| Air inlet pipe φ | inch | G1/2" | G1/2" |
| External dimension | MPa | 500 | 500 |
| Air consumption | L/min | 500 | 500 |
| Machine net weight | H | mm | 1760 | 1760 |
| D | 2800 | 2800 |
| W | 4116 | 4416 |
| Machine weight | kg | 1600 | 1650 |
Packaging & Shipping
Q1: What is the folding machine MOQ?
A1: 1 set of folding machine.
Q2: Are the folding machines available for wholesale, OEM?
A2: Both are yes.
Q3: What is the payment term? of the folding machine
A3: 50% T/T deposit, balance before shipment.
Q4: How long is the lead time? of the folding machine
A4: 3-15days after full payment received.
Q5: What about the after-sale service?
A5: a. 2 years warranty.
b. If our Jinzhilai technical team is called for installation, the surcharge will be made in advance by the purchase at US$100/person/day plus all travel expenses, including the all transportation fee, hotel accomodation, 3 daily meals.
