| Prod Model: |
WSH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
700W-15kw |
| Starting Wind Speed: |
3m/S |
| Panel Max Power: |
150W |
| Blade Material: |
Extra-Strong Engineering Plastics |
| Protection: |
Electromagnetic Torque Control and Bra |
| Packing Material: |
Carton Box and Foam Material |
| Warranty: |
3years |
| Application: |
Home |
| Specification: |
Normal |
Product Description
We can supply system include:
off grid solar power system 300w-30kw single phase , 1kw-100kw three phase
off grid wind energy system 300w-20kw single phase, 1kw-50kw three phase
off grid solar wind hybrid system 300w-30kw single phase , 1kw-100kw three phase
on grid solar power system 300w-5kw single phase , 5kw-100kw three phase
LED solar street light all in one design 6w-80w
400W solar +1000W wind +2kw pure sine wave inverter, it will can take 2kw load for home use
Solar & wind hybrid systems product mainly use for home, street lights system
Both of them are Economic, Green and Environmentally Friendly.
At night or rainy day, wind turbine generate wind power. In sunny day, solar panel generate solar power. In windy and sunny day, both of them generate power.
Wind turbine: 3PCS or 5PCS blades optional; Guy cable tower or free stand tower optional;
Solar panel: Mono or poly panel optional; Battery capacity and quantity can optional;
On grid hybrid system:
Solar +wind +on grid hybrid controller+ grid tie inverter

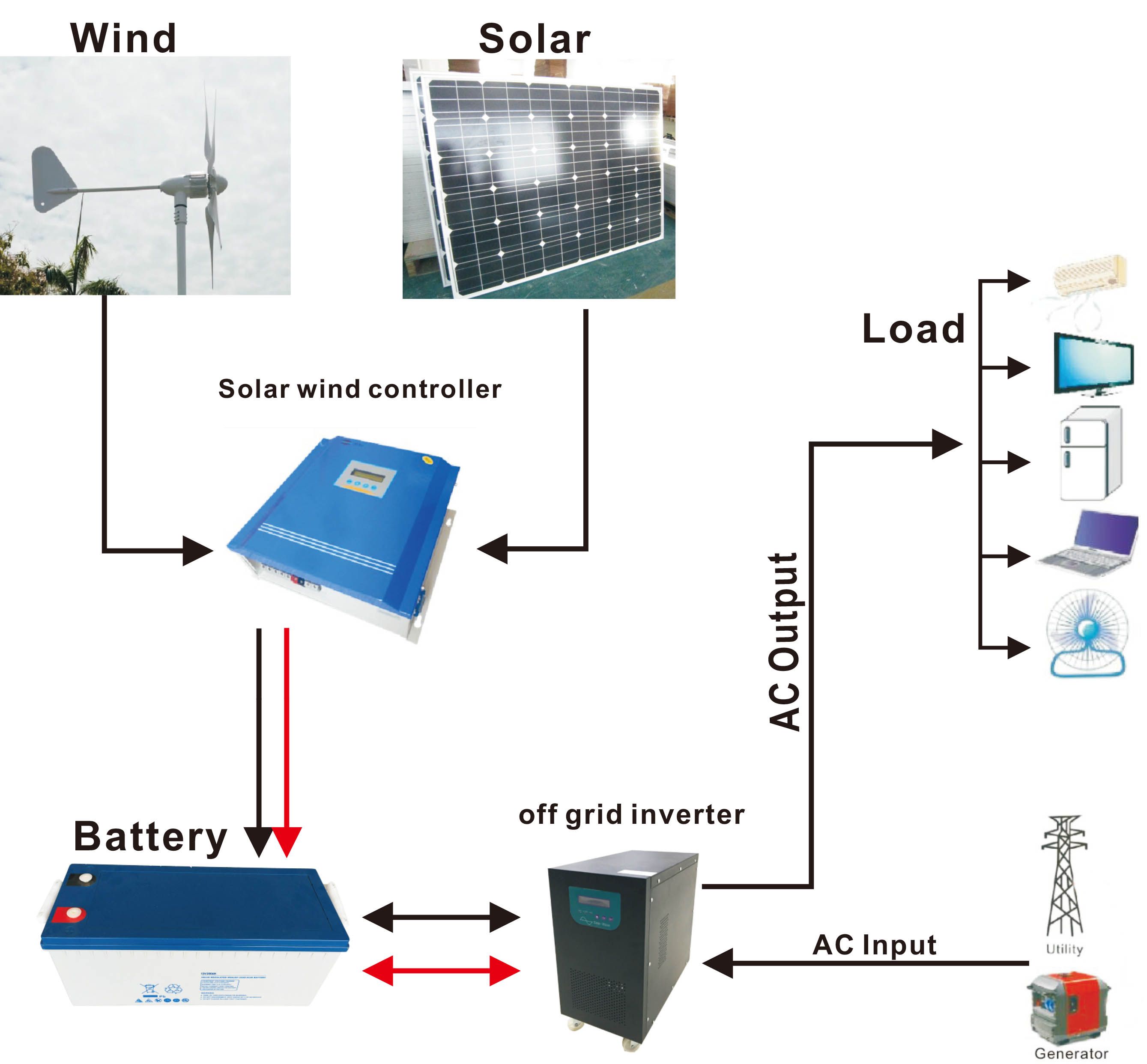

Off grid hybrid system:
Solar +wind +hybrid controller +off grid inverter +battery
Solar wind hybrid power system kit features:Solar Modules: performance is guaranteed with 25 years.
A. 25 years transferrable power output warranty: 10 years/ 95%, 15 years/ 90%, 25 years/ 80%.
B. 10 years material and workmanship warranty.
Solar inverters: 10 year, free life-time repairing service on components.
Solar mounting kits: 10 years.
Other components: 5 years.
How the solar wind hybrid power system working :This Solar system not only have solar power system function, but also have Utility complementary function. When main power off ,
the solar system can switch automatically to take use off solar power from battery to run load,
When solar power not enough and power off , it can switch automatically to main power and connect with grid electricity take use of main power .
at the same time charging battery. This is very suit for home use.
1kw off grid solar wind hybrid power system parts:| Item | QTY | Spec |
| Solar panel | 1pcs | 200w(24V) Mono or Poly solar panel |
| Wind turbiner | 1pcs | 600w (24V) Wind turbiner |
| Solar Wind controller | 1pcs | 200w solar + 600w wind hybrid controller |
| off grid inverter | 1 | 1kw/24vdc 220v 50hz off grid inverter |
| Gel battery | 2pcs | 12V/200AH Gel battery |
| Panel rack and Wind pole | 1set | 1pcs rack and 3M pole |
| Cable | 1set | all connect cable |

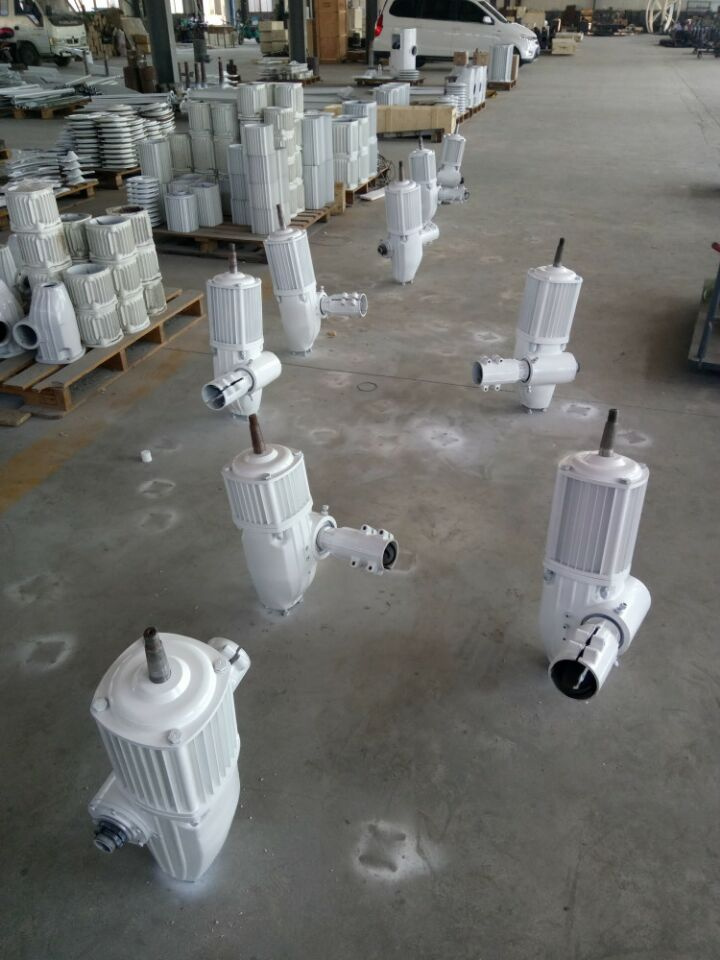

produce picture:

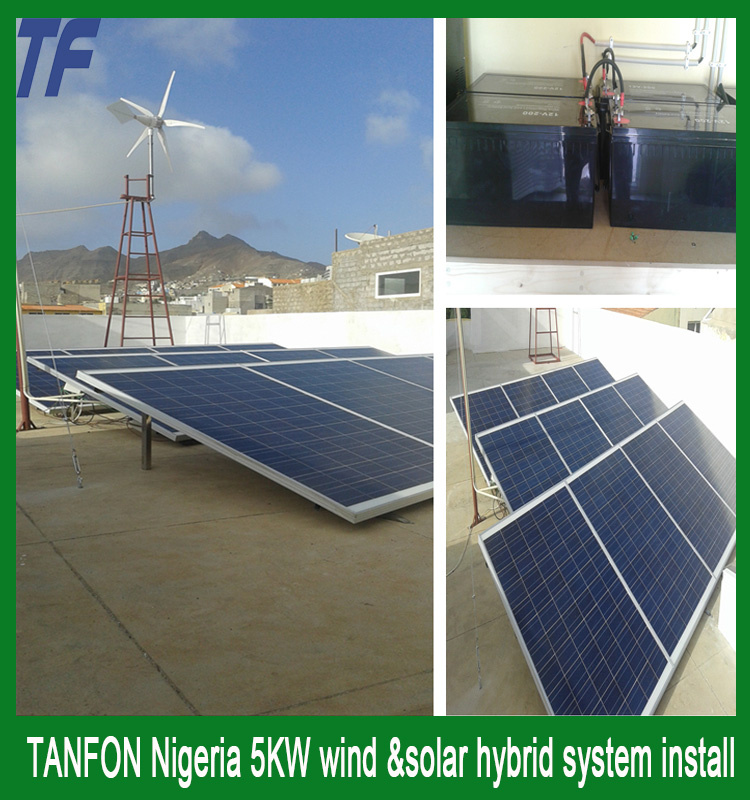

project picture:
