| Prod Model: |
WY1204C |
| Main Motor: |
Servo |
| X.Y Motor: |
Stepping |
| Speed: |
850 Rpm; Customized 1000rpm |
| Frame: |
6 Kinds |
| Languages: |
12 Kinds |
| Needle: |
Groz-Backert |
| Belt: |
Italy Belt |
| Machine Color: |
White / Black / Yellow |
| Control System: |
Topwisdom 8" Touch Screen |
| Warranty: |
24 Months |
Product Description

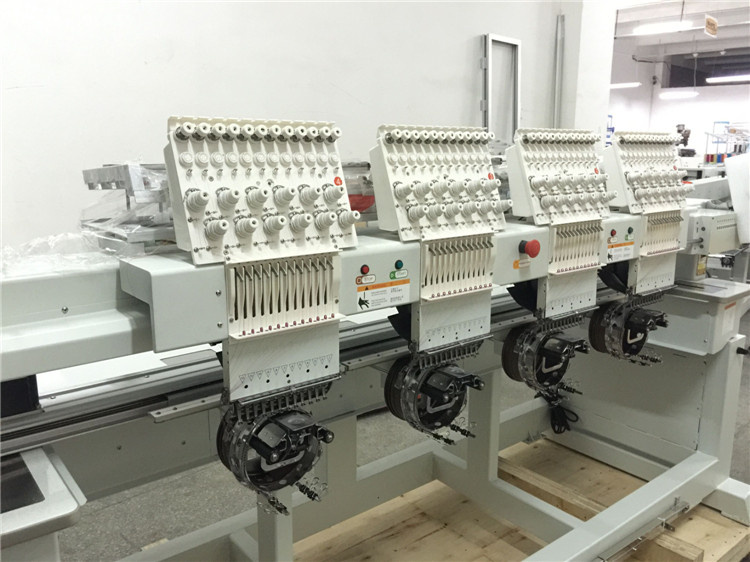

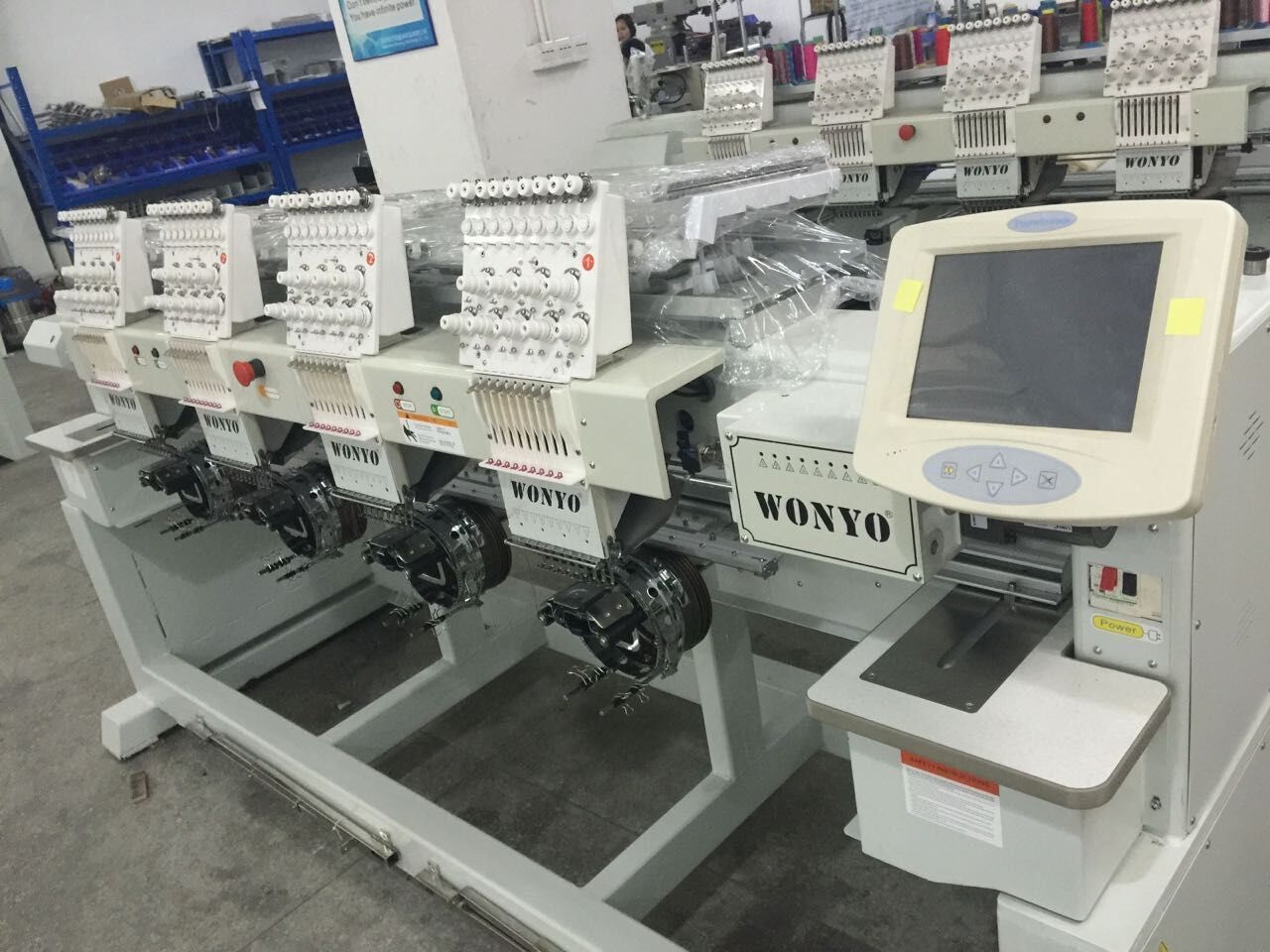

4 Head Tajima Computerized Embroidery Machine for Cap and T-shirt
Product description
Main features
1. Suitable for flat bed embroidery, cap Embroidery and finished garments embroidery
2. Free changing between finished garments frame and cap frame
3. 270° wide cap frame unit
4. Pattern auto rotation with 180°after changing cap frame unit
5. Convenient power failure recovery embroidery function,prevent embroidery half-way off cause misalignment
6. Rotating speed 850 RPM, 1000 RPM can be customized
7. LCD display showing real time stitching
8. Memory size 2,000,000 stitches matched with 200 patterns
9. USB and network transmissionsupport
10. Full screen pre-view design trace capable
11. U disk partten previwe function support
12. Emergency stop ,prevent accidents
13. Auto start and color change,200 times color change setted
14. Thread break detection and prevention
15. Main shaft support shutdown with axle and without axle,it could be adjusted anytime
16. Perfect partten stitch compensation, customers could change the stitch width (+/-0.3mm) according to needs
17. Electricity:AC100-220Vinput available,adapt to any country

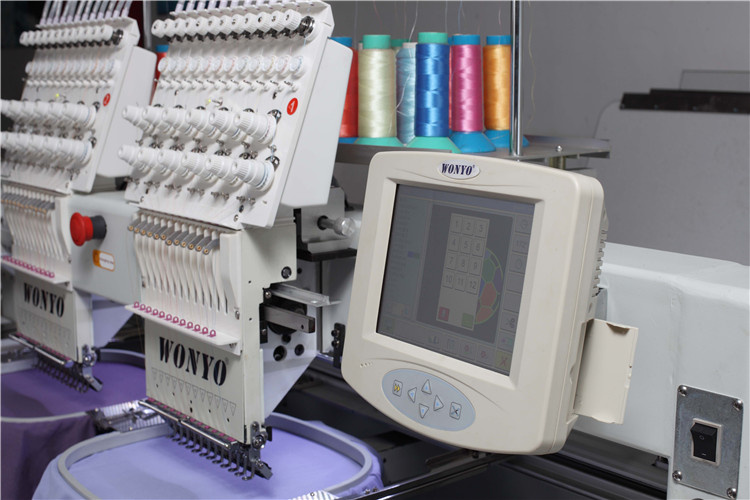

Full color control panel
1. 8 inch definition color LCD display and touch screen showing real time stitching
2. Simple HCI and operation mode multi languages available
(English,Chinese,French,Russian,Dutch,spanish,Portuguese,Turkish,German,Arabic,Thai,Vietnamese)
3. Main interface monitoring machine condition any time
4. Quick manual trimming,color changing and main shaft inching operation
5. Function keys including Menu,speed up and slow down (also page up and page down)
6. Frame-moving keys,Help, USB-Input, parameter settings, clear, ESC, enter, etc
7. Start,Stop,and emergency Stop
8. Embroidery status down
(also Page Up and Page Down)
9. Dot key to return to 100 degrees
10. Numeric keys for selection of needles
11. On-board lettering

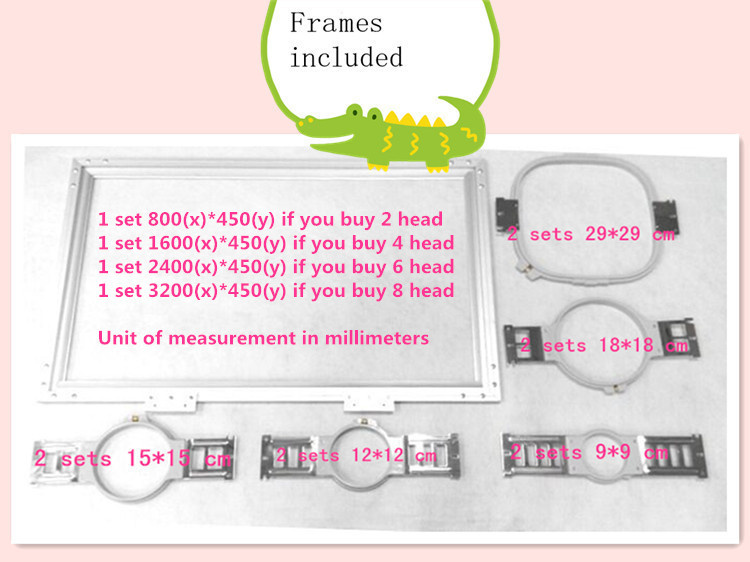

Hoops/frames included
1pcs x aluminum embroidery box 450x 1600 mm
2pcs x square hoops 290*290mm
2pcs x round hoops 180mm per head
2pcs x round hoops 150mm per head
2pcs x round hoops 120mm per head
2pcs x round hoops 90mm per head

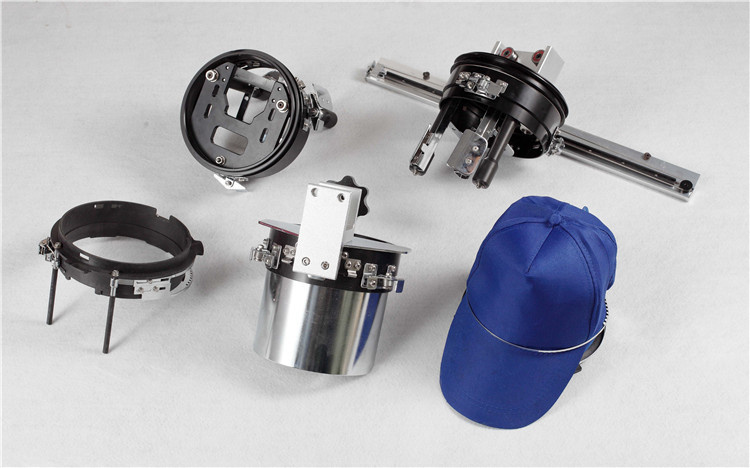

Cap Attachment Included
2pcs x cap ring
1pcs x hoop station
1pcs x cap driver
Other accessories
1pcs x Table top

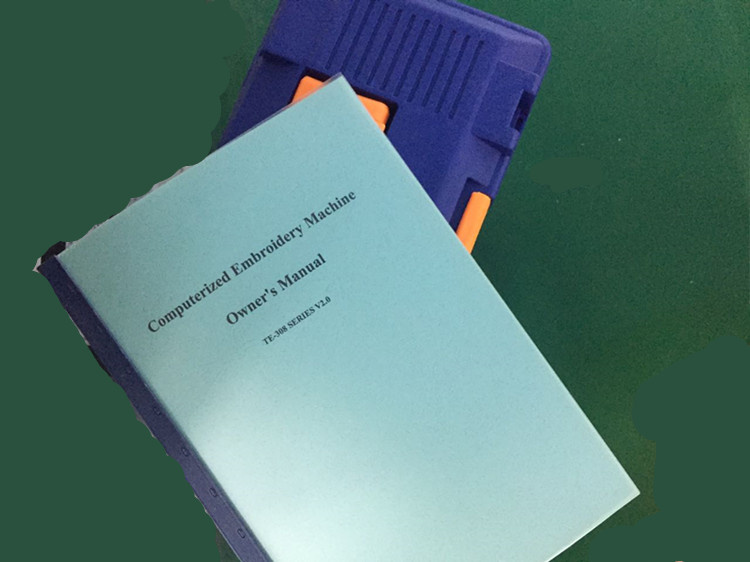

1pcs x Operation manual
1pcs x Tool kit
1pcs x Bobin winder
1pcs x U disk
Optional devices
1. Sequin device
2. Boring device
3. Simple Coiling/Cording
4. 8 in 1 device (for shirt pockets, socks, cap backs, bags, shirt sleeves, collar tips, gloves, cuffs of sleeves, ribbons, CD cases,)
Testing and inspection
The machine will be fully assembled and tested in our factory to the standard test procedures. If the customer has arranged any special test materials or test procedures these will be carried out the same time. Upon approval, the machine will be packed and shipped.
Installation
Staff in Shenzhen factory will install the machine and a training period for the operator and maintenance person will be provided after the machine being set up in Shenzhen Factory.
Packaging
Wooden Case/as Customer Required
| Model | Needle | Head | N.w
G.w | Emb.area | Machine size
Packaging size
CBM |
| WY1204CS/WY904CS | 12/9 | 4 | 720KG
900KG | 400*450MM | 2638*1090*1500mm
2700*1140*1660mm
5.110CBM |
Delivery and payment term
Delivery term :Production takes around 20 days ship within 7-10days after receiving 100% payment .
Payment term:30% TT advance payment before production, 70% TT remaining balance before shipping.
Warranty
SHENZHEN WANYANG TECHNOLOGY CO., LTD Warrants that the whole machine will be free from defects in material and workmanship for a period of 12 months. But customer is responsible for the expense if our engineers are needed to serve overseas. 24 months' free upgrade and repair for the control system.
Company information
Shenzhen Wanyang technology Co., Ltd is a highly advanced technology enterprise in which design, manufacture and marketing are integrated.
The main focus of our company is single head embroidery machine, cap embroidery machine, finished garments embroidery machine, shoes embroidery, multifunctional sewing and embroidery machine, laser cutting and embroidery machine, customized service of intelligent and automatic sewing equipment.
