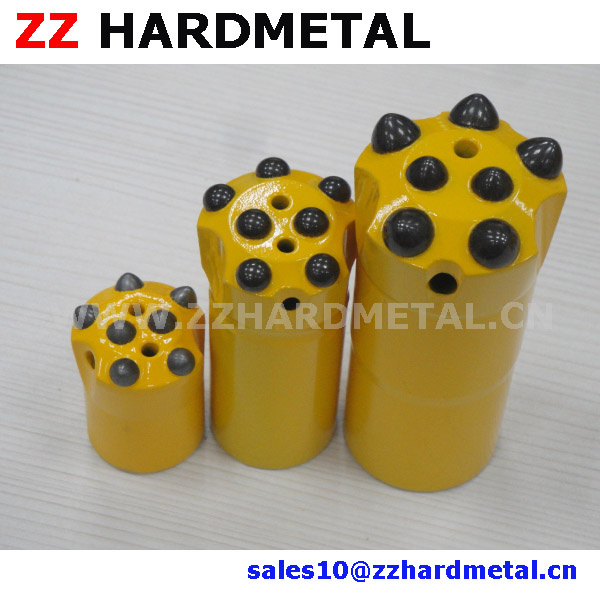

7 Buttons Rock Oil Field Thread Button Bit
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,EXW,CIF |
Min Order: |
50/Piece |
Pay Type: |
L/C,T/T,Western Union |
Prod Model: |
D32 D34 D36 |
Markets: |
North America,South America,Eastern Europe,Africa,Mid East,Western Europe |
Delivery Time: |
7~15 Days |
Certification: |
ISO9001: 2000 |
Condition: |
New |
Product Description
Material of button bit: All-steel, wear-resistant coating, alloy plate, tungsten carbide buttons
Hole diameter: 35-105mm

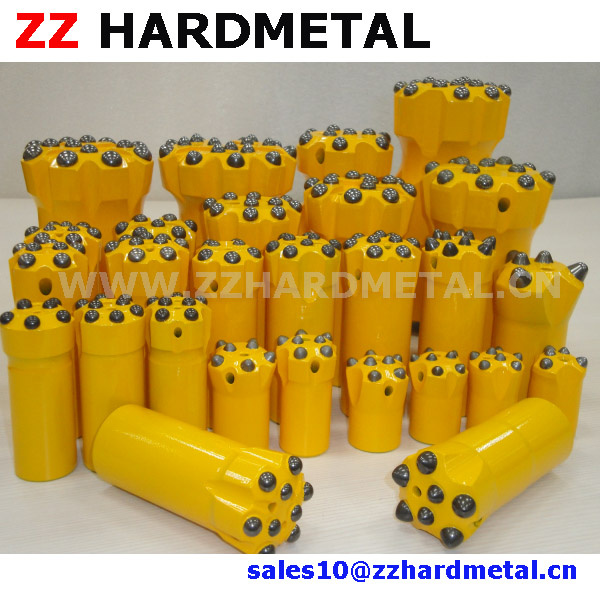

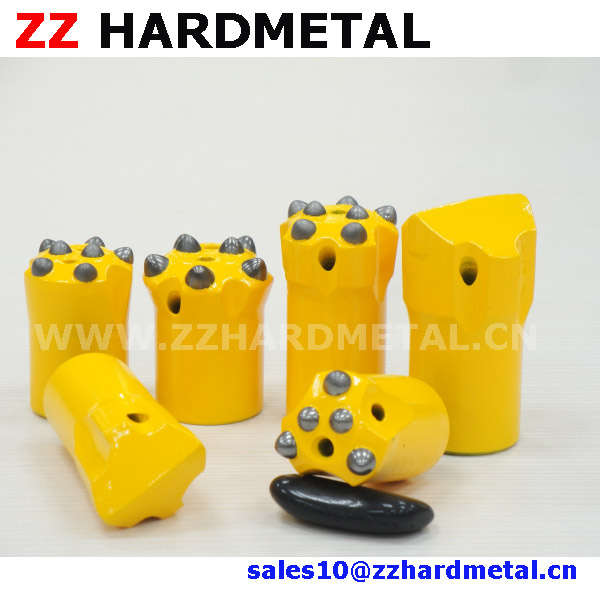

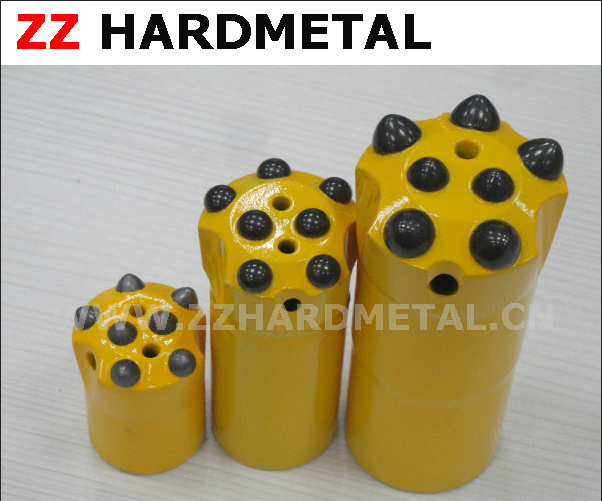

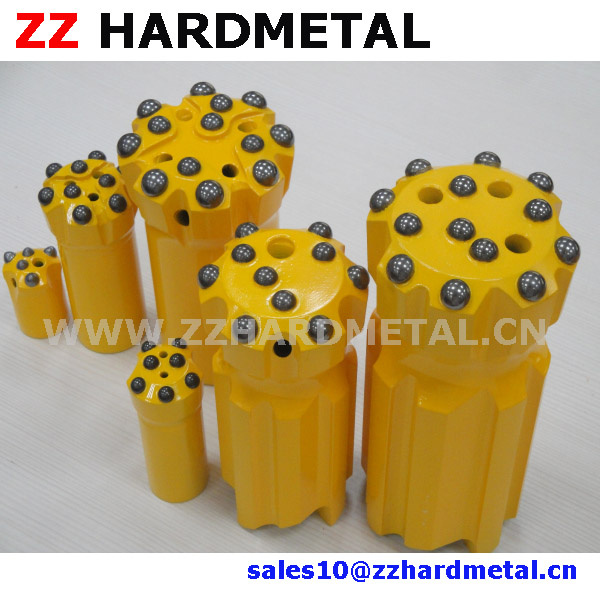

Thread button bit:
Diameter: 40 mm -200 mm (D)
Bit Type: Button Bit, Cross Bit
Button Type: Hemispherical, Ballistic, Conical
Thread: R32, R38, T38, T45, T51, T60, ST58(T)
Bit Body: Standard
Bit Face: Flat, Concave, Convex
Button Bits technical elements:
1, the choice of 6% CO, HIP sintered alloy hardness greater than or equal HRA90.5, flexural strength greater than or equal 2600Mpa. The wear resistance and strength of the alloy to achieve a good fit.
2, optional 4340 steel, heat treatment, strength of 1200Mpa, hardness HRC42-45. Ensure Teether effect of the product.
3, cold forming steel body, tapered bore, shape once forging, metal flow lines to ensure the continuity of the steel body stable. Maximum product quality assurance.
4, inlaid with gold teeth blind holes and water holes, heat treatment after machining center using a molding process to ensure consistency and efficiency of perforations.
5, using hot mounting process to ensure Teether effect of the product.
ZZ HARDMETAL was established in the year of 2007, We are specialized in tungsten carbide marketing over ten years. With stable products quality, professional service, competitive prices, our customers range over 50 countries and regions.
In the year of 2010, we set up our first Branch Company----ZZ WIDIA in Sao Paul, Brazil. Now ZZ WIDIA is the Sole Agent of several Chinese T-C factories in Brazil, The regular stock products include: Indexable inserts, end mills, cold forging dies, tungsten carbide strips and so on.
We have our own Lab for inspection and we are holding a tungsten carbide factory: Zhuzhou Old Craftsman Precision Carbide Co., Ltd, and at the same time, we have shares in several tungsten carbide factories and Precision-Processing factories, we had already built a very nice long-terms business relationship with lots of tungsten carbide enterprises.
We are familiar with almost all the products related to tungsten carbide, and we have very rich stock of moulds for production. Especially for Precision Processing products, customized products, products with special materials request, Tungsten carbide welding products and so on, we have unique advantage to produce
We are a professional Chinese manufacturer of tungsten carbide products. We work with nine cemented carbide factories by joint stock method. Each factory has their strongpoint products.
Factory 1: Inserts, shims, woodworking tools, saw tips, percussive drill tip.
Factory 2: Cold forging dies, carbide disc, carbide mining bits, plates, carbide tyre nailFactory 3: Carbide drawing dies.
Factory 4: Carbide burrs.
Factory 5: Carbide rods, carbide bars
Factory 6: Carbide balls & seats.
Factory 7: Carbide ceramic tile cutter.
Factory 8: Mining tools
Factory 9: Carbide powder
Depending on our talented engineers and skillful workers, we always provide our customers the products with good quality, competitive price, fast turnaround and reliable after sales service.
We own the specialized export company - Zhuzhou ZZ Import and Export Co., Ltd. Our products are exported to USA, Europe, etc. And got trust from our customers. Along with our company growth, we hope to build business with more company abroad.
My company export more than USD5, 000, 000 every year, have more than 300 cusotmers and many customers long term cooperation.
We ensure, based on my company high quality and service, you will never regret to choose my company.
We are waiting for you.
