| Prod Model: |
WY908C |
| Winding Device: |
Automatic Winding Device |
| Thread Frame: |
up-Down Thread Frame |
| Warranty: |
24 Months |
| Tshirt Hoops: |
80 Pieces |
| Flat Hoop: |
1 Piece |
| Cap Attachment: |
16 Sets |
| Computer: |
Topwisdom 10 Inch LCD Display |
| Needle: |
Groz-Beckert Needle |
| Languages: |
12 Different Kinds of Languages |
| Stand And Table: |
Included |
Product Description

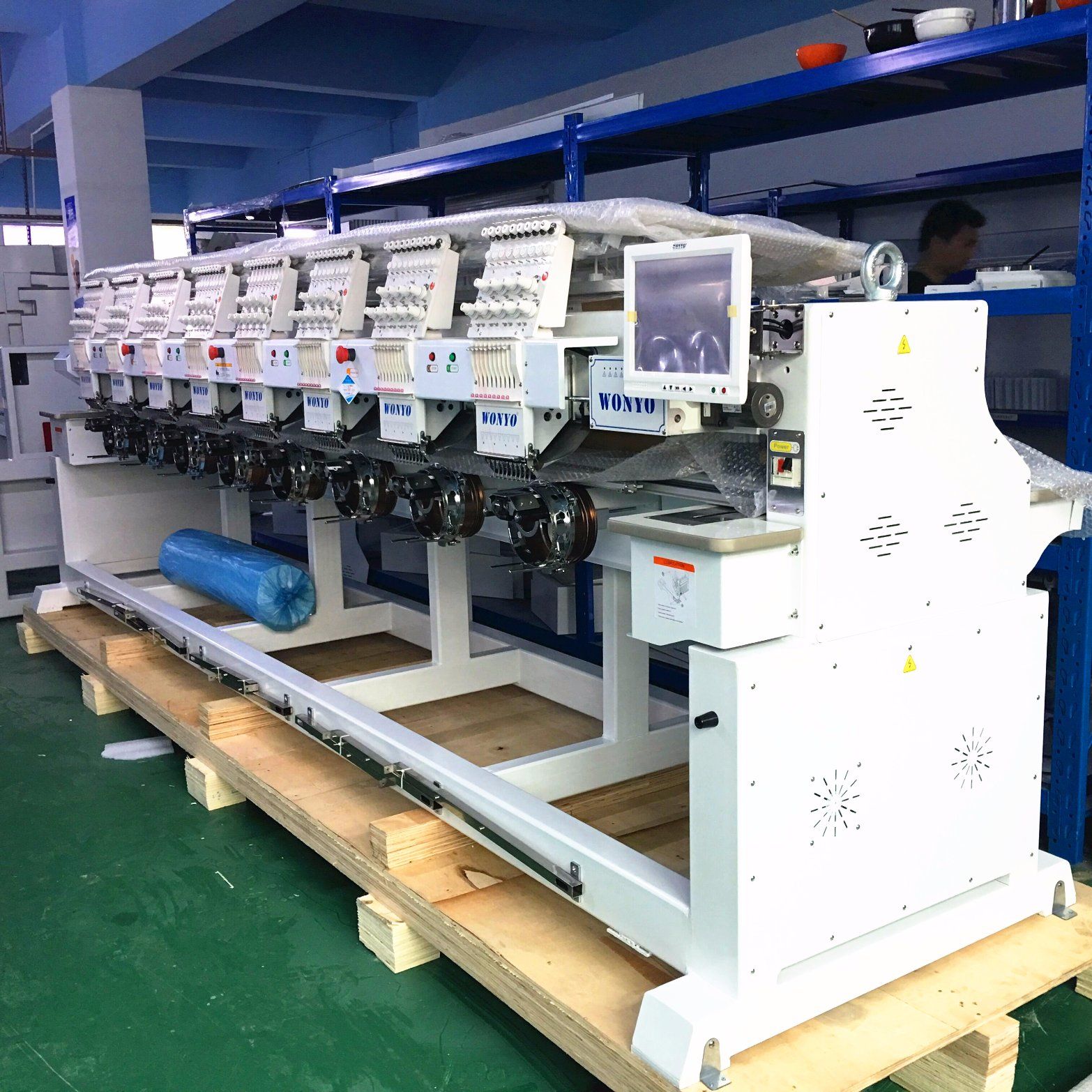

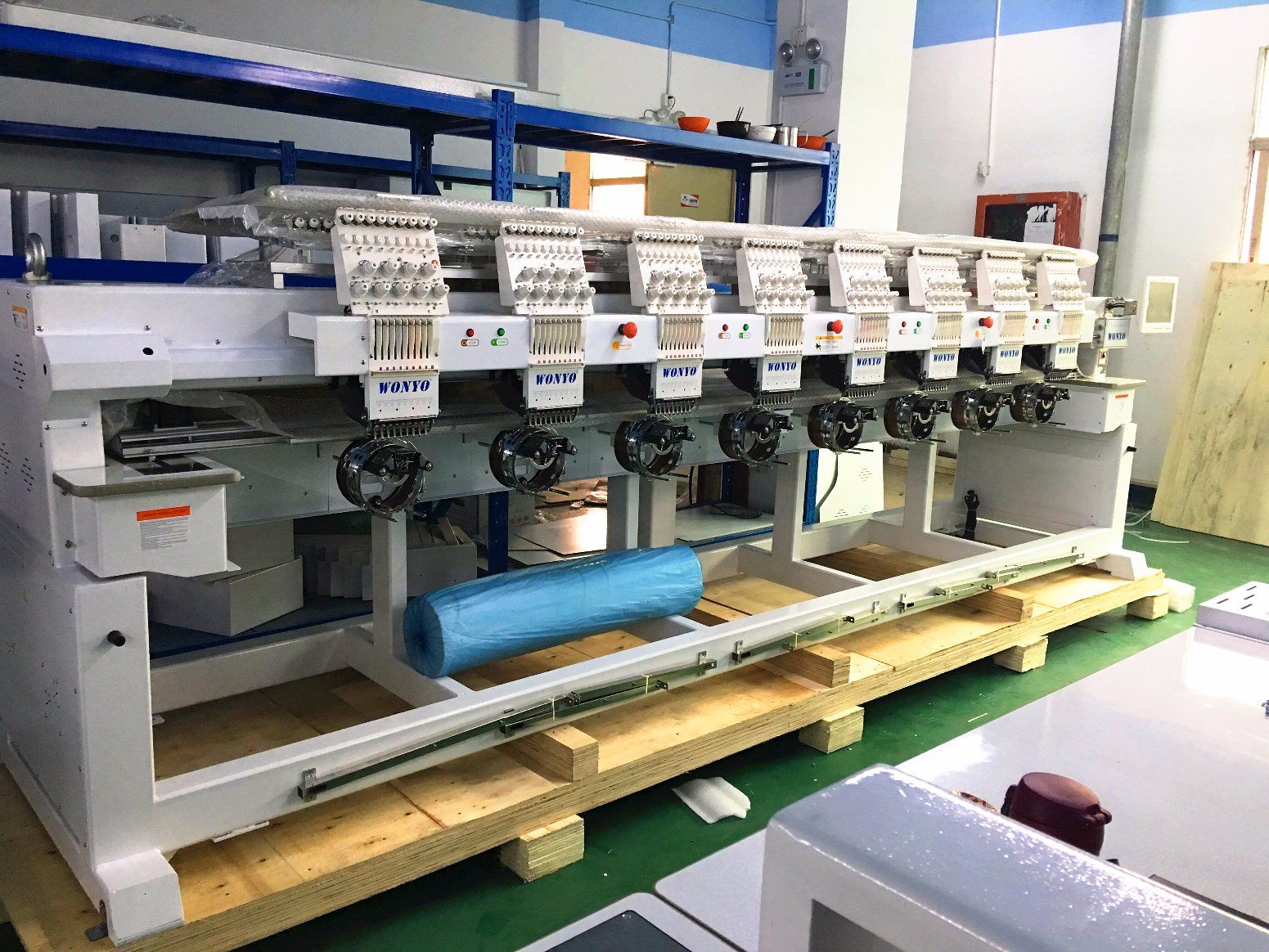

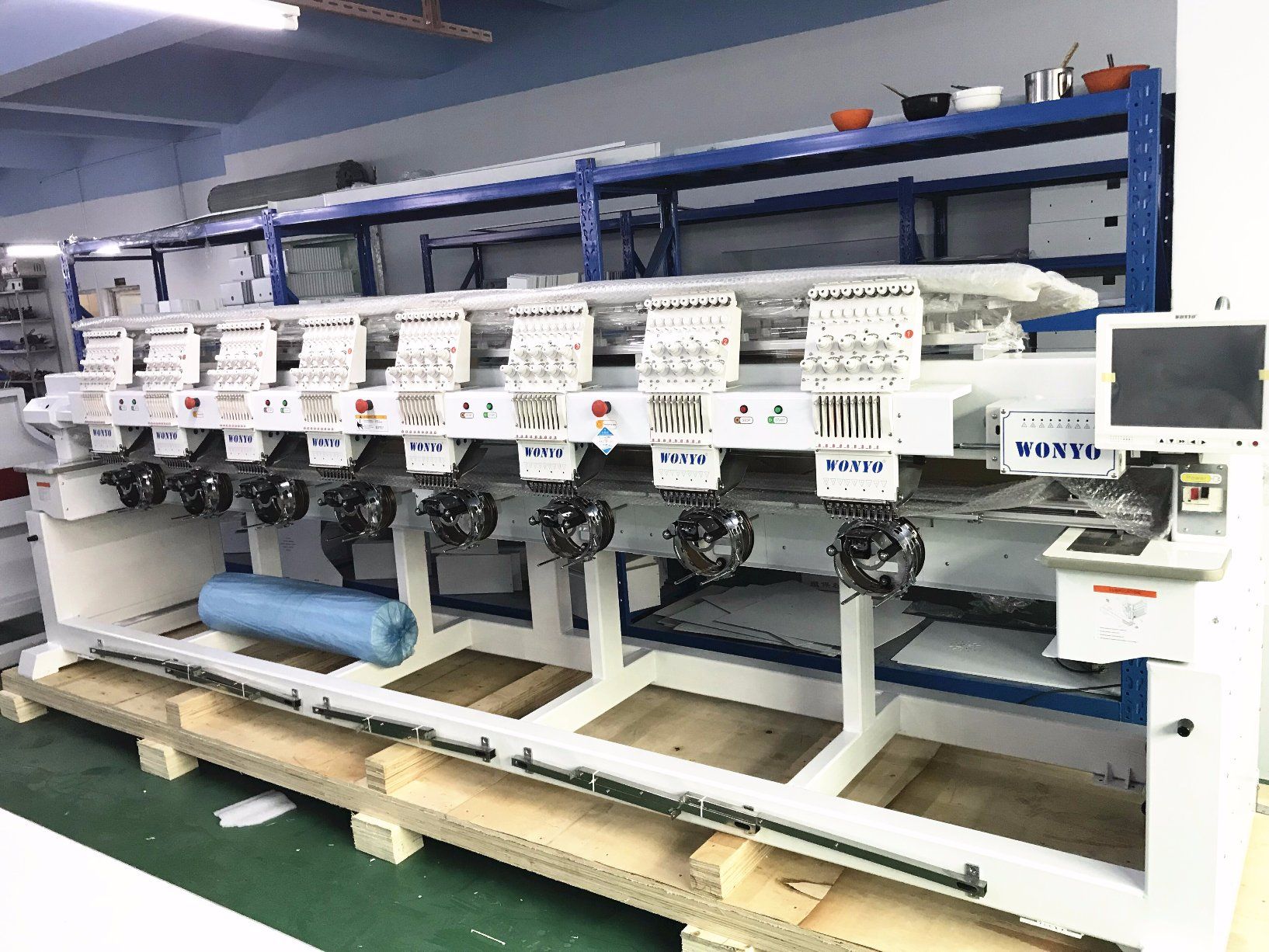

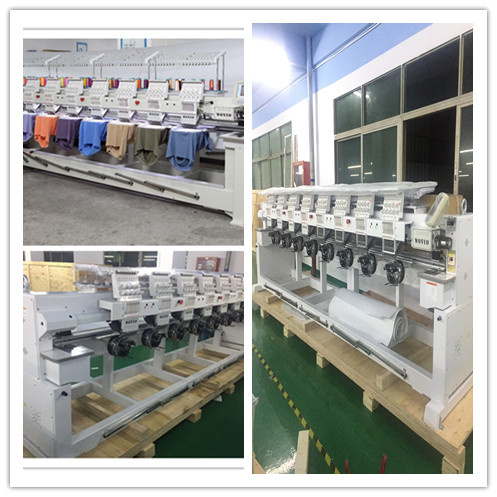

8 Head Computerized Embroidery Machine Tajima Wilcom Embroidery Software
Eight Heads Models:
Model | Needles | Heads | Net Weight | Embroidery Area | Overall Size |
| WY908C | 9 | 8 | 1100kg | 400*450mm | 4700*1150*1650mm |
| WY1208C | 12 | 8 | 1100kg | 400*450mm | 4700*1150*1650mm |
| WY1508C | 15 | 8 | 1100kg | 400*450mm | 4700*1150*1650mm |
*cap embroidery
*t shirt embroidery
*textile flat embroidery
*towel embroidery
*cording embroidery
*sequin embroidery
*bead embroidery
*taping embroidery
*boring embroidery | Main parameters |
| Function | cap embroidery, t shirt embroidery, flat embroidery... |
| Model# | WY908C |
| Speed | 850-1200 stitches per minute |
| Main Motor | Panasonic Servo Motor |
| XY Motor | Stepper motor |
| Digitizing software | Dahao |
| Embroidery Design format | DST, DSB |
| Control Board | Topwisdom, 10" LCD touch screen |
| Language | English, French, Spanish, Portuguese, Arabic... total 12 languages |
| Voltage | AC110-220V, adaptable for any volatge |
| Power | 50-60HZ |
Main Features:
1.8 inch LCD touch screen with 12 languages
2.LCD display supoorts USB and Network transmission
3.Suitable for flat, cap and finished garment embroidery
4.Maximum Speed:850 RPM
5.Memory size:20,000,000 stitches matched with 200 patterns
6.Convenient power failure recovery embroidery function, prevent embroidery half-way off
7.Full screen pre-view dceasuisgen mtirasaceli cganpmaebnlte
8.Emergency Stop, Prevent accidents
9.Auto start and color change ,200 times color change settled
10.Perfect pattern stitch compensation, cusotmers could change the width(+/-0.3mm) according to need
11.Autimatic thread trimming and cutting

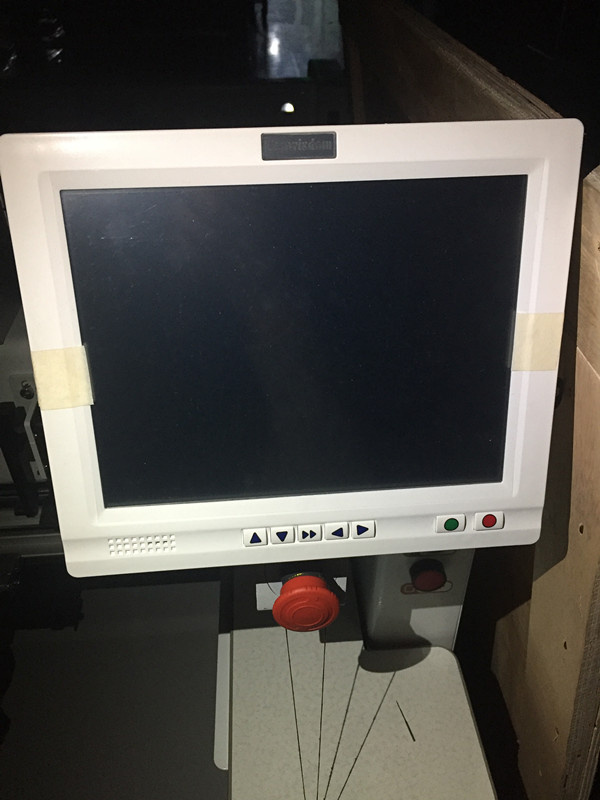

Full Color Control Panel:
8 inch LCD display touch screen with 12 languages
Color LCD display showing real time stitching
Start, Stop, and emergency Stop
Function keys including Menu, Speed up and Slow down,(also Page Up and Page Down), Help, USB input,
Dot Key to return to 100 degrees, Parameter Settings,Clear, ESC, Enter, etc.
Numeric keys for selection of needles
Embroidery Status
Manual Trimming
On-board lettering
Manual Color Change
Multi languages available
| Control System |
| Automatic trimming | yes |
| Automatic cutting | yes |
| Automatic color change | yes |
| Thread broken detecting | yes |
| Memory size | 20,000,000 stitches/200 embroidery design patterns |
| Font/letter software | available |
| Error code | yes |
| Real-time stitching | yes |
| Different languages setting | yes |
| USB port, network transferring design | yes |
| Laser position with red light | yes |
| Led light | yes |

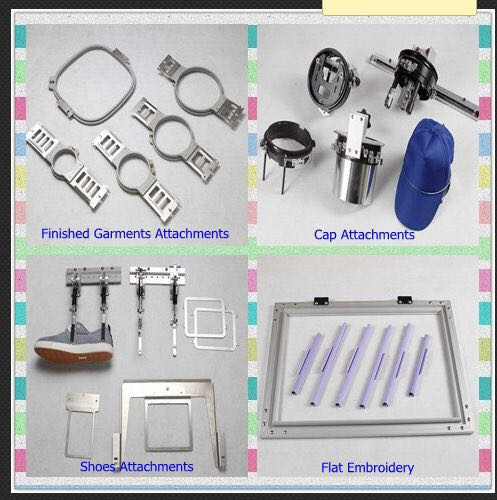

| Accessories included |
| Frames:( free sent) |
2 sets of back hoops for 30cm x 30cm (11.80" x 11.80") for each head
2 sets of front hoops of 19cm (7.50") for each head
2 sets of front hoops of 15cm (5.90") for each head
2 sets of front hoops of 12cm (4.70") for each head
2 sets of front hoops of 9cm (3.50") for each head |
| Cap attachment | (2 cap ring, 1 cap drive, 1 cap frame)for each head |
| Flat frame | 1 Sash Frame: 81cm x 48cm (32" x 19") for 2 heads |
| Foot wheels | included for easy movement of the machine |
| Operation manual | English and French version, other languages can be added |
| Bobbin Winder | Included |
| Tool box | yes, with needles, reciprocators, sensor, bobbin... |
| Optional Devices: |
| Sequin embroidery |
| Taping embroidery |
| Boring embroidery |
| Cording/Coiling embroidery |
| Bead embroidery |
| Packing details |
| Packing material | Fumigation-free wooden box |
| Packing size | 4510*1130*1670mm |
| Gross-weight | 1335kg |
| Other request | As customer required |
FAQ:1.Am new to embroidery business, how do I choose embroidery machine? It depends on the business you want to deal in. For example, if you want to do embroider on both cap and tshirt, you can choose the machine with cap attachment. If you just want to embroider on
tshirt because cap embroidery has no market in your local city. You can choose just tshirt and flat
embroidery. All of our machines have accessories sent for free to meet your demands for cap,
tshirt and flat embroidery.2.What will come with the machine? There will be A.cap attachment B.5 different sizes of tshirt hoops C. flat frame D.operation manual in English E. Tool box with commonly used parts and some easily broken part F. Bobbin winder G.Foot wheels H. Table 3.Do we need some more installment once we receive the machine? No need for more installment, the machine will be packed as complete one. Only one thing
needing to be done is guide the threads. We will have video copied in the USB which will be put
in the tool box for your better understanding!4.Does the computer must be compatible with some special design format? Yes friend, DST and DSB format will be.5.Then how can we make the design into DST and DSB format? There are many digitizing softwares which can make the designs, such as Wilcom, Dahao and
etc..If you need buy, we can supply it also.6.This is the first time I do importing. How to ship the machine to me? We can ship machine either by sea or by air. Please just inform us of the nearest sea port name
or airport name when you contact us. and we will check the freight for you.7.Do we need pay anything else if we received the machine? Yes, there will be some importing tax according to the law of your country ^_^8.How to make the payment to you? Mainly, Wire transfer(TT) is the most commonly used method. Credit card, Echecking, Cash is
also acceptable on our side.9.If there is some faulty with the machine, how can we repair it? We will help you with it via online video.
machine directly and follow the steps of technician. We can also do service overseas if customer needs10.What's the warranty for the machine? It's 2 years for the whole machine and 3 years for the control system. During the warranty,
customer can send the faulty parts back for repairing(easily broken parts are excluded)
Look For Agent All over the world!!| Other models as choice to meet your demands for embroidery business |
| Model# | Head# | Needle# | Embroidery Area | Speed | Package Size |
| WY1201C, WY1501C | 1 | 12/15 | 360*510mm | 1200SPM | 840*840*930mm |
| WY1201CL, WY1501CL | 1 | 12/15 | 360*510mm | 1200SPM | 1580*1040*1100mm |
| WY11201CL, WY1501CL(customized) | 1 | 12/15 | 500*1200mm | 1200SPM | 1500*1100*1200 |
| WY902C, WY1202C | 2 | 9/12 | 400*450mm | 850SPM | 1710*1060*1480mm |
| WY904C, WY1204C | 4 | 9/12 | 400*450mm | 850SPM | 2700*1140*1660mm |
| WY906C, WY1206C | 6 | 9/12 | 400*450mm | 850SPM | 3760*1140*1690mm |
| WY908C, WY1208C | 8 | 9/12 | 400*450mm | 850SPM | 4510*1130*1670mm |
| WY910C | 10 | 9 | 400*450mm | 850SPM | 4910*1130*1690mm |
| WY912C | 12 | 9 | 400*450mm | 850SPM | 5838*1490*1600mm |
Welcome to visit our factory in Shenzhen, China.
Feel free to contact us for price and video of the machines.
Sales contact: Nicki Wang(008618696118389)youtube link: https://www.youtube.com/watch?v=KB4Y82oDQJg
Address:No. 1 B, Weihao Technology District, Yangguang Industrial Park, Xili Town, Nanshan
District, Shenzhen, Guangdong, China Look for agent/distributor all over the world!
