Al2O3 92% 95% Abrasive Ceramic Wear Tile Lining (10106 mm)

Name: Al2O3 92% 95% Abrasive Ceramic Wear Tile Lining (10*10*6 mm)
Brand: FullPackage
SKU: 696749542
Availability: InStock
Rating: 4.6 (26 reviews)

Price:	US $ 1500-2500/Ton
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Ton
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Ceramic mosaic tile
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	Alumina Ceramic Square Mosaic Tile
Alumina Content:	92%~95%
Density:	3.6~3.7g/Cc
Property:	High Hardness/Purity/Wear Resistant/Wear Impact
Compressive Strength:	850~1000MPa
Mat:	Paper, Net, Silk, Rubber
Size:	Available and Customized Size
Applied Equipment:	Chute, Hopper, Silo, Bunker, Funnel, Conveyer
Application Industry:	Cement, Coal, Mining, Steel, Thermal Power,

Product Description

Ceramic Square Tile Product Salient Property:
1)Excellent wear and abrasion protection property
2)Lower production and maintenance cost
3)Excellent corrosion resistance property
4)Excellent impact resistance property
5)Excellent heat resistance property
6)Easy to handle size and weight
7)Fast and safe installation

Chemshun Ceramic Advantage:
1)Afford the standard and pre-engineered tiles
2)Professional technical team to afford CAD designs
3)Professional installation team to afford install service
4)Well established process as per international standards

Technical Data of Alumina ceramic product from Chemshun
Properties	Unit	Typical Value
Alumina Content	%	92	95
Density	g/cc	≥3.6	≥3.7
Water Absorption	%	None	None
Rockwell Hardness	HRA	80	85~88
Compressive Strength	20ºC,Mpa	850	950~1000
Flexural Strength	20ºC,Mpa	280	300
Max Using Temp	ºC	1250	1250
Thermal Expansion Coefficient	1x10-6/ºC	7.3	8.3

Square tile from Chemshun
Length(mm)	Width(mm)	Thickness(mm)
50	50	6/10
33	33	12.5/15/25
25	25	4
20	20	3/4/5/6/12/13
20	20	8 (groove face)
17.5	17.5	3/4/5/6/10/15
12	12	3/6
10	10	2/3/6

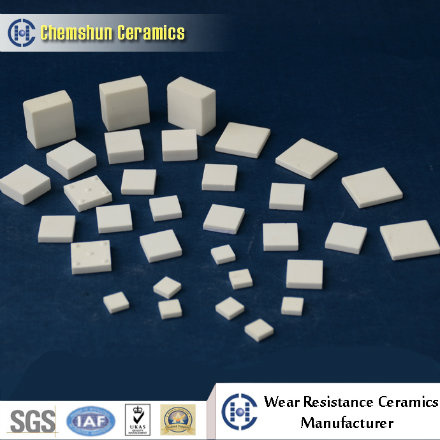

Ceramic Square Tile

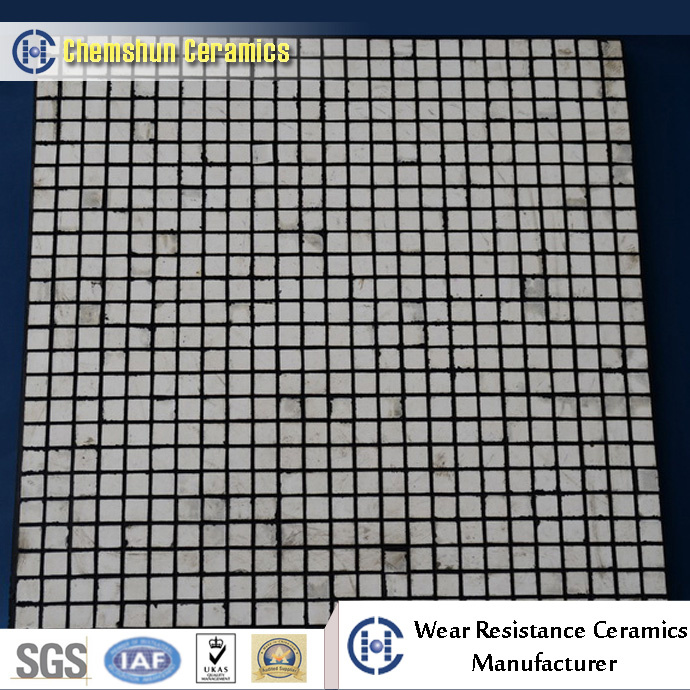

chemshun wear resistant alumina ceramic square mosaic tile as ceramic linings

Application Industry from Chemshun
Industry	Equipment System	Equipment parts
Cement	Pre-blending system for crashing limestone and crude fuel	Chute,Bunker,Pulley lagging,discharge cone
	Raw mill system	Feed chute,Retaining ring,Scraper plate,Seal ring, Pipeline,Bucket guard,Cyclone,Powder concentrator body,Bunker
	Cement mill system	Chute,Bunker,Fan vane wheel,Fan casing,Cyclone,Circular duct,Conveyer
	Ball mill system	Pulverizer exhauster's body and vane wheel,Powder concentrator's body,Pulverized coal's pipeline,Hot air duct
	Sintering system	Inlet/Outlet bend,Wind value plate,Cyclone,Chute,Dust collector's pipe
	Afterheat system	Separator's pipeline and wall
Steel	Raw material feeding system	Hopper,Silo
	Batching system	Mixing bunker,Mixing barrel,Mixing disk,Disk pelletizer
	Sintered material transport system	Hopper,Silo
	Dedusting and Ash discharge system	Dedusting pipeline,Bend,Y-piece
	Coking system	Coke hopper
	Medium-speed mill	Cone,Separation buffles,Outlet pipe,Pulverized coal's pipeline, Burner cone
	Ball mill	Classifier,Cyclone separator,Bend,Powder concentrator's Inner shell
Thermal power	Coal handling system	Bucket wheel machine,Coal Hopper,Coal Feeder,Orifice
	Ball mill system	Separator's pipe,elbow and cone,Coal mill's elbow and straight tube
	Medium-speed mill	Coal mill body,Separation buffles,Cone,Pipeline,Elbow
	Fall mill	Pulverized coal's Pipeline and Elbow
	Dedusting system	Dedusting's Pipeline and Elbow
	Ash discharge system	Fan duster's shell,Pipeline
Port	Transporting material system	Bucket wheel machine's disk and hopper, Transfer point's hopper,Unloader's hopper,
Smelting	Transporting material system	Measuring hopper,Coke hopper,Vibrating screen's chute,Head valve,Intermediate Bin,Tail bin
	Batching system	Batch hopper,Mixing machine
	Burning system	Ash bucket,Pump calcine tube,Hopper
	Dedusting system	Dedusting's Pipeline and Elbow
Chemical	Transporting material system	Hopper,Silo
	Dedusting system	Dedusting's Pipeline and Elbow
	Processing equipment	Vibromill liner
Coal	Coal handling system	Bucket wheel machine,Coal Hopper,Coal Feeder,Silo
Coal	Coal washing system	Hydrocyclone
Mining	Transporting material system	Hopper,Silo

Service:
Any requirment about chemshun Alumina Ceramic Square Mosaic Tile ,Abrasive Resistant Ceramic Square Tile, Alumina Ceramic Liner Vulcanized Into Rubber and wear resistant ceramic product Backing, alumina ceramic rubber wear plate and Wear Resistant Rubber Ceramic Panels, please feel free contact us and chemshun we'll afford you the most suitable product and best service. web:www.chemshun.com . Tel:86-799-6790781

Export:
Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our clients.

Pingxiang Chemshun ceramics Co., Ltd is a manufacturer of 95% & 92% Al2O3 alumina and ZTA (Zirconia toughness Alumina) wear resistant ceramic liner products. Chemshun ceramics was established in 2002, we have 15 years of professional ceramic producing and import & exporting experierence. Chemshun have the products and service of: Design, produce, sell, as follows:

1) 95% Al2O3 Alumina, 92%Al2O3 alumina, ZTA, abrasion wear resistant ceramic liner / linings and high quality grinding beads and grinding balls.

Chemshun manufacturing wear resistance Ceramic liner including: Alumina ceramic plain tile, ceramic weldable plate, alumina pipe liner, ceramic blocks, abrasion resistant lining, lined pipe and fitting, ceramic linings, wear-resistance ceramic linings, chemshun pre-engineered equipment lined ceramics and paiting, custom designed alumina ceramic, hexagonal ceramics sheet, square ceramic lining pieces, ceramic liner, Ceramic Conveyor Pulley Lagging, ceramic tube and all kind of engineered ceramics, the finished equipment according to drawings. Ceramic Grinding balls, griding cylinders. Products used in the mineral, steel, power, port, cement, ceramic, glass etc industries, and was fixed on the equipment of chute, cyclone, cone, fan etc.

2)Catalyst support media /support covering materials (Inert ceramic balls, 99 alumina balls, all kind of ceramic/alumina rings) and all kinds of tower packings(Mat: Eramic/Plastic/Metallic), saddles, pall rings, flower rings, raschig rings, cascade mini rings etc) and ceramic honeycomb products.

Aim for servicing with the global maket, we established a new factory in 2008 which mainly supplys the high alumina wear resistant product and the high quality catalyst support media. In 2016year we establish a new producing line special for 99.5%Al2O3 and 99% Alumina balls.

Has strong research and production capability, with an annual production capacity of 5000 tons of wear-resistance product (grinding balls & lining bricks, alumina plate, alumina mosaic product), 1500m3 catatalyst support /covering materials (inert ceramic balls, 99alumina balls, ceramic honeycomb materials) and 1500m3 various chemical packing. We aim to serve clients from all over the world.
