| Prod Model: |
RRD-Alu |
| Max Size: |
5000mm*5000mm |
| Material: |
Aluminum Alloy |
| Type: |
Rolling |
| Open Style: |
Rolling |
| Opening Type: |
Induced |
| Certification: |
CE |
| Position: |
Industrial |
| Surface Finishing: |
Finished |
| Special Function: |
Fast Running |
| Color: |
Various Colors |
Product Description

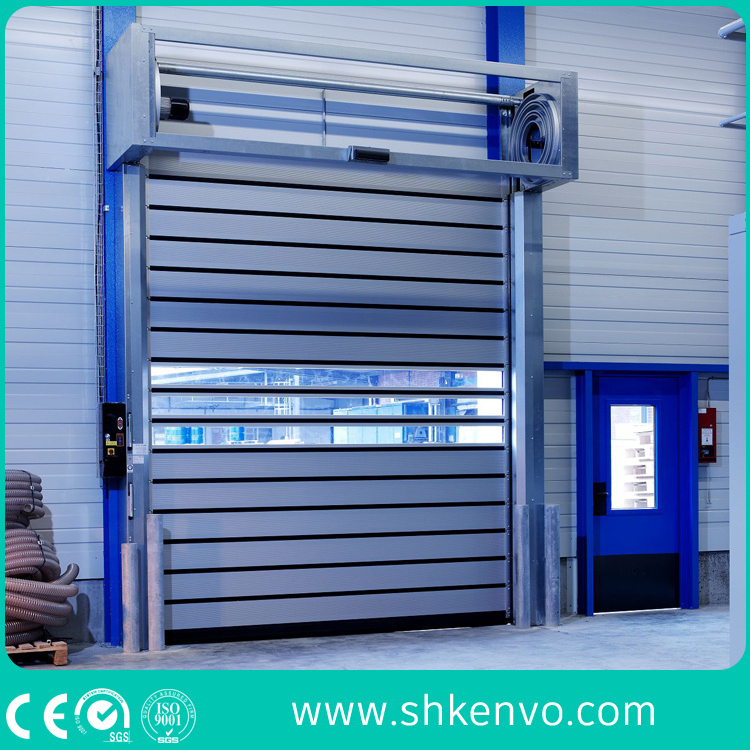

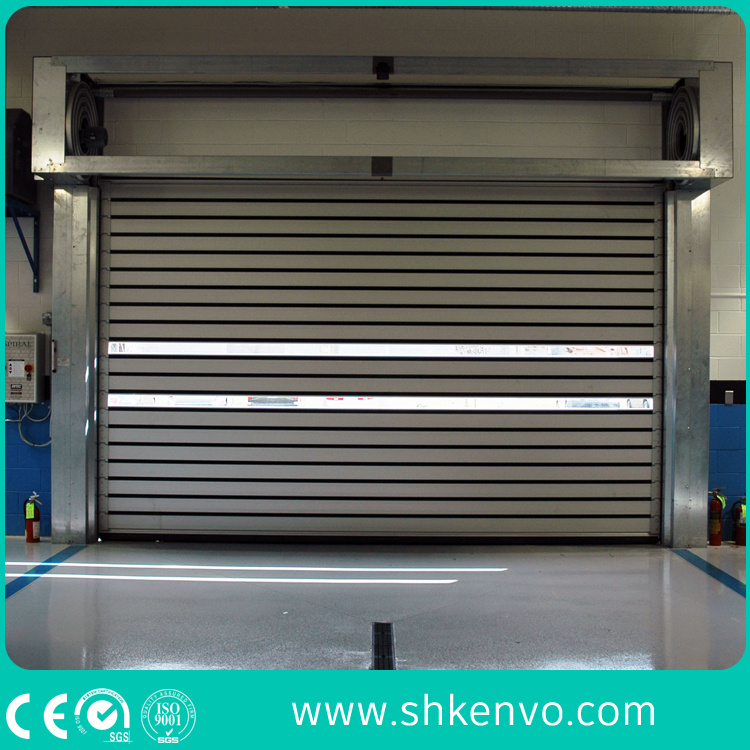

RRD-Alu Aluminum alloy High Speed Door
Technical data:| Max dimension: | 5000mm wide*5000mm high |
| Max opening Speed: | 2.5m/s |
| Max closing speed: | 1.0m/s |
| Wind resistance: | Beaufort scale 12 (35m/s) |
| Power supply: | 1-phase 220±10%V,50/60HZ,
or 3-phase 380V±10%V,50/60HZ |
| Protection level of electric: | IP55 |
| Control system: | Inverter type or Servo type |
| Driving system: | Brake motor or Servo motor |
| Thermal conductivity factor: | 1.9W/(sqm·K) |
| Sound insulation factor: | R=25dB |
| Available colors of slat: | Grey, Blue, White, Aluminum, Golden |
Technical Descriptions:1. Motor
SERVO motor. Work power source single phase 220V/50Hz or 3-Phase 380V. The power 0.55-2.2KW; Operating temperature: -30-60 degree Celsius. With more accurate limiting and much longer work life than traditional brake motor.2. Control system
SERVO control system. With more accurate controlling of motor running than traditional encoder control. And Human-Machine Interface display is equipped, to make the daily operation and setting much easier. There is Fault Self-checking program and shows error codes when there is fault.

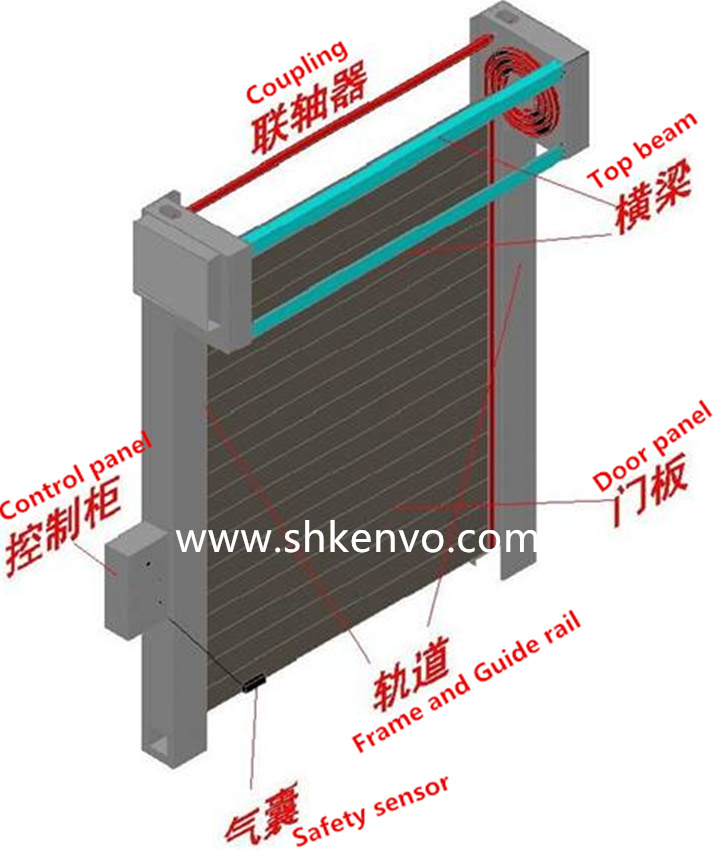

3. Metal structure
It includes two guide rails, and one top frame.
Material of top frame and guide rail cover: Galvanized steel, surface is painted;
Material of inner guide rail:Aluminum alloy rail;

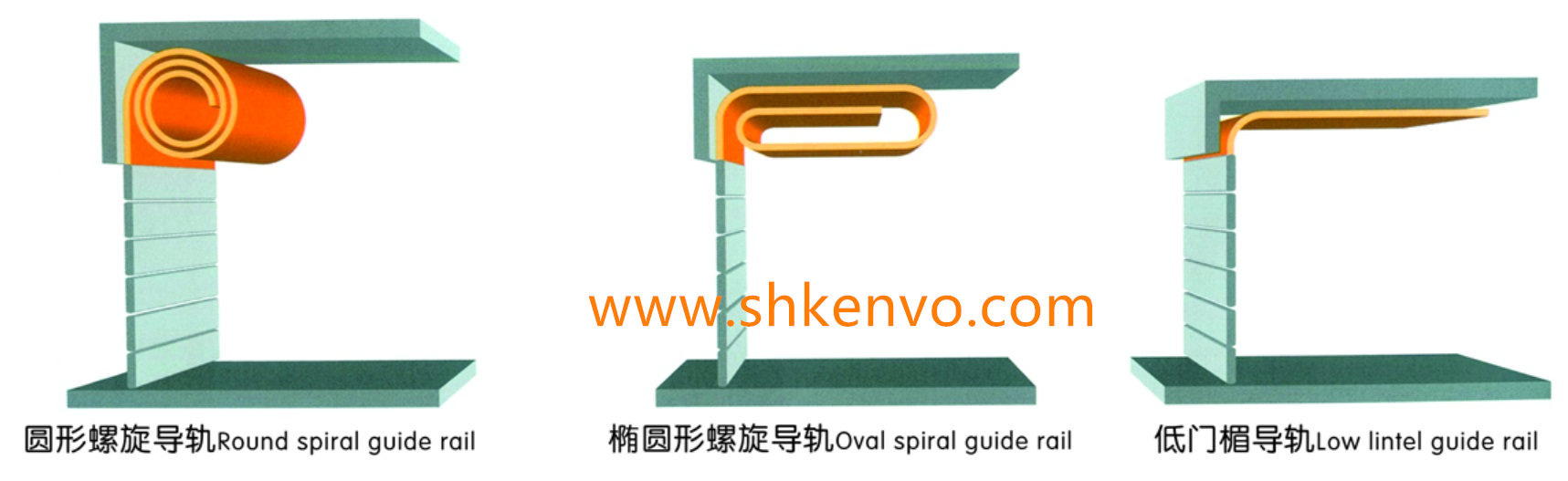

4. Spiral guide rail:

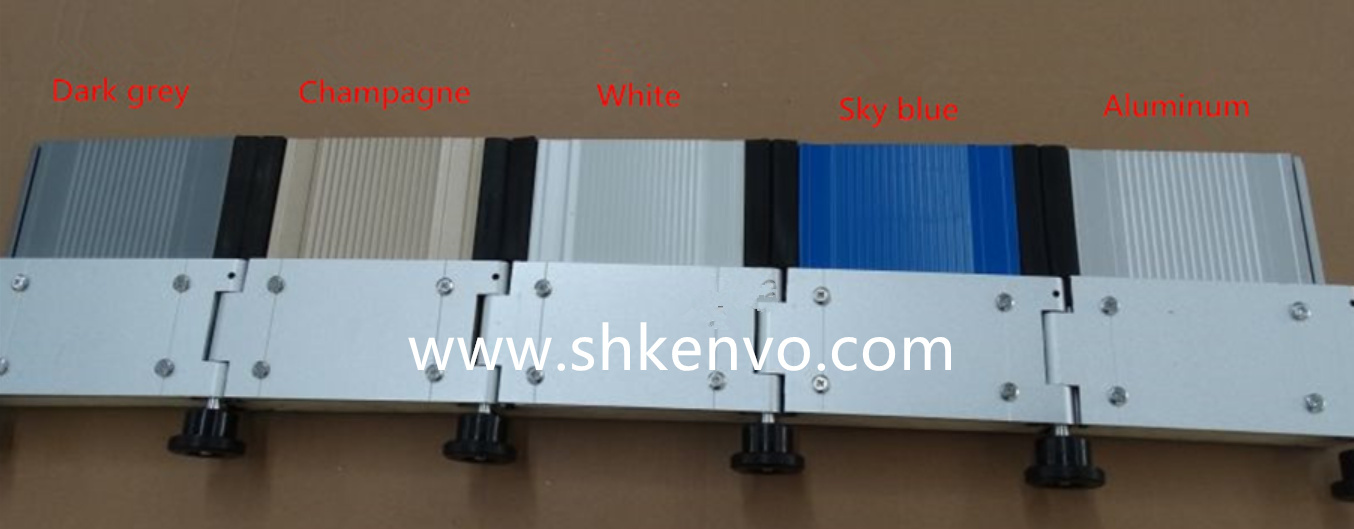

4. Slats:
40mm thick double layer hollow aluminum alloy, filled with insulation material-PU foam. With good thermal insulation and sound insulation. Surface is painted. Five colors are available for choice: Dark Grey, Champagne, White, Sky Blue, and Aluminum color.
5. Safety performance
A. Photo cells or safety light curtain
B. Proximity sensor, at the bottom.
6. Standard operation method
Control buttons of both sides.

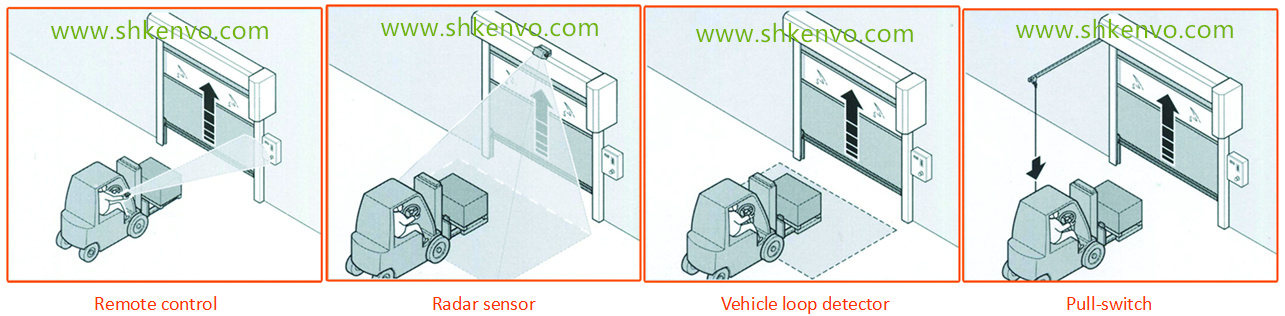

7. Optional operation methods
One-side radar/ Remote control(2 control panels) / One-side vehicle detector / One-side pull switch /; Interlocking(free of charge
8. Opening speed
Adjustable between 1.0m/s and 2.0m/s
9. Emergency opening
Manual release brake available to open the door in emergency case of power failure
Packing standard for export:
Step.1 Pack all door parts with cardboard or multi-layer plastic bubble film, to protect them and avoid dmages during shipment.
Step.2 Load all well-packed parts into wood box, to offer additonal protection and avoid missing of small parts. Wood box is made of fumigation-free material.
FAQ:1. Why to choose your doors ?a. More than 20 years production experience years since the year 1995.
b. More than 10 years export experience since the year 2006.
c. Not only low-price, but also high quality oriented, reducing your future long-term cost of maintenance.
d. Patient after-sales service about local installation guide and daily use guide.
e. Sucessful history in big clients, like Bayer Pharmaceutical, P&G, Philips, 3M, Volkswagen, ENI, and Nestle.2. How long is the lead time ?15 days.3. Can we buy a sample door as trial order first ?Yes, we can offer a sample door with reasonable price. You can test with it and check our quality.4. What service do you offer besides product itself?a. Professional advice on choice of door types and functions.b. Strict packing procedure specially for export.c. Arrangment and close follow of sea shipment.d. Installation guide service by email, Skype or phone. And site guide service available if you need.e. English version installation manual and user manual.f. English drawings of doors.g. 12 month quality guarantee since arrival date.5. Can we become your agent of doors at our local place ?Yes, we welcome you to join our partnership. But we need check first to avoid that we already have an agent in your local area.
Established in 1995, Kenvo is one of the earliest professional manufacturers of industrial doors in China market. Since the very beginning, we have been focused on offering complete and customized solution of entrance door system for industrial clients. A wide product line is developed during many years industry experience and through absorbing mature design concepts from worldwide developed markets, to meet specific needs from various industries and situations. They are widely used in food&drug industry, chemical industry, electronic industry, machinery industry, logistics industry, modern farming, and commercial building like super markets. We take great pride in that, dozens of World-Fortune-500 companies and hundreds of renowned China domestic companies have chosen us and enjoyed our high-quality product and service. And since the year 2006, we have been running and expanding our overseas business. Abundant experience is gained to realize cost effective entrance door solutions for our foreign clients.
