| Prod Model: |
WDAL01 |
| Profile: |
Thermal Break or Non Thermal Break |
| Surface Treatment: |
Powder Coating,Anodized,PVDF, Wooden Printed |
| Glass: |
Single/Double,Triple Insulating Glass |
| Gasket: |
EPDM |
| Hardware: |
Germany Roto, Kinlong, Chugn,etc |
| Opening Style: |
Swing/Awning/Tilt&Turn |
| Certificate: |
ISO9001:2008 |
| Product Name: |
Aluminum Automatic Awning Window with Low-E Glass |
| Color: |
by Customer Request |
| Sample: |
Available |
| Material: |
Aluminum Alloy |
| Open Style: |
Opening |
| Frame Material: |
Aluminum Alloy |
| Style: |
European |
| Opening Pattern: |
Horizontal |
| Function: |
Dust-proof |
| Surface Finishing: |
Finished |
| Security Rating: |
A |
| Screen Netting Material: |
Stainless Steel |
Product Description

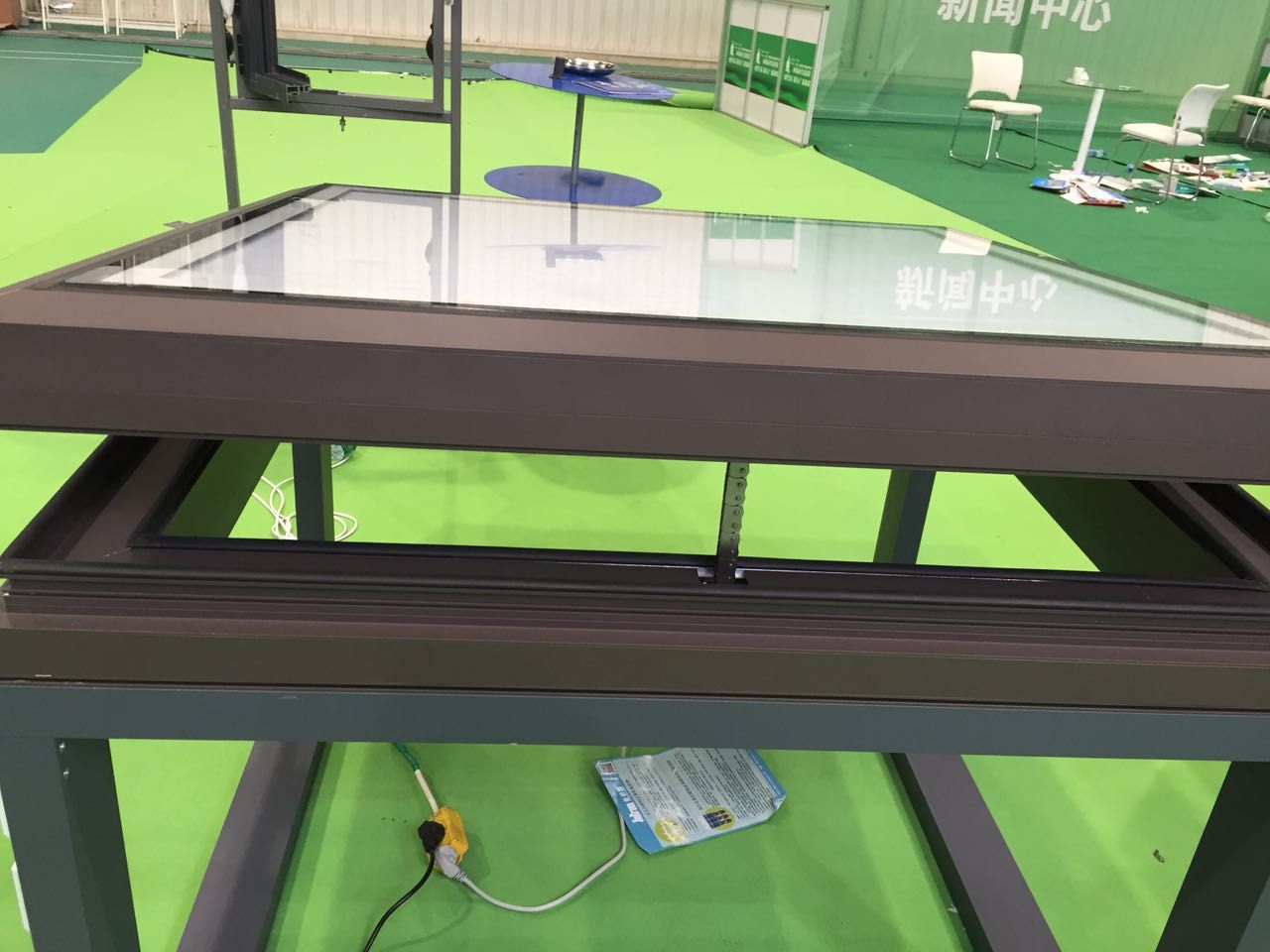

Aluminum Automatic Awning Window With Low-E Glass
1,Material

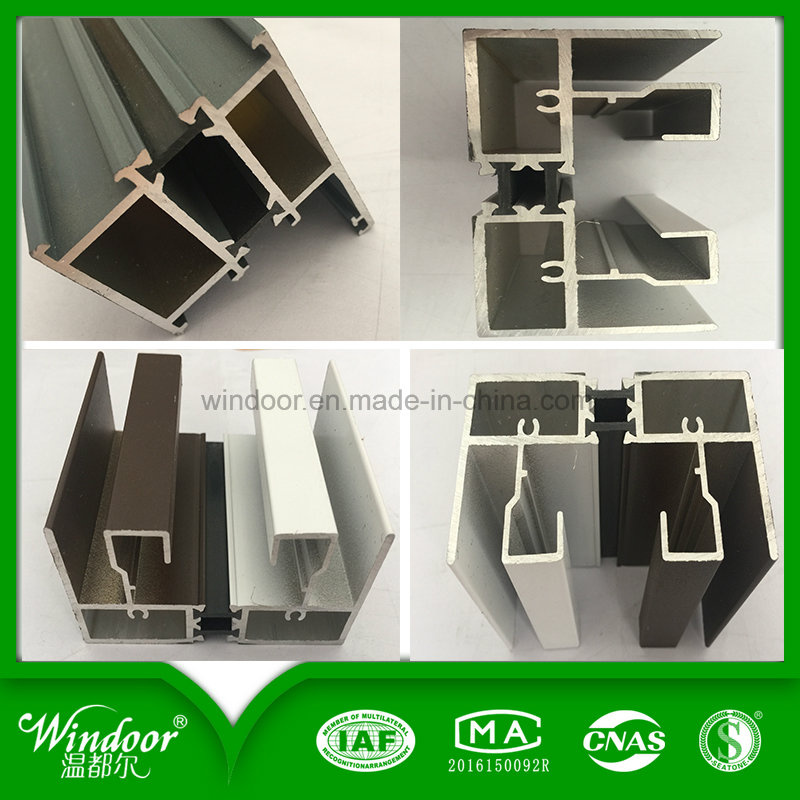

-aluminum alloy profile, profile thickness from 1.0-2.0mm
-Profile sery: casement/awning/tilt & turn window can be adopted 45/50/55-56/60/65/70mm sery, sliding window can be adopted 70/85/88mm sery.
-Surface treatment:
Powder coating in different RAS color. Anodized color/PVDF/wood skin transfer printing/electrophoresis.
2,aluminum window can be designed several types:
-sliding windows and doors
-casement windows and doors

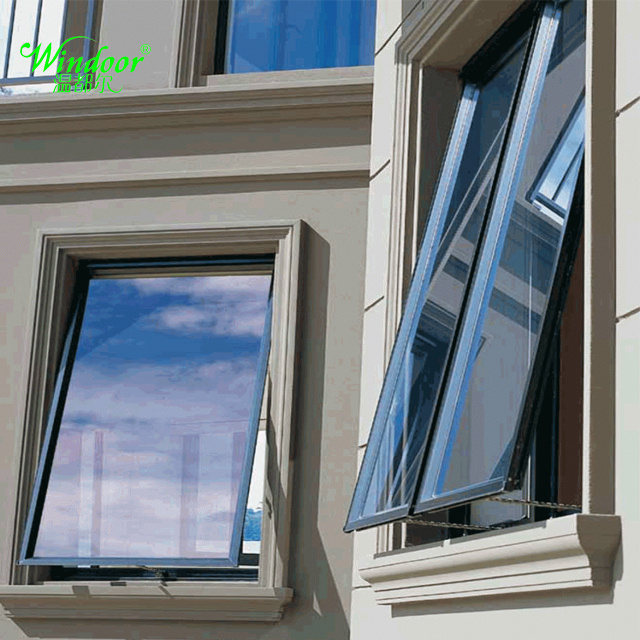

-awning windows(top & bottom opening)
-folder windows and doors
-tilt & turn windows and doors
3,glasses:
-it can be adopted single glass from 4-15mm clear flolat glasses
-it can be adopted double insulating glass,such as 5+6+5,5+9+5,etc.
-the glass can be frosted,tempered/tinted/low-e glass, the insulating glass can be filled with argon gas.
4,hardware
- all kinds of high quality Chinese hardware
-Germany brands hardware
5,Certificate:
-SGS/BV/CE/AS
6,production lead time & capacity:
- 21 working days/12000 square meters/monthly.
7,the accurate prices will be up to the below details:
-window's types
-window's designs
-order q'ty
-hardware/glass and so on.
-other request details.
8,Shipping & Packing details:
1. Carton+poly foam packing
2. Wooden pallet packing
3. Other packing methods by customer require
If you have any request details as the above listed, please send to us, then we can design and make the accurate prices for you.
Hope to cooperate with you.
