| Prod Model: |
HT-5212-T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Space Between Grinding Wheels: |
63.5mm |
| Type: |
Bending Testing Machine |
| Weight: |
0-100Kg |
| Power Source: |
AC220V |
Product Description

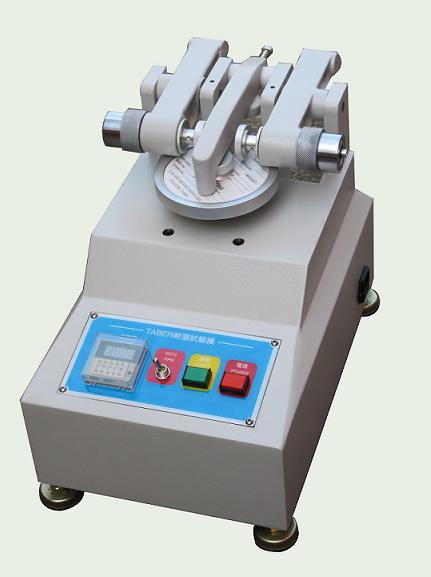

ASTM D3884 Table Type Abrasion Testing Machine for Paper
ASTM D3884 Table Type Abrasion Testing Machine for Paper Purpose The tester is used for cloth , paper , paints, plywood, leather ,tile,glass, rubber etc. ,the testing method is executed to make specimen abraded by a pair of grinding wheels under the specified load , the weight of abrasion loss is the difference of weight for specimens before and after testing
ASTM D3884 Table Type Abrasion Testing Machine for Paper Parameter 1.Product Spec. : DIN-53754 , 53109,52347,TAPPI-T476,ASTM-D11044,D3884, ISO-5470
2.Specimen : outside dia :108mm , inside dia :8mm , 3mm(D)
3.Grinding Wheel : dia2''(max.45mm)1/2''(W)
4.Space between Grinding wheels :63.5mm
5.Grinding wheel and plate's space :37~38mm
6.Rotating speed :60/72rpm
7.Load :250,500 ,1000g
8.Distance between specimen and hose :3mm
9.Dimension(W*D*H) : 53*32*31cm
10.Weight :18kg
11.Power :AC 220V 10A
Additional function To determine the wear resistance of all kinds of structures including metals, paints.
To determine the wear resistance of all kinds of structures including metals, paints, plated surfaces, coated materials, textiles, leather and rubber.
Uses the X pattern of abrasion produced by a rotary action of a pair of abrasive wheels. Supplied with a full range of auxiliary weights, specimen holders, abrasive wheels, wheel refacer and vacuum unit.
| Abrasion wheels | CS10 | H18 |
| Abrasion Wheel Diameter | 52mm |
| Wear Round Centre Spacing | 53.2mm |
| Gyration Speed | 70+/-1rpm |
| Dimensions | 530 x 320 x 310mm ( L x W x H ) |
| Weight | 18kg |
| Standard | ISO 5470 ASTM D3884 DIN 53754 53799 53109 |
Company introduction Dongguan Hong Tu Instrument Co.,Ltd specializes in developing and producing testing machines and our company establsihed in 2006 year ,we have firm connections and full cooperation from China's National Third-Party Quality Inspection and Notarization Center on producing and developing high-precision testing machines
We treause the value of good quality , reasonalbe price and efficient service with cusotmer satisfaction . we expert ourselves in providing our customers the best suitable testing designs and high quality testing machine for you the utmost profit
Customers Visit
Dongguan Hong Tu Instrument Information Co., Ltd., is specialized in developing and producing helmet impact testing machines. Hong Tu was initially founded in Taiwan area and built the first factory in Mainland China in 2004. We have firm connections and full cooperation with China's National Third-Party Quality Inspection and Notarization Center We producing and developing high-precision testing machines according to ECE, EN, DOT, SNELL, GB, AS, JIS and other standards.
Our main products include helmet testing instruments, safety helmet testing instruments, PV module testing machines, bags testing machines, furniture testing machines, universal material tensile testing machines, shoes leather machines, rubber plastic machines, paper packing machines and so on.
Qualification: We not only obtained ISO9001: 2008 approved in 2011, but also acquire several patents product certification, and obtains the title of honor "the Private Scientific and Technological Enterprise of Dongguan" in 2012.
We treasure the value of good quality, reasonable prices and efficient service with total customer satisfaction. We make ourselves expert in providing our customers with the best suitable testing designs and high quality testing machines to make you the utmost profits.
