| Prod Model: |
TSPJ160100L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
CO2 |
| Application Area: |
Plush Toys, Home Textiles, Garments |
| Application Material: |
Fabric, Non-Metal, Non-Woven, Leather |
| Power Supply: |
AC220V+-5%50Hz |
| Graphic Format Supported: |
Ai, Plt, Dxf, BMP, Dst, Dwg, Dxp |
| Cutting Area: |
1500mmx900mm |
| Output Power: |
80W/100W |
| Cutting Speed: |
Adjustable |
| Working Table: |

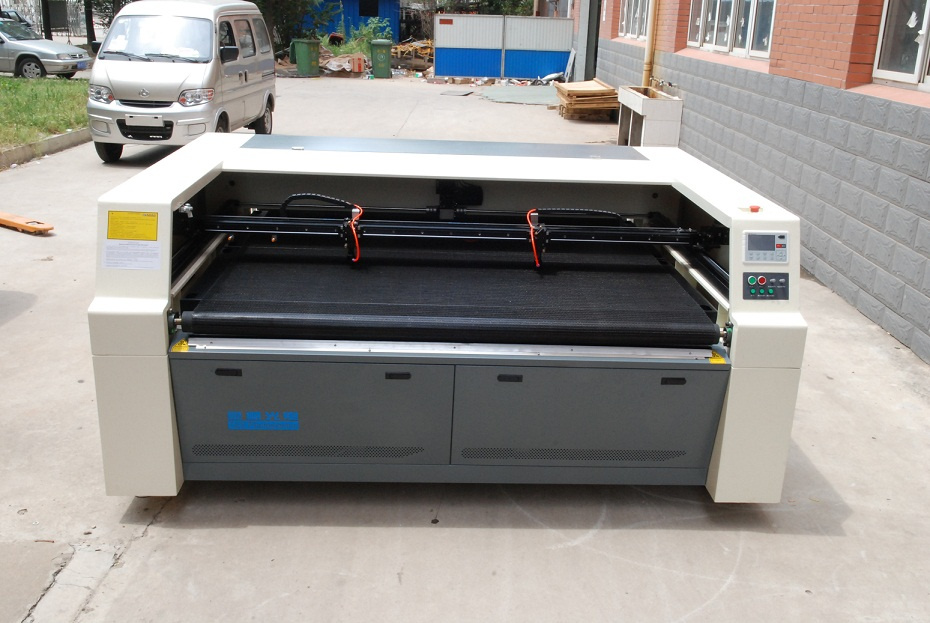

Conveyor Working Table |
| Guarantee: |
One Year Free Maintenance |

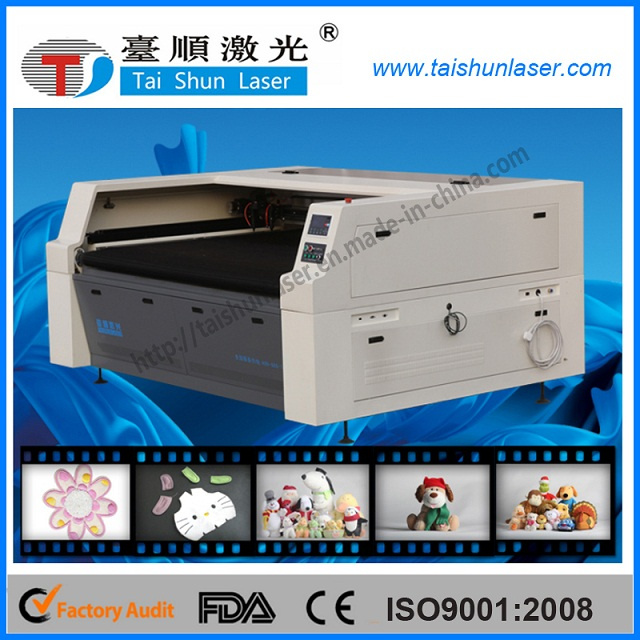

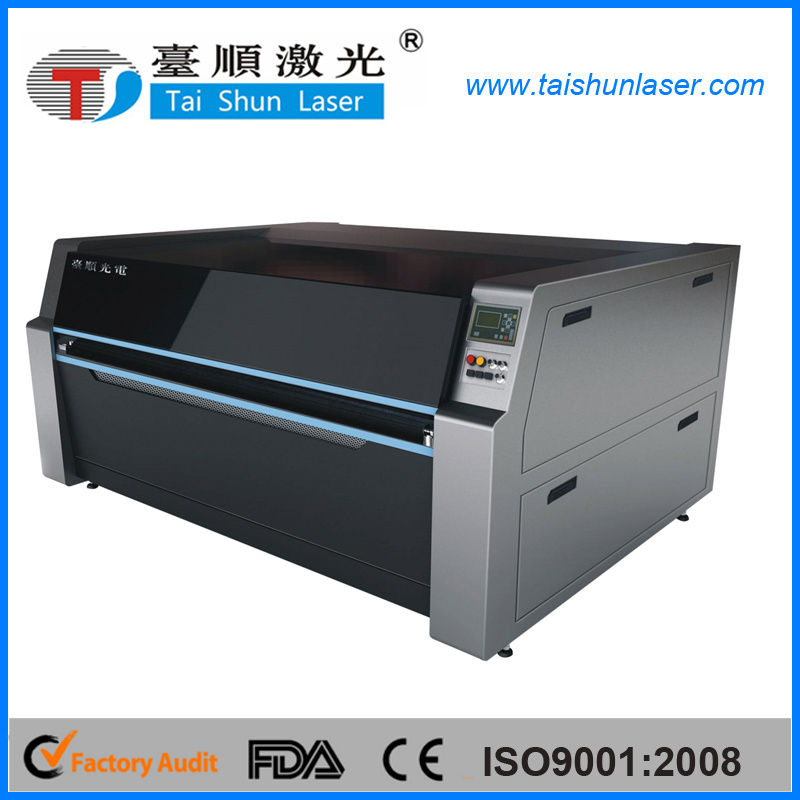

Product Description
Product parameter:
Motion system:single side servo sytem
Standard accessories:2 set 550w exhaust fans
Optional accessories:100W,130W,150W C02 laser tube,auto feeding system,compulsary water cooling system

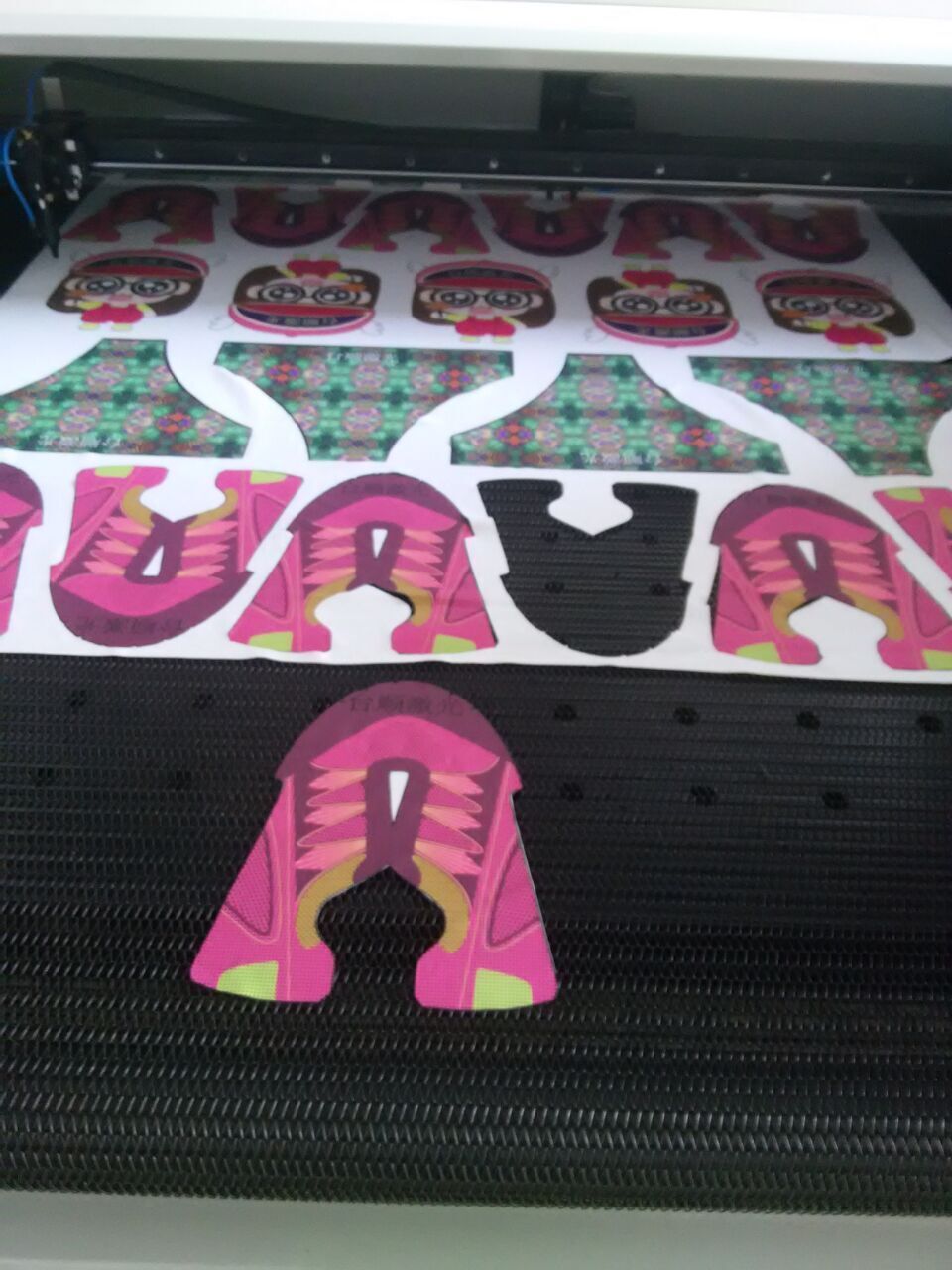

Auto feeding system:the feeder realizes continuous cutting on fabric.

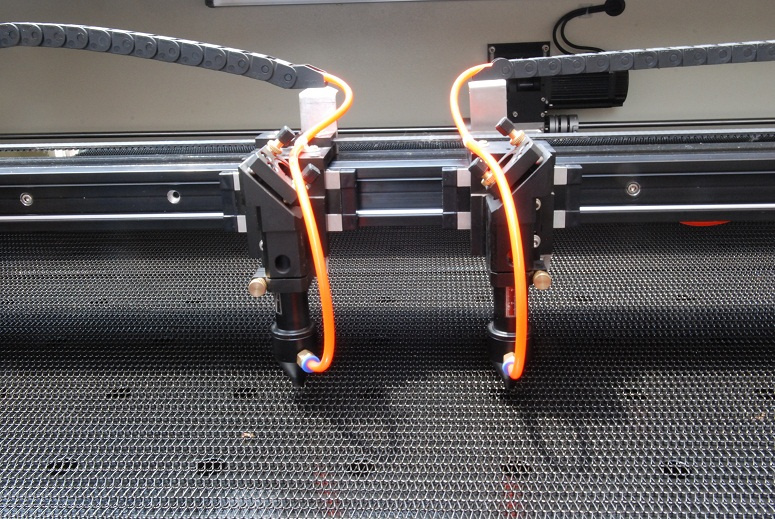

| Working size: | 1500*900mm | customized |
| Laser power: | 80W | 50w-150w |
| Laser tube: | Co2 sealed glass laser tube | RECI laser tube |
| Engraving speed | 0-1500mm/s | |
| Cutting speed: | 0-800mm/min | |
| Repeating location: | ±0.1mm | |
| Resolution ratio: | 0.025mm | |
| Minimum shaping character | English Letters 1 x 1mm | |
| Highest scanning precision | 2000DPI | |
| Laser output control | 1-100% software setting | |
| Control system | DSP control system | |
| Interface | USB | |
| Software supported | Coreldraw Phototshop ,Autocad output | |
| Support graphic format | DST, PLT, BMP, DXF AI,CDR | |
| Cooling system | water-cooling and protection system | industrial Chiller |
| Driving system | Stepper motor | |
| Exhaust system | exhaust fan and air pump | |
| Offline work: | support | |
| Working voltage: | AC100V-220V±10%,50-60HZ | 110V/60Hz |
| Operating temperature: | 0-45°C | |
| Operating humidity: | 5%-95% free of condensed water | |
| Part description | Brand | Characteristic |
| Linear guide | Taiwan Hiwin | 1)High accuracy for positioning
2) Less abrasion and maintain accuracy for a long time;
3) for high speed movement and significantly reduce the required horsepower of drive machine;
4) can withstand the load from vertical and horizontal directions;
5) Easy assembling and with interchangeability;
6) simple lubrication structure |
| Transmission belt | Shanghai Fulong | Low noise , high transmission accuracy |
| Laser tube | Weiju | Domestic famous good brand with long lifespan |
| reflector Mirror and focus lens | America IIV(Diameter is 30mm) | long life span,precise focusing |
| Water Chiller | TEYU | alarm protection function,constant running |
| Ball Screw Rod | Taiwan TBI | enhance position accuracy |
| bearing | Japan NSK brand | high precision |
Application:
1. Industrial textile: filter cloth, bolting cloth, filter fabric, nonwoven, glass fiber, felt, synthetic fibre, fabric ducting, polypropylene (PP), polyethylene (PE), polyester (PES), polyamide (PA), cement packing, geotextile, coated fabric, sponge, insulating material and other industrial flexible materials.
2. Non-woven fabrics for health & medical: insulating material, glass fibre, polyester fibre, Microfiber, Cleanroom Wiper, Glasses cloth, Micro-fiber Wiper, non-dust cloth, clean wiper, paper diaper, etc.
3. Home furnishing fabrics: upholster, carpet, mat, floor rug, mattress, curtain, doormat, valance, wall paper, tablecloth, bed sheet, bedspread, counterpane, dust cover, sofa fabric, etc.
4. Garment fabrics: sportswear, swimwear, diving suit, exposure suit, liner, lining, adhesive interlining, wadding piece, case-hardened cotton, synthetic leather, genuine leather, etc.
5. Automotive interiors: car seat cover, car cushion, car mat, car carpet, car rug, pillowcase, air bag, auto dustproof cover, seat belt (safety belt), etc.
6. Outdoor products: polyester, nylon, PE/PVC/TPU/EVA/Oxford fabric, Oxford polyester cloth, PVC coated fabric, Tarpaulin, canvas, PVC tarpaulin, PE tarpaulins, Sail cloth, Inflatable products, tents, Inflatable toys, Inflatable castle, Inflatable boats, surf kites, fire balloon, parachute, paraglider, parasail, rubber dinghy, canopy, awning, etc.
FAQ:
Q1.What's the guarantee for the product quality?
We offer one-year free maintenance services for our customers. Generally speaking, our technician will figure out what the cause may be one the problems arise according to clients' feedback. Fault parts with the valid period will be replaced for free except for consumable parts.
Q2. Is it easy to operate for the new user ?
A: It is very easy ,we offer you operating manual in English ,also our technician can help you via MSN ,Skype or other instant communication tools.
Q3. What i need to do when the machine suffer trouble?
A: Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.
Q4. How to maintain the machine?
A: After 3 hours working, it's better close 10 minutes.
B, Keep lens and mirrors clean.
C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze.
Q5 .How about the life-span of the laser tube ?
A: If you operate the machine rightly, it can reach to 1500 or 3000hours.(RECI laser tube can max to 10000hours),It depends on your usage
For example, if it works 8 hours per day, the detailed data as follows:
1, If you set the power at 20%-30% of the total power, the service life is about 1-2years
2, If you set the power at 40-50% of the total power, the service life is about 1 year
3, If you set the power at 70%-80% of the total power, the service life is about 6-8 months
Q6: How can I know the power of the laser tube has been exhausted?
A: you can check the color of the laser beam ,new and strong laser tube is purple when working, otherwise it will be white color.
Q7:Is it better to increase blow system to improve laser processing performance?
A: It works for some kind materials,it can stop firing
Q8: How long time does it take for a learning of the laser machine operation ?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation, You just need to do some simple tests on different processing materials to learn how to adjust the speed and laser power.
Q9: Is it harmful to human body when in operation ?
A: It is not harmful, as long as the laser don't direct shoot the skin and eyes.
Q10: Does it need to be connected by a laptop or computer ?
A: Yes, either is ok, It supports Windows 2000, Windows XP, Win 7 and other operating systems.
Q11:How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length(relatively speaking, the longer, the bigger/stronger)
2. Laser tube diameter(relatively speaking, the thicker,the stronger)
3.The machine with bigger laser tube can cut deeper&more quickly, also its light spot is bigger, So, it is better to choose low-power for engrave, such as 40w, 50w, or 60w and strong power for cutting.
Order Notice:
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
