| Price: | US $ 18000-25000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | MZH-F |
|---|---|
| Filling Volume: | 50ml-2000ml |
| Capacity: | 7200b/H |
| Bottle Diameter: | 40-100mm |
| Bottle Height: | 60-300mm |
| Type: | Volumetric Filling Machine |
| Automatic Grade: | Fully Automatic |
| Material Type: | Liquid |
| Filling Valve Head: | Multi-Head |
| Feed Cylinder Structure: | Multi-Room Feeding |
| Dosing Device: | Plunger |
| Filling Principle: | Atmospheric Pressure |
| Packaging Container Lifting Structure: | Chute Pneumatic Combination Lifting |
| Structure: | Rotary |
| Packaging Type: | Bottle |
| Packaging Material: | Plastic |
DESCRIPTION

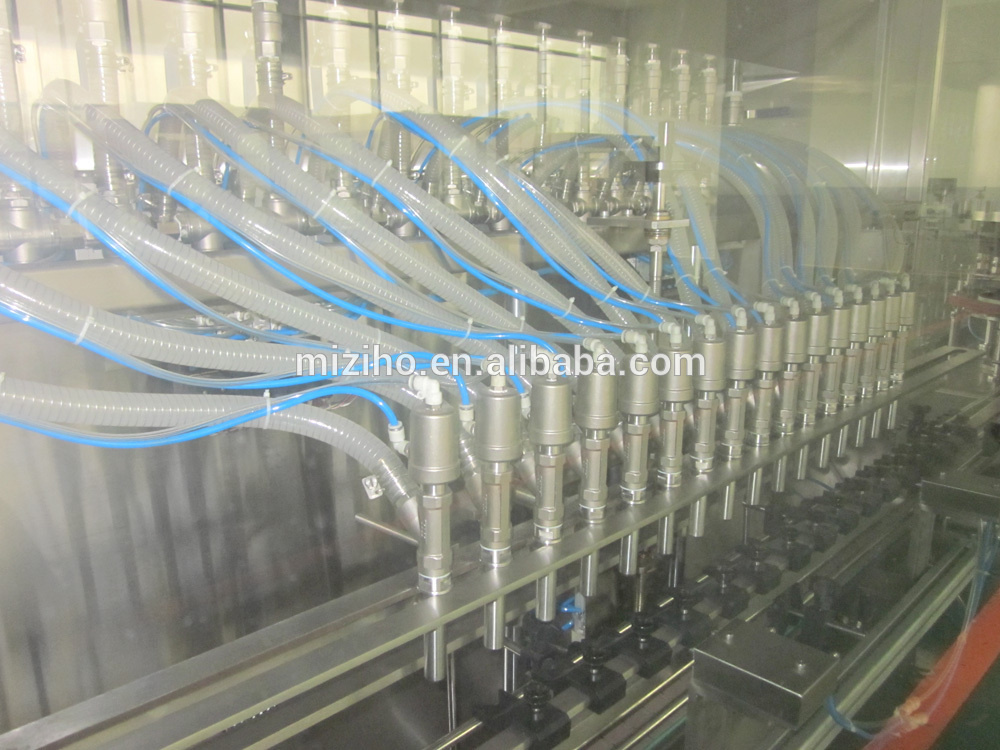

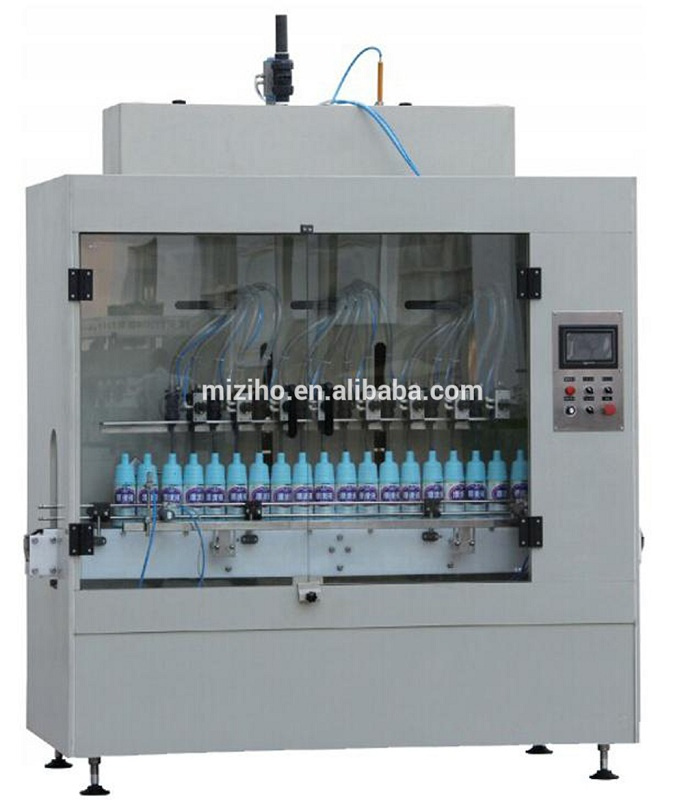

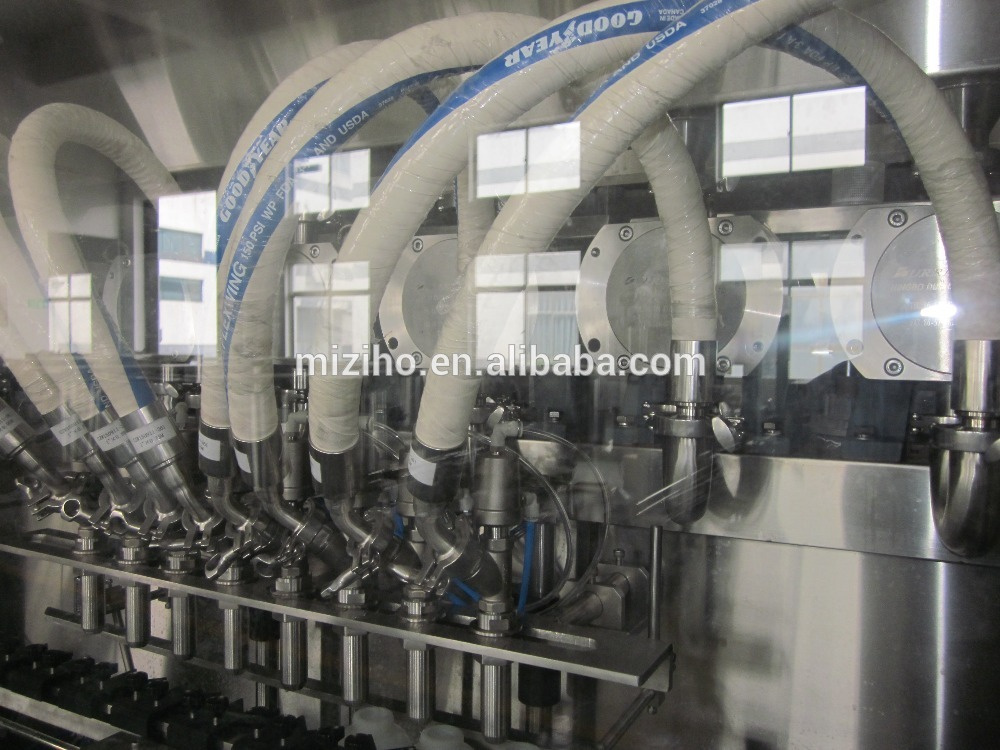

This anti-corrosive filling machine is a high-tech filling equipment controlled by microcomputer PLC
programmable,equip with photo electricity tran sduction and pneumatic action.Contact liquid parts is use anticorrosive nonmetallic material and with diving function ,can effectively eliminate the bubbles. This machine mainly
use for packing of chemical products,such as detergent,bleaching,sulphuric acid,84 disinfectant,
gelwater, strong acid liquid fertilizer,can suits for packing of all kinds of bottle shape and irregular bottle.
TECHNICAL SPECIFICATIONS
Capacity | 7200(100ml)b/h |
filling volume | 50-1000ml |
measurement precision | ±1% |
applicable bottle diameter | 40-100mm |
applicable bottle height | 60-300mm |
air pressure | 0.6-0.8Mpa |
total power | 1.5Kw |
voltage | AC220V,50/60Hz |
net weight | 750kg |
dimension | 2000(L)×1030(W)×2300(H)mm |

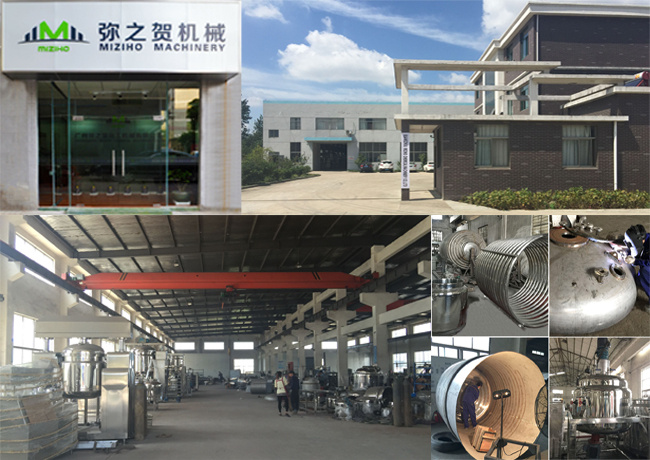

Our Factory
The Main Project
After Sale Service
1. Warranty time: One year guaranteed for quality, product whole life service any damage except the wrong operation during warranty. Period is repaired freely, But the travel and hotel expenses should be count on buyer.
2. Commissioning services: The product's installation and commissioning at the demand side, our engineers will not leave there until get your agreement.
3. Traning Services: Our engineers will train your staff in your factory or video to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
4. Manintenance Services: Any malfunction happened, Once you inquiry us, We will reply you within 24 hours.
5. The File: The manual specification, report of the material which used to the equipment and other documents video related to GMP authentication information will be provided by us.
FAQ
1. Q: Are you factory or trading company?
A: We are the professional manufacture of cosmetic machinery in China more than 10years.
2. Q: Where is your location?
A: Company and Showroom located in Guangzhou china, Factory located in Jiangsu and Shanghai
Province.
3. Q: Are your engineer be able to serve in oversea?
A: Yes, we have a lot of experience install the machine in oversea.
4. Q: What is your material of your product?
A: adopt with full stainless steel 304-2b and 316L
5. Q: How does your factory do regarding quality control?
A: Two years spare parts,and full-life service of our machinery.
Our Company to customer satisfaction for the development of three goals: Product quality, Product technology and After-sales service.
