| Prod Model: |
MM-H-1500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Customized |
| Type: |
Rolling |
| Open Style: |
Rolling |
| Opening Type: |
Induced |
| Certification: |
CE |
| Position: |
Industrial |
| Surface Finishing: |
Finished |
| Special Function: |
Fast Action |
| Color: |
Optional |
Product Description

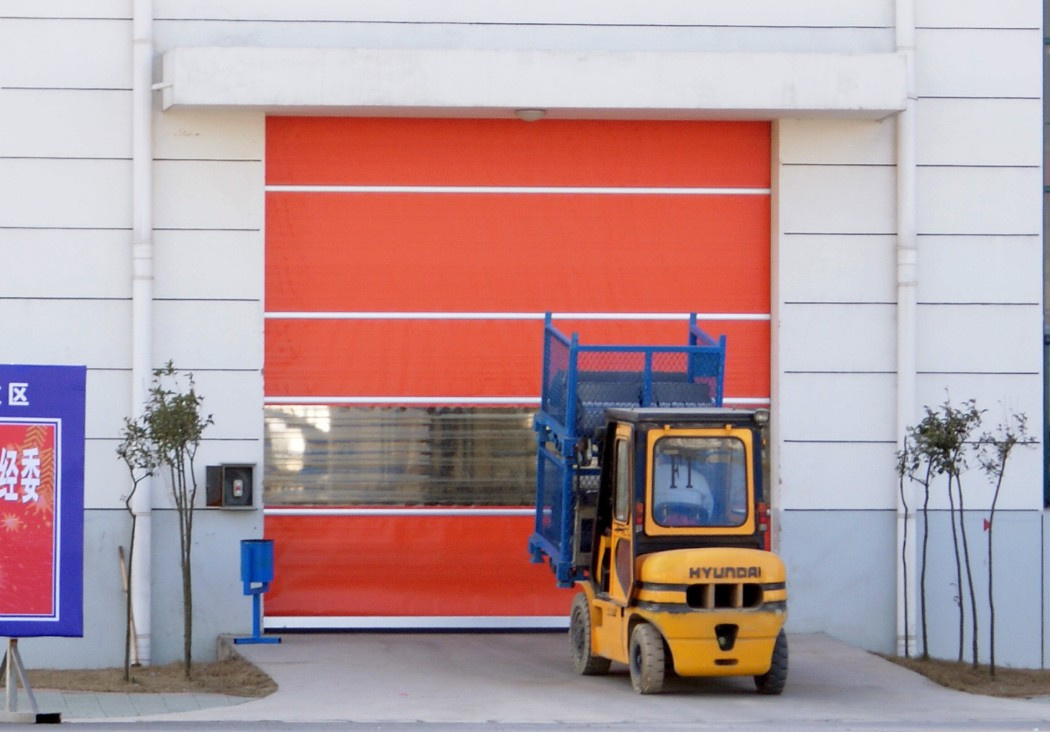

Main features:Automatic, super fast opening and closing, reducing leakage of heat and air, heat preservation, hygienic, flexible PVC panel and beautiful, various colors availble
Application scope:Inner and outer doors of all kinds of factories especially fit for food factory, cold storage, frequent logistics, chemical industry
Technical instruction:Door dimension: Width / height 800-5000mm/2500-5000mm(Max dimension)
Normal speed: Open1.5m/s close 0.7m/s
Max speed: Open 2.0m/s close 1.0m/s
Opening direction: Vertical
Drive system: Electrical
Safety class: IP55
Control voltage: 24V
Opening frequency: 2000 time /day
Wind load: 30m/s
Safety device: Infrared photoelectric
Detail information:1. Motor
ABB motor (SEW is optional). Work power source 220V or 380V/50Hz. Power 0.55- 1.5KW; F: IP55, 1500turns/minute. Operating temperature: -30-70 degree Celsius.
2. Control system
Schneider Inverter control system.
3. Steel construction system
Cover box: Galvanized steel, T=2.0 mm; Guide rail: Galvanized steel/Stainless steel /Aluminum alloy. Surface process: Electrostatic painting, various colors available.
4. Curtain:
Brand: SOIEN, imported from Europe. Material: PVC Plastic Fiber; Thickness: 1.0 mm/1.2mm/1.5mm/2.0mm; Color: Yellow/ Bluse/Orange/White/Red/Transparent
5. Safety performance
A Photo cells of both sides.
B Proximity sensor, at the bottom.
6. Operation method
Control buttons of both sides
7. Control mode(optional)
Both-side geomagnetic ring/ Both side radar/ Both-side remote control / Both-side pull cord switch / linkage interlock
8. Opening speed
Adjustable btween 1.0m/s and 2.5m/s
9. Emergency opening
Manual swing bar available in case of power failure
Remarks:1. Established in 1997, we have gained much experience in door solutions for various industries.
2. Honors and Certifications:
A. The member of Standard Committee of China Automatic Door and Garage Door
B. The member of Committee of China Steel Structure
C. China AAA enterprise
D. ISO9001: 2000 Management certification.
E. CE Certification
