| Prod Model: |
U-1-V |
| U-1: |
Automatic Paper Sewing and Folding Machine |
| Max Size: |
460 |
| Cover Material: |
Hard Paper |
| Binding: |
Sewing Thread |
| Size: |
A5 |
| Lock: |
With Lock |
| Usage: |
Pocket, Gift, Promotion, School |
| Inside Pages Printed: |
Blank |
| Inner Pages: |
≥120 Sheets |
| Style: |
Hardcover |
| Color: |
Orange |
| Type: |
Thread-bound |
Product Description

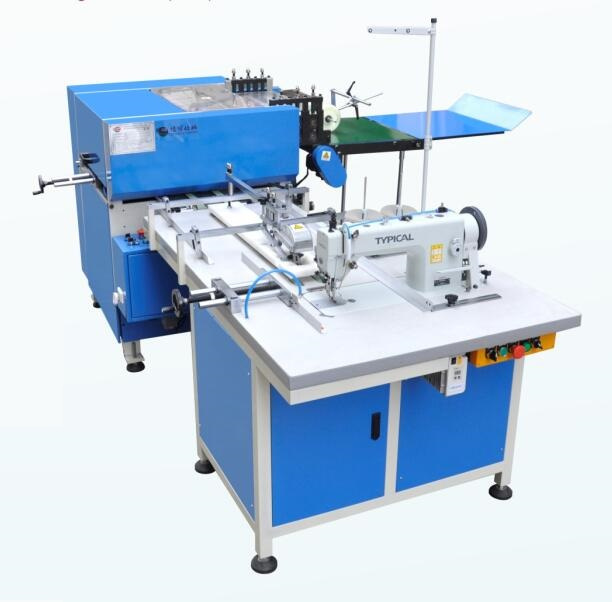

Automatic Paper Sewing and Folding Machine Product Description
Book Central threading Folding Machine .It is special used for making central threading style books .This is new machine in the market ,and it could instead of Saddle Stitching Machine to binding notebooks ,exercises books ,account books ,etc by threading .It can thread very thick books easily with high production capacity ,fast speed ,stable performance .It is with multifunctions on line :Manual book feeding ,automatic central sewing ,automatic thread cutting ,automatic folding ,and automatic book pressing .It is the ideal and first-choice equipment for mess production in paper stationary products factories .
1. Working speed reach 800-1800 books/ per hour.
2. Sewing pitch can adjustable for the papers
3. Suitable for notebook, manual, exercise book etc…, sewing style binding works.
4. Simple operation and easy to learn.
5. Machine used high sensitivity optical fiber sensor . Automatic sewing without manual step On/ Off.
6. Sewing wire can automatically cutting between books.
7. Books sewing and folding once completed.
8. Machine running much higher speed than traditional labour. Much lower cost and much stable stitching .
Technical Parameters| Max. Book Size(mm) | 600x470 |
| Sewing thickness | 4 sheets-150sheets |
| Working speed | 500-1800 Block (2 Books/Block) |
| Power | 380V/ 3 Phase /50Hz/60Hz/5.2KW |
| Air compressor | 1.5KW |
| Air pressure | 6-8 |
| Machine dimension | 2380*1850*1580mm |
Automatic Paper Sewing and Folding Machine Advantage&Services
1.Has several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.
2.Machines with good quality in one year, life-long maintenance.
3.Have many machines can be monitored via the Internet, solve customer requirements in a timely manner.
4.Has several senior, continuous innovation and reform, in order to ensure the quality of mechanical stability.
5.Undertake various non-standard machinery, solve the customers' requirements. About Xinwei company :
ZHEJIANG XINWEI MACHINERY Co., Ltd.Is an integrated high-tech enterprise setting research and development, manufacturing, sales, service as one.From the beginning, we always adhere to the management concept of "technological innovation and development, quality of survival"and set establishing an international high standard of packaging machine manufacturing system as the mission.Always listening to the clients" voice, meeting customer expectations-oriented, and in-depth researching and development, we have won numbers of national invention patents and the latest national standards as "the national high-tech enterprise", and passed
The ISO9001:2008 and CE certificate.The face of ever-changing, increasingly fierce competition in the domestic and overseas-market, We insist that the customer service concept, the idea of full joint development.And always played a role in the command center.For the purpose of the spirit:Saving space and labor for customers and Improving economic efficiency.
Contact Information:
ZHEJIANG XINWEI MACHINERY Co., Ltd.
Add:Building 9, B Area, Yunjiang Industrial Zone, NanBin, Ruian City,
Zhejiang Province, China
Tel:86-186-06672918 Fax:86-577-65576777
ZHEJIANG XINWEI MACHINERY Co., Ltd. is an integrated high-tech enterprise setting research and development, manufacturing, sales, service as one. From the beginning, we always adhere to the management concept of "technological innovation and development, quality of survival"and set establishing an international high standard of packaging machine manufacturing system as the mission. Always listening to the clients" voice, meeting customer expectations-oriented, and in-depth researching and development, we have won numbers of national invention patents and the latest national standards as "the national high-tech enterprise", and passed the ISO9001: 2008 and CE certificate.
The face of ever-changing, increasingly fierce competition in the domestic and overseas
Market, We insist that the customer service concept, the idea of full joint development. And always played a role in the command center. For the purpose of the spirit: Saving space and labour for customers and Improving economic efficiency.
Our main product is: Case maker, case making machine, rigid box machine, automatic rigid box machine, calendar machine, double wire binding machine. Single wire binding machine, wire forming machine. Angle cutter, cardboard slitting machine etc.
