Automatic Plastic Zipper Bag Making Machine
| Price: |
US $ 14000-17500/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
RFQJ-600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Type: |
Bag Forming Machine |
| Computerized: |
Computerized |
| Product Line: |
1 |
| Seals Mode: |
Side Sealing |
| Type: |
Zipper Bag Making Machine |
Product Description

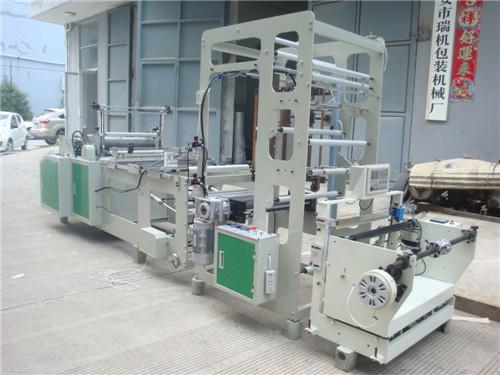

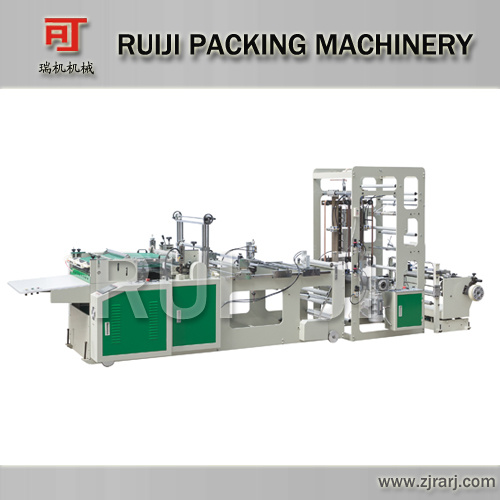

RFQJ Automatic Plastic Zipper bag making machine
Use:
This machine is suitable for making zipper bag.
Material:
LDPE,PP,OPP,BOPP,EVA, etc.
The Function and Characteristic:
1. PLC control, servo motor control film feeding.
2. EPC, side cutting, Zipper sealing,Ultrasonic pressing
3. Auto counting and auto giving an alarm. Also could set auto stop working.
4. Accurate and stable photocell tracking, air puncher.
Specification| MODEL | RFQJ-600 | RFQJ-800 |
| Material | LDPE-PP-Nonwoven | LDPE-PP-Nonwoven |
| Speed | 20-50Cycle/min | 20-50Cycle/min |
| length | 120-550mm | 120-750mm |
| Weigth | 100-500mm | 120-750mm |
| thickness | 0.04-0.15mm | 0.04-0.15mm |
| Servo motor | 1.5kw | 2kw |
| Main motor | 1.5kw | 1.5kw |
| Heat power | 3kw | 3.5kw |
| Out bag DC motor | 0.4kw | 0.4kw |
| Ultrasonic | 1set | 1set |
| Feeding DC motor | 0.55kw | 0.75kw |
| Total power | 15kw | 17kw |
| Overall dimensions(L×W×H) | 6500x1300x1800mm | 7500*1600*1800mm |
| Power | 50hz220v | 50hz220v |
More information about our Machine, pls contact us.

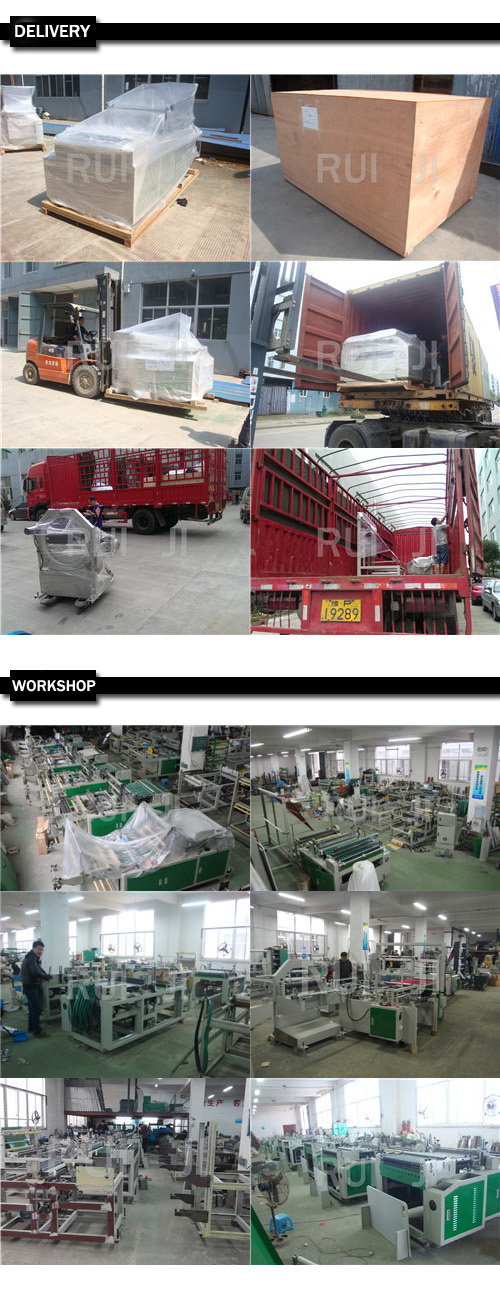

Web:http://www.zjrarj.comPackaging & Delivery1.Packaging Details: wooden pallet or plastic film(If need , Fumigation wooden case as option 2.Delivery Detail: 15-25 days after receiving order deposit 3.Port: Ningbo port RFQ1.Where is your factory LocatedOur Factory Located in Ruian City ,Zhejiang Province ,China .
It is about 40minutes by plane from Shanghai, about 5 hours by train from
Shanghai .
We are pleasured to pick up you when you arrived .2. What should we charge for your engineer?You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary.3. How long is your machine's warranty period?All our machine have one year guarantee, starting from finished installation.4. How could we do after one year warranty period?We also can do service for you, but you need pay salary for my technician 80USD/day.5. How could we do if the parts broken within warranty?We would express the free replacement parts during the warranty date. THANKS FOR YOUR READING.
Zhejiang Ruian Ruiji Packing Machine Factory is a joint-stock enterprise specialized in producing plastic film bag-making equipments. It lies in East Expansion Area of Rui'an Economic Development Zone, closely connects to beautiful Feiyun River.
It gathers design, development, production, sale and service in one, belongs to professional technique concentrated mechanical making enterprise. Main products of our factory: Heat sealing and cutting bag-making machine + heat sealing and cutting bag-making machine set of folder; Heat sealing and cold cutting bag-making machine, as well as other plastic film bag-making machinery. And it holds solid technical power, rich production experience and fine after-sales service system.
'Taking clients' requirements as yardstick, taking users' easy operation as target, making non-repair machine", is our design concept. Following the tenet of "price to value, live on quality, sincere service, made win-win situation", Ruiji Enterprise serves vast numbers of clients wholeheartedly.
Relying on advanced technique, rich experience, warm and sincere service, our enterprise is willing to cooperate with both new and old clients to provide newer and better products for you!
