Prod Model: |
XMZ recessed filter press |
Stucture: |
Side-Beam Recessed Filter Press |
Plate Type: |
Chamber Recessed Filter Press |
Plate Material: |
PP Recessed Filter Press |
Cake Discharging: |
Automatic Recessed Filter Press |
Driven: |
Hydraulic Recessed Filter Press |
Application: |
Industrial Recessed Filter Press |
Elements: |
Schneider |
Control: |
PLC Control Filter Press |
Color: |
Blue Orange Recessed Filter Press |
Plate Size: |
Xmy Recessed Filter Press |
Structure: |
Recessed Filter Press |
Product Description
Automatic RFPP Recessed Plate Filter Press for Water Works
What is a Filter Press Machine?
A chamber filter press, namely called recessed filter press, is very effect tool intended to separate solids and liquids using pressure driven by feed pumps. The filter presses consist of the framework, the filter pack, cabinet and driven system. The base framework is composed of a fixed head, a moving head, a closure system, sidebars (or overhead beam). The filter pack consists of the filter plates stacked in order that create a hollowed chamber for solids collection. The major difference in the type of filter press is the style of plates used in the filter pack.

Features of Chamber Filter Press:
1.Short working cycle and high efficiency.
2.Big capacity. Unique plate design makes filtrate discharge more smoothly to make higher processing capacity.
3.Good filtering performance. Our filter press can endure higher feeding pressure, so that get lowest cake moisture.
4.Low running cost. According to CE standard, our filter press has remarkable performance to decrease the running cost.

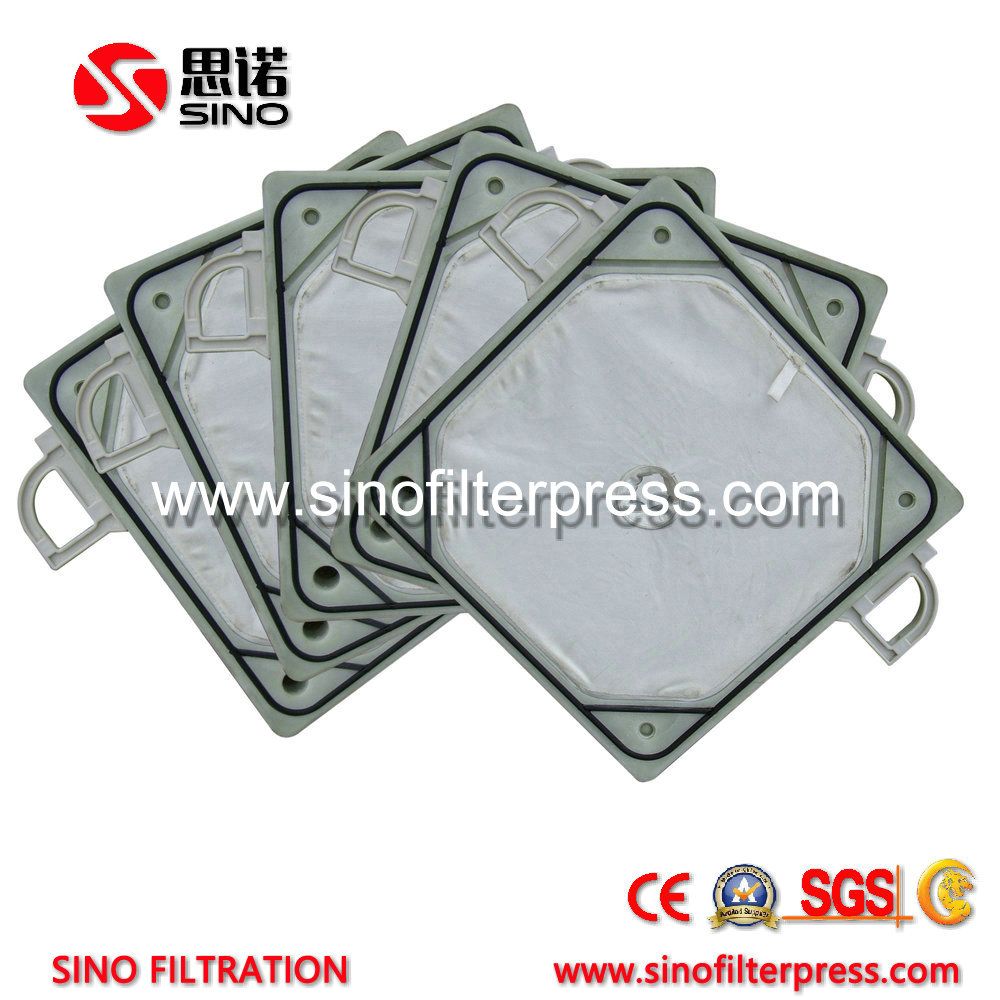

5.Filter plate are made of reinforced polypropylene with features of high strength, corrosion resistance, nontoxic and odorless.
6.According to your material we will recommend special filter cloth, which can improving the filtering accuracy and efficiency .
7.Main beam material is Q235B/Q345B, with sand blasting processing.
8.Hydraulic station adopt ABB motor ensure stable performance.
9.Hydraulic squeezing ensures no leakage to avoid secondary pollution.

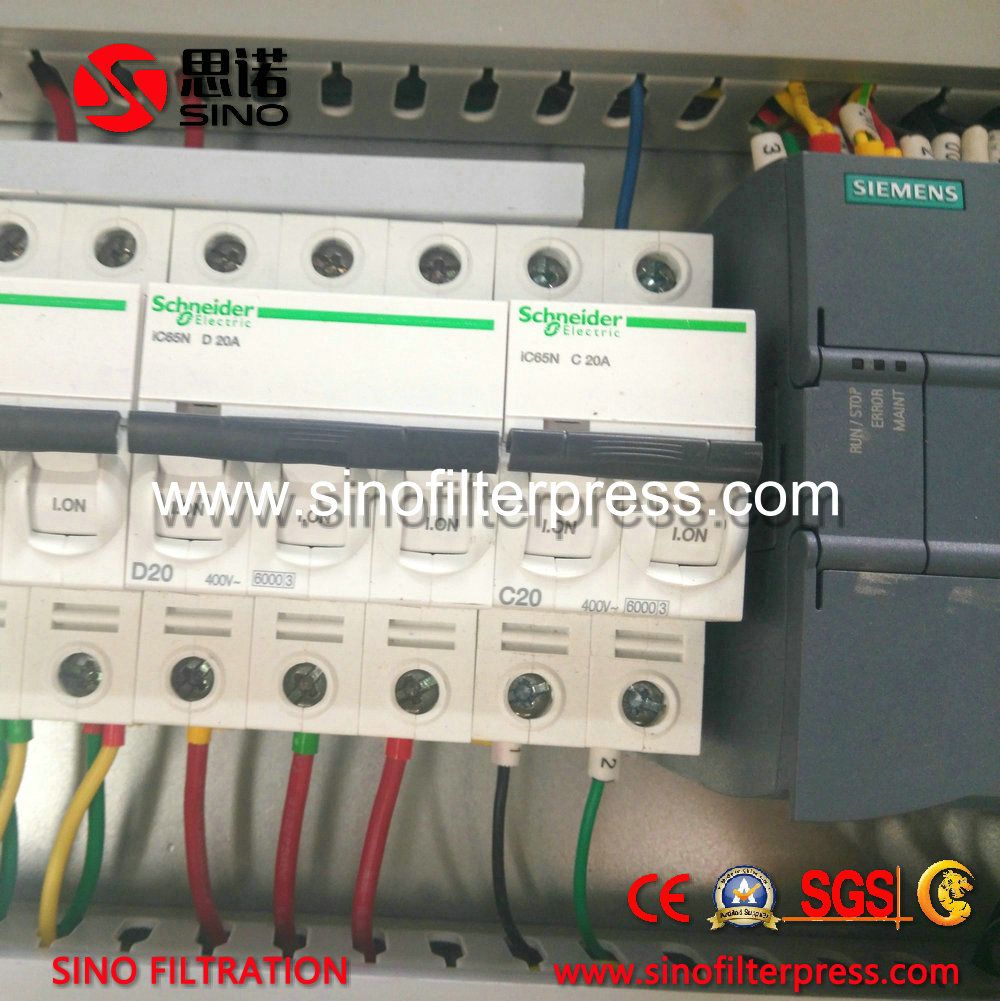

10.Cabinet elements adopts international famous brands: Siemens Schneider etc.

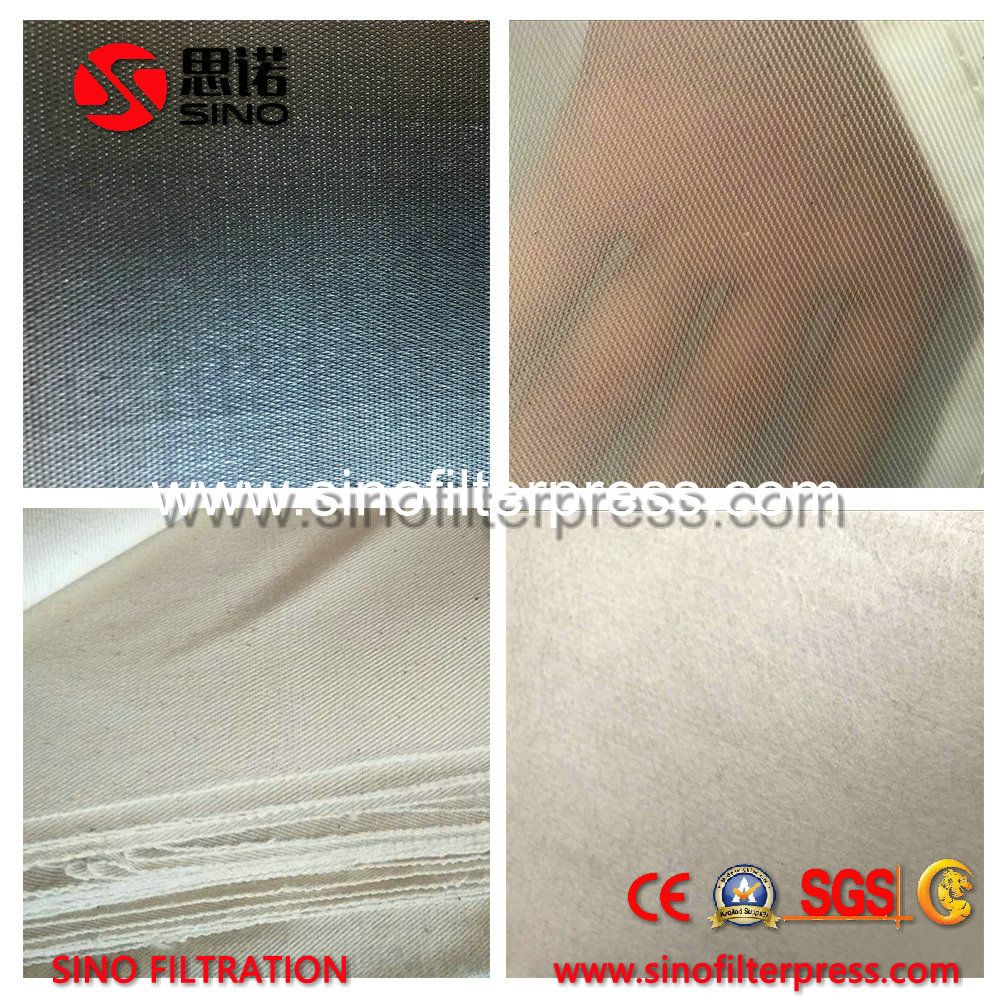

Chamer Filter Press Clothes

Specifications of Chamber Filter Press Machine:Model | Filter Area (m2) | Volume (L) | Plate QTY (pcs) | Pressure (MPa) | Power (Kw) | Weight (Kg) | Dimensions (mm) |
|
XMZ 30/870 | 30 | 460 | 23 | 0.6 | 2.2 | 2680 | 3180*1400*1230 |
XMZ 40/870 | 40 | 595 | 30 | 3050 | 3570*1400*1230 |
XMZ 50/870 | 50 | 748 | 38 | 3456 | 4110*1400*1230 |
XMZ 60/870 | 60 | 902 | 46 | 4003 | 4550*1400*1230 |
XMZ 70/870 | 70 | 1056 | 54 | 4584 | 4990*1400*1230 |
XMZ 80/870 | 80 | 1210 | 62 | 5082 | 5430*1400*1230 |
XMZ 50/1000 | 50 | 736 | 28 | 0.6 | 4 | 4128 | 4040*1500*1400 |
XMZ 60/1000 | 60 | 889 | 34 | 4636 | 4460*1500*1400 |
XMZ 70/1000 | 70 | 1041 | 40 | 5143 | 4760*1500*1400 |
XMZ 80/1000 | 80 | 1193 | 46 | 5651 | 5120*1500*1400 |
XMZ 100/1000 | 100 | 1475 | 57 | 6628 | 5780*1500*1400 |
XMZ 120/1000 | 120 | 1777 | 69 | 7644 | 6500*1500*1400 |
XMZ 100/1250 | 100 | 1468 | 36 | 0.6 | 4 | 8307 | 5020*1800*1600 |
XMZ 120/1250 | 120 | 1746 | 43 | 9308 | 5470*1800*1600 |
XMZ 140/1250 | 140 | 2063 | 51 | 10455 | 5990*1800*1600 |
XMZ 160/1250 | 160 | 2341 | 58 | 11492 | 6450*1800*1600 |
XMZ 180/1250 | 180 | 2619 | 65 | 12494 | 6905*1800*1600 |
XMZ 200/1250 | 200 | 2896 | 72 | 13504 | 7360*1800*1600 |
XMZ 220/1250 | 220 | 3214 | 80 | 14652 | 7880*1800*1600 |
XMZ 250/1250 | 250 | 3650 | 91 | 16227 | 8600*1800*1600 |
XMZ 200/1500 | 200 | 2998 | 49 | 0.6 | 11 | 20030 | 6400*2200*1900 |
XMZ 250/1500 | 250 | 3594 | 61 | 22978 | 7225*2200*1900 |
XMZ 300/1500 | 300 | 4347 | 74 | 26026 | 8130*2200*1900 |
XMZ 350/1500 | 350 | 5043 | 86 | 29220 | 8950*2200*1900 |
XMZ 400/1500 | 400 | 5796 | 99 | 32574 | 9880*2200*1900 |
XMZ 450/1500 | 450 | 6492 | 111 | 35586 | 10690*2200*1900 |
XMZ 500/1500 | 500 | 7187 | 123 | 38606 | 11560*2200*1900 |
XMZ 500/2000 | 500 | 9686 | 69 | 0.6 | 15 | 34840 | 9965*2850*2400 |
XMZ 600/2000 | 600 | 11900 | 85 | 38223 | 11155*2850*2400 |
XMZ 700/2000 | 700 | 13838 | 99 | 41641 | 12345*2850*2400 |
XMZ 800/2000 | 800 | 15775 | 113 | 45060 | 13535*2850*2400 |
XMZ 900/2000 | 900 | 17851 | 128 | 48479 | 14725*2850*2400 |
XMZ 1000/2000 | 1000 | 19788 | 142 | 51898 | 15915*2850*2400 |
Applications of Recessed Filter Press Machine:Chemicals | Waste Water Treatment | Mines | Foods |
Metallurgy | Pharmacy | Non-metallic Mines | Clay |

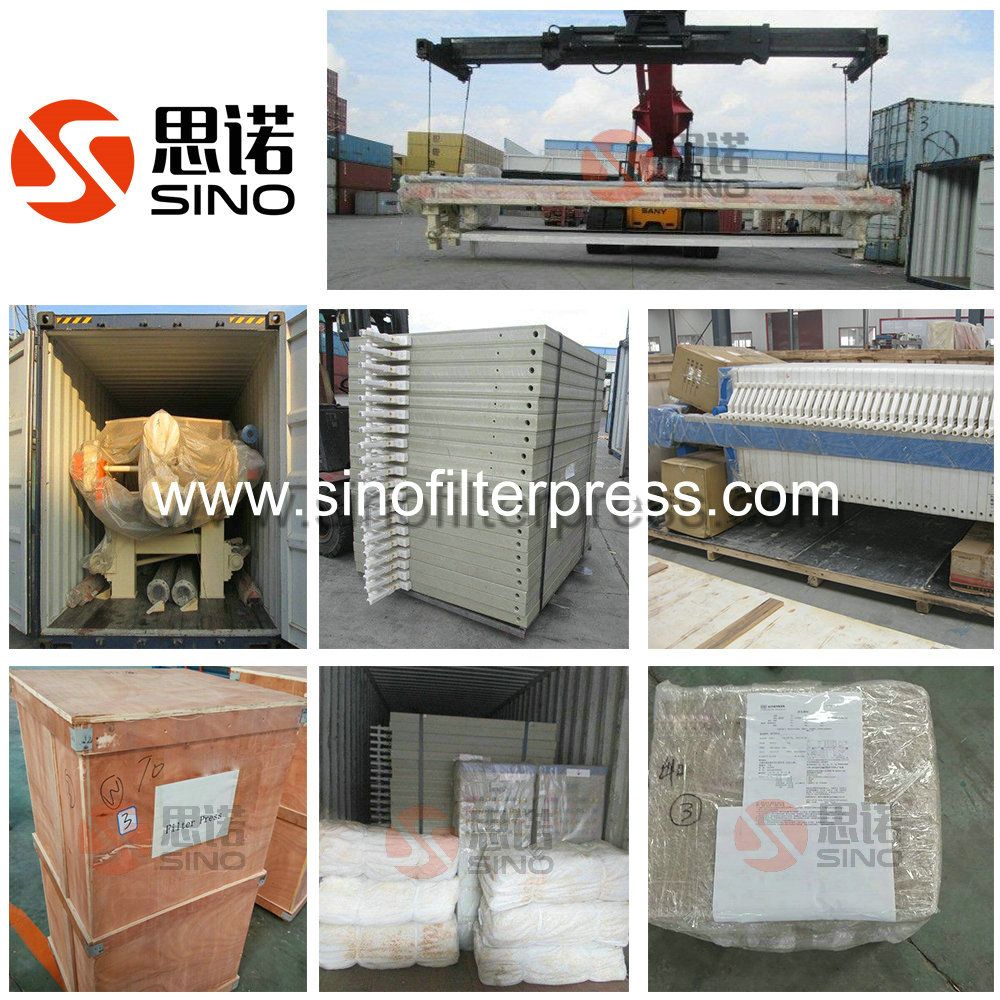

Packaging & Delivery of Recessed Filter Press Machine:
Delivery: around 3 weeks.
Packing: The packing is seaworthy packing: The filter press will be packed by the plastic film to avoid water. The hydraulic station and cabinet will be packed in wooden case. If need full wooden case pls inform in advance.

After-sales Service of Recessed Filter Press Machine:
1.Documents supplied: Foundation/Circuit Diagram/Filter Cloth (or Filter Plate).
2.Site commissioning, installation and training service are valid.
3.Warranty: 13 months after B/L data.
Pls contact us for more info on Recessed Filter Press Machine.
