| Price: | US $ 24000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1set |
| Pay Type: | L/C,T/T |
| Prod Model: | AVF |
|---|---|
| Markets: | North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Filling Type: | Piston ,Electric |
| Item Name: | Filling Machine for Liquid ,Oil ,Sauce ,Cream |
| Auto Grade: | Full Automatic |
| Place Of Origin: | Shanghai China |
| Factory Since: | 1999 |
| Filling Capacity: | Depan on Operator Experience |
| Weight: | 500kg |
| Driven Type: | Pneumatic |
| Power: | 6kw |
| Certification: | ISO9001 |
| Type: | Volumetric Filling Machine |
| Automatic Grade: | Automatic |
| Material Type: | Liquid |
| Filling Valve Head: | Multi-Head |
| Feed Cylinder Structure: | Single-Room Feeding |
| Dosing Device: | Plunger |
| Filling Principle: | Pressure |
| Packaging Container Lifting Structure: | Pneumatic Lifting |
| Structure: | Linear |
| Packaging Type: | Bottle |
| Packaging Material: | Plastic |
| Packaging Details: | Automatic shampoo filling Machine is packed by wooden box. |
|---|---|
| Delivery Detail: | 45~60 days |

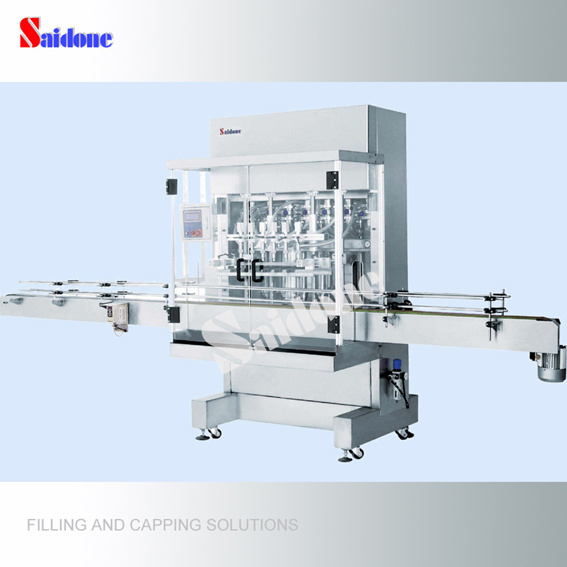

The AVF Series fillers are designed to dispense products of different viscosity, ranging from water thin liquids to thick creams
The AVF Series piston fillers are designed to dispense products of different viscosity,ranging from water thin liquids to thick creams, for the cosmetic, food,pharmaceutical, oil and specialty industries.
The series of machine has compact, reasonable configuration and nice, simple appearance.
They are made of Festo's pneumatic components from Germany, and MITSUBISHI'selectric components from Japan. All the components that come in contact withproduct are made of 316 L stainless steel imported, and processed by CNC machines.The excellent quality of components ensures that our AVF can work well andstably. This series of fillers are connected with clamps, which make them easyto clean and maintain, no special tools are required, and they also feature real time adjustability, no bottle no fill, accurate filling volume and a total bottle counter. The standard machines can be equipped with 4 to 12 filling nozzles orwe can also reduce or add the nozzles to suit your special need.
-Blocked nozzles for products that tend to string and drip
-Bottle mouth localizer
-Special functions, such as 'Auto check and display of malfunction', 'Liquid level alarm',etc.
--Diving nozzles for bottom up filling of foaming products;
--CIP system for clean on line;
--Turn valve for thick products;
| Model | Filling volume | Filling heads | Air consumption | Dimensions (mm) |
| AVF6-25P | 25~250ml | 6 | 280L/min | L1610xW1020xH2250 |
| AVF8-25P | 25~250ml | 8 | 360L/min | L1870xW1020xH2250 |
| AVF10-25P | 25~250ml | 10 | 440L/min | L2130xW1020xH2250 |
| AVF6-50P | 50~500ml | 6 | 550L/min | L1742xW1020xH2450 |
| AVF8-50P | 50~500ml | 8 | 700L/min | L2042xW1020xH2450 |
| AVF10-50P | 50~500ml | 10 | 800L/min | L2342xW1020xH2450 |
| AVF6-100P | 100~1000ml | 6 | 1000L/min | L1742xW1020xH2560 |
| AVF8-100P | 100`1000ml | 8 | 1300L/min | L2042xW1020xH2560 |
| AVF10-100P | 100~1000ml | 10 | 1600L/min | L2342xW1020xH2560 |
| AVF6-250P | 250~2500ml | 6 | 960L/min | L1920xW1158xH2829 |
| AVF8-250P | 250~2500ml | 8 | 1300L/min | L2340xW1158xH2829 |
| AVF10-250P | 250~2500ml | 10 | 1600L/min | L2760xW1158xH2829 |
| AVF6-500P | 500~5000ml | 6 | 2700L/min | L2069xW1158xH2929 |
| AVF8-500P | 500~5000ml | 8 | 3600L/min | L2549xW1125xH2929 |
| AVF10-500P | 500~5000ml | 10 | 4500L/min | L3029xW1158xH2929 |
