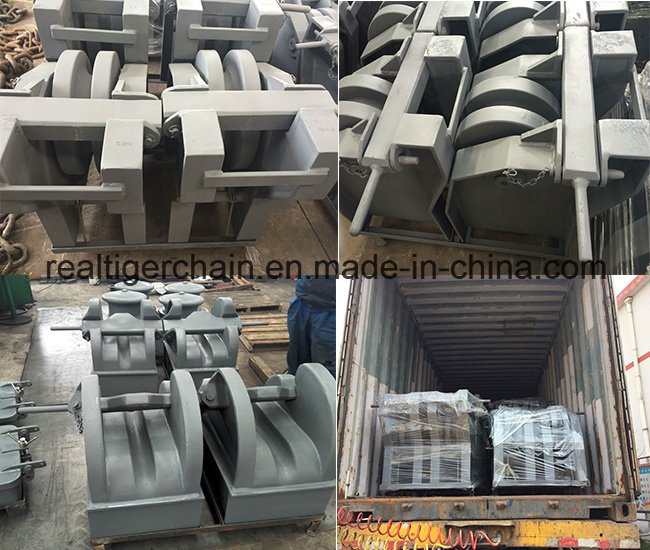

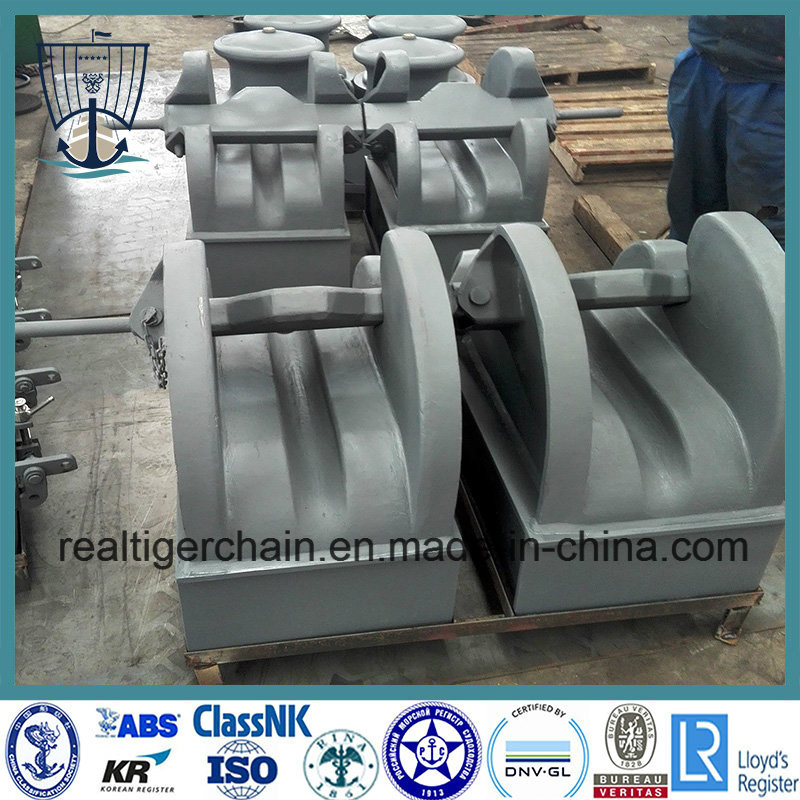

Bar Type Anchor Chain Stopper with Class Certificate
Price: |
US $ 85-120/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
Bar Type Chain Stopper |
Product Name: |
Bar Type Anchor Chain Stopper with Certificate |
Size: |
12.5-78mm |
Grade: |
U1 U2 U3 |
Chain Stopper Type: |
Roller Type, Bar Type |
Product Material: |
Casting Steel, Carbon Steel |
Color: |
Self Color, Gray Zinc Rich Primer, as Required |
Certificate: |
CCS ABS BV Nk Kr Gl-Dnv Lr Rina Rmrs |
Standards: |
CB/T3844-2000, JIS F 2015-87,JIS F 2023-76 |
Products Supplied: |
Anchor Chain, Anchor, Mooring Rope, Fender |
Product Description
*Product Name: Bar Type Anchor Chain Stopper with Certificate
*Size: 12.5-78mm
*Material: Carbon Steel, Casting Steel
*Surface: Gray Zinc Rich Primer, as required
*Certificate: CCS ABS BV NK KR GL-DNV LR RINA RMRS
*Standard: CB/T3844-2000, CB286-84, JIS F 2015-87, JIS F 2023-76
*Packing: Steel Pallet
*OEM Acceptable, Customerized Available

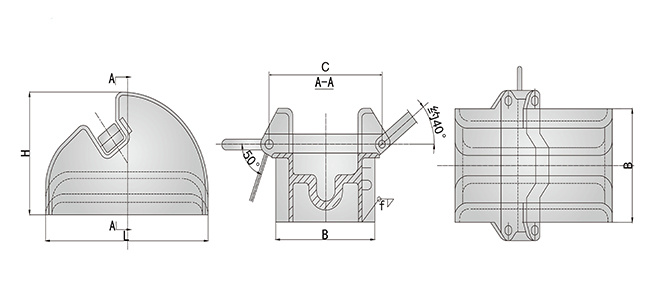

Japan Standard Casting Bar Type Chain Stopper JIS F 2015-87 Nominal Dia | 40 | 44 | 48 | 52 | 56 | 60 | 64 | 68 | 73 | 78 |
Suitable Chain Dia | 38-40 | 42-44 | 46-48 | 50-52 | 54-56 | 58-60 | 62-64 | 66-68 | 70-73 | 76-78 |
A | 540 | 590 | 640 | 695 | 745 | 795 | 850 | 900 | 960 | 1020 |
B | 336 | 366 | 397 | 428 | 457 | 488 | 517 | 547 | 582 | 617 |
C | 390 | 424 | 460 | 494 | 530 | 546 | 600 | 636 | 678 | 720 |
H | 378 | 412 | 450 | 491 | 528 | 564 | 600 | 635 | 675 | 715 |
Weight(kg) | 111 | 139 | 176 | 216 | 261 | 319 | 396 | 482 | 608 | 739 |
Japan Standard Casting Bar Type Chain Stopper JIS F 2023-76 Nominal Dia | 19 | 22 | 25 | 28 | 32 | 36 |
Suitable Chain Dia | 17-19 | 20-22 | 23-25 | 26-28 | 29-32 | 34-36 |
A | 270 | 310 | 345256 | 385 | 435 | 490 |
B | 134 | 153 | 33 | 193 | 220 | 246 |
C | 200 | 226 | 175 | 280 | 320 | 354 |
H | 190 | 216 | 241 | 270 | 305 | 342 |
Weight(kg) | 17 | 24 | 176 | 44 | 68 | 92 |
Casting Bar Type Chain Stopper CB286-84
chain dia | 12.5-14 | 16-17.5 | 19-20.5 | 22-24 | 26-28 | 30-32 | 34-36 | 38-40 | 42-44 | 46-48 | 50-52 | 54-56 | 58-60 | 62-64 | 66-68 |
B | 142 | 170 | 193 | 219 | 241 | 274 | 304 | 336 | 366 | 397 | 428 | 457 | 488 | 517 | 547 |
H | 162 | 190 | 216 | 241 | 270 | 305 | 342 | 378 | 412 | 450 | 491 | 528 | 564 | 600 | 635 |
L | 235 | 270 | 310 | 345 | 385 | 435 | 490 | 540 | 590 | 640 | 695 | 745 | 795 | 850 | 900 |
Weight(kg) | 22 | 29 | 36 | 45.5 | 58 | 74 | 92 | 115 | 145 | 183 | 225 | 271 | 352.5 | 424 | 509 |
Qingdao Real Tiger Marine Company is located in the beautiful coastal city of Qingdao, which is a professional one-stop marine equipment suppliers. Main products are anchor chain and accessories, ship anchor, mooring rope, wire rope, door, window, cover, bollard, chain stopper and other deck equipment. Products got CCS, DNV, GL, ABS, BV, LR, NK, KR, RINA classification society certificate, and passed the ISO9001-2008 international quality system certification.
Companies adhering to the "High Quality for Success, Sincere Credit for Cooperation
" concept, sincerely serve for the domestic and foreign customers, efforts to achieve win-win cooperation.

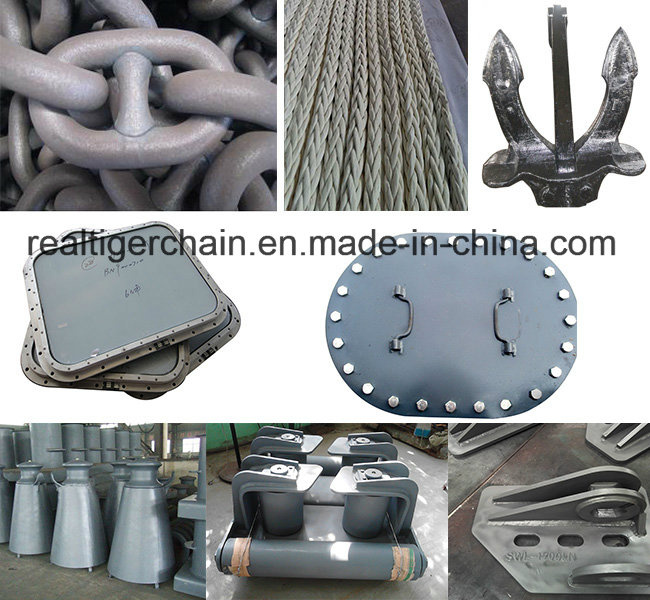

Maine Products:
*Anchor Chain: U1 U2 U3( Dia. 6-162mm)
*Offshore Mooring Chain: R3 R3S R4 R4S R5 R5S( Dia. 34-162mm)
*Anchor Chain Accessories: Kenter Shackle, Joining Shackle, End Shackle, Swivel, Pear Kenter Shackle, C Connector, Swivel Shackle, etc
*Ship Anchors: Hall Anchor, Spek Anchor, Admiralty Anchor, Japan Stockless Anchor, AC-14 HHP Anchor, Danforth Anchor, Pool Anchor, Delta Anchor, etc
*Mooring Rope: 3/4/6/8/12 Strands Ropes, Double Braided Ropes, UIIMWPE Ropes, and rope net
*Deck Equipments: DoorS, Windows, Hatch Cover, Manhole Cover, Chock, Roller Fairlead, Chain Stopper, Guide Roller, Bollard, etc
*Marine Rubber Fender: Pneumatic Rubber Fender, Super Cell Rubber Fender, Cone Rubber Fender, Semi-Circular Rubber Fender, Cylindrical Rubber Fender, Super Arch Rubber Fender, etc.
*Lashing Securing Series: Lashing Chain, Tension Lever, Ratchet Load Binder, D Ring, Hooks, etc
*Hardware: US Type Shackle (G209/210/2130/2150/2410/2160), Turnbuckle, D Ring, Hooks, Ratchet Load Binder, Wire Rope Clips, etc.
If you have requirements for OEM or CUSTOMERISED PRODDUCTS, are also available.
For more infomation, you can contact me at any time.
