| Price: | US $ 50000-70000set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1set |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | TDB-80F |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screw Diameter: | 100mm |
| Max. Die Diameter: | 420mm |
| Material Application: | PP/PE/LDPE/HDPE/LLDPE/ABS/PS |
| Color: | Blue/Yellow/White/Orange |
| Type: | Extrusion Blow Molding Machine |
| Raw Material: | PE |
| Making Method Of Parison: | Extrusion-Blow Molding |
| Automation: | Automatic |
| Computerized: | Computerized |
| Certification: | Bundersrepublik Deutschland Patents |

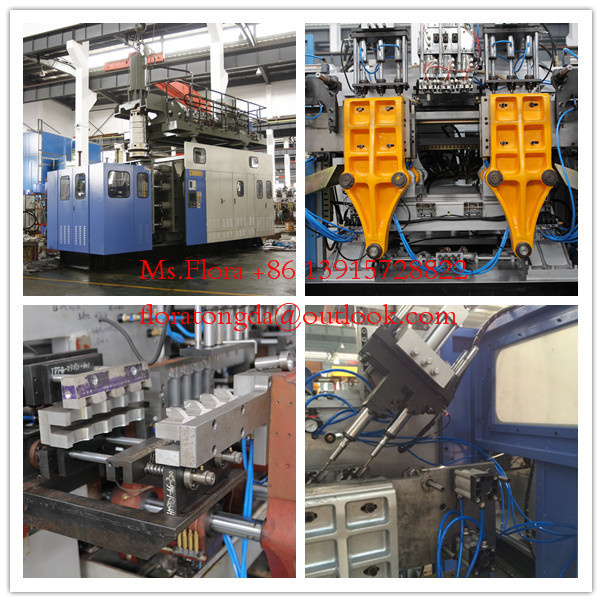

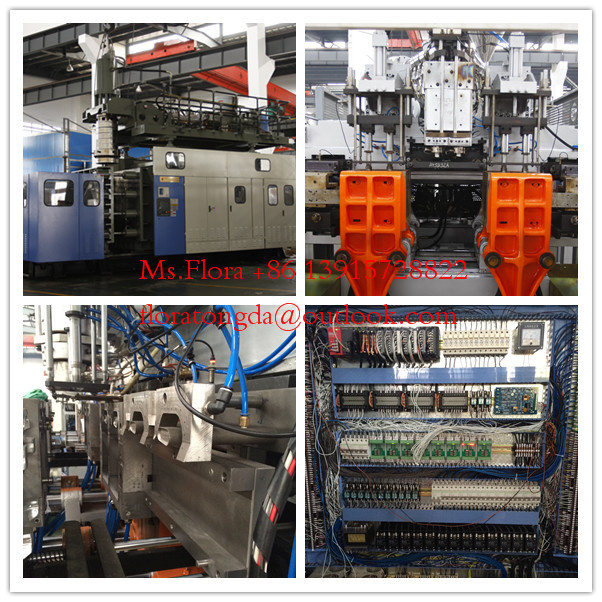

Big Size Plastic Mannequin Blowing Machine
Technical specification
Model |
| TDB-80A |
Station |
| Single station |
Max. Product Volume | (L) | 80L |
Dry cycle | (pc/h) | 360 |
Screw Diameter | (mm) | 100 |
Screw L/D ratio | (L/D) | 25 |
Screw drive power | (KW) | 45 |
Screw heating capacity | (KW) | 8.4~10.5 |
No. of heating zone | (ZONE) | 4 |
Max.Output of HDPE | (Kg/hr) | 160~200 |
Oil pump drive power | (KW) | 37 |
Clamping force | (KN) | 440 |
Mold stroke (Platen distance) | (mm) | 500~1200 |
Max. Size of Mold(W*H) | (mm) | 800*1000 |
Capacity of the diehead | (L) | 12.8 |
Max. Die diameter | (mm) | 420 |
Die heat capacity | (KW) | 9.2 |
No. of heating zone | (ZONE) | 5 |
Blowing pressure | (Mpa) | 0.8 |
Air volume | (M3/MIN) | 1.2 |
Cooling water pressure | (Mpa) | 0.3 |
Water consumption | (L/MIN) | 100 |
Size of machine ( L*W*H) | (m) | 5.42*2.45*3.9 |
Weight of machine | (TON) | 16 |
Supplier of main parts
a) Hydraulic Part
Oil Pump--------------------------------------------------DENISON OR SUNNY, America
Valve-------------------------------------------------------YUKEN, Japan
Hose, Joint------------------------------------------------PARKER SIR, America
Sealer------------------------------------------------------Top DZ, Europe
b) Electrical Parts
Microcomputer Control System------------------------MITSUBISHI PLC, Japan
Touch Screen ---------------------------------------------HITECH color screen, Taiwan
Temperature Controller---------------------------------MITSUBISHI, Japan
Conductor-------------------------------------------------SCHNEIDER, France
Air Switch-------------------------------------------------SCHNEIDER, France
Motor------------------------------------------------------SIMENS BEIDE Asynchronous Motor, Japan
Power Resource------------------------------------------MEAN WELL, Taiwan
Inverter---------------------------------------------------MITSUBISHI, Japan
c) Pneumatic Parts
Solenoid Valve--------------------------------------------FESTO, Germany
Cylinder---------------------------------------------------FESTO, Germany
d) Parison wall thickness controller
Parison controller 100 point----------------------------MOOG, Japan

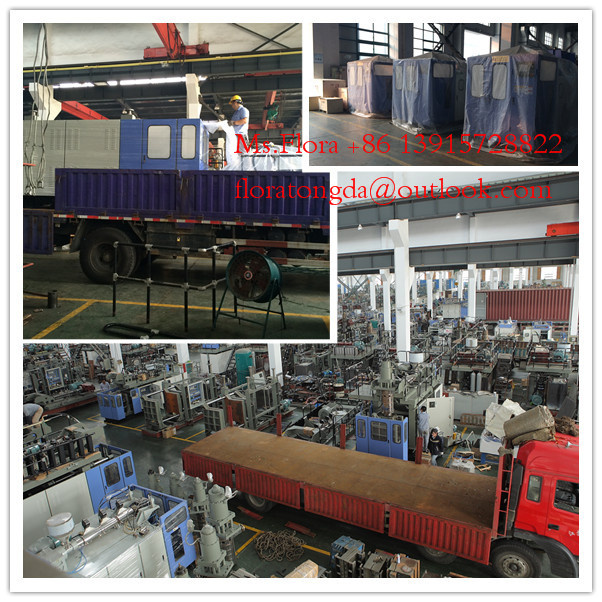

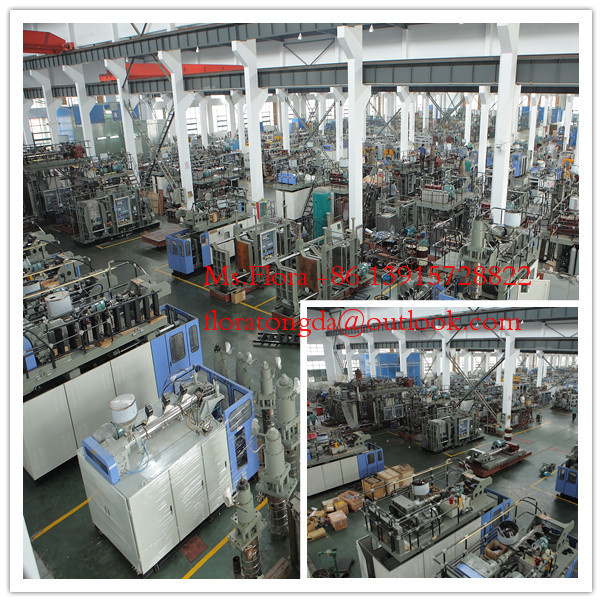

Workshop pcitures:
Big Size Plastic Mannequin Blowing Machine
Extrusion blow molding machine installation, commissioning and training:
If the buyer needs seller to send technicians to workshop for supervising the erection and start-up, seller must support and send sufficient number of technicians and keep duration of stay in workshop. Usually it's about 3~5 days in this duration. The first day is that when our technician is at the airport to factory of buyer. And from the first day, the buyer has to pay US$50 per day. And all accommodation, visa application & air ticket will be born by the buyer.
