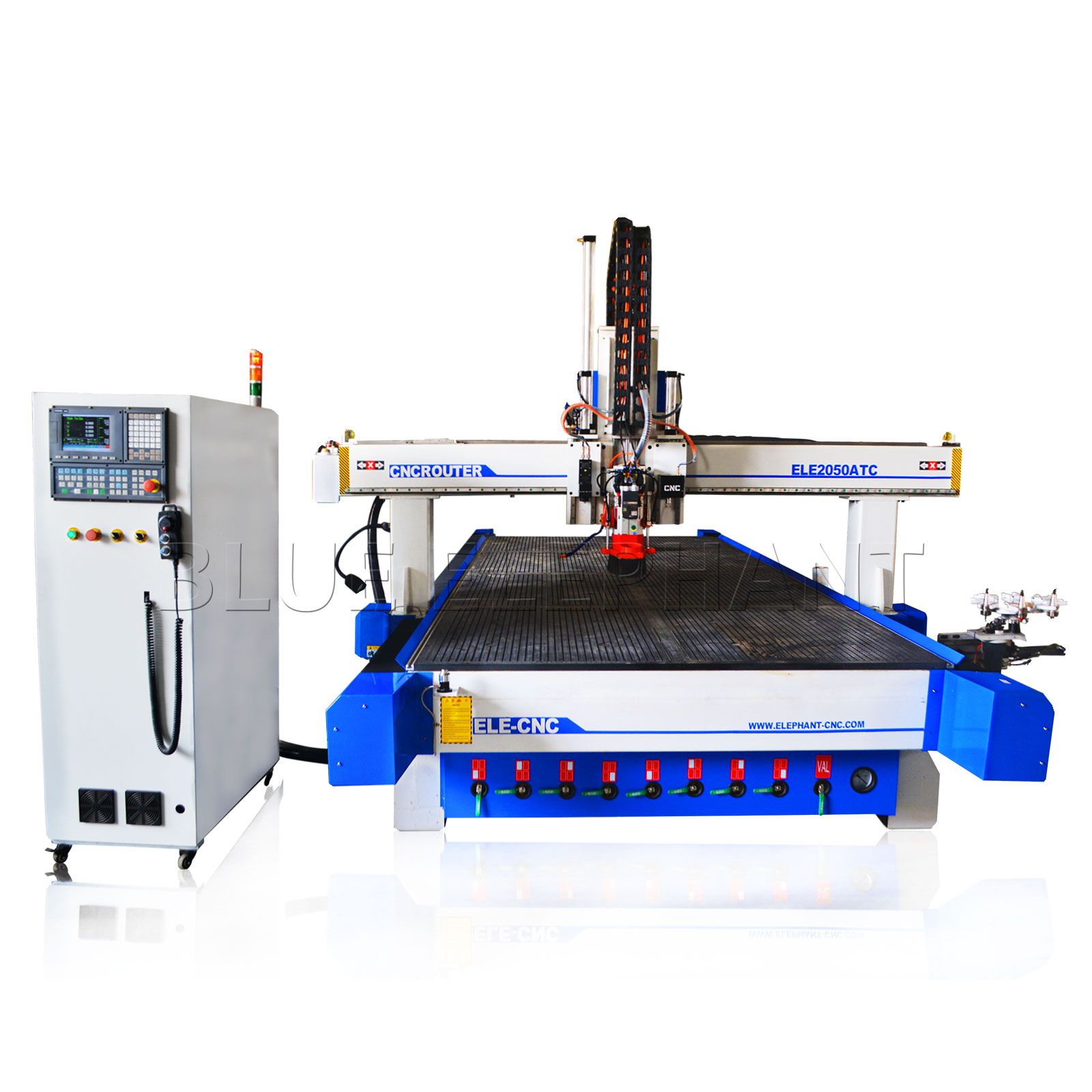

Blue Elephant CNC 2050 Oscillating Knife CNC Leather Strip Cutting Machine with Factory Price for Leather Carpet Foam
| Price: |
US $ 25000-38000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
ELE2050 |
| Power(W): |
17.5kw |
| Control System: |
Syntec 6MB Control System |
| Spindle: |
14kw Italy Hsd Water Cooling Spindle |
| Inverter: |
15kw Delta Inverter |
| Motor: |
Japan 850W Yaskawa Servo Motors |
| Driver: |
Japan Yaskawa Servo Drivers |
| Table Surface: |
T-Slot and Vacuum Working Table with 9 Zones |
| Transmission: |
Helical Tack, Hiwin 25# Rail Linear Bearing |
| Application: |
Leather, Carpet, Carton, Carboard, Rubber, Corrug |
| Oscillating Knife: |
Germany Ecocam Eot-3 |
Product Description
Blue Elephant Cnc 2050 Oscillating Knife Cnc Leather Strip Cutting Machine with Factory Price for Leather Carpet Foam
Video on YouTube: https://www.youtube.com/watch?v=DA3d7CsnAt0 Advantages of oscillating knife cutting machine:
- Imported high-precision ball screw has smooth movement for Z axis, which can ensure high precision of machine tools.
- We adopt well-known 14KW Italy HSD spindle in our Cnc router,which is famous brand and has many after service department all over the world. It is water cooling spindle, lower noise.
- With high-performance Japan YASKAWA servo motor, the machine can work in high precision.The servo motor runs smoothly,no vibration phenomenon even in the low speed.And it has a strong ability of overload.
- Designer perfectly selects the best machine accessories, minimizing the failure rate.
Breakpoint memory, continuing carving after power outage, forecasting processing time and other functions. - Advanced Taiwan Syntech system, easy operated with the handle.
- Cnc router machines' body is strong, rigid and durable.
- Advantages of Oscillating knife cutting machine cnc leather cardboard cutter router machine with good price.
Parameters of oscillating knife cutting machine:
| Descriptions | Parameters |
| Modle | ELE2050ATC-O |
| Working area | 2000*5000*400mm (can be customized) |
| Working Voltage | 380V, 3PHASE, 50HZ (can be customized) |
| Control System | Taiwan SYNTEC 6MB control system |
| Control box | 1.8m high control box |
| Oscillating knife | Germany ECOCAM EOT-3 |
| Spindle | 14kw Italy HSD water cooling spindle |
| Spindle speed | 0-12000RPM/MIN |
| Tool magazine | Carousel type + 8pcs ISO30 tool holders (Linear type for optional) |
| Motor and Driver | 850w Japan YASKAWA servo motors and drivers |
| Inverter | 15kw Taiwan DELTA inverter VFD-B |
| Structure | New type thicker and bigger heavy duty welded frame and gantry |
| Table surface | T-slot and Vacuum Working Table with 9 Zones |
| Gantry structure | Gantry Moving |
| Lubrication system | Automatic lubrication system |
| Calibration | Automatic tool sensor calibration |
| Mist cooling sprayer | Automaitc oil mist cooling sprayer |
| Transmission | X,Y Axis: Helical rack, Taiwan Hiwin/PMI/ABBA 25# Rail Linear Bearing with dust hood protection for Y axis. Z Axis: Taiwan Hiwin/PMI/ABBA Rail 25# Linear Bearing & Taiwan TBI Ball Screw |
| Vacuum pump | 2 sets 7.5kw Tongyou Pump (380V, 3PHASE, 50HZ) |
| Dust Collector | 1.5kw new type double pockets dust collector (380V, 3PHASE, 50HZ) |
| Command language | G Code |
| Color | According to your reference |
| Applications | Leather, Carpet, Carton, Wood, MDF, PVC, Acrylic, Carboard, Rubber, Corrugated box, Foam, Leather strip. |
PS:All the working area and specifications can be customized according to your requests.
Product details of oscillating knife cutting machine:
Features of oscillating knife cutting machine:
- Effective working area 2000*5000 mm
- Z axis 400 mm

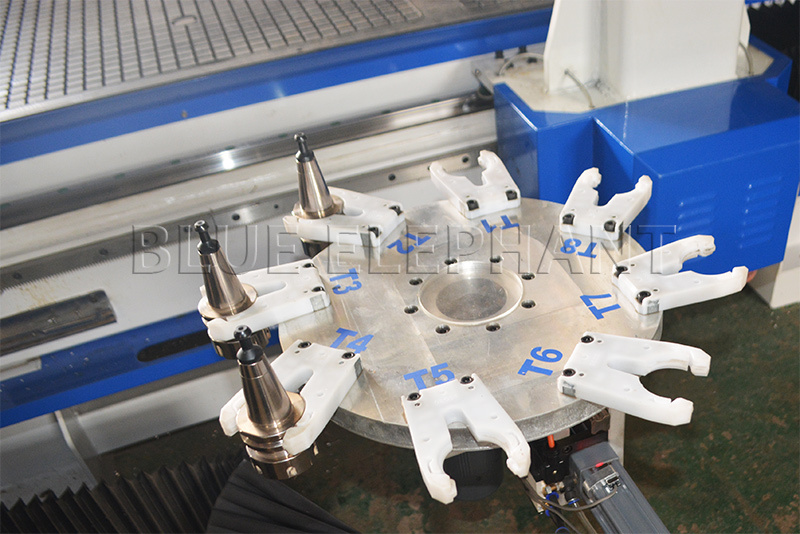

- 8 Carousel tool storage
- 14kw Italy HSD ATC water cooling spindle,32000 rpm,ISO30
- 15kw Taiwan Delta inverter
- Japan 850W YASKAWA servo motors and 1kw drivers
- Japan Shimpo Reducer
- Taiwan Syntec control system 6MB

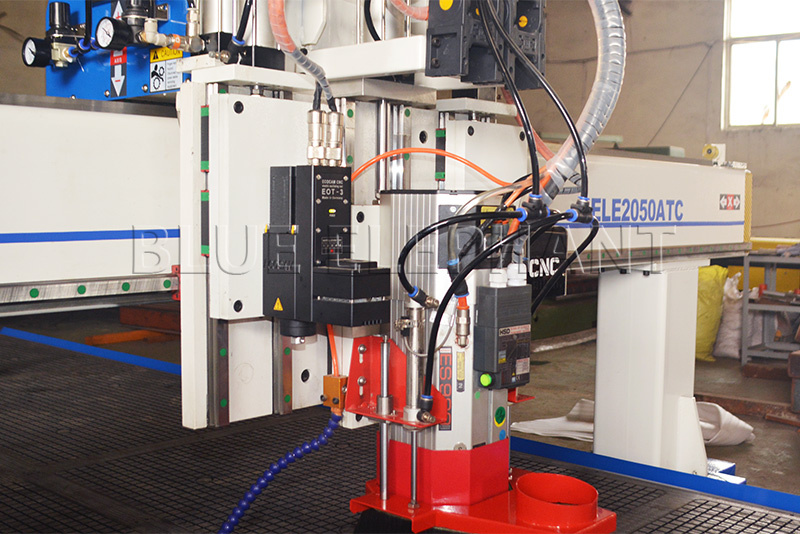

- Tangential knife and an oscillating knife
- HIWIN #25 linear square guide way for X,Y,Z axis
- Taiwan TBI ball screw for Z axis
- Vacuum table, 9 zones
- Automatic Oil Lubrication System
- Automatic Oil mist cooling sprayer
- Vacuum table
- Dust cover for Y axis
- 2*7.5KWTongyouRotary vane Vacuum pumps ,oil free working ,air-cooled
- 1.5KW new type dust collector
Applications of oscillating knife cutting machine:
- Wood-working industry: Ideally suitable for furniture decoration,musical instruments,wooden crafts,solid wood furniture,MDF paint-free door,wood composite door,cabinet,kitchen doors,windows,night table,etc.
- Decoration industry: Art model,Wall Art,screen felief engraving and cutting,decoration processing,gifts wrapping,waved plate,electrical cabinets panels,sports equipment,and other wooden industrial products.
- Advertisement: Acrylic,double color plate,PVC,ABS board,aluminum plate,density board,artificial stone,organic glass,soft metals like aluminum and copper,cut matrix,character,signs,trademar.
Samples:
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
FAQ:
How to choose the suitable carton cutting machine?
To provide you detailed quotation, we need to confirm the following detailes :
1.what is raw material
2.the size of material
3.Your other requirement
Detailed information will be sent to you the moment we get your confirmation

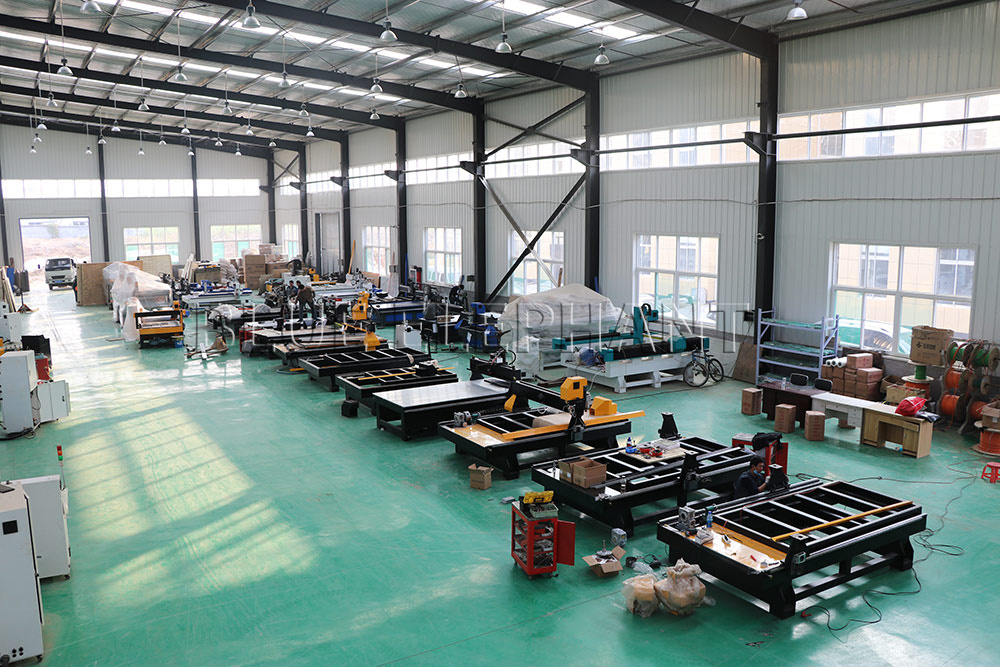

Welcome to our factory:
