| Prod Model: |
JS-TDJ-02H-Z-15W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Yellow |
| Solar Panel: |
40W/50W Monocrystalline Silicon |
| Light Source: |
Ultraviolet Lamp, Peak Wave Length 365nm |
| Tube Life Span: |
3000-6000 Hours |
| Voltage: |
DC12V/ AC 220V |
| Control Area: |
6670-13500 Square Meter |
| Working Temperature: |
-30c--+60c |
| Storage Battery: |
12V/24ah |
| Controller: |
12V/5A |
| Continuously Working Days: |
3 Days |
| Type: |
Trap |
| Rechargeable: |
Rechargeable |
| Mosquito Lamp: |
Electric Shock Mosquito |
| Feature: |
Disposable |
| Pest Type: |
All Insects |
| Physical Form: |
Electrical Shock Net |
Product Description

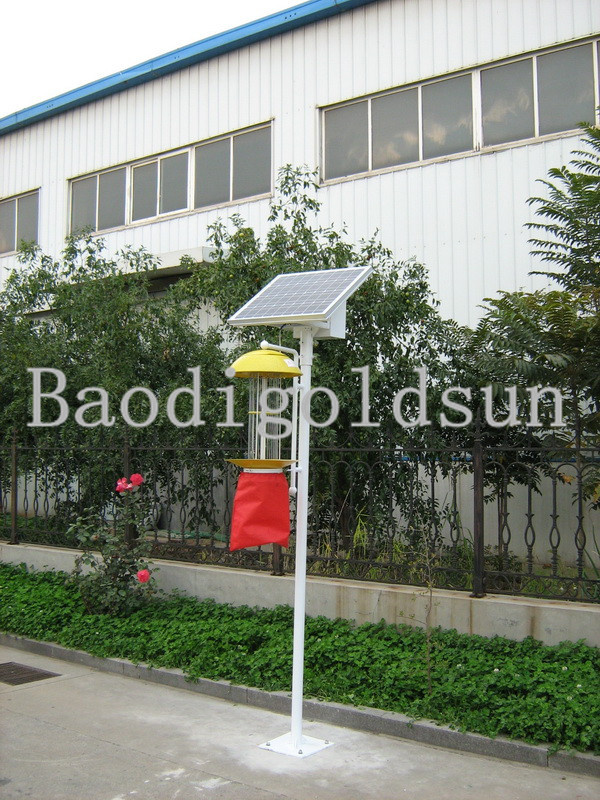

Model: JS-TDJ-02H-Z-15W
Solar panel:
monocrystalline silicon | 40W, 17V |
| Light power: | 15W fluorescent tube |
| Light source: | ultraviolet lamp, peak wave length 365nm |
| Tube life span: | 3000-6000 hours |
| Voltage: | DC12V/ AC 220V |
| Control area: | 6670-13500 square meter |
| Working temperature: | -30C--+60C |
| Storage battery: | 12V/24AH |
| Controller: | 12v/5A |
| Continuously working days: | 3days |
| Charging time: | 8 hours |
* Solar controller:
1 PC 12V/5A, packaged in box
Over charge and over load protection
Automatic time control, light control, rain control,
Lighting time preset or by hand set
* Electrical box:
1 PC, iron material, holding battery and controller inside, support the solar panel, pakaged by box
* Light pole:
1 PC, steel or stainless steel material, 1-3m. Life span 15 years
Pole base 1: Triangle type, digging a deep hole on ground, cover up by soil and stone.
Pole base 2: Flange base, fixing up by hex bolts on a cement basement to prevent from strong wind
Pole cracket: To hold the whole lamp by fixing up the top and bottom
Packing: Wrapped by PVC/PE
* Accessories: Bolts, screws, washer, brush, bag, manual, etc
*. Function:
Self-cleaning: Pests flying towards the lamp, killed by high voltage and dropp into the collecting bag.
Light control: Automatically turn on the light after day dark, and turn off at daybreak(working time about 10 hours).
Time control: Switching by manual operation, normally 6 hours working time.
Rain control: Automatically turn off when rain drops, and turn on when rain stops.
*. Characteristic:
1. Type of pest control: High performance on pests/insects attraction and killing, 2340V electrical shock net, safety to human, pets and animal live-stocks.
2. Physical pest control: High performance on exterminating pest, reduce the pest source for next year, reduce insecticide/pesticide use over 70%, reduce the production cost and insecticide/pesticide residues, produce green, nature, pollution-free products, increase the quality, output and profit, protect and improve the living environment.
3. Killing over 1200 species insects and pests covering 8 orders such as Lepidoptera, Coleoptera, Hemiptera, Hymenoptera, Diptera, neuroptera, Orthoptera, Homoptera and Thysanoptera etc...60%-70% of insects/pests are from Lepidoptera.
4. Suitable to all kinds of fruit orchard, such as Apple, Pear, Grapery vinery, Kiwi fruit, Plum,
Avocado, Nectarine, Peach tree, Orange, Cherry and other fruits. Suitable to Vegetable field, Cotton field, Tea plantation, Tabacco field, Cafe field, Cocoa field, Rice field, Forest, Grassland, Warehouse etc...
Also suitable to Airport, Golf cource, Park, Chateau, Garden etc...
High performance on killing Mosquito too! Suitable to chicken farm, cow farm, piggery
And other livestock farm who preventing diseases spreaded by mosquito etc...
Suitable to fishpond, killed pests are high protein food for fish, chicken and duck etc...
5. Easy to install, easy to maintenance.
* Product Packing
| Lamp dimension, G.W. | 42*42*67cm, 5kg |
| Solar panel dimension: | 630*645*35mm |
ONE LAMP PACKED IN ONE CARTON
AVAILABLE FOR CONTAINER TRANSPORTATION
Company Introduction
Goldsun New Energy Science & Technology Co., Ltd. Cover an area of more than 60,000 square meters and with registered capital of 52.62 million Yuan,is a national new energy high-tech enterprise. It keeps on researching and constructing technology of PV engineering and application products.
The company takes technology research and product development as the first power, and by cooperating with national key universities, the Agricultural expo garden as well as scientific research institutions and other departments, the company realized the combination of production-teaching-research. A provincial R&D and testing center has also been built for photovoltaic engineering and application products, and dozens of national patents has been obtained, such as five patents for inventions, two provincial scientific and technological achievements, and a national scientific and technological achievement. The company even participates in making a national industry technical standards and technical regulations.
Goldsun New Energy Science & Technology Co., Ltd. (GNEST) located in the High-tech Industrial Zone in Yantai City of Shandong Province covers an area about 60, 000 meters square with registered capital of 52.62 million yuan. GNEST is a national new energy high-tech enterprise. It keeps on researching and development of PV engineering and PV application products based on production of solar panel. In Aug, 2015, the company has successfully become the listed company in Chinese stock market ( Stock Name: Goldsun New Energy; Stock Code: 833512 ).
GNEST is a professional group with independent research & development, design, production, sales and installation, specializing in project, design and erection of On / Off Grid Solar Power System. Meanwhile, the company is committed to research and development of PV application products, such as Solar Insect killing lamp, Solar mosquito killer lamp, Solar Powered Vehicle, Solar integrated street light, Solar lighting products, Solar water pump, Portable Solar Power system, Solar Electric Charging Station, Solar-Powered Irrigation System, etc. Among those products, Solar Pest Killing Lamp is qualified by National Agriculture Machinery Quality & Supervision Center, which also reached the international advanced level. Furthermore, the company also obtained dozens of national patents including twelve patents for inventions, two provincial scientific & technological achievements and one national scientific & technological achievement. What's more, the company is honored to participate in formulating the national industry technical standards and technical regulation.
GNEST adopts modern enterprise management system. PV Engineering Department, PV Application Product Department, Solar Vehicle Department, Electronic Commerce Department and international trading department are the main business departments. Based on the support of R&D, QA / QC department, the company focuses on market requirement and aims at mass production and providing the best PV application product and PV engineering project in order to make a contribution to the development of our country's new energy industry.
