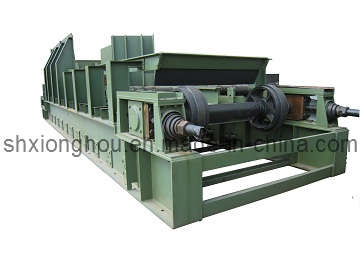

BW Series Apron Feeder

BW Series Apron Feeder
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Contact Supplier
Showroom Product Company Profile
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Electromagnetic Vibrating Feeder
Appearance: Open-Type
Usage: Gravel Field
Movement Mode: Linear

Product Description

The BW series Apron feeder made by our company is suitable for using, transferring and mixing and so on the process flow of the mining, cement, Chemical and the metallurgy industry. Especially transporting the bulk, high temperature and the incisive materials, and can be operated reliably in open-air and moist and so on the adverse circumstances.
Compared with the similar products made by other factories, this apron feeder has the velocity modulating evenly, overall width small, over-load protection automatically, low consumption, preventing material from being dispersing and leaking effectively and using the whole seal-up the guard shield. It has the merits of ejecting dust and environment protection and so on.
Type Width of the grooved plate (mm) Center distance between front and rear axle (mm) Speed (mm) Feeding granularity
(mm)		 Capacity (t/h) Electrical power(kw) Figure size
L×W× H
(mm)
BW100-6 1000 600 0.01-0.1 ≤500 80-160 11 8620×196×1600
BW100-12 12000 0.05-0.1 60-130 15 13500×4215×1675
BW120-4 1200 4000 0.014-0.08 ≤600 45-150 11 5810×5160×1480
BW120-6 6000 0.01-0.1 80-160 11 8620×5160×1600
BW120-11 11000 0.01-0.1 50-100 15 11463×5029×2860
BW120-19 19000 0.014-0.09 45-150 22 21620×5460×2000
BWZ120-4.5 4500 0.054 150 15 7183×3616×2071
BW125-6 1250 6000 0.014-0.08 45-150 11 8620×5240×1950
BW125-12 12000 0.014-0.08 45-150 18.5 14620×5460×2000
BW140-8 1400 8000 0.017-0.17 ≤900 100-200 22 10350×5948×1840
BW140-16 16000 0.006-0.06 20-200 22 18310×6447×2030
BW140-18 18000 0.006-0.06 20-200 22 20380× 6440×2030
BW150-5 1500 5000 0.014-0.08 ≤700 85-288 15 7620×5440×1950
BW150-10 10000 0.006-0.06 20-200 22 12850×5595×1705
BW150-15 15000 0.006-0.006 20-200 22 17350×5595×1705
BW160-6 1600 6000 0.017-0.17 ≤800 61-610 22 8354×6099×2100
BW160-9 9000 0.076 180 22 11250×5716×2240
BW180-8 1800 8000 0.022-0.046 ≤800 30-320 37 10300×4295×3650
BW180-12 12000 0.05 360 45 14723×6697×2080
BW220-10 2200 10000 0.018-0.055 ≤1500 220-680 45 12650×4495×3350
BW240-10 2400 10000 0.018-0.055 ≤1500 220-680 45 12650×4695×3350
