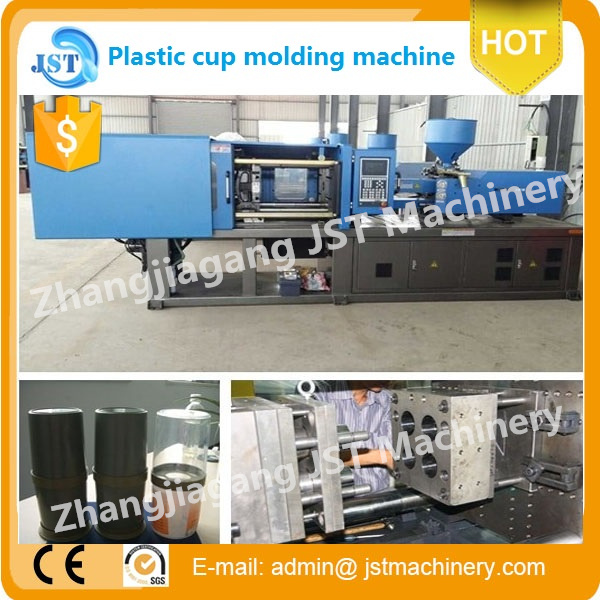

Ce Certificate Mannequin Injection Molding Machine for South America

Prod Model:	JST-2300
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Plastic Injection Moulding Machinery
Warrenty:	12 Months
Voltage:	Made to Client's Order
Packing Size:	Detail: Wooden Case 5500X1550X2100
Type:	Preform Injection
Structure:	Horizontal
Plastic Type:	Thermoplastic
Plasticizing Way:	Plunger Type
Clamping Way:	Mechanical
Automation:	Automatic
Computerized:	Computerized
Certification:	SGS

Product Description

Latest Professional Supplier Pet Preform Injection Molding Machine working videos:
https://youtu.be/vJFxd8G8Uos
https://youtu.be/M408aGGeGZI
1. Produce: Bottle preforms,caps,etc
2. Material: SS
3. CE,ISO,SGS
4. plastic injection moulding machine price
PET materials→Dryer→Injection machine(with Chiller)→Bottle Proferms
1. PET material because of its exceptional performance, are generally used two-step molding process, by the preform injection molding machine to produce a 24-hour After cooling, the internal molecular structure of their re-arranged in an orderly manner, and blowing for the next step to create good conditions, so that more excellent blowing performance products. Such as the famous Coca-Cola Company is currently using this technology.
PP/PE material→load material→dry→heat material →injection→cooling molding →preforms→caps .
2. Cap on in the injection molding machine is completely automated production
Functions of plastic injection moulding machine :
1) LCD computer control with big display screen
  2) Hydraulic double proportional valve
  3) Hard chrome plated high tensile strength steel tie bars
  4) Generous space for fitting large moulds
  5) Large opening stroke
  6) Two position transducers to control Clamping and Injection
  7) Four stages of injecting, independent velocity and pressure control
  8) Hydraulic mould height adjustment device
  9) Screw cold-start prevention device 10) Melt decompression control
11) Screw back pressure control
12) Multiple hydraulic ejection
13) Differential high speed clamping
14) Centralized lubrication system
15) Low pressure mould protection device
16) Mechanical safety interlock
17) Double electrical safety interlock
18) Oil return filter
19) Oil tank with inner stainless steel container
CE,ISO
Technical Data of injection molding machines accessories :

Model	Clamp tonnage (KN)	Ejector tonnage (KN)	Heat power(KN)	Max.Pump pressure (MPA)	Pump motor power(kw)	Machine dinension(m)	Machine weight(t)	Oil tank capacity(L)
JST-1000A	1000	50	7.6	16	11	4.3*1.5*1.6	3.4	180
JST-1320A	1320	50	8.2	16	13	4.5*1.6*1.7	3.9	200
JST-1400A	1400	50	8.2	16	13	4.8*1.6*1.7	4.2	220
JST-1650A	1650	70	8.2	16	15	5.0*1.6*1.7	5	250
JST-1800A	1800	70	11	16	15	5.3*1.6*1.75	5.5	250
JST-2050A	2050	70	11.6	16	17	5.4*1.6*1.75	6	270
JST-2300A	2300	70	11.6	16	18.5	5.7*1.8*2.0	6.5	300
JST-2600A	2600	70	15.5	16	25	6.1*1.7*1.8	8	350
JST-3000A	3000	80	15.5	16	25	6.5*1.8*1.8	9	370
JST-3400A	3400	80	17.5	16	30	6.7*2.0*1.9	10.8	400
JST-3850A	3850	80	17.5	16	30	7.0*2.2*2.0	11.5	400
JST-4500A	4500	85	20.5	16	37	7.3*2.3*2.4	13.8	450
JST-4800A	4800	125	23.4	16	40	8.3*2.2*2.2	16.2	600
JST-5200A	5200	125	28.1	16	43.5	8.6*2.2*2.25	20	750
JST-5800A	5800	125	28.1	16	48.5	8.75*2.2*2.3	21.8	850
JST-6500A	6500	6500	37.1	16	55	9.2*2.2*2.4	26	1000
JST-7500A	7500	1800	40.9	16	67	10.7*2.3*2.7	38	1200
JST-8500A	8500	180	42.5	16	74	11*2.4*2.75	45	1300

Any question about this machine,contact with us please,sincere service for you and welcome to JST Katherine.
