Price: | US $ 38000-45000/Piece |
---|---|
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,Western Union,Money Gram |
Prod Model: | MR8-200RH |
---|---|
Weight: | 1500kg |
Filling Voulme: | 10-2000g |
Pouch Type: | 3/4 Side Sealed Bag, Zipper Bag, Pouch, Standup Pouch |
Power: | 4.5kw |
Compress Air Requirements: | ≥0.8m3/Min Supply by User |
Automatic Grade: | Automatic |
Application: | Hair Care Products |
Driven Type: | Electric |
Material Type: | Powder |
Packaging Material: | Plastic |
Forming Species: | Permade Bag |

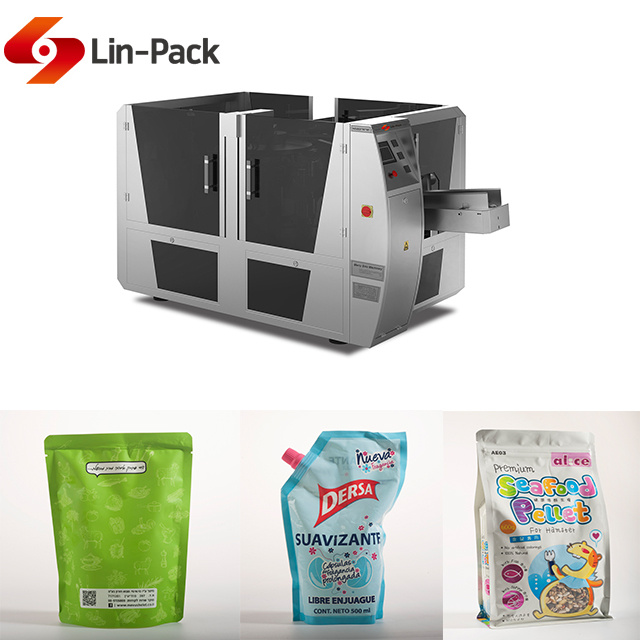

Automatic Pouch/Zipper Bag Seafood Packing Machine
Product DescriptionUsages:
This machine mainly using for packing kinds of snacks,liquid,sauce,
Features and Characteristics
1)Quick change-over and automatic adjustment of pouch width.
2)The advanced design ensures a stable performance and a longer life of the equipment, and a lower rate of defective products..
Comply with the sanitation requirements of food packaging equipment to ensure food hygiene and safety.
3)A low waste of packaging materials.
4)The machine adopts premade pouches with a high-quality sealing,resulting in improved product quality and grades.
5)Easy to Operate, with advanced PLC and POD touch screen electrical control system, friendly Man-Machine Interface, wide Application, including liquids, paste, powder, granule, solid. Weighing equipment are available from material to material.
6)The machine and the other Merry Sino devices constitute a packing system.
8 work stations:
Parameters:
Modell | MR8-200RH |

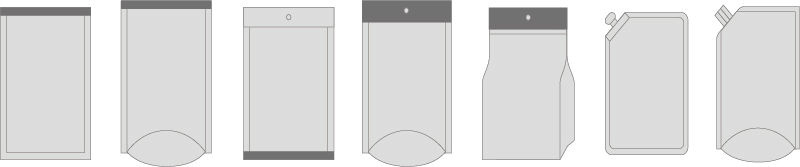

Pouch Type | Four-side seal bags, stand-up pouches with or without spout, zipper bags, three-side seal bags, paper bags, etc. |
Bag Size | W:80-210 mm L: 100-300 mm |
Filling Volume | 10-2000g Depending on type of products |
Capacity | 60Bags/min |
Package Accuracy | ≤±1 |
Total power | 4.5kw 220v/380v,3PH, 50 HZ |
Dimension | 2200*1550*1410 L*W*H |
Weight | 1500KGS |
Compress Air Requirements | ≥0.8m3/min supply by user |
work process | bag loading→date coding →bag opening→filling and vibrating 1→filling and vibrating2→product settling after filling by vibrating→heat sealing→form and output |
Optional Configuration | material weighing &filling machines Platform check weigher material elevator finished product conveyor metal detector |
Application | Block: chocolate, candies, cereal, biscuits, cakes, puffed food, etc. Granule: nuts, capsules, seeds, feeds, pesticides, fertilizers, etc. Powder: seasoning, milk powder, washing powder, fine sugar,etc. Liquid/sauce: detergent, juice, beverage, ketchup, jam Pickles: carrots, etc. |
Standard Equipment part | Date Printer PLC control system pouch opening devices vibrating device Cylinder magnetic valve temperature controller vacuum pump frequency converter output system |

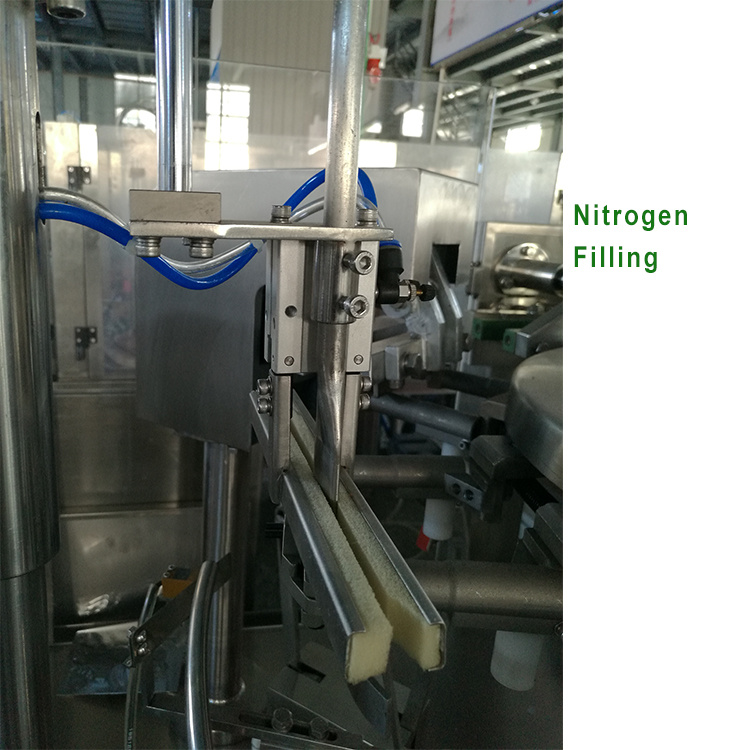

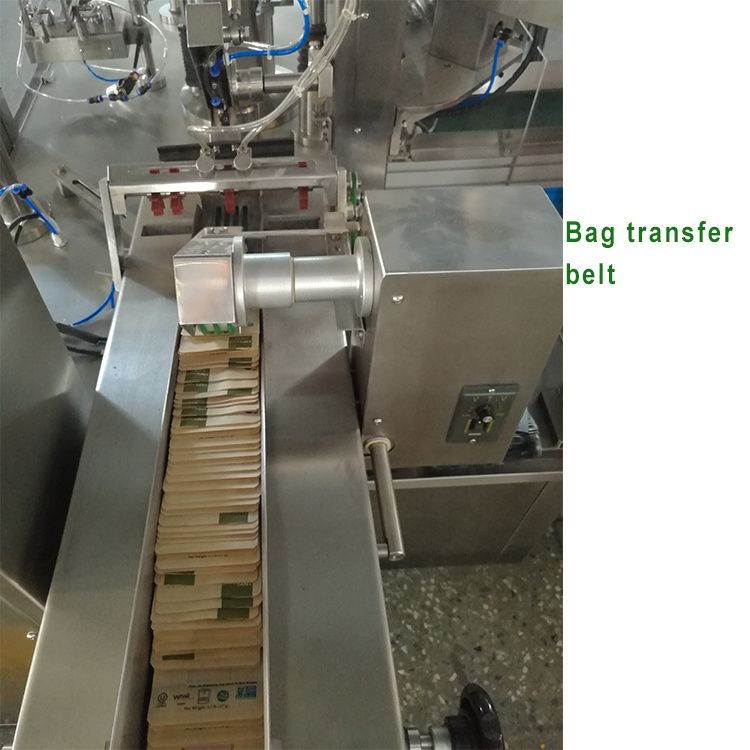

Deatils Pictures
3. LIN-PACK engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have 1 year warranty of machine,2 years warranty of electric part. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
