| Prod Model: |
WB90 WB60 |
| Name: |
Bucket Wear Buttons |
| Rockwell: |
63HRC |
| Brinell: |
700bhn |
| Technology: |
Vacuum Brazing |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description
China factory of high chromium carbide bucket wear buttons and wear donuts
HYSTER has been an independent international supply, design and engineering company, since 1995.
welcome to choose us - the most experienced manufacturer and exporter for laminite wear plates(ASTM A532 chromium carbide white iron & mild steel backing plate, 63HRC-700BHN), domite chocky bars, chromium carbide wear blocks, grinder hammer tips, white iron wear bars as well as Cr-c overlay wear plate.
ASTM A532 Class 2 15/3 CrMo casting + Q235 mild steel backing plate
outstanding wear resistance 63HRC/ 700 BHN + excellent impact toughness
durable + weldable / various shape

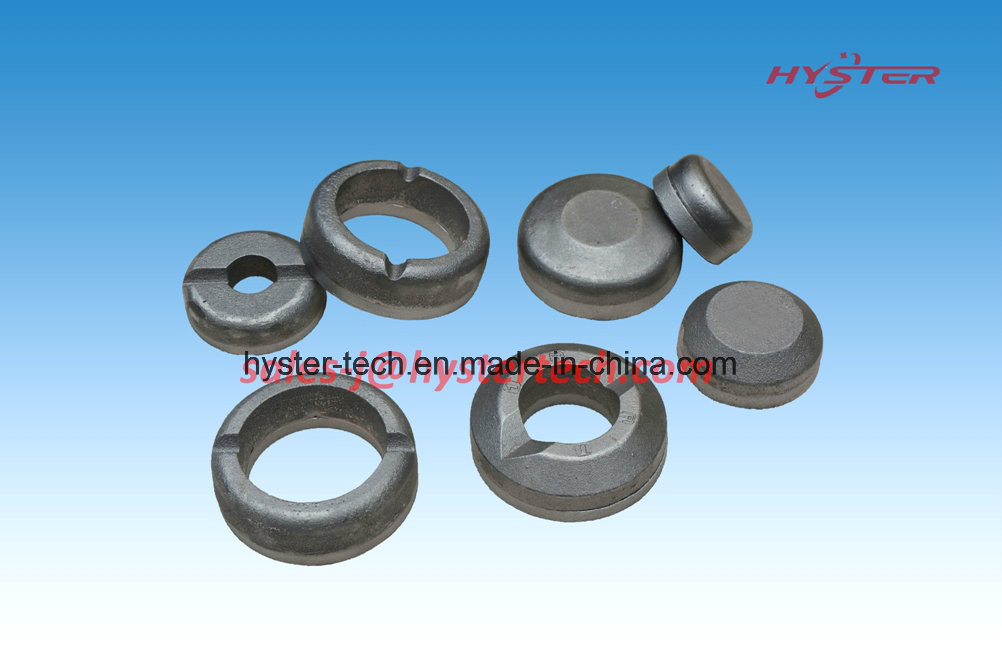

wear buttons and donuts
Types
ITEM | SIZE(mm) | Net Weight(kg) |
| WB60 | 60x27 | 0.7 |
| WB75 | 75x27 | 0.8 |
| WB90 | 90x27 | 1.4 |
| WB110 | 110x32 | 2.1 |
| WB115 | 115x32 | 2.5 |
| WB150 | 150x41 | 5.7 |
PLEASE NOTE,
CAST LOGO FREE!
OEM PRODUCTION AVAILABLE!
>Material,
ASTM A532 15/3 CrMo white iron casting , chemical composition ( percentage )
| C | Cr | Mo | Si | Mn | Ni | Cu | P | S |
| 2.0-3.3 | 14-18 | ≤ 3.0 | ≤ 1.5 | ≤ 2.0 | ≤ 2.5 | ≤ 1.2 | ≤ 0.1 | ≤ 0.06 |
Q235 mild steel backing , chemical composition ( percentage )
| C | Si | Mn | P | S | Cr | Ni | Mo | Cu |
| 0.2 | 0.35 | 1.4 | 0.045 | 0.05 | 0.3 | 0.3 | 0.3 | 0.3 |
>Mechanical Property,
-Minimum Hardness, 700 HBN / 63 HRC
-Minimum Tensile Strength, 630Mpa.
-Minimum Shearing Strength, 250Mpa.
Wear Pads Lip Protectors Screen Plates Bucket Liners
Floor Liners Loaders Wear Aprons Knife Inserts
Crusher Bars Run Out Rolls Dump Hoppers Crusher Hoppers
Vibratory Feeders Rock Box Edges Surge Bin Liners Rock Box Liners
Skip Liners Trough Liners Draglines Concentration Bins
Transition Pieces Coal Transfer Chutes Buckets Apron Feeder Liners
Loading Pocket Liners Splitter/Divider Plates Shovels Hammer Mill Inserts
Rolling Mill Guides Hopper Edges Arm & Hub Liners Bolt Protectors
Truck Bed Liners Impact Wall Liners Distribution Plates Bucket Wheel
Conveyor Transfer Points Protection Jaw Crushers Chute Linings
Ore Chutes Crusher Chutes Tripper Chutes Flop Gates
Bucket Liners Grizzly Bars
OTHER TYPICAL PRODUCTS AND SERVICE
-Wear plates, wear liners
-Chocky bars and wear buttons
-Wear blocks, wear bars
-Custom made wear liners
-Bucket repair and protection
-Full Fabrication services
-Sugar mill hammer tips
-Drilling, milling or machining
-Casting/Investment casting
-Fast service and timely delivery
Hunan Hyster Material Technology Co., Ltd., formerly name is hyper casting parts Co., Ltd., is an independent international supply, design and engineering company, in operation since 1995, we specializes in high quality of wear products.
Hyster offer our clients a wide range of wear products and professional wear solutions. We also welcome custom made one off's and consumables.
Some of our products and services:
--Wear plates, wear liners
--Chocky bars and wear buttons
--Wear blocks, wear bars
--Custom made wear liners
--Bucket repair and protection
--Full Fabrication services
--Sugar mill hammer tips
--Drilling, milling or machining
--Casting/Investment casting
--Fast service and timely delivery
With strict management system and strong technical base, Hyster Corporation is committed to provide high-quality products and services for the fields of Mine and Mining, Quarrying, Electrical power, Cement, Sugar, Aviation, Marine, Railway, Engineering plant and Petroleum machinery industries.
Quality is very important to the development of Hyster Corporation. The company strictly operates according to ISO9001: 2000 quality management system. Over 95% products have been sold to Australia, Canada, South Africa, Brazil, America, Chile, Indonesia, Argentina, Thailand, Mexico, Russia, Holland, as well as many other countries and areas.
Moreover, breaking out of the traditional practice that only provide OEM products, our company has created the new sales concept whose main points are providing solutions, terminal products and customer services, which enables us to better fulfill customer specifications in a positive manner.
Please contact us directly with any questions or inquiries!
