| Price: | US $ 45-6516 |
|---|---|
| Min Order: | 516 |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | China made tungsten carbide stud HPGR buttons |
|---|---|
| Product Name: | China Made Tungsten Carbide Stud Hpgr Buttons |
| Types 1: | Tungsten Carbide Surrounding Cutter |
| Types 2: | Tungsten Carbide up Cutter |
| Types 3: | Carbide Shied Cutter |
| Types 4: | Tungsten Carbide Heading Cutter |
| Type 5: | Spoon Shape Carbide Button |
| Type 6: | Double Chamfered Carbide Button |
| Application: | Shield Machine, Urban Subway Engineering |
| Hardness: | 82~90hra |
| Other Grades Available: | Yg8c, Yg11c, Yg13c, Yg15c |

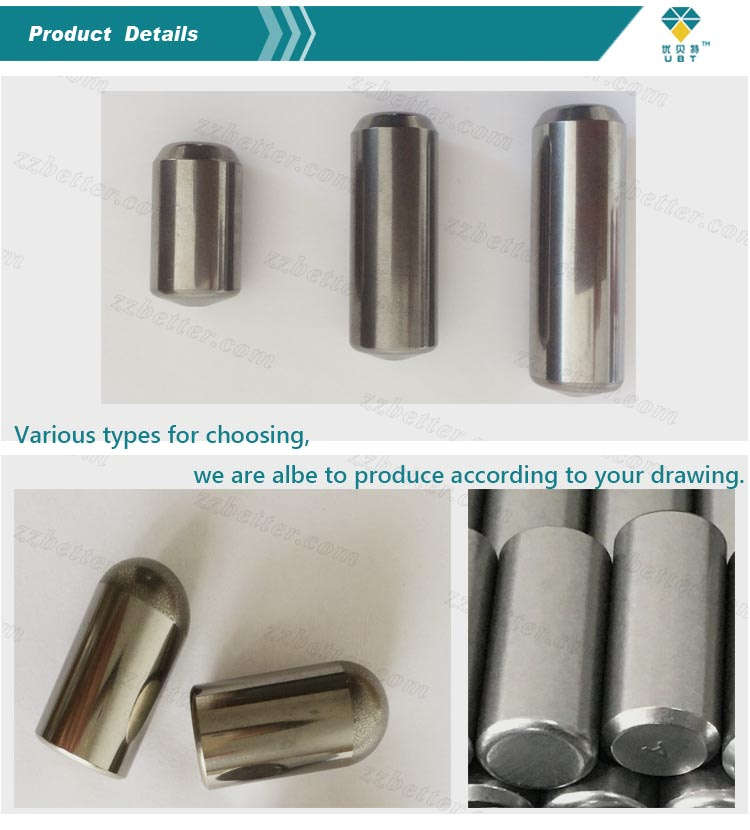

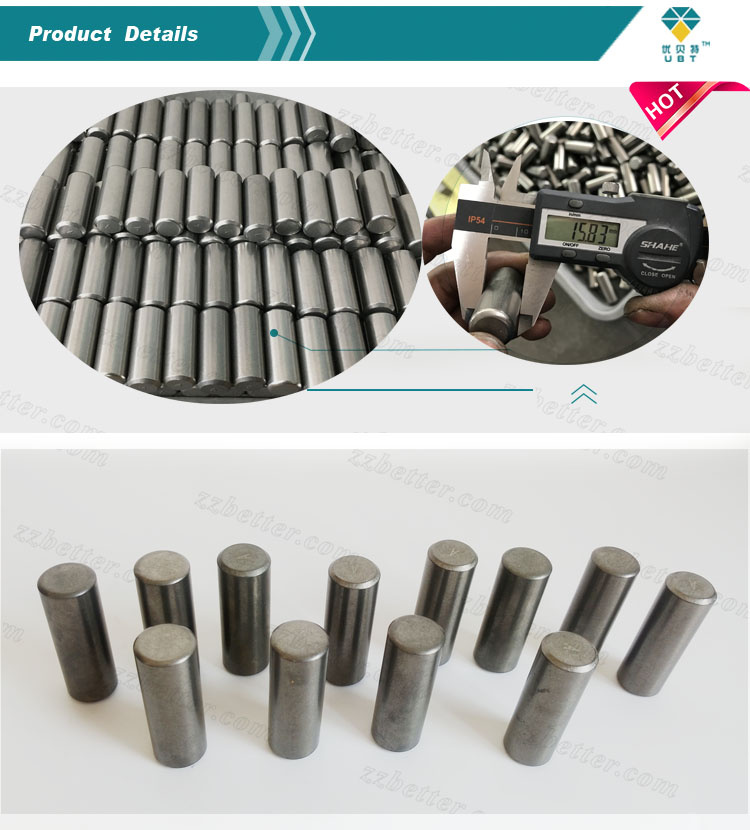

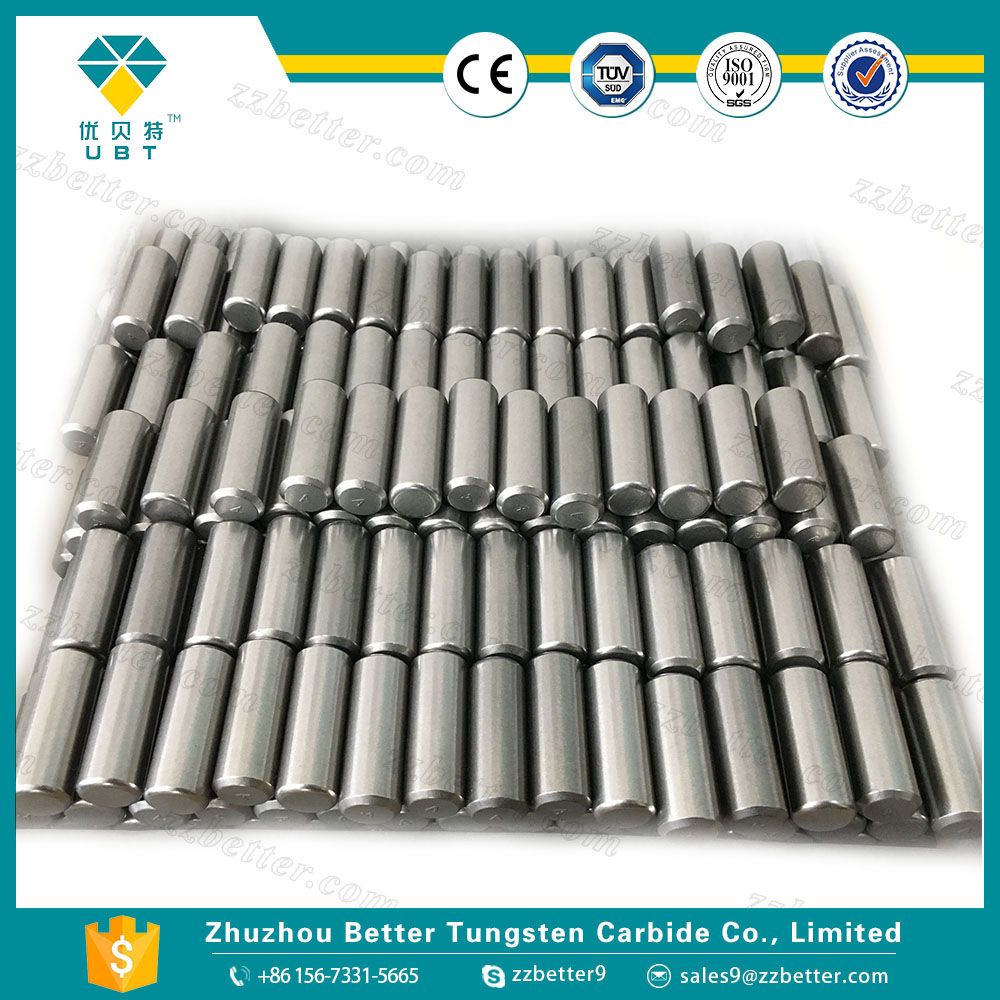

China made tungsten carbide stud HPGR buttons
1. Description of HPGR studs

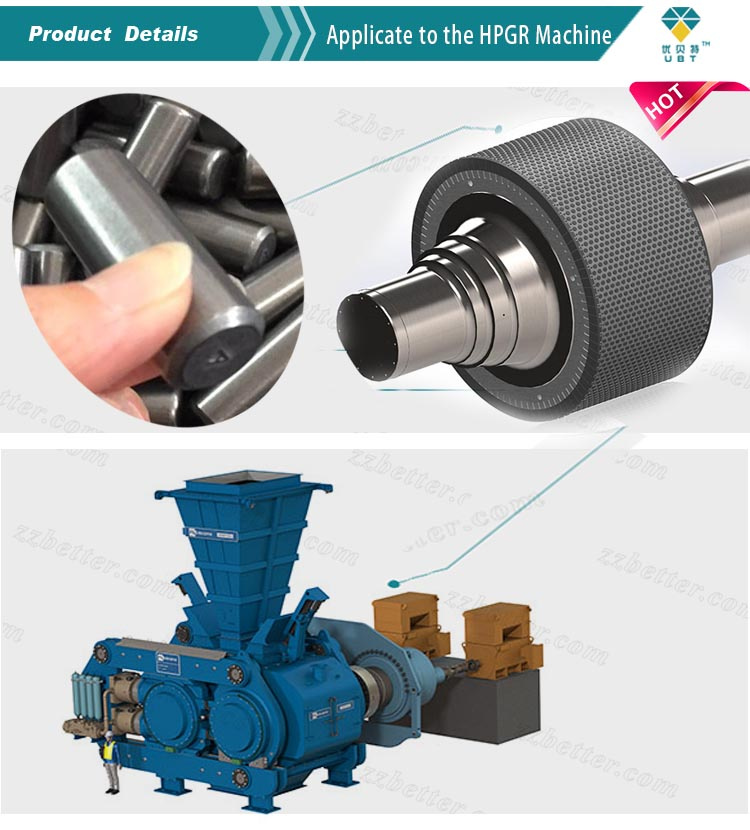

High Pressure Grinding Roller is an energy-efficient crushing equipment of new technologies. High performance of carbide stud extends the life of High Pressure Grinding Roller. Zhuzhou Better provide quality carbide stub with good wear resistance and high compressive strength, can satisfy the requirements of different conditions.
2. Application of the HPGR tungsten carbide cement grinding studs
.Grinding bulk material.
.As pre grinding equipment before ball mill or form complex grinding system with ball mill in the field of mineral separation,
.Widely used in grinding cement clinker,limestone,bauxite,iron ore.
Properties and Recommended Applications:
Grade | Typical property values | Performance & Applications | ||
Density(g/cm3) | Bending Strength(N/mm2) | Hardness HRA | ||
YG11C | 14.45 | 2900 | ≥86.5 | Suitable for all kinds of hardness rock formation (f=14). |
YG13C | 14.15 | 3100 | ≥85.5 | Suitable for hard rock formation (f=16). |
