| Prod Model: |
Dek-110*110 mm |
| Engraving Depth: |
0.01~0.2mm |
| Control Software: |
Ezcad |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf etc |
| Working Accuracy: |
0.001mm |
| Guaranty: |
24 Month |
| Quality Of Laser Beam: |
M2<1.5 |
| Engraving Speed: |
≤12000mm/S |
| Laser Length: |
1060nm |
| Minimum Line Width: |
0.01mm |
| Minimum Character: |
0.05mm |
Product Description

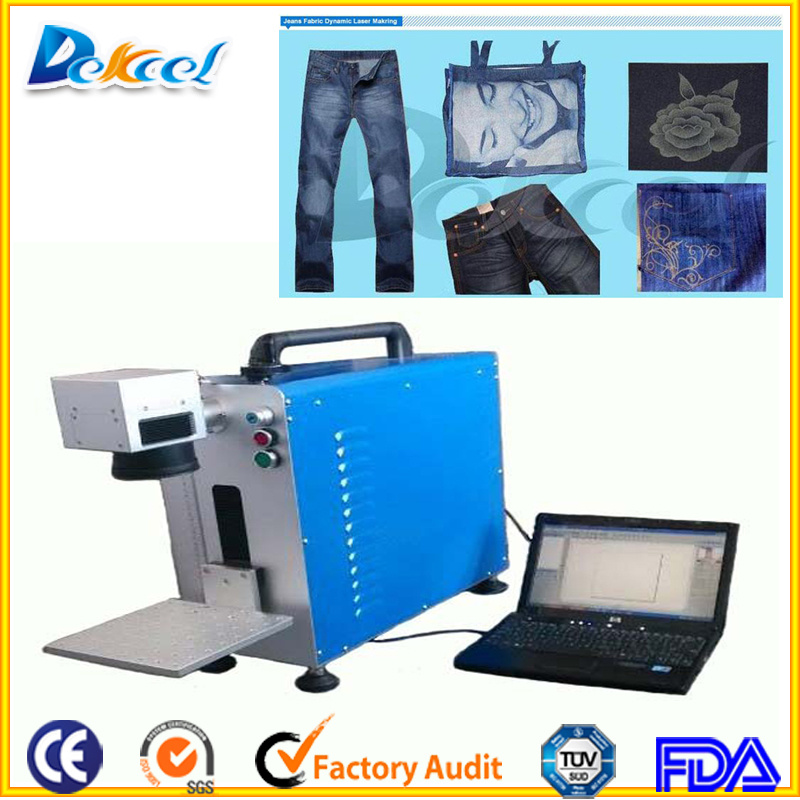

Main Features of Fiber laser Marking Machine:
1.Laser power output is stable,and light spot quality is good .
2.Quick marking and cutting speed at 2-3 times that of conventional machines .
3.There is no restriction in operation systems. It is convenient in operation,with fully closed light paths,so it is stable,reliable and free in maintenance with ultra-long service life up to more than 100000 hours .
4.No pollution,no noise,and consumable materials,with power consumption at 5%-10% of consumption by traditional machines .
5.ultra high accuracy and fineness,with there solution up to 2540dpi .
Applicable field and material of CNC Fiber Laser Marker
| Electronic Components | Resistance, capacitance, chips, printed circuit
boards, computer keyboard |
| Apparatus And Meter | Panel signs, precision equipment,etc |
| Instrument | Panel signs nameplate, precision equipment,etc |
| Hardware Tools | Knives,tools,measuring tools,cutting tools,etc |
| Automobile Parts | Piston rings,gears,shafts,bearings,clutch,lights etc |
| Mechanical Parts | Bearings,gears,standard parts,motors,etc |
| Daily Necessities | Handicrafts,zipper,key holder,sanitary ware,etc |
| Jewelry Rings | Jewelry,gold,silver,etc |
| Food,drinking packing | Plastic packings,etc |
Specifications of CNC Fiber Laser Marking Machine
| Model | DEK-10W/20W/30W/50W |
| Laser power | 10W 20W 30W 50W |
| Laser wavelength | 1064nm ±10nm |
| Q-frequency | 20KHz~100KHz |
| Pules frequency | 20KHz~200KHz |
| Divergence | 0.3mard |
| Marking range | 110*110mm/200*200mm/300*300mm |
| Minimum line width | 0.001mm |
| Minimum character | 0.1mm |
| Marking speed | 10000mm/s |
| Marking depth | 0~0.5mm |
| Engraving line speed | ≤ 7000mm/s |
| Repeat accuracy | ±0.001mm |
| Beam quality | M2:1.2~1.8 |
| Marking format | Graphics, text, bar code,two-dimensional code,automatically marking the date, batch
number,serial number, frequency,etc. |
| Graphic format supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
| Working voltage | 220V ± 10%/50HZ/4A |
| Unit power | <0.5KW |
| Use of the environment | Clean and dust free of dust less |
| Working condition:Humidity | 5%-75%,Free of condensed water |
| Laser module life | >100000 hours |
| The whole life | More than 15 years |
| Packing size | 770*250*600*mm |
| Net weight | 35kg |
FAQ:
Question 1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our
machine can meet your need or not. Then we can give you the best model depends on our experience.
Question 2: This is the first time I use this kind of machine, is it easy to operate?
We will have the free technical training,and send you Software Operating Instructions in English, it
can teach you how to operate the machine. If you still can not learn how to use it, we can talk by
phone, email or other contact ways.
Question3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".you need to pay the postage.
Question4:What's the guarantee, in case the machine breaks down?
The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure
out what the problem may be, according to client s feedback. Parts except for consumable parts will be
replaced for free if the problems are caused by quality fault.
Question 5:How long is the delivery time?
For standard machines, it would be 20-30 days; For non-standard machines and customized machines
according to client s specific requirements, it would be 45 to 60 days.
PAYMENT
1.The TT,Western Union, LC, Cash payment is available.
2.We have the machine in stock. Due to the voltage and mold difference, we need around 7-15 days to send out the machine. We will notice you if there is the special circumstance.
DELIVERY TIME
1.We can send out the machine within 7-15days after received the first payment.
2.The machine will be ship to you by sea shipping or plane. Please tell us your sea port or air port name so that we could quote you the freight.
3.You can also buy the insurance for the transportation.
4.We can also provide you door to door service, including custom clearance and tracking transportation in your country.
WARRANTY
1.All our machine have 1 year free warranty, during the warranty time, all the broken parts(not caused by man factor) can be changed free.
2.We can send our engineer go over sea for adjusting the machine and training your worker in your plant.
3.We have 24 hours hot line and email to help you to resolve the problem within 3 hours.
