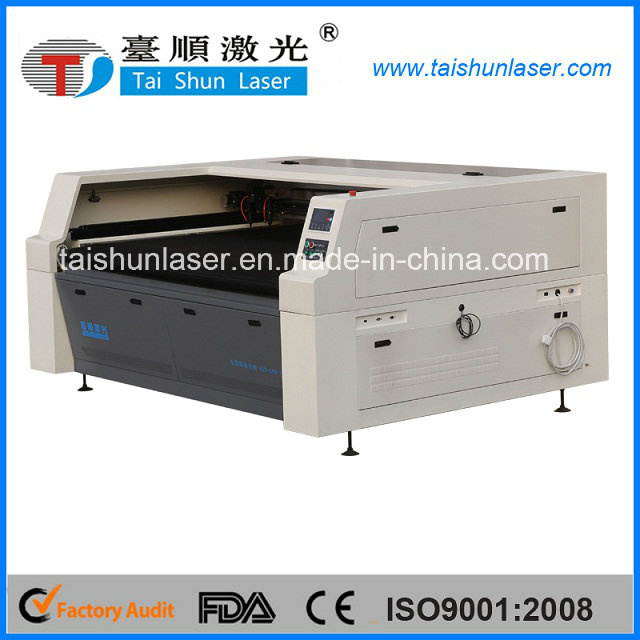

| Prod Model: |
(TSHY-180100LD) |
| Laser Type: |
Glass CO2 Laser Tube |
| Working Area: |
1800mmx1000mm |
| Laser Power: |
110W |
| Working Table: |
Conveyor or Homecomb or Strip |
| Repeating Location: |
+/- 0.1mm |
| Support Software: |
Coreldraw Phototshop ,Autocad |
| Driving System: |
Steppor Motor |
Product Description
Applied Materials and Industries:
--it's suitable for a variety of textile and apparel fabrics, soft and solid materials.
--it's widely used in the field of textile, garment, industrial fabric and other materials.
Parameter:| Working size: | 1800mmx1000mm | Smaller size 210300,160300 are for optional |
| Laser power: | 100W | 100W,110W,130W,150W available |
| Laser tube: | RECI laser tube | Domestic Weiju laser tube for optional |
| Engraving speed | 0-1000mm/s | adjustable |
| Cutting speed: | 0-800mm/s | adjustable |
| Repeating location: | ±0.1mm | |
| Resolution ratio: | 0.025mm | |
| Minimum shaping character | English Letters 1 x 1mm | |
| Highest scanning precision | 2000DPI | |
| Laser output control | 1-100% software setting | |
| Control system | DSP control system,Ruida control software | |
| Interface | USB | |
| Software supported | Coreldraw Phototshop ,Autocad output | |
| Support graphic format | DST, PLT, BMP, DXF AI,CDR | |
| Cooling system | water-cooling and protection system | industrial Chiller |
| Driving system | Stepper motor | |
| Exhaust system | exhaust fan and air pump | |
| Offline work: | support | |
| Working voltage: | AC220V+/-5% 50/60HZ | |
| Operating temperature: | 0-45°C | |
| Operating humidity: | 5%-95% free of condensed water | |
Feature:1) The machine adopt advanced DSP control system which can continue and optimize the cutting speed, processing path,improve the working efficy, the clearance compensation ensure the processing quality.
2) High compatibility,can support CAD, CORELDRAW, PHOTOSHOP etc and meet the industry need.
3) Multi-document function: the machine can store 256 files, the machine can still work without computer.
4) All optical isolate system and high speed differential input circuit design protect the signal from distorting and interferacing. the system realizes 12 kinds working state output and 16 kinds state input, and the machine can easy operation all over the world.
5) Reasonable design of laser line with industry water chiller, keep the same power-force on each spot, ensure the quality of cutting.
6) Double laser heads adopt the double linkage design, the distance between two heads can adust freely. the laser heads can work at the same time and respectively.
7) Widely used in advertising , LGP, model, clothes, leather industry, mainly used for engraving and cutting board, leather.
Samples
| Part description | Brand | Characteristic |
| Linear guide | Taiwan Hiwin | 1)High accuracy for positioning
2) Less abrasion and maintain accuracy for a long time;
3) for high speed movement and significantly reduce the required horsepower of drive machine;
4) can withstand the load from vertical and horizontal directions;
5) Easy assembling and with interchangeability;
6) simple lubrication structure |
| Transmission belt | Shanghai Fulong | Low noise,high transmission accuracy |
| Laser tube | Weiju | Domestic famous good brand with long lifespan |
| reflector Mirror and focus lens | America IIV(Diameter is 30mm) | long life span,precise focusing |
| Water Chiller | TEYU | alarm protection function,constant running |
| Ball Screw Rod | Taiwan TBI | enhance position accuracy |
| bearing | Japan NSK brand | high precision |
Video channel
http://v.youku.com/v_show/id_XNTQ5NTc0NTI4.html laser cutting airbag application
http://v.youku.com/v_show/id_XNTU2Nzc2NTky.html?from=y1.2-1-106.3.1-2.1-1-1-0-0 laser cutting carpet application
http://v.youku.com/v_show/id_XNTU2ODEwMDE2.html?from=s1.8-1-1.2 laser cutting printing rug application
http://v.youku.com/v_show/id_XNTU2NzA1MjQ4.html?from=y1.2-1-103.3.2-2.1-1-1-1-0 laser cutting foot pad for the automotive industry
http://v.youku.com/v_show/id_XNTQ5NDk3MzI4.html?from=y1.2-1-103.3.5-2.1-1-1-4-0 laser engraving paper pattern machine
http://v.youku.com/v_show/id_XNTkyNDU1NDQw.html?from=s1.8-1-1.2 laser cutting garment fabric application
http://v.youku.com/v_show/id_XNjIxNjY0NzY0.html?from=s1.8-1-1.2 laser cutting slipper plush application
http://v.youku.com/v_show/id_XNTU2NzY1MjU2.html?from=s1.8-1-1.2 laser cutting precious leather application
http://v.youku.com/v_show/id_XNTU3NzA0Njg4.html?from=s1.8-1-1.2 laser engraving hallowing leather application
http://v.youku.com/v_show/id_XNTU2ODA1Nzg4.html?from=s1.8-1-1.2 laser cutting diving fabric application
http://v.youku.com/v_show/id_XNTM3NDI2MjE2.html?from=s1.8-1-1.2 laser punching holes application
http://v.youku.com/v_show/id_XNTU3NjU0MTcy.html?from=s1.8-1-1.2 laser punching holes for leather material
http://v.youku.com/v_show/id_XNTU2Nzg0MTky.html?from=s1.8-1-1.2 laser cutting EVA application
http://v.youku.com/v_show/id_XNTU2Nzk3OTM2.html?from=s1.8-1-1.2 double head cutting insole application
http://v.youku.com/v_show/id_XNTUxMDk3MTIw.html?from=s1.8-1-1.2 four head cutting plush
toy material
http://v.youku.com/v_show/id_XNTU3NjkwMTg4.html?from=s1.8-1-1.2 Laser cutting multi-layer Chemical fiber cloth application
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
