| Prod Model: |
CRF |
| Model: |
Crf |
| No. Of Circle Brushes: |
4 |
| No. Of Cylinderical Brushes: |
1 |
| Max. Width Of Carpet: |
2.5, 3.2, 4 M |
| No. Of Screen: |
1 |
| No. Of Nozzles For Carpet Wet: |
5 |
| No. Of Nozzles For Carpet Rinsing: |
2 |
| No. Of Water Supply Motors: |
2 |
| Conveyor Belt Speed(Speed Is Adjustable): |
0.6-1.5 M/Min |
| Certificate: |
ISO 9001 |
Product Description
Description:1.Buttons,handle cooperation;
2.Easy to operate, require1-2 workers is enough;
3.Conveyer band with speed control. It could move front and back freely. During to all kinds of chemical.
4.Two rows of nozzles for ringsing, water and soap chemical included.

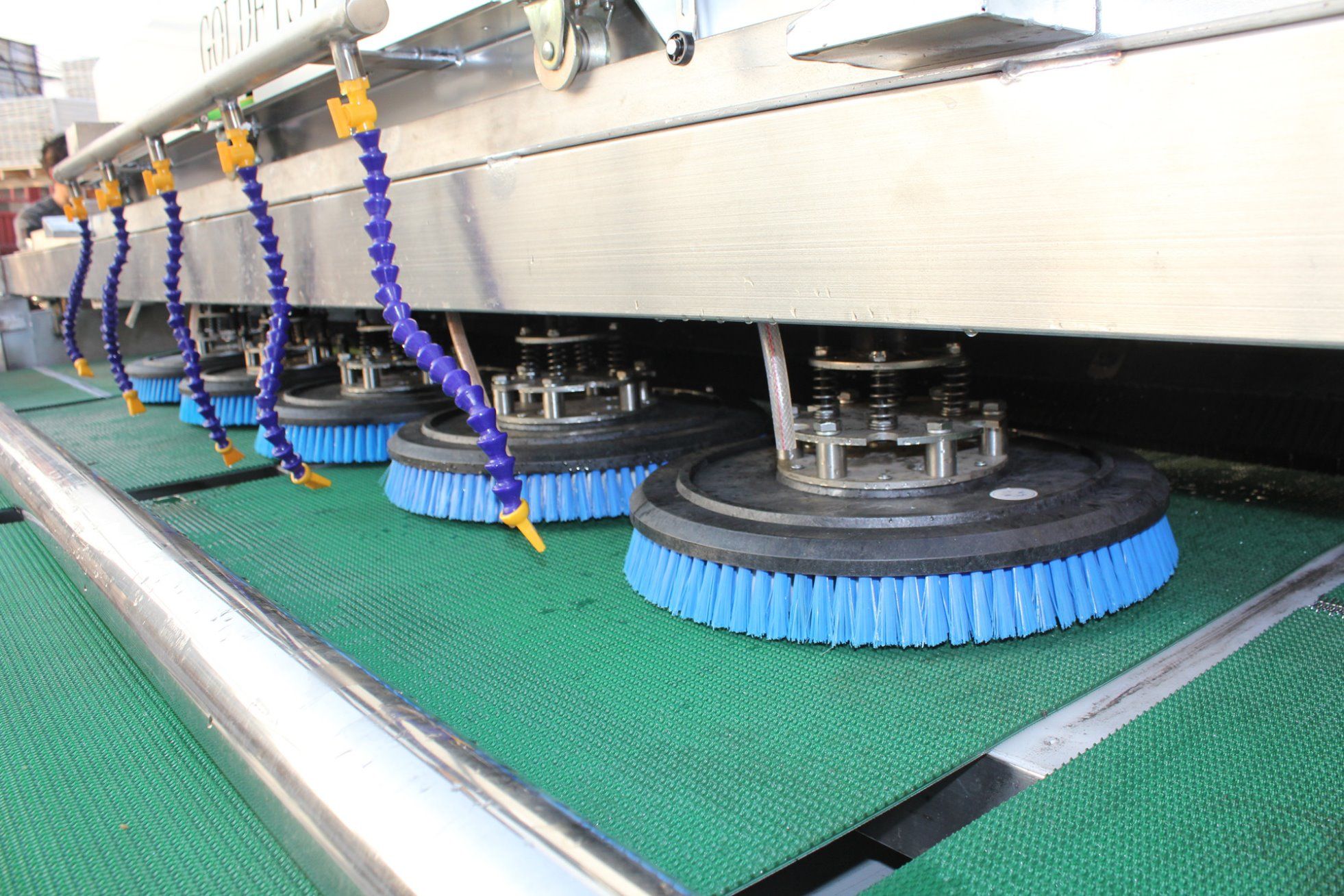

5.Three or four brushes. And the brushes could move left and right, clockwise or anticlockwise freely. 6.One cylindrical brush.
7.Flexibility adjust the height of brushes--according to the carpets thickness in every carpet. No need to adjust manually.
| Model | Unit | CRF-3500 | CRF-4200 | CRF-5000 |
| No. of Brushes | | 3 | 4 | 4 |
| No. of Cylindrical Brush | | 1 | 1 | 1 |
| Rinsing System | Row | 2 | 2 | 2 |
| Max. Carpet Width (Meters) | m | 2.5 | 3.2 | 4.0 |
| Productivity | m2/Hour | 55 | 90 | 120 |
| Electrical Part | | Schneider
and Chinese Brand | Schneider
and Chinese Brand | Schneider
and Chinese Brand |
| Water Consumption | kg/m2 | 30 | 30 | 30 |
| Electricity Consumption | kw/m2 | 0.075 | 0.075 | 0.075 |
| Motor Power | kw | 7.5 | 11 | 15 |
| Brushes Speed | RPM/min | 300 or adjustable | 300 or adjustable | 300 or adjustable |
| No. of Detergent Pump | | 1 | 1 | 1 |
| Touch Screen | | 1 | 1 | 1 |
| Input Voltage | V | 110/220/380/415 | 110/220/380/415 | 110/220/380/415 |
| Dimension | m | 2×3.5×1.6 | 2×4.2×1.6 | 2×5×1.6 |
| G.W.(kg) | kg | 3000 | 3800 | 4200 |
Goldfist brand belongs to Shanghai Goldfist Machinery Co., Ltd. It has three companies: Shanghai Goldfist Robot Co., Ltd, Goldfist Machinery(Suzhou)Co., Ltd and
Shanghai Goldfist Machinery Co., Ltd. Goldfist always devote in R&D, manufacture and sell laundry equipment. Our company has strong economic strength. Production bases
Are located in Shanghai and Suzhou. And our marketing and management center are in Shanghai.
Our company has built a long-term cooperation relationship with Shanghai Donghua University and Shanghai Jiaotong University, customized all kinds of machines and whole set laundry system solutions for our clients. We use advanced manufacture technology, good quality raw material manufacture large type automatic carpet washing machine, barrier washing machine, automatic carpet washing machine, drying machine, multi-roll combined ironing machine, automated uniform storage, laundry room intelligent control machine and so on. They are widely used at hotels, restaurants, hospitals, schools and institutions for washing, dewatering, drying, ironing and finishing process.
GOLDFIST implements global sales strategy, our service suppliers and partners are all over the world. More and more customers choose to cooperate with us for high quantity of machine and good service after buying. In the future, Goldfist will keep trying to struggle for being Global best laundry equipment manufacturer and service supplier.
Our spirit: Towards the world, do the best, fight for No. 1.
Our mission: Provide customers with the best business ideas and laundry equipment, make the benefits for society and our staffs.
Our corporate vision: To become the world 's best washing equipment manufacturer and serving innovative enterprise.
