Computer 4 Head Embroidery Machine with 10 Inch Touch Screen

Prod Model:	WY904/1204C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Speed:	850spm
Controller:	10 Inches Touch Screen
Language:	English/Spanish/French and Other Kinds
Weight:	700kg
Size:	2750*1.15*1.55 Cbm
Warranty:	24 Months
Trimming System:	Outside-Trimming System
Needles:	9/12/15
Brand:	Wonyo/OEM
Embroidery Area:	400*450mm
Knitting Product Type:	Hat
Knitting Style:	Warp
Knitting Method:	Double
Computerized:	Computerized
Certification:	SGS
Condition:	New
Type:	Embroidery Machine
Knitting Machine Cut:	Wy904/1204c

Product Description

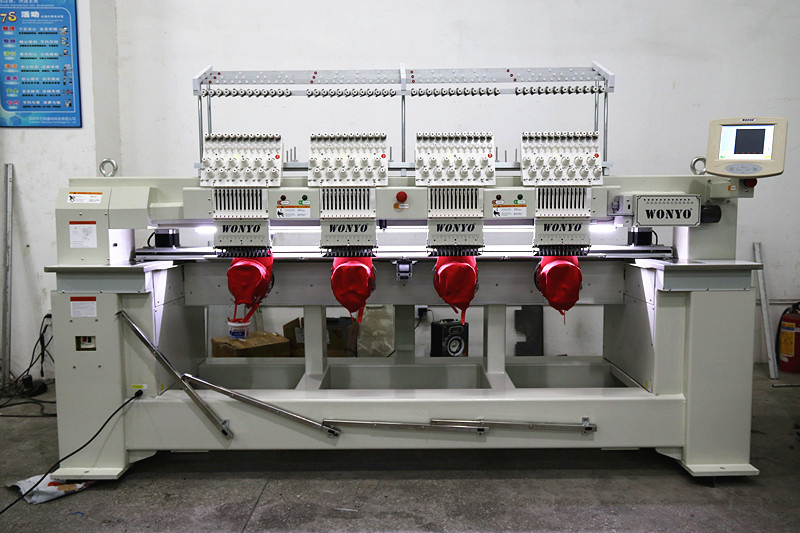

Computer 4 Head Embroidery Machine with 10 Inch Touch Screen

Contact person: Cindy Li




I. multi head Computerized Embroidery Machine Features:
1. suitable for flat bed, cap and finished garments embroidery
2. Embroidery area: 400 x 450 mm, or 15.7" x 17.7"
3. Automatic thread trimmer
4. Maximum speed 850/1000 RPM
5. 270° Wide cap frame unit
6. 8 inch touch screen display showing real time stitching
7. USB port ready
8. Auto color change
9. Thread break detection
10. Pre-Sew Design Trace capable
11. Memory size: 2, 000, 000 stitches
12. Electricity: 110V/60Hz or 220V/50Hz available
13. Start, Stop, and Emergency Stop

II. Computer system
1. New 8" touch screen display control panel
2. Showing real time stitching
3. Function keys including selection key, manual trimmer, arrow keys.
4. Selection can be used to speed up and slow down
5. Memory size: 2,000,000 stitches
6.The processor is 150MHZ with fast system speed
7. USB port ready
8. control system can be updated easily
9. Interface is user friendly and easy to handle
10.Multi Languages available (English, Spanish, Portuguese, French, Russian, German. Dutch etc.)
II. Hoops/frames
2 sets of back hoops for 30cm x 30cm (11.80" x 11.80") for each head
2 sets of front hoops of 19cm (7.50") for each head
2 sets of front hoops of 15cm (5.90") for each head
2 sets of front hoops of 12cm (4.70") for each head
2 sets of front hoops of 9cm (3.50") for each head

Optional Devices:

Single sequin device: install on both side of the head (first needle or end needle)	Simple coiling/cording device: install on both side of the head (first needle or end needle)
Eight in one device: install on hoop frames (embroidery on pocket, sock,ect)	Simple taping device: install on both side of  the head (first needle or end needle)
Boring device: install on each needle	laser position device: install on all single head machine

Models:

Model	Needle	Head	N.weight	Embroidery area
WY1202C/902C	12/9	2	450kg	400*450mm
WY1204C/904C	12/9	4	700kg	400*450mm
WY1206C/906C	12/9	6	1100kg	400*450mm
WY1208C/908C	12/9	8	1200kg	400*450mm
WY1212C/912C	12/9	12	1800kg	400*450mm
