Prod Model: |
FS-C |
Cylinder Diameter: |
13" 14" 15" 16" |
Type: |
Circular |
Knitting Product Type: |
Underwear |
Knitting Style: |
Warp |
Knitting Method: |
Single |
Computerized: |
Computerized |
Certification: |
ISO9001: 2000 |
Condition: |
New |
Needle Style: |
Jacquard |
Product Description
Product Type: FS-A(8feed) FS-C(12feed)

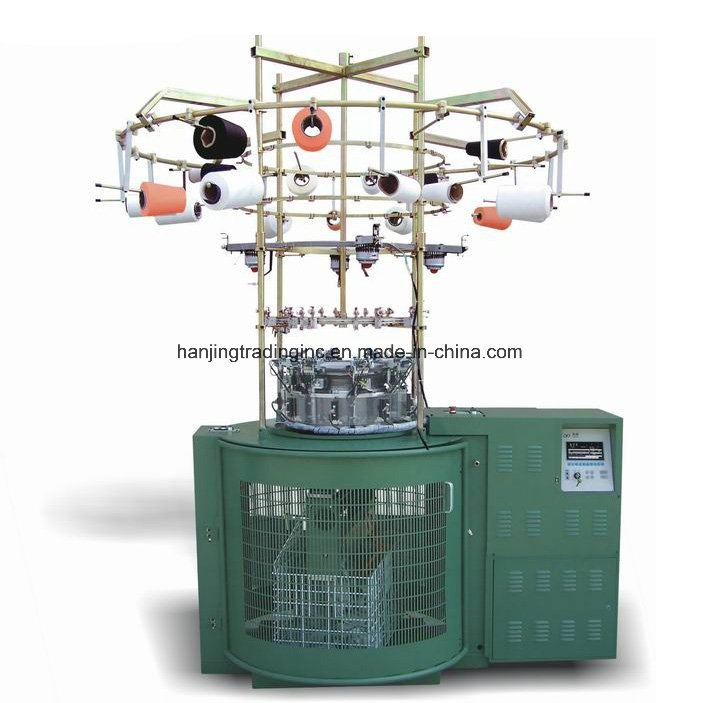

FS-A FS-C series of electronic jacquard seamless underwear machine, the machine in the computer instructions , electronic pneumatic controlled yarn feed 8 , feed 12 knitting agency . And at 8 feed , 12 feed stepper motor automatically change the working conditions of density, Automatic plain weave , wrinkles, jacquard , color, mesh , terry , mesh and other large unseating organization, the machine can be used cotton yarn , spandex and blends elastic fiber and other raw materials to produce all kinds of seamless underwear WHOLEGARMENT pants, electronic jacquard fabrics, jeans , close-fitting clothes , swim suits, leisure clothing , medical care and clothing and other products.
Caliber ,machine number, parameter
Syringe Caliber Needles parameter | 13" | 14" | 15" | 16" |
28 | 1152 | 1248 | 1344 | 1440 |
26 | 1024 | 1152 | 1216 | 1312 |
24 | 960 | 1056 | 1152 | 1248 |
Function parameters
machine number | FS-A | FS-C |
Syringe Caliber | 13 14 15 16 | 13 14 15 16 |
feed | 8feed | 12feed |
yarn feeder | 8pcs | 12pcs |
Yarn sensors | 18pcs | 26pcs |
yarn input device | 10pcs SJF | 14pcs SJF |
Tuck device | 8pcs | 12pcs |
Needle selection device | each way a 16G Needle selection |
Traction device | By Laura and collection boxes Composition |
Display | Japan's Mitsubishi HD LCD display |
Lubricating | Automatic timing , quantitative refueling |
Power outages technology | Support for power protection, maintaining the status quo shutdown , power continued weaving, lower defect rate |
mesh | can make drak floral |
needles | imported jacquard needles and Sinker , Grosz , Samsung optional |
Program | Self-developed IC control |
Motor power | 1.5KW |
Working pressure | 6kg |
needle pitch | 59gg-79gg |
speed | 80-100rpm |
weight | 700kg |
terry | According to the customer's needs to increase terry function configuration ( optional ) |
