| Price: | US $ 130-135/Square Meter |
|---|---|
| Min Order: | 50/Square Meter |
| Pay Type: | L/C,T/T,D/P,Western Union,Money Gram |
| Prod Model: | AMGS-033 |
|---|---|
| Size: | Customized |
| Hardware: | China Top Brand with Australia Standard |
| Color: | Powder Coated White/Dark Grey or Customized |
| Glass: | Tempered Glass |
| Package: | Air Bubble Chamber Film with Wooden Pallet |
| Material: | Aluminum Alloy |
| Open Style: | Swing |
| Frame Material: | Aluminum Alloy |
| Opening Pattern: | Vertical |
| Function: | Invisible |
| Surface Finishing: | Finished |
| Security Rating: | A |
| Screen Netting Material: | Stainless Steel |
| Style: | Australia Style |

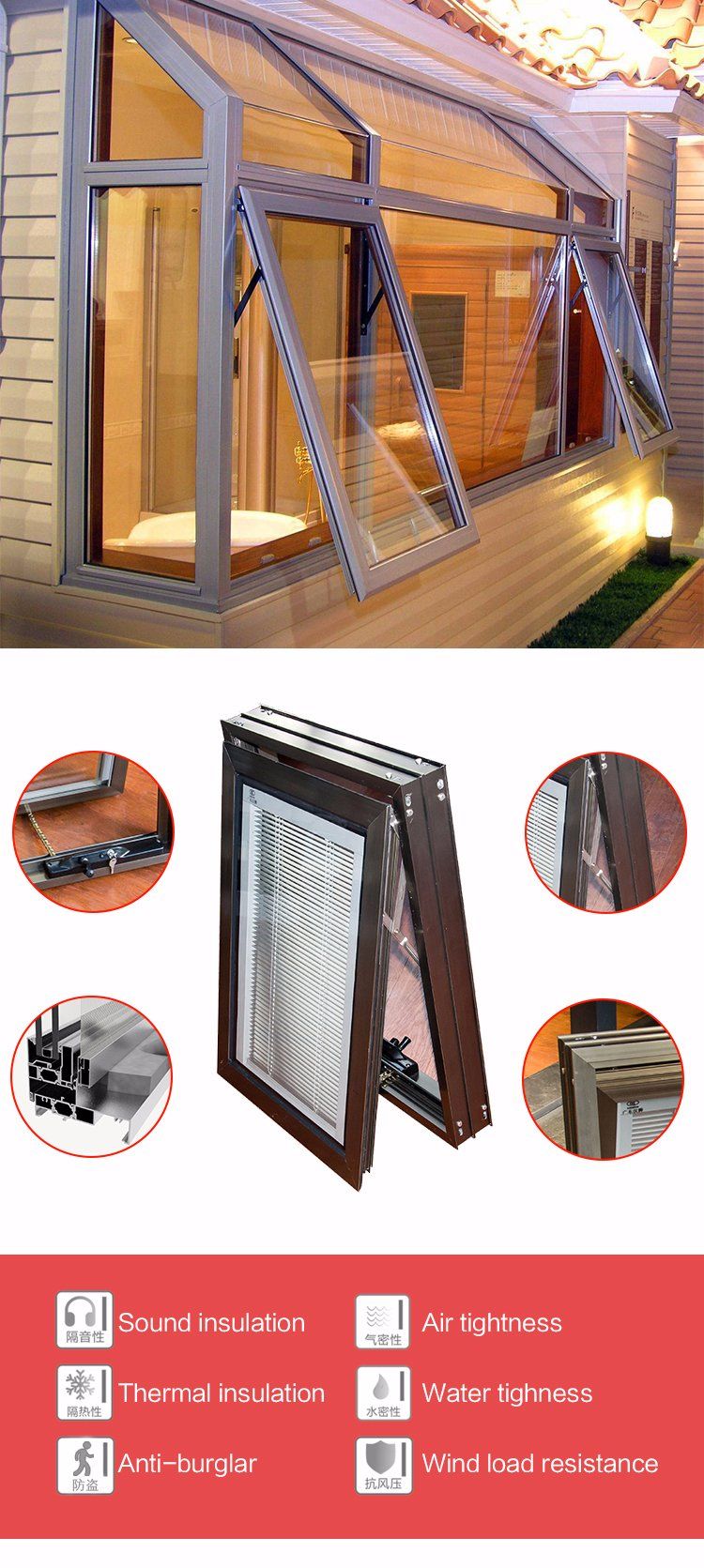

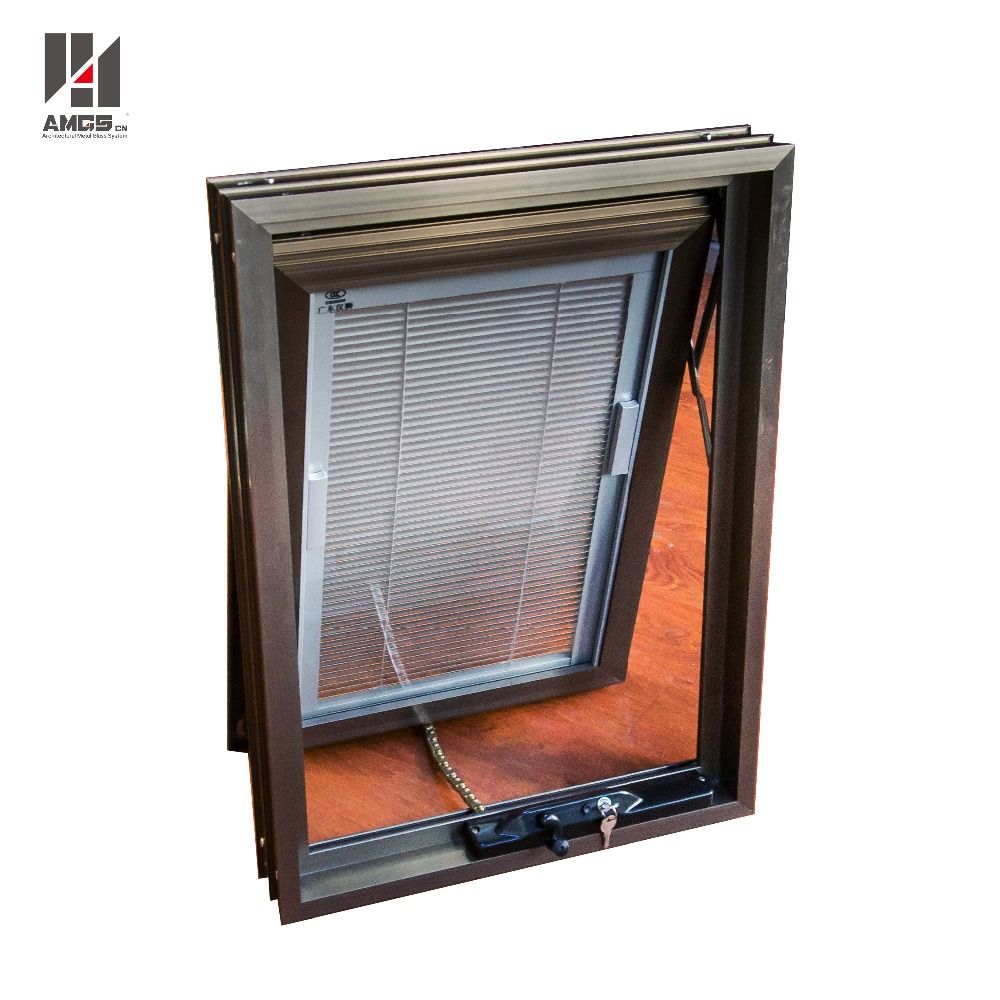

awning windows range offers a wide variety of styles and configurations to suit any unique taste or requirement. hinged from the top and opening at the bottom,awning windows are perfect for ventilation in all weather conditions
Awning windows are great for small areas where ventilation is required.
An awning window allows a larger amount of airflow to pass through the window.
| Product name | Australia style Aluminium awing window |
| window frame deepth | 120mm |
| profile thickness | 1.4mm |
| thermal break style | 14.8mm |

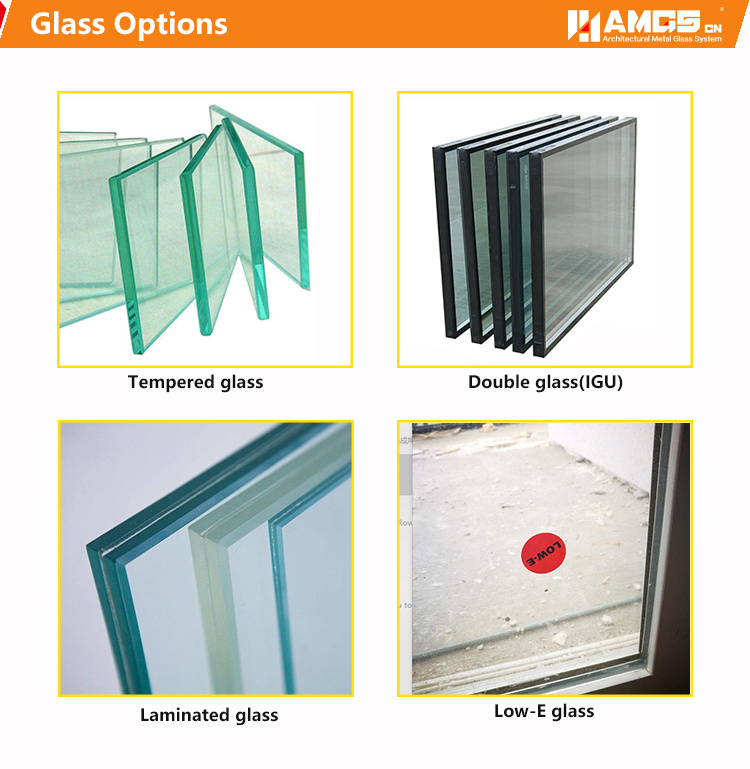

| glass style | 5mm+12argon+5mm, all glass are tempered |
| screen style | fiber glass or SS304 |
| max winder open size | 300mm |
| window panel max high | 1800mm |
| window panel max width | 1000mm |
| Additional features | glass can use 5+20blinds+5mm |
| other color choose | Requires 100 square meters or more |
Chainwinder:
1.A hardware used to open and close awning windows. It consists of a winding mechanism and a semi-rigid chain which is attached to the bottom rail of the sash.
As the winder is operated, the sash either extends or retracts depending on the winding direction.
2.Have three types color: white, silver and black color
1.Used for awning window.
2.The material is high quanlity stainless steel 304.

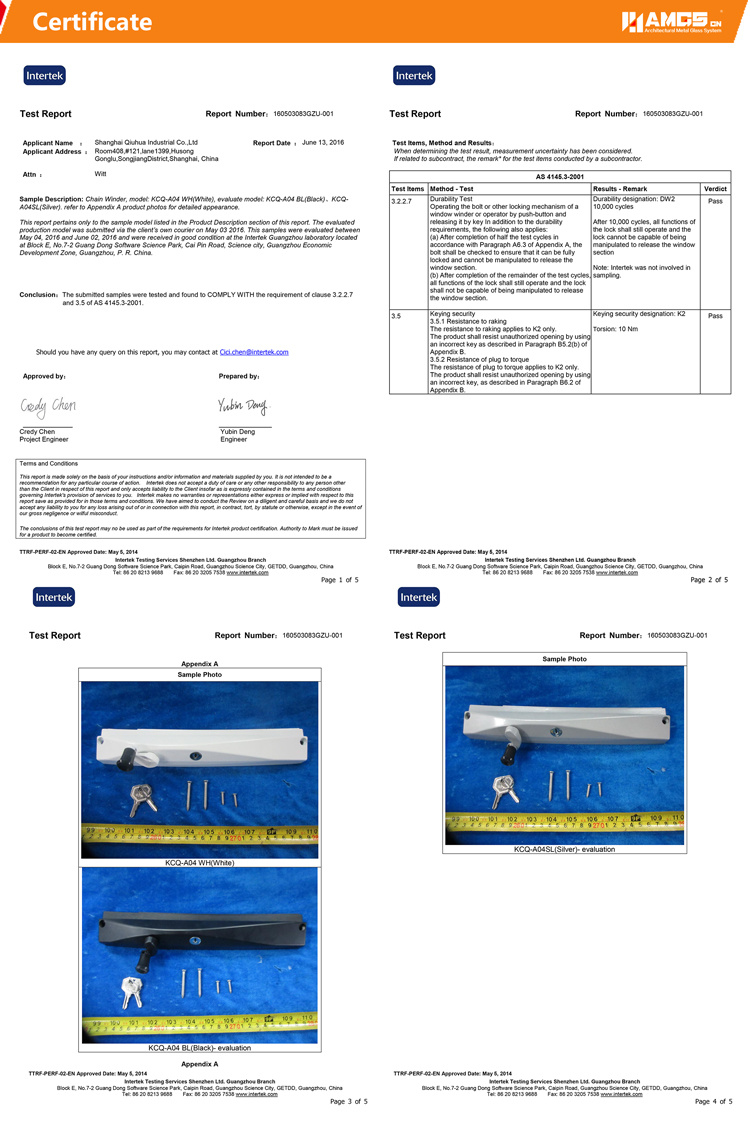

3.Meet the standard of China "Construction Door&Window Hardware Friction Stay " JG/T127-2007
1.90 degree for window frame, 45 degree for window panel.
2.Adopt joggle joint technology, Make the profile surface more planeness.
Aluminum awning windows will be perfect for bedrooms, living rooms and any other rooms in which you may want maximum ventilation and an open view.
The feature of such windows is the aluminum frame that gives a special appeal adding more style and comfort to your home.
| Material: Plastic film, Foam, Carton, Wooden box | ||
| 20FT | Door(1.8mx2.2m) | Window(1.2mx1.2m) |
| 90pcs | 200pcs | |
| 40FT | 200pcs | 420pcs |
| 40HQ | 250pcs | 530pcs |
One Stop Solution Services:
Different Country has different climatic characters, we provide professional solutions on Doors & windows Profiles surface treatments and glazing to meet its diversity, it concerns the longevity of windows or doors, and each function of energy absorbing & saving.
We also provide one stop solution service for your project, like the profiles Design, the wind resistance, water proof,Sound proof, energy rating testing, Installation..
In additional, we Provide one stopservice for showerscreen, balustrade, pool fencing, ect other building materilas to save your labour, money and time.
