| Price: | US $ 3900/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union,Money Gram |
| Prod Model: | HO1501C |
|---|---|
| Name 1: | Dahao Control System One Head Embroidery |
| Name 2: | Automatic Trimming Computer Embroidery Machine |
| Name 3: | Computer Embroidery Machine |
| Embroidery Function: | 3D Cap T-Shirt Flat Bag Towel Uniform Embroidery |
| Control System: | Dahao Control System |
| Power: | 110V/60Hz or 220V/50Hz |
| Language: | 12 Language |
| Cap Frame Unit: | 270 Degree Cap Frame Unit |
| Computer: | 8 Inch Full Touch Screen Dahao Computer |
| Trimming System: | Automatic Trimming System |

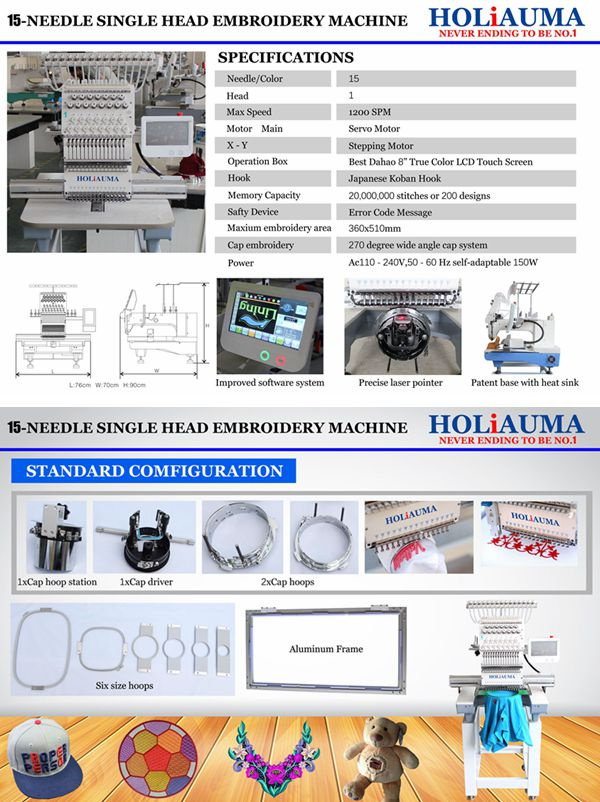

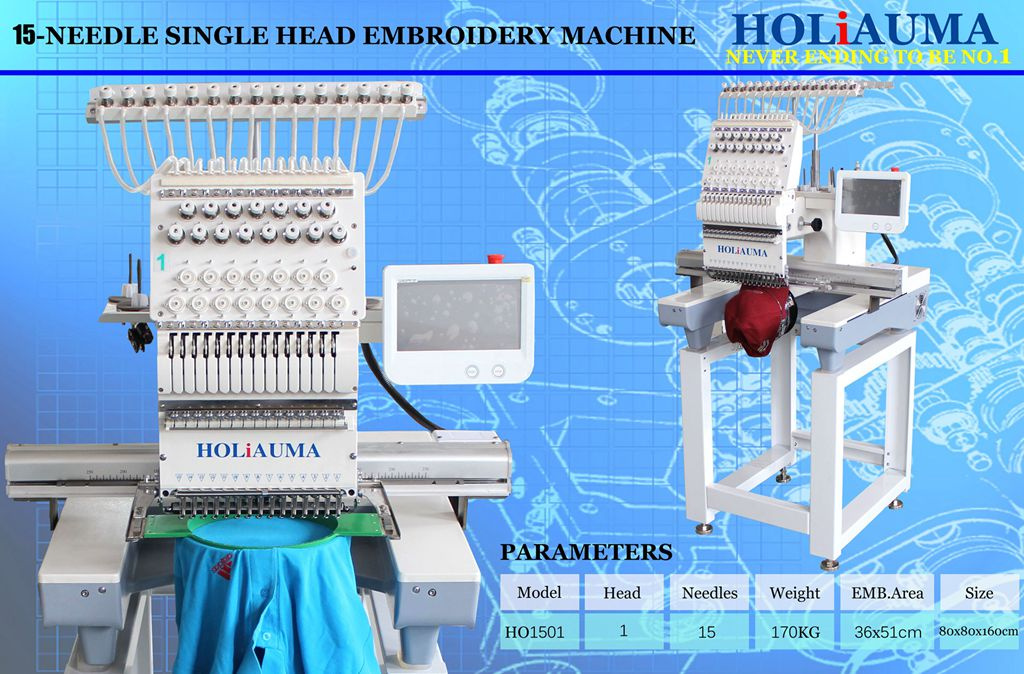

| Model | Head | Needle | Emb.Area | Speed | Control Syetem | Function |
| HO1501C | One | 15 | 510*360mm | 1200spm | Dahao system | 3D CapTShirt Flat Bag Uniform Embrodiery etc. |

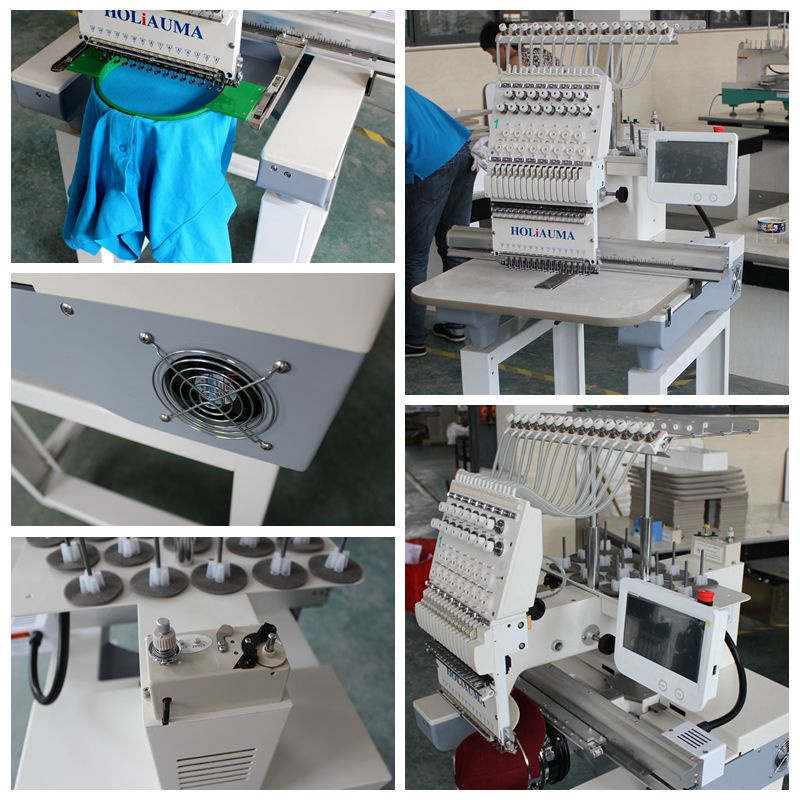

Dahao Control System One Head 15 Needle Embroidery Machine / Automatic Trimming Computer Embroidery Machine
Product Application
Main Features for the embroidery machine
1.Single head embroidery machine with 15 needles
2.Automatic thread trimmer
3.Maximum speed 1200 SPM
4.270° Wide cap frame unit
5.8" newest touch screen display showing real time stitching
6.USB input port
7.Automatic color change
8.Thread break detection
9.Pre-sew design trace capable
10.Memory size 20, 000, 000 stitches
11.Emergency stop
12.Electricity:110V/60Hz or 220V/50Hz available
14.Low power consumption 100W to 150W
15.Built-in bobbin winder

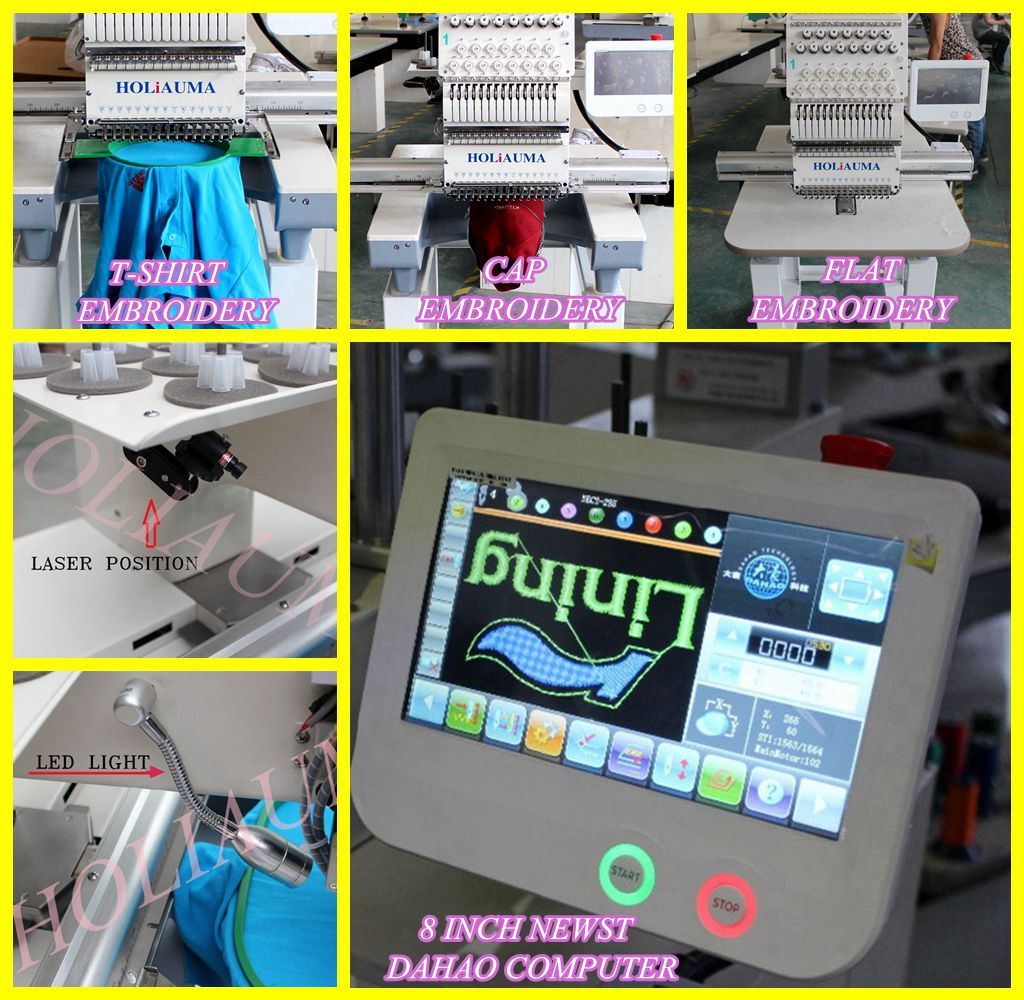

Newest 8" Dahao Computerized Control System
A.8" touch screen showing real time stitching
B.Manual, Semi-auto, Auto Color Change
C.Function keys including Menu, Speed up and slow
D.Multi languages available like English, French, Spanish etc.
E.Frame-moving keys, Manual Trimming
F .DOT ket to return to 100 degree
G.Start, Stop, and emergency Stop
H.Embroidery Status (Page Up/Page Down), USB Input,
I.Parameter Settings, Clear, ESC, Enter, etc
Hoops for the embroidery machine
A.2 X Shirt Front Round Hoop 9 cm (3.5")
B.2 X Shirt Front Round Hoop 23 cm (9")
C.2 X Shirt Front Round Hoop 12 cm (4.7")
D.2 X Jacket Back Square Hoop 30 X 30 cm (12" X 12")
E.2X
Cap device for the embroidery machine
1 cap driver, 1 cap hoop station, 2 Cap hoops
Other accessaries for the embroidery machine
Table stander with wheels, Extended Table Top, Operation Manual, Tool Kit,8GB USB driver,Bobbin Winder
Packing for the embroidery machine : Standard Wooden Case
Packing size: 113*85*90 cm
Packing weight:180 kg
Dahao Control System One Head 15 Needle Embroidery Machine / Automatic Trimming Computer Embroidery Machine
Further details picture video online checking
please freely contact us : 0086 188 2098 7339
