| Prod Model: |
WB60, 75, 90, 110, 115, 150. WD75, 100, 130, 148 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Domite Wear Buttons |
| Technology: |
Vacuum Brazing |
| Item Type: |
Flat/Dome |
| Material: |
White Iron + Mild Steel |
| Hardness: |
63HRC/700bhn |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description

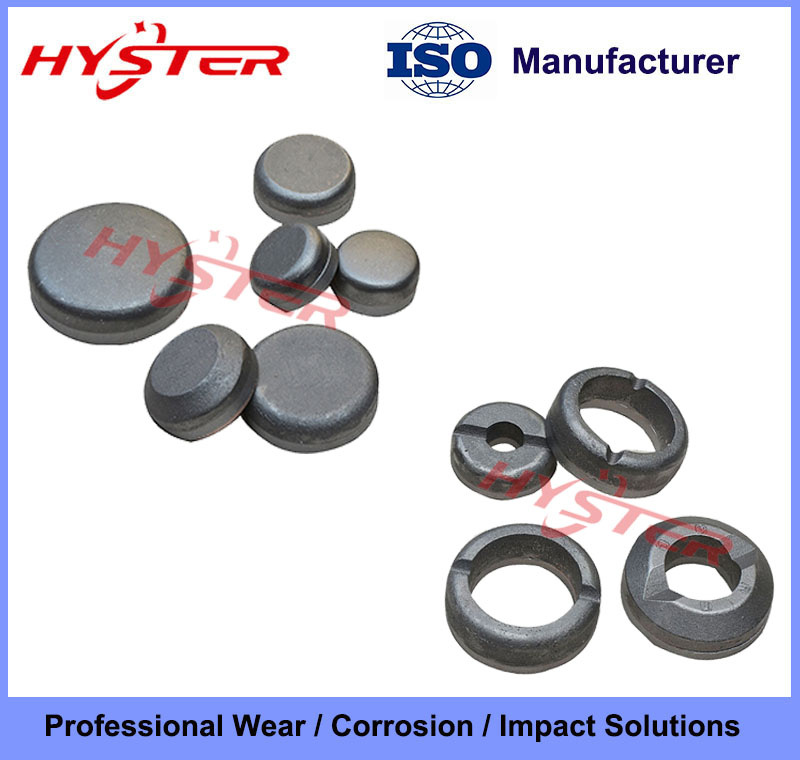

Domite Wear Buttons
Laminated white iron Wear buttons are unique wear resistant materials in that they combine very high wear resistant qualities of a high chrome cast iron (15/3CrMo, 700 BHN - 63 HRC) with a weldable & high impact toughness mild steel through a metallurgical bond to create a product that is exceptionally resistant to impact and abrasion while retaining.
Very easy to use, no pre or post heating when welding. Available in diameters from 60mm up to 150mm. Develop your own layout and pattern to suit your particular wear protection solution.
Dome&Flat Shaped Round: Perfect solution for ground engaging applications as on adaptor teech, shovels, buckets, heavy earth moving equipment etc. Can well use them in conjunction with Chocky Bars, Wear Plates or individually to provide protection or security under the toughest impact and wear abrasion circumstances.
Types:
ITEM | SIZE(mm) | Net weight(kg) |
| WB60 | 60x27 | 0.7 |
| WB75 | 75x27 | 0.8 |
| WB90 | 90x27 | 1.4 |
| WB110 | 110x32 | 2.1 |
| WB115 | 115x32 | 2.5 |
| WB150 | 150x41 | 5.7 |
Please contact us if you would like other sizes if needed.
>Material,
ASTM A532 15/3 CrMo white iron casting , chemical composition ( percentage )
C | Cr | Mo | Si | Mn | Ni | Cu | P | S |
| 2.0-3.3 | 14-18 | ≤ 3.0 | ≤ 1.5 | ≤ 2.0 | ≤ 2.5 | ≤ 1.2 | ≤ 0.1 | ≤ 0.06 |
Q235 mild steel backing , chemical composition ( percentage )
C | Si | Mn | P | S | Cr | Ni | Mo | Cu |
| 0.2 | 0.35 | 1.4 | 0.045 | 0.05 | 0.3 | 0.3 | 0.3 | 0.3 |
>Mechanical Property,
-Minimum Hardness, 700 HBN / 63 HRC
-Minimum Tensile Strength, 630Mpa.
-Minimum Shearing Strength, 250Mpa.
Hunan Hyster Material Technology Co., Ltd., formerly name is hyper casting parts Co., Ltd., is an independent international supply, design and engineering company, in operation since 1995, we specializes in high quality of wear products.
Hyster offer our clients a wide range of wear products and professional wear solutions. We also welcome custom made one off's and consumables.
Some of our products and services:
--Wear plates, wear liners
--Chocky bars and wear buttons
--Wear blocks, wear bars
--Custom made wear liners
--Bucket repair and protection
--Full Fabrication services
--Sugar mill hammer tips
--Drilling, milling or machining
--Casting/Investment casting
--Fast service and timely delivery
With strict management system and strong technical base, Hyster Corporation is committed to provide high-quality products and services for the fields of Mine and Mining, Quarrying, Electrical power, Cement, Sugar, Aviation, Marine, Railway, Engineering plant and Petroleum machinery industries.
Quality is very important to the development of Hyster Corporation. The company strictly operates according to ISO9001: 2000 quality management system. Over 95% products have been sold to Australia, Canada, South Africa, Brazil, America, Chile, Indonesia, Argentina, Thailand, Mexico, Russia, Holland, as well as many other countries and areas.
Moreover, breaking out of the traditional practice that only provide OEM products, our company has created the new sales concept whose main points are providing solutions, terminal products and customer services, which enables us to better fulfill customer specifications in a positive manner.
Please contact us directly with any questions or inquiries!
