Prod Model: |
WY904C/WY1204C |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Control System: |
Topwisdom |
Display: |
8" Touch Screen |
Main Motor: |
Servo Motor |
Hook: |
Japan Koban Hook |
Belts: |
Italy Belts |
Warranty: |
12 Months |
Package: |
Wooden Case/as Customer Required |
Weight: |
450kg |
Volume: |
3 Cbm |
Rail: |
Linear Rail |
Knitting Product Type: |
Hat |
Knitting Method: |
Double |
Computerized: |
Computerized |
Certification: |
SGS |
Condition: |
New |
Type: |
Embroidery Machine |
Knitting Machine Cut: |
Wy904c/Wy1204c |
Knitting Style: |
Tubular |
Product Description

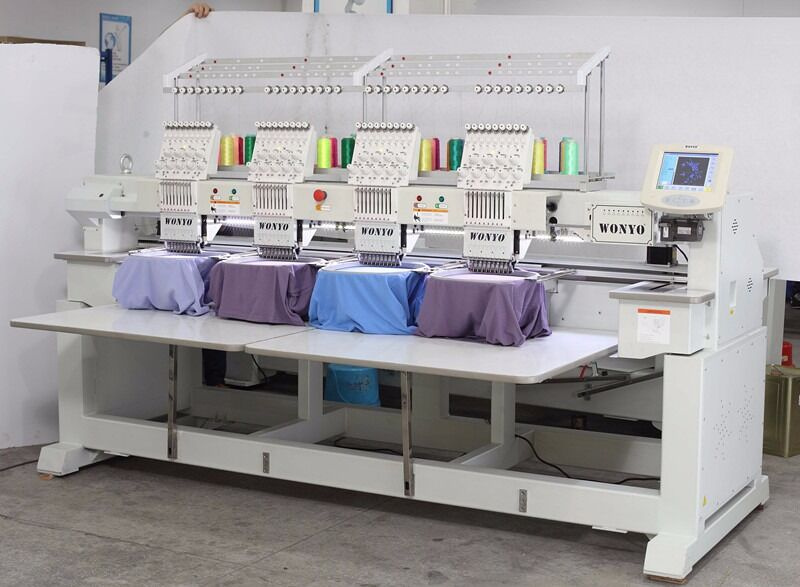

Embroidery Machine for Cap&T-shrit&Outlet Embroidery---WY904C
is embroidery machine which can do cap, t shirts, and Flat embroidery with 8 inches Touch screen, 12 kinds of languages including English, Spanish, French and other 9 kinds of languages.
LOOK FOR AGENT ALL OVER THE WORLD!!!
Feel free to contact us:
facebook: Nicki Y Wang
![](/proimages/44f3j00tRQaMiWEUUoT/embroidery-machine-for-cap-t-shrit-outlet-embroidery-wy904c.jpg)
Product Description:
1.2 Head Embroidery Machine
2. Cap embroidery machine
3. New embroidery machine
I. Main features of the embroidery machine.
1.9 needles, 2 heads, suitable for flat bed embroidery, cap
Embroidery and finished garments embroidery
2. Embroidery area: 400 X 450 mm, or 15.7" X 17.7"
3. Automatic thread trimmer
4. Maximum speed 850 SPM
5.270° Wide cap frame unit
6.8" color LCD display showing real time stitching
7. USB port ready
8. Auto color change
9. Thread break detection
10. Pre-Sew Design Trace capable
11. Memory size: 1, 000, 000 stitches
12. Electricity: 110V/60Hz or 220V/50Hz available
13. Start, Stop, and Emergency Stop
14. On-board lettering
II. Full coler control panel
1.8" High Definition color LCD display showing real time stitching
2. Function keys including Menu, Speed up and slow
Down (also Page Up and Page Down), Help, USB-
Input, Parameter Settings, Clear, ESC, Enter, etc.
3. Numeric keys for selection of needles
4. Frame-moving keys
5. Manual Trimming
6. Manual Color Change
7. Embroidery Status
8. Embroidery Method
9. DOT Key to return to 100 degrees
10. Mutli languages available
![](/proimages/44f3j00mGQaTEqRWfkg/embroidery-machine-for-cap-t-shrit-outlet-embroidery-wy904c.jpg)

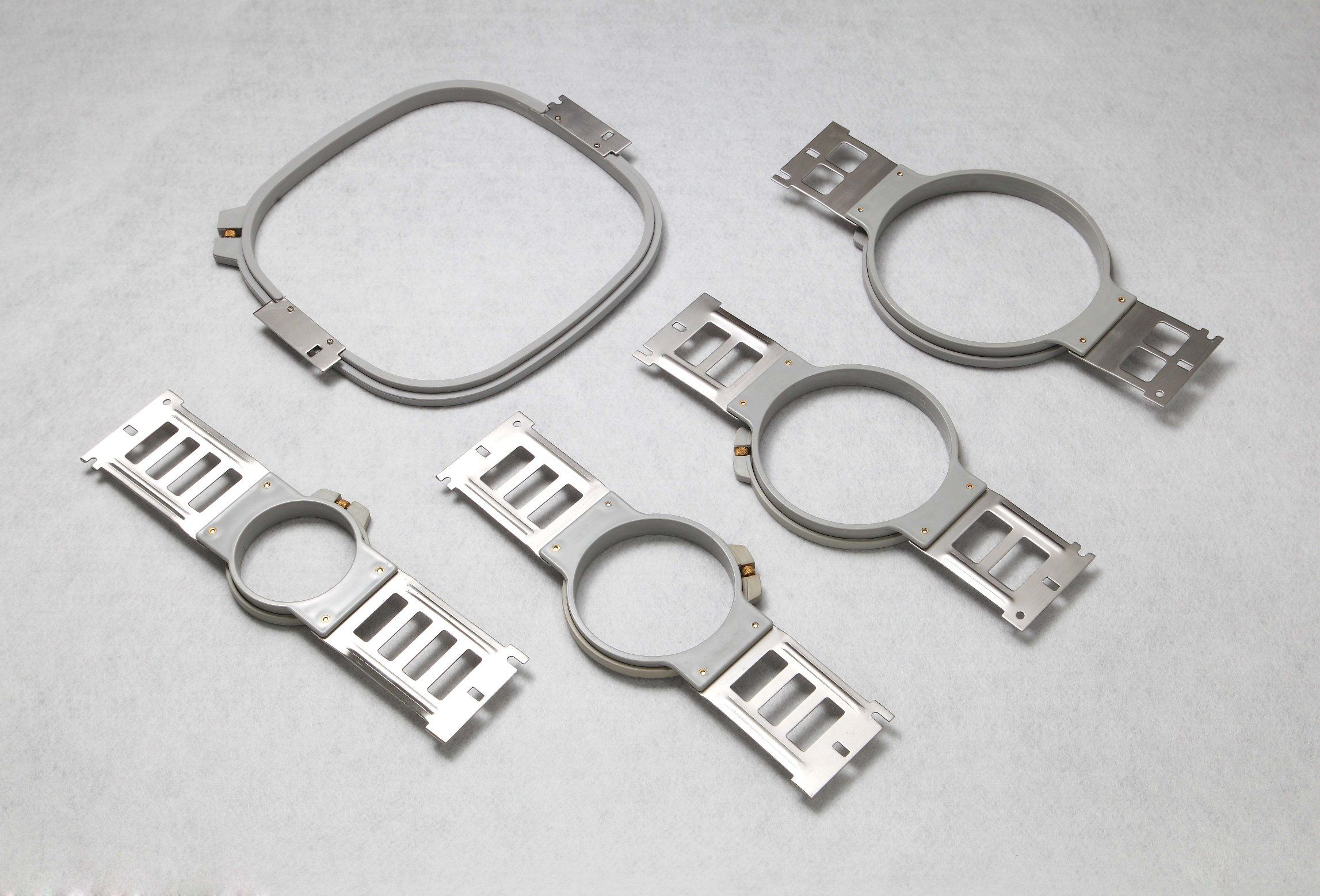

III. Frames/hoops
1 Sash Frame: 40.5cm X 48cm (16" X 19") for single head, 81cm X 48cm (32" X 19") for 2 head
2 sets of back hoops for 30cm X 30cm (11.80" X 11.80") for each head
2 sets of front hoops of 19cm (7.50") for each head
2 sets of front hoops of 15cm (5.90") for each head
2 sets of front hoops of 12cm (4.70") for each head
2 sets of front hoops of 9cm (3.50") for each head
![](/proimages/44f3j00AYtQEGbKRRcu/embroidery-machine-for-cap-t-shrit-outlet-embroidery-wy904c.jpg)
IV. Accessories
Table top
Operation Manual
Tool Kit
![](/proimages/44f3j00wGaTtrcIFYkg/embroidery-machine-for-cap-t-shrit-outlet-embroidery-wy904c.jpg)
Optional Devices:
Single sequin device: install on both side of the head (first needle or end needle) | Simple coiling/cording device: install on both side of the head (first needle or end needle) |
Eight in one device: install on hoop frames (embroidery on pocket, sock,ect) | Simple taping device: install on both side of the head (first needle or end needle) |
Boring device: install on each needle | laser position device: install on all single head machine |
Models:
Model | Needle | Head | N.weight | Embroidery area |
WY1202C/902C | 12/9 | 2 | 450kg | 400*450mm |
WY1204C/904C | 12/9 | 4 | 700kg | 400*450mm |
WY1206C/906C | 12/9 | 6 | 1100kg | 400*450mm |
WY1208C/908C | 12/9 | 8 | 1200kg | 400*450mm |
WY1212C/912C | 12/9 | 12 | 1800kg | 400*450mm |
![](/proimages/44f3j00JRatEHblTUcu/embroidery-machine-for-cap-t-shrit-outlet-embroidery-wy904c.jpg)
