Energy Saving Full Color P10mm Transparent LED Video Display Screen

Name: Energy Saving Full Color P10mm Transparent LED Video Display Screen
Brand: FullPackage
SKU: 717925542
Availability: InStock
Rating: 4.9 (80 reviews)

Price:	US $ 999-1699/Square Meter
Min Order:	1/Square Meter
Pay Type:	T/T,D/P,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	P10
Pixel:	10mm
Module Size(mm):	480*320mm
Cabinet Size(mm):	960*640mm
Brightness(CD/M2):	5500-6000
Max Power Consumption(W/M2):	600
IP Level:	54
Tube Chip Color:	Full Color
Display Function:	Video Display
Pixel Pitch:	10mm
Pixel Configuration:	1R,1G,1B
Pixel Density:	10,000 dots / m²
System Operating Platform:	WIN XP
Display Type:	LED Video Display
Application:	Shopping Guide
IP Rating:	IP54
Certification:	ETL
Scanning Mode:	1/3scan

Product Description

Product Description

NSE High Transparency Wall Transparent Led Display

Product Features:

1.High transparency rate
80% transparency rate without affecting day-lighting.No need other heat dissipation system.

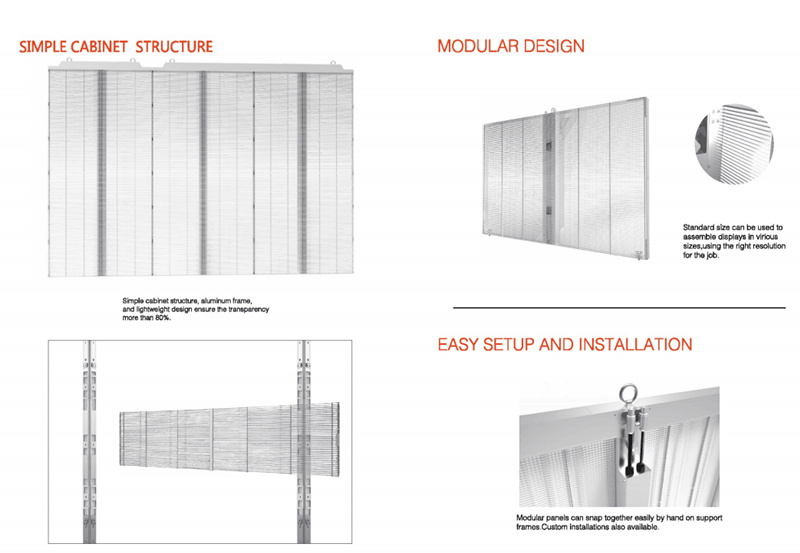

2.Light weight
PCB board is only 10mm thickness, light weight, and does not occupy space, without changing the appearance and structure of the building.

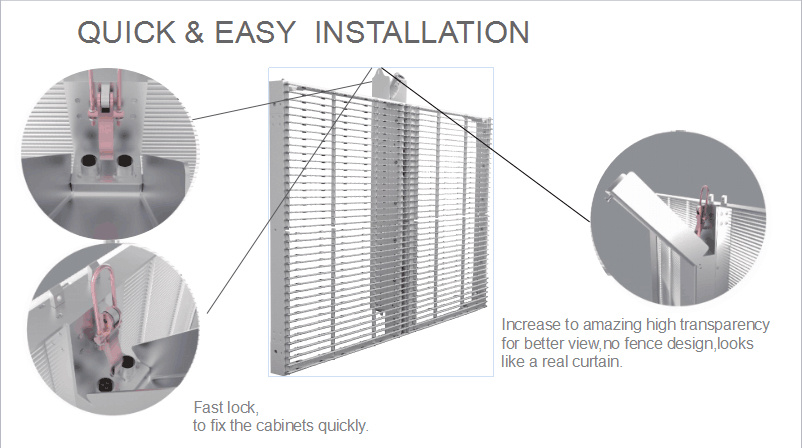

3. Fast installation
Fast lock systems ensure fast installation and saving time and labor cost.
4. High brightness and energy saving
6000nits brightness ensure the perfect visual performance even under direct sunlight .without and cooling system .saves lots of power.
5.Easy maintenance
Repairing single SMD without taking of single module of entire panel.
6.Wide application
Any building with glass wall. Such as shopping mall, 4S store, jewelry store, clothing store, watch store, theatres, hotels, airport, museum, etc.

Specification:

Model	P7.5-8	P10	P16	P20
Pixel Pitch	7.5	10	16	20
Scan Mode	1/4	1/3	1	1
Pixel Density	16667dots/sqm	10000dots/sqm	3906dots/sqm	2500dots/sqm
Pixel Configuration	3528	3528	3528	3528
Module Resolution	64*40	48*32	30*20	20*16
Module Size	480*320mm
Cabinet Size	960*640mm
Cabinet Resolution	128*80	96*64	60*40	40*32
Brightness	5500-6000CD/sqm
Refresh Rate	>1920HZ
Package	Wooden Cases Flight Cases
Transparency Rate	75%	80%	83%	86%
Weight(kg/sqm)	9KG	8KG	7.2KG	6.5KG
Viewing Angle	140°(H)/140°(v)
Power Consumption (Max/Avg.W/sqm)	670/204	670/195	650/218	650/218

Product desctription:

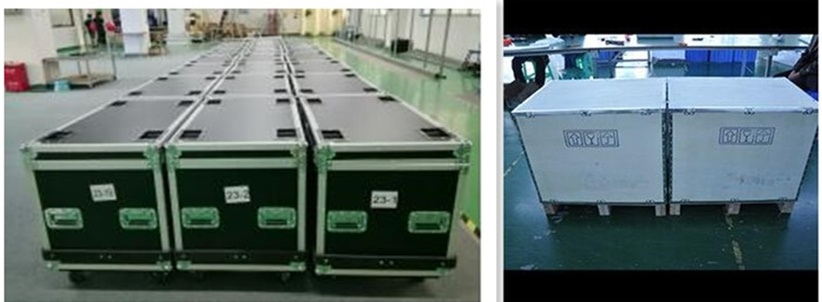

Package:
1. Anti-shocking wooden case
2. Flight case
3. Carton-box

Company information:

Company Certificate:

Trade Terms:

1.Payment: T/T , Western Union or Paypal are welcomed.
2.Production lead time 7days
3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, Mainland China
6.Discounts are offered based on order quantities
7.MOQ:1pcs

To be known as a leading portable sign manufacturer, NSE has got rapid-growth in the market in the past 5 years. Being an ISO9001 Certified and Government-nominated "Hi-Tech Enterprise", we are continuously investing in the Research and Development of portable and other creative LED display products. Currently, we have few patents registered in China.

Now our LED display products have been sold to more than 60 countries and areas, such as South Africa, Australia, USA, Germany, Spain, Poland, Russia, Australia, Chile, Brazil, Paraguay, Mexico, Thailand, Malaysia, Indonesia, Vietnam, Saudi Arabia, Iran, and so on. We are also supplying ODM business to two leading VMS products suppliers in Australia and Brazil.

We believe that quality and customers' need can be achieved and satisfied only with high & Whole-hearted dedication, and persistence in pursuing high performance of the products. With strict quality assurance system, we are receiving less than 0.01% compliant of noticeable defects from our products. So far, Our products had passed various certificates, such as UL, CE, FCC, ETL, CCC, RoHS ec.

"Create Value, Display Infinity", NSE will continue to break new ground on the basis of past achievements, to strive to top-class LED products supplier.
