| Price: | US $ 8000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | XLB-DQ600X600X3 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Used For: | Making Rubber Tiles and Rubber Floor |
| Dimension: | (L*W*H): 2200*900*2200 |
| Packing System: | Free Fumigation Plywood Cases |
EVA Shoe Soles Making Vulcanizer Machine

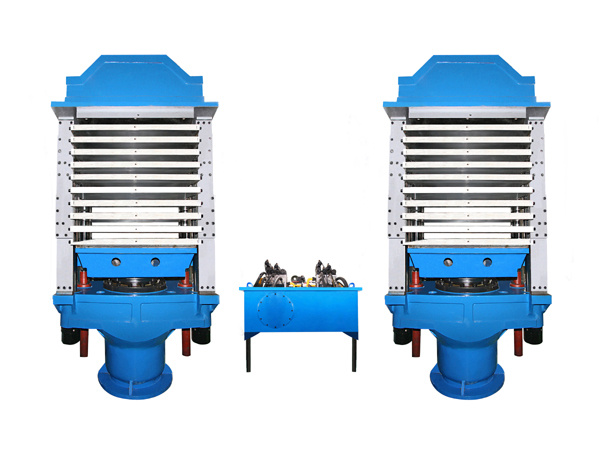

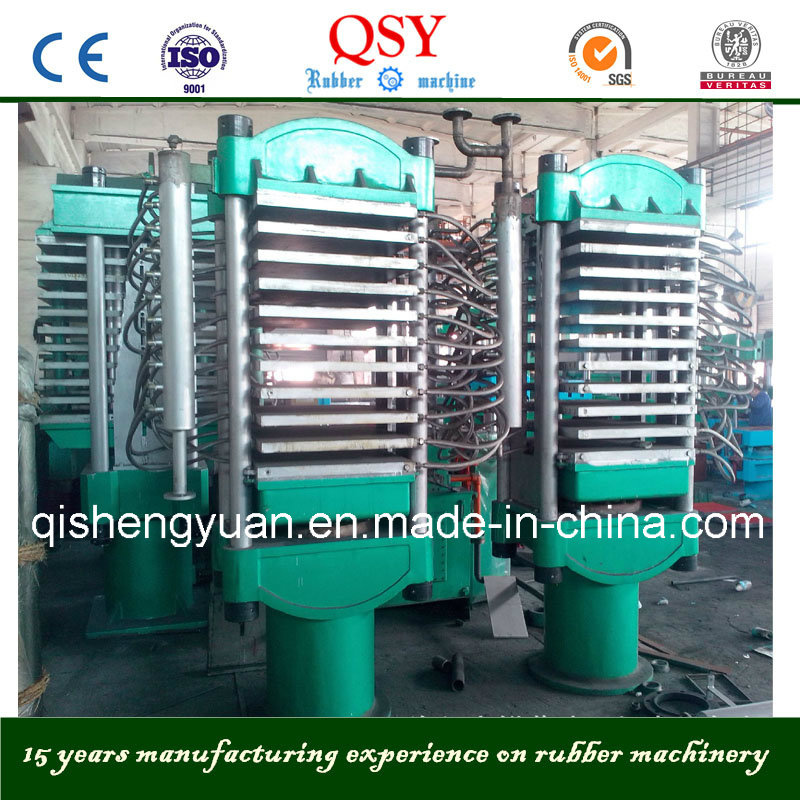

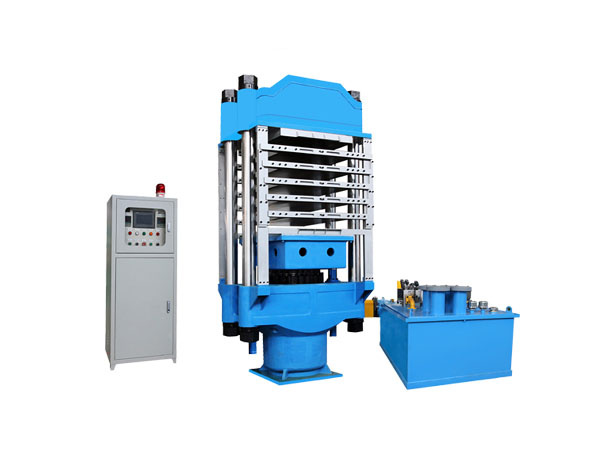

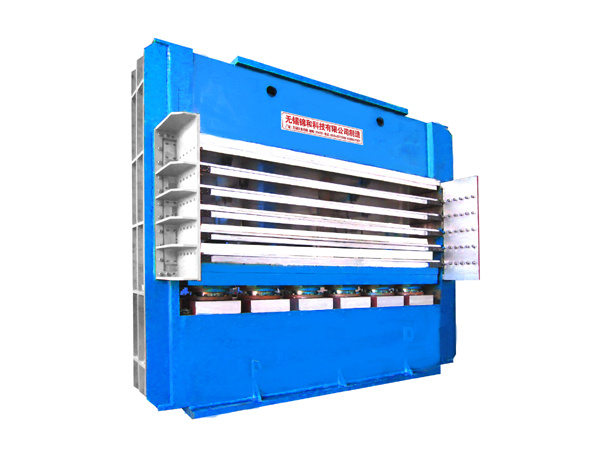

photos of EVA Shoe Soles Making Vulcanizer Machine
Application
This machine is mainly used for the production of various kinds of EVA foam
slippers, foam board, rubber, bags lining, insulating material, sports protective
material, diving suits, jackets sponges thermoset foam rubber and plastic
products of special equipment.
Features
1.High production efficiency,high quality and stability
2.The material is uniformly.
3.Wear-resistant and anti-corrosion
4.Easy operation
The Main Technical Paramenters
| Type | 350*350*2 | 400*400*2 | 500*500*2 | 600*600*2 | 750*850*2 | 600*600*2 |
| Nominal clamp mould force (MN) | 0.25 | 0.5 | 0.8 | 1.0 | 1.6 | 2.0 |
| Piston size | 350*350 | 400*400 | 500*500 | 600*600 | 750*850 | 600*600 |
| Number of working layer | 2 | 2 | 2 | 2 | 2 | 2 |
| Piston diameter(mm) | 150 | 200 | 250 | 300 | 360 | 400 |
| Stroke of piston (mm) | 250 | 250 | 250 | 250 | 500 | 300 |
| Distance between hot plate(mm) | 125 | 125 | 125 | 150 | 250 | 150 |
| Unit area pressure of hot plate(Mpa) | 2.1 | 3.1 | 3.2 | 2.78 | 2.5 | 5.6 |
| Power(KW) | 2.2 | 2.2 | 2.2 | 2.2 | 3.0 | 3.0 |
| Overall size(L*W*H)(mm) | 1500*400* 1350 | 1800*500* 1700 | 1800*550* 1600 | 2000*700* 1700 | 2000*1000* 1900 | 2550*960* 2100 |
| Weight(kg) | 1000 | 1500 | 2000 | 2600 | 4300 | 5000 |
| Close mould speed(mm/s) | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 |
| Open mould speed(mm/s) | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 |
