| Prod Model: |
FX3020H |
| Delivery Time: |
7 Days |
| Transportation: |
Sea,Air |
| Min Order: |
1 Set |
| Type: |
Pattern Sewing Machine |
Product Description

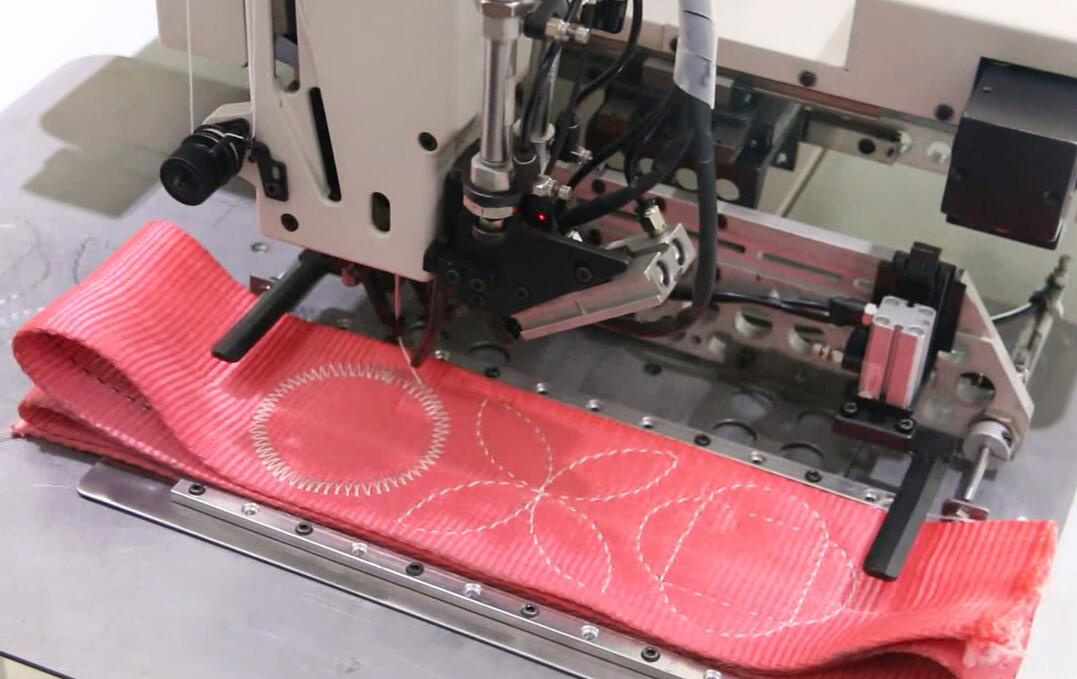

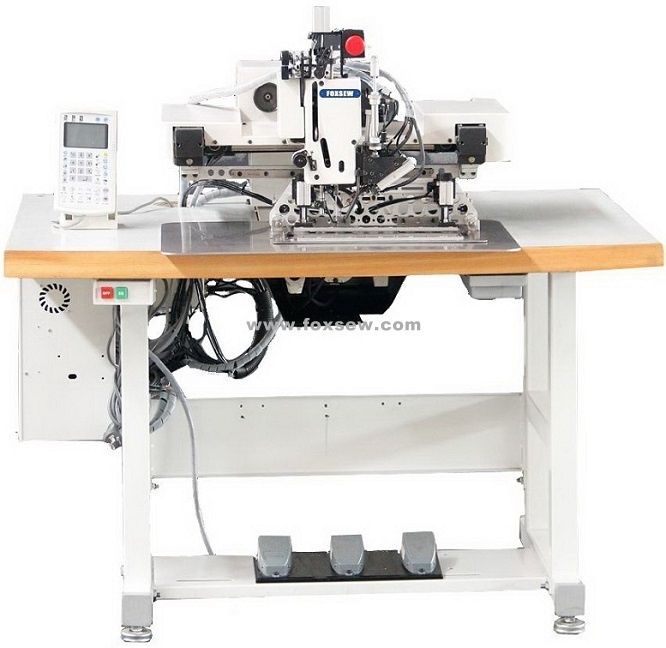

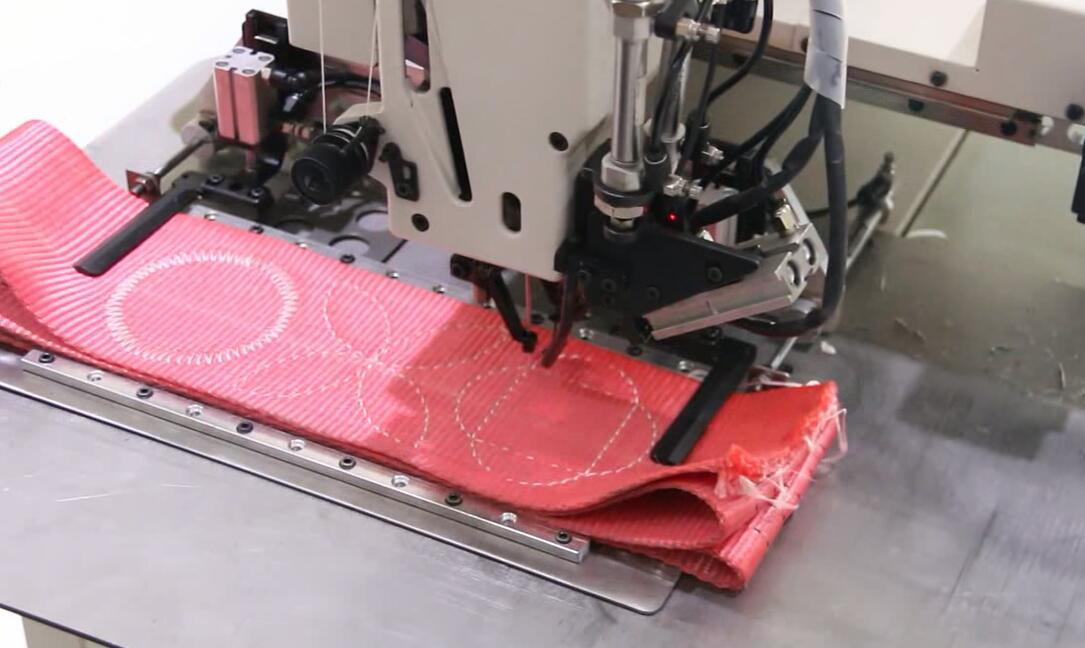

Heavy Duty Programmable Pattern Sewing Machine with Large Shuttle Hook
http://www.foxsew.com/pattern-sewing-machine/487.html
FOXSEW Extra Heavy Duty Programmable Electronic Pattern Sewing Machine for heavy duty materials
Application: lifting slings, rigging products, safety belts, military webbing, cargo lashing strap, hoists, safety harness, crane slings, industrial safety products, textile slings (reinforcement stitch or reinforced Eye), lanyards, saddles, sails, parachutes and furniture upholstery, Bar tacking for climbing ropes, safety ropes, sterling rope, cords, yacht ropes, ropes, braid ropes etc...
Working Video 1: www.foxsew.com/company-video/extra-heavy-duty-automatic-pattern-sewing-machine-for-sling-rope-383.html
Working Video 2: www.foxsew.com/company-video/extra-heavy-duty-automatic-pattern-sewing-machine-for-rope-bartacking-384.html
Working Video 3: www.foxsew.com/company-video/extra-heavy-duty-pattern-sewing-machine-with-large-shuttle-hook-for-slings-ropes-368.html
Working Video 4: www.foxsew.com/company-video/automatic-pattern-sewing-machine-for-extra-heavy-duty-webbing-450.html
Working Video 5: www.foxsew.com/company-video/extra-heavy-duty-pattern-sewing-machine-for-climbing-ropes-366.html
Working Video 6: www.foxsew.com/company-video/heavy-duty-automatic-pattern-sewing-machine-for-sling-webbing-510.html
Working Video 7: www.foxsew.com/company-video/extra-heavy-duty-automatic-sewing-machine-for-lifting-ropes-382.html
FOXSEW Heavy Duty Pattern Sewing Machine with Large Shuttle Hook for any thickness threads sewing, the special trimming design has been applied the patent and could cut off threads instantly.
The Presser foot lift is up to 25mm, suitable for stitching the extra heavy duty materials.
Be provided with function of avoiding needle broken, preventing the needle to be cut of shape or cut off when sewing heavy materials.
Specifications:
Model No. | FX3020H / FX2516H / FX2010H |
| Max.Sewing Speed | 1000 r.p.m |
| Hook | Large Shuttle Hook |
| Stitch Length | 0.1mm-12.7mm |
| Needle Bar Sroke | 56 mm |
| Out Presser Foot Lift | 50 mm |
| Middle Presser Foot Stroke | 10 mm |
| Middle Presser Foot Lift | 33 mm |
| Thread Tension | Electronic Thread Tension |
| Pattern Date Storage |
U Disk: 999 kinds of patterns
Needle sews 5000 times per pattern |
Function of Expand,Narrow | 1-400% (0.1 unit) |
| Mode of Expand,Narrow |
Add or reduce stitch length
Add or reduce sewing times |
Lubrication | Semi-automatic |
| Servo Motor |
750W-1000W AC Servo Motor |
Needle | DY x 3 # 180-250 |
| Sewing Area | 300x200 / 250x160 / 200x100 mm |
