| Prod Model: |
PE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Clirik |
| Stone Crusher Place Of Origin: |
Shanghai China |
| Stone Crusher Certification: |
CE |
| Stone Crusher Color: |
Optional |
| Stone Crusher Finished Size(Mm): |
10-160 |
| Stone Crusher Capacity(T/H): |
40-160,1-140 |
| Stone Crusher Warranty: |
One Year |
| Stone Crusher Weight: |
5 T |
| Stone Crusher Other Name: |
Small Stone Crushing Machine |
| Stone Crusher Model Number: |
PE |
| Type: |
Jaw Crusher |
| Motor Type: |
AC Motor |
| Condition: |
New |
| Materials: |
Ore |
Product Description

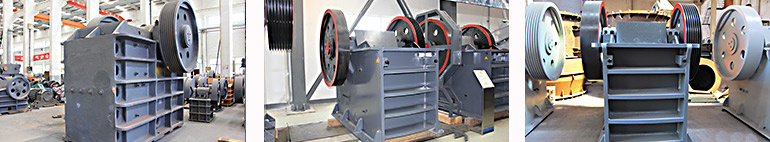

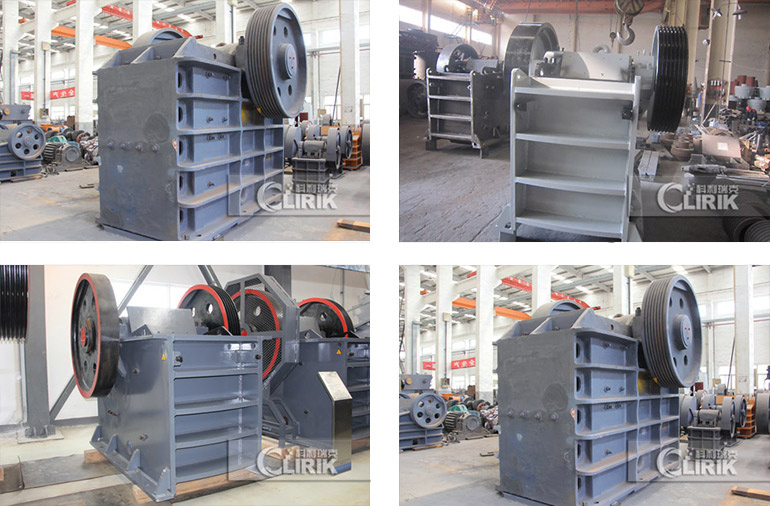

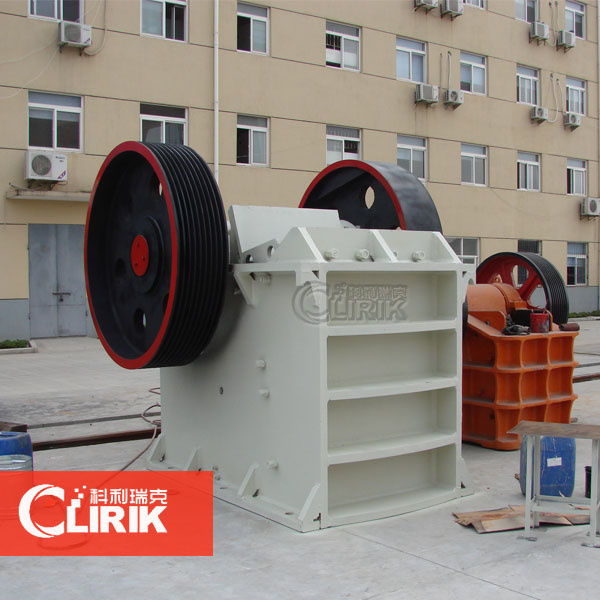

Small Stone Crusher
Small Stone Crusher is commonly called as "tiger mouth", which is one of historic crushers.
Until now it is still the most efficient crushing equipment for the hard materials.
Small Stone Crushing Machine, (Jaw crusher)is mainly used in the industries of matallurgy, mining, chemical, cement, construction, refractory materials and ceramics, which is suitable to crush hard and soft ores with compressive strength less than 320MPA.
Why we choose this Small Stone Crusher? Advantages
High crushing ratio
Uniform particle size
Simple structure
Reliable performance
Easy maintenance
Economic operation
How does the Small Stone Crusher work?
Small Stone Crushing Machine(Jaw crusher) mainly consists of frame, eccentric shaft, jaw plate, connecting bar, adjustment part and spring.
1. The motor drives the belt and belt wheel, which is connect with the eccentric shaft.
2. The eccentric shaft will make the movable jaw go up and down.
Up, the angle between bracket and the movable jaw will turn bigger, and this will push movable to come close to the fixed jaw plate. At this time, the materials will be crushed.
Down, the angle between bracket and the movable jaw will turn smaller. Under the force of connecting bars and spring, the movable jaw plate will leave the fixed jaw plate. This moment the crushed materials you need will discharge from the crushing cavity.
3. With the continuous rotation of the motor, the movable jaw will crush and discharge periodicity. Then you can realize the mass process.
(The movable jaw plate press to the fixed jaw plate periodically, and this will crush the materials between them. This is the reason why people called it as tiger mouth)
Main Specification of Small Stone Crushing Machine:
Type | Feed Opening Szie
(mm) | Feeding Size (mm) | Output Open Range
(mm) | Capacity (t/h) | Powder
(kw) | Dimension
L*W*H
(mm) |
| PE150×250 | 150X250 | 125 | 10--40 | 1--5 | 5.5--7.5 | 922×745×933 |
| PE200×350 | 200X350 | 125 | 15--40 | 5--16 | 7.5--11 | 1056*1142*1220 |
| PE250×400 | 250x400 | 210 | 20-60 | 5--20 | 15--18.5 | 1430*1310*1340 |
| PE400×600 | 400X600 | 350 | 40--100 | 15--60 | 30-37 | 1700*1732*1653 |
| PE500×750 | 500X750 | 425 | 50-100 | 40-100 | 45-55 | 2035*1921*2000 |
| PE600×900 | 600X900 | 480 | 65-160 | 60-140 | 55-75 | 2290*2206*2370 |
| PEX250×400 | 250x400 | 210 | <12 | 5--10 | 15--18.5 | 1430*1310*1340 |
| PEX250×1000 | 250x1000 | 210 | 25-60 | 16-50 | 30-37 | 1530*1992*1380 |
| PEX250X1200 | 250X1200 | 210 | 25-60 | 20-60 | 37-45 | 2192*1605*1415 |
| PEX300x1300 | 300x1300 | 250 | 25-105 | 20-90 | 75 | 2720*1950*1600 |
Shanghai CLIRIK MACHINERY Co., Ltd, which is specializing in research, manufacture and sales of all kinds of mining equipment. Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.

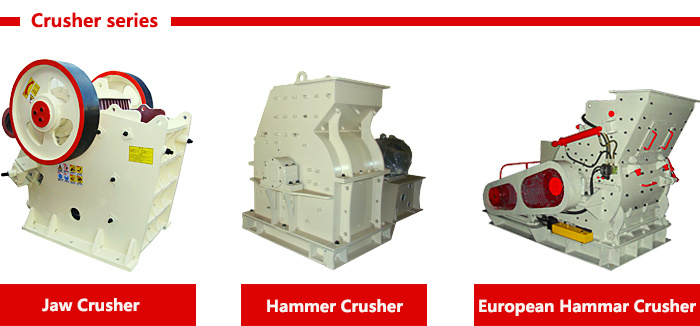

So far, we have established a whole production chain, the products covermicro powder grinding mill, high pressure grinding mill, European version coarsegrinding mill, hammer crusher, jaw crusher, screw conveyor, bucket elevator and so on. They are widely used in the industry of mining, construction materials, chemicals, metallurgy, transportation, hydraulic engineering and so on. Specially we independently developed HGM micro powder grinding mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.
