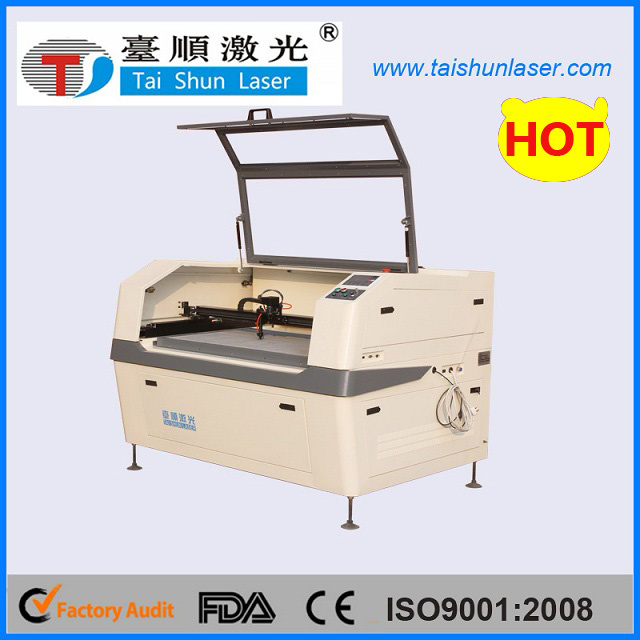

Fast Typesetting System Leather Laser Cutting Engraving Machine

Fast Typesetting System Leather Laser Cutting Engraving Machine
Price: US $ 4000-6000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: TSHY10060
Laser Type: Glass CO2 Laser Tube
Application Area: Clothes and Shoes Car Accessories, Home Textiles
Application Material: Cloth, Plastic, Teak Padauk Leather
Power Supply: AC220V+-5%50Hz
Graphic Format Supported: Ai, Plt, Dxf, BMP, Dst, Dwg, Dxp
Cutting Area: 1000mmx600mm
Output Power: 80W
Cutting Speed: Adjustable
Working Table: Conveyor Working Table
Guarantee: One Year Free Maintenance

Product Description

Product parameter:
Laser typeGlass CO2 laser tubeMovement systemstepping motor system
Output power100WCooling systemWater cooling
Working area1000mmx600mmElectrical VoltageAC220V+-5% 50/60hz
Working tableConveyor working tableSupported file formatAI,BMP,PLT,DXF,DST,AI,BMP,PLT,DXF
Working speedAdjustableStandard accessories1 set 550W exhuast fans
Position accuracyplus minus 0.1mmOptional accessories80w,130w,150w laser tube,auto feeding system,water chiller
CCD single screen view range120x80mmConnect interfaceUSB,PC

Feature:
1, It's customized for various types materials'cutting and engraving for wood,teak padauk,plastic,cloth,acrylic

2, It's good to cut any shapes without fringe and sewing automatically.

3,Converyor working table with negative pressure adsorption function can cut long size fabric continuously and to impress you, thus the fabrics still kept flatly and smoothly.

4,The following-up fume extractor system is going with laser head to save power consumption and good fume chasing effect.

5, DSP control system support online and offline data transferring.

Samples:


Working Videos:
https://www.youtube.com/watch?v=xs_Im20mv6g               carpet cutting
https://www.youtube.com/watch?v=GbkX77rZW_Q             labels engraving
https://www.youtube.com/watch?v=DOUXxajO3_w             insole engraving
https://www.youtube.com/watch?v=hPIgjdvG_GY                fiber laser cutting metal
https://www.youtube.com/watch?v=KJ4UGkaCjkk              fiber laser cutting machine
https://youtu.be/5PgXtVNajn4                large format fabric cutting
https://youtu.be/L6Rz6L3UaXY                 embroidery applique cutting
https://youtu.be/uy6NRT4HsrU              MDF laser cutting

Application:
1. Industrial textile: filter cloth, bolting cloth, filter fabric, nonwoven, glass fiber, felt, synthetic fibre, fabric ducting, polypropylene (PP), polyethylene (PE), polyester (PES), polyamide (PA), cement packing, geotextile, coated fabric, sponge, insulating material and other industrial flexible materials.
2. Non-woven fabrics for health & medical: insulating material, glass fibre, polyester fibre, Microfiber, Cleanroom Wiper, Glasses cloth, Micro-fiber Wiper, non-dust cloth, clean wiper, paper diaper, etc.
3. Home furnishing fabrics: upholster, carpet, mat, floor rug, mattress, curtain, doormat, valance, wall paper, tablecloth, bed sheet, bedspread, counterpane, dust cover, sofa fabric, etc.
4. Garment fabrics: sportswear, swimwear, diving suit, exposure suit, liner, lining, adhesive interlining, wadding piece, case-hardened cotton, synthetic leather, genuine leather, etc.
5. Automotive interiors: car seat cover, car cushion, car mat, car carpet, car rug, pillowcase, air bag, auto dustproof cover, seat belt (safety belt), etc.
6. Outdoor products: polyester, nylon, PE/PVC/TPU/EVA/Oxford fabric, Oxford polyester cloth, PVC coated fabric, Tarpaulin, canvas, PVC tarpaulin, PE tarpaulins, Sail cloth, Inflatable products, tents, Inflatable toys, Inflatable castle, Inflatable boats, surf kites, fire balloon, parachute, paraglider, parasail, rubber dinghy, canopy, awning, etc.

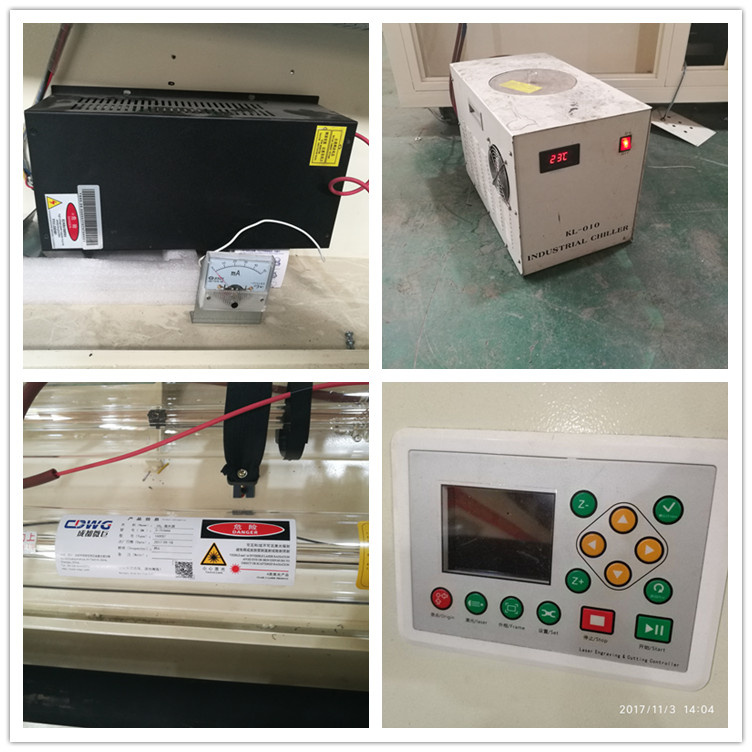

Hardware parts
Adopt imported patent guide rail for critical sections,which has special adjust
& calibration method.
It has characteristic for small kerf ,high speed and high accuracy

Movement parts
It has unique patented transmission system,improve the stability of transit system to achieve instantaneous liner speed and self-regulation function according to liner to curve,ensure the cutting edge is smooth and the curve natural

Optical Path
It adopt imported focus lens and reflecting mirrors,and it can reach mininum energy lost.

Cooling system
It adopted closed water cooling system to ensure stable operation of laser tube for a long time.It also can choose professional water chiller,to ensure recycling water temperature,making sure laser beam stably and working long


Software system
Automatic intelligent layout functions,double head shift
Automatic typesetting files to achieve continuous feeding and cutting
Through a simple copy collection devices to achieve fast copy and marker function,convenient for staff operation

Order Notice:
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.




Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.

Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.

We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.

Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
