| Price: | US $ 0.86/Square Meter |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 5000/Square Meter |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | CNBM-LL23 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Folded Height: | 15mm to 20mm |
| Max. Width: | 2.7m |
| Length Per Piece: | 30m/PC |
| Usuage: | Window Mesh |
| Material: | Phosphor Bronze Wire |
| Hole Shape: | Square |
| Application: | Screening |
| Weave Technique: | Plain Weave |
| Standard Length: | 30m |
| Feature: | Heat Resisting |
| Customized: | Customized |
| Certification: | ISO9001 |
| Surface Treatment: | Weaving |
| Color: | Gray |

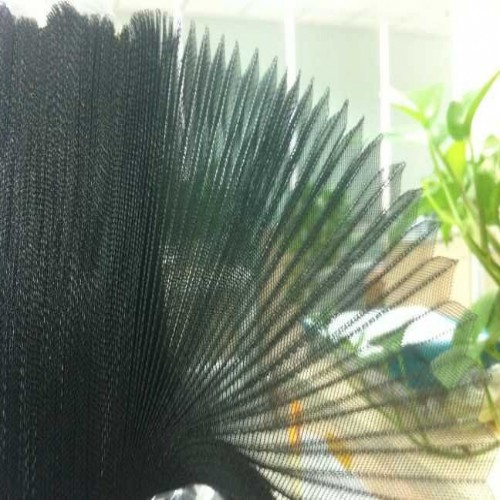

Introduction of Fiberglass&Polyester Pleated mesh for Plisse System:
The pleated mesh is made of fiberglass and polyester.The color is black and gray normally that enables more light permeation and makes room more bright
It is ideally suited for the latest sliding plisse insect screen system for door and window
When not in use, it is easily stored away into a protective housing that keeps the mesh clean, invisible and safe from damage
It takes little room at side of window or door, making the door and window wide. The screen is operated smoothly and safely. There is no retracting force and it is easy for children to open.
Note: this mesh is fire proof, when there is fire, it is more safe than any other material.
Specification of Fiberglass&Polyester Pleated mesh for Plisse System:
Material: 60% PVC, 21% Polyester, 19% Fiberglass
Folded Height: 15-20mm
Density: 18*16/inch
Weight: 110G/M2;
Yarn diameter: 0.28-0.32mm
Colors: Gray and black
Breaking strength (N/25mm)
Warp: >25KGF
Weft: >25KGF
Standard sizes: 1.8M, 2.0M, 2.3M, 2.4M, 2.5M, 2.7M, 3.0M
Standard length: 30m
Customized sizes are available on request.
Advantages of Fiberglass&Polyester Pleated mesh for Plisse System:
Fire Proof
Easily cleaning
UV resistance
Long service life
Timely delivery (normal within 30 days)
It is easily stored away into a protective housing that keeps the mesh clean, invisible and safe from damage
Data Sheet of Fiberglass&Polyester Pleated mesh for Plisse Door:
PRODUCT | FIBERGLASS&POLYESTER PLEATED MESH 18X16/INCH | |
FOLD HEIGHT | 15MM-20MM | |
WOVEN STRUCTURE | PLEATED | |
COLOR | GRAY | |
YARN DIAMETER (MM) | WARP | 0.28MM±0.03MM |
WEFT | 0.28MM±0.03MM | |
ENDS DENSITY (ENDS/INCH) | WARP | 18 |
WEFT | 16 | |
AREA WEIGHT (G/M2) | 110±5G/M2 | |
COMPOSITION | 19% fiberglass, 21% polyester, 60% pvc | |
TENSILE STRENGTH (M) | WARP | > 180M |
WEFT | > 160M | |
STANDARD WIDTH(M) | Max. 3M | |
STANDARD PIECE LENGTH(M) | 12.5M, 15M, 25M, 30M | |
PIECES IN ONE CARTON (PC) | 10 PC/CARTON AND OTHER PACKAGES AVAILABLE. | |
