Fiberglass Screen Mesh/ PP Pleated Mesh/ Petpleated Mesh/ Polyester Pleated Mesh

Color:	Black, Grey, White, Green, Others
MOQ:	20000m2

Product Description

Introdution of Fiberglass Insect Screen Mesh

Fiberglass insect screen mesh is made of glass fibers inside the yarn and with PVC coating outside. It's stretched in a frame of wood or metal. Fiberglass insect screen mesh serves to keep leaves, debris, insects, birds, and other animals from entering a building or a screened structure such as a porch, without blocking fresh air-flow.
Standard fiberglass insect screen mesh is flexible, economical and easy to install. Will not crease, dent, or unravel.

Advantages of Fiberglass Insect Screen Mesh
-High tear strength.
-Long service life up to 6 years
-Resistant to fire, UV, corrosion
-Good light and air transmission
-Do not fray and easy to stretch
-Easy installation, remove and  maintain
-No smell, good to health
-Touch soft , no crease after folding
-More than 6 colors available, beatutiful view

Specifications of Fiberglass Insect Screen Mesh


Measurement cm	Net eye numbers		Breaking strength (N/25mm)		Structure	Length per roll	Quality     g/m2
	Latitude	Longitude	Latitude	Longitude
	18±0.5	16±0.5	≥260	≥220	Plain Weaving	30-300m±0.2	115-180
Standard width      ±1.0	18±0.5	14±0.5	≥260	≥220	Plain Weaving	30-300m±0.2	115-180
	18±0.5	16±0.5	≥260	≥220	Plain Weaving	30-300m±0.2	115-180
	18±0.5	14±0.5	≥260	≥220	Plain Weaving	30-300m±0.2	115-180



Application of Fiberglass Insect Screen Mesh
The fiberglass insect screen mesh is chiefly used in the home or busines building for insect preventing purpose as window screen, door screen, retractable window & door screen, porch screen, mosquito screen, etc. But you may also find it creatively used in pastures, orchards and gardens and construction.

18x16 fiberglass insect screen mesh is used primarily for aluminum window screen and aluminum screen doors. It uses  11" diameter threads with 18 threads per inch vertically and 16threads per inch horizontally. Openness 59%, light transmission 69%. We use a pvc coated fiberglass, charcoal in colour this allows for the best vision through your window, coloured mesh obstructs the view.

18x14 fiberglass insect screen mesh is a stronger mesh using a .13"thread in an 18x14 weave, 45% opennes, and is  recommended for larger openings such as porches, pools and patios or where added strength is desirable.

20x20 fiberglass insect screen mesh is a tiny mesh that offers the ultimate in insect protection and recommended for "No-See-Ems" and other very tiny bugs.

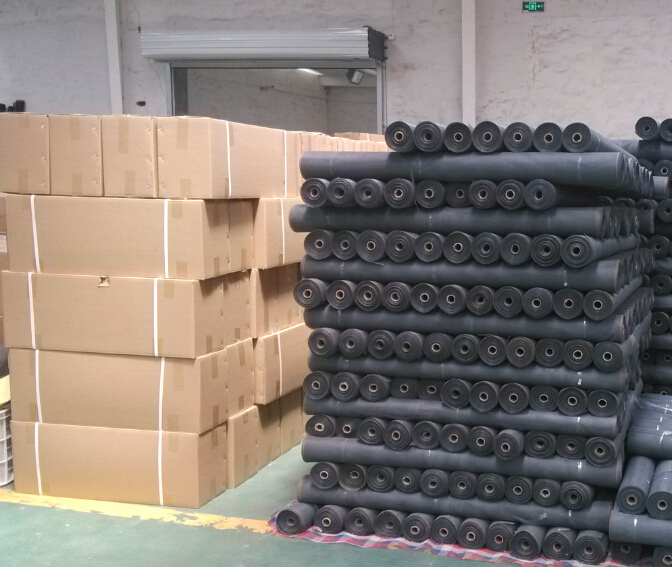

Package of Fiberglass Insect Screen Mesh
1) one roll with plastic bag, 10rolls in one woven bag, one 20''container can load 84,000m2
2) one roll with plastic bag, 6rolls in one carton, one 20''container can load 74,000m2

FAQ
Q: What kind of payment terms do you accept?
A:TT, LC at sight
Q: Can you do OEM?
A: Yes, we can do OEM products.
Q: Can you provide some samples?
A: Yes, we can offer free samples for checking, you'll just need to pay for the express cost.
Q: What's the width of roll?
A: It can be 0.9m, 1.0m, 1.1m, 1.2m, 1.3m, 1.5m, 1.8m, 2m, 2.5m, 3.0m, 3.2m.
Q: What's the loadng quantity in whole container?
A:For carton package, one 20''container is about 74,000m2, one 40''container can load 190,000m2.
