Prod Model: |
HBNS |
Factory: |
Own |
Sample: |
Free |
Inspection: |
SGS |
Quality: |
High |
Application: |
Switch Baseplate |
Type: |
Insulation Tape |
Chemistry: |
Organic Insulation |
Material: |
Plastic |
Thermal Rating: |
250 250 |
Maximum Voltage: |
20KV~100KV |
Color: |
Black and Other |
Brand: |
Hbns |
Product Description

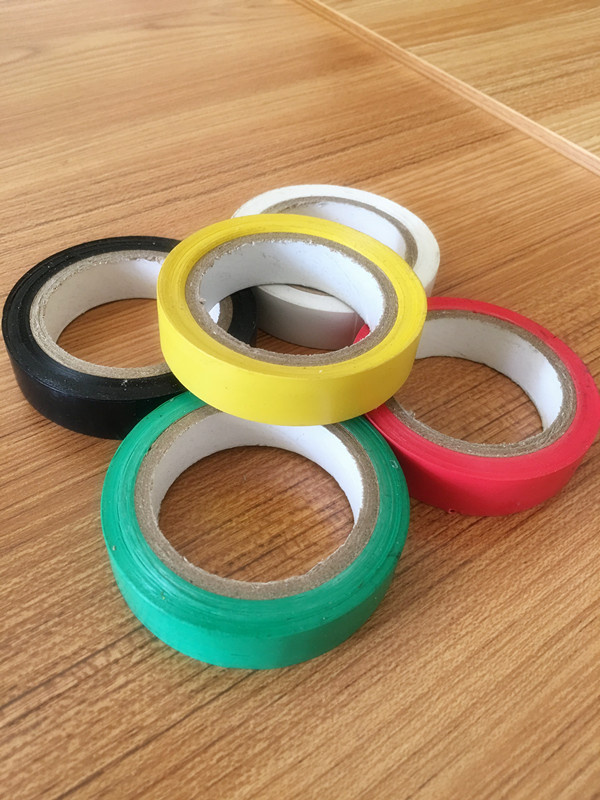

PVC insulation tape excellent grade Description: The excellent grade electrical tape is a thin premium grade plasticized polyvinyl chloride film coated with an aggressive rubber resin adhesive with good characteristics. It is highly conformable and unaffected by most chemicals and moisture.
Application: It is specifically designed for wire harness and other electrical insulating application. It is better to wrap wires with a half-lap , the last layer should be no tension to prevent flagging.
Technical Data: Properties | unit | Typical Data | Test Method |
WA110 | WA130 | WA150 | WA165 | WA180 | WA200 |
Total Thickness | mm | 0.110 | 0.130 | 0.150 | 0.165 | 0.180 | 0.200 | ASTM D1000 |
Width | mm | 19 | 19 | 19 | 19 | 19 | 19 | ASTM D1000 |
Tensile Strength | N/cm | 20 | 22 | 25 | 28 | 30 | 30 | ASTM D1000 |
Elongation | % | 180 | 200 | 200 | 220 | 220 | 220 | ASTM D1000 |
Adhesion Strength ·to steel ·to Backing | N/cm N/cm | 1.8 1.6 | 1.8 1.6 | 1.8 1.6 | 1.8 1.6 | 1.8 1.6 | 1.8 1.6 | ASTM D1000 |
Dielectric breakdown | V | 600 | 600 | 600 | 600 | 600 | 600 | UL510 |
Temperature Resistance | °C | 80 | 80 | 80 | 80 | 80 | 80 | ASTM D1000 |
Other properties

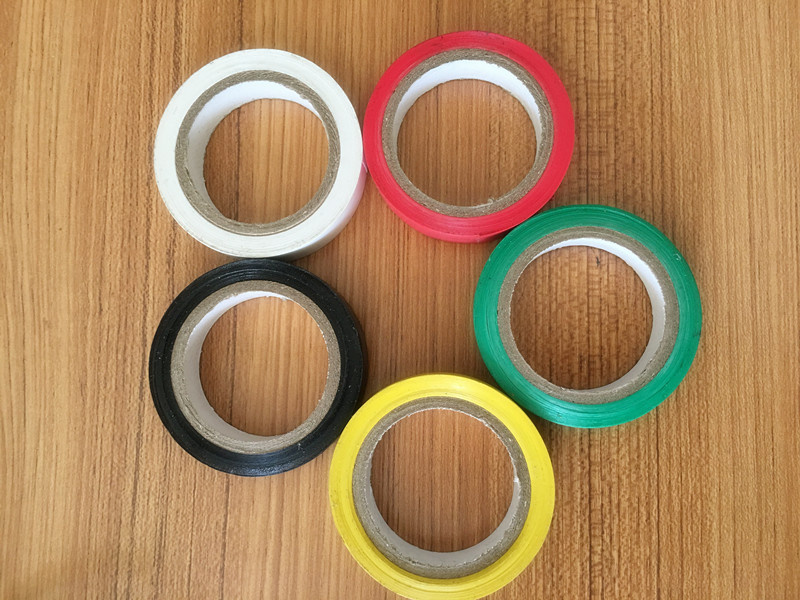

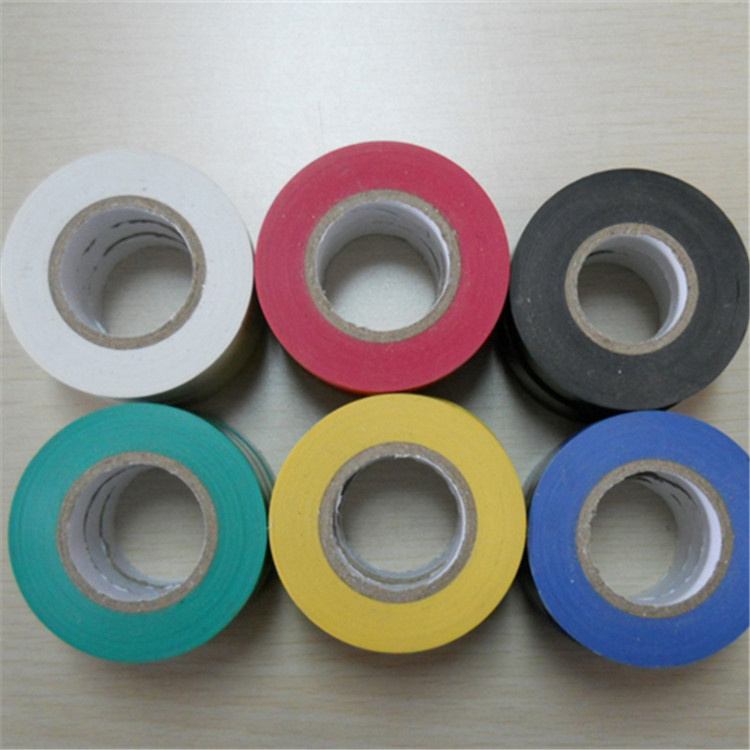

·Color : Black and other
·Surface Texture : Matt/Glossy
·Shelf Life: 12 months when stored in original carton at 23ºC×65%R.H.
Availability ·Standard length: 10yd,20yd, 20m,30m or to the customer's requirements
·Standard inner diameter of core: 32mm, 38mm, 42mm,76mm
·Standard width: 19mm, 25mm, 50mm, 1250mm

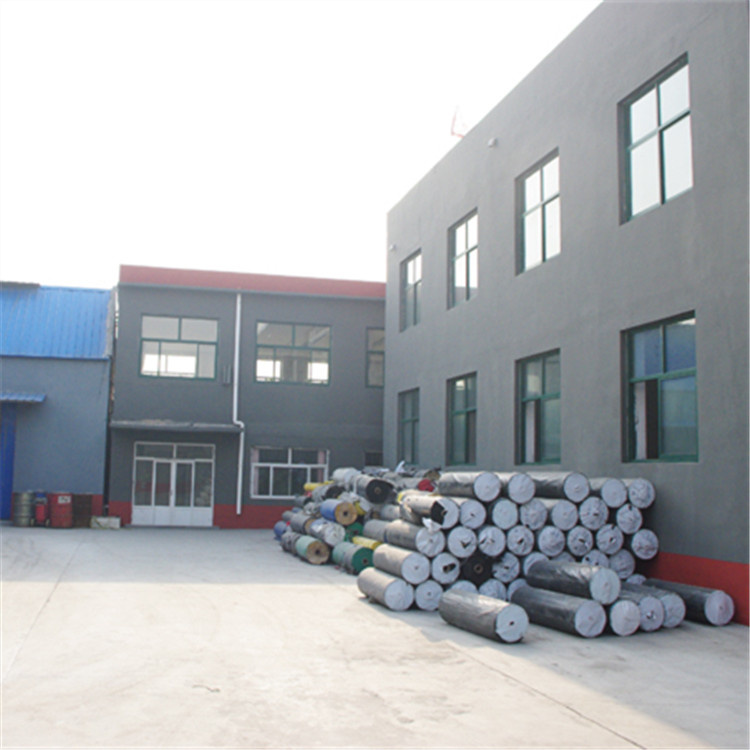

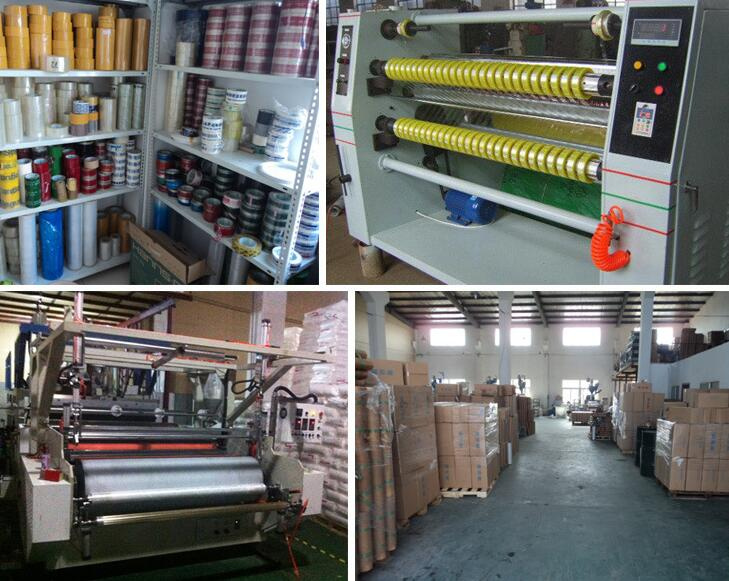

Warehouse: Factory Show: Our service:
1.Your inquiry related to our product & price will be replied within 24 hours
2.Well-trained& experienced staff are to answer all your inquiries professional in english of course.
3. OEM is highly welcome. we have strong R&D team here to help
4. Good after-sale service offered, pls get back if you got question.
