| Price: | US $ 20/Square Meter |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 500/Square Meter |
| Pay Type: | L/C,T/T |
| Prod Model: | snowfall panel |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Service: | OEM |
| Max. Measurement: | 9.5m*3m |
| Thickness: | 1mm to 5mm |
| Surface Treatment: | Gel Coat |
| Smoothness: | High Gloss |
| Technique: | Lamination |
| Weather Resistant: | Excellent |
| Clean: | Easy to Clean |
| Anti Corrosion: | Excellent |
| Anti Moisture: | Excellent |
| Type: | Truck Body Panel |
| Material: | Fiber Reinforce Plastic |
| Muffler Type: | No |
| Deck: | FRP |

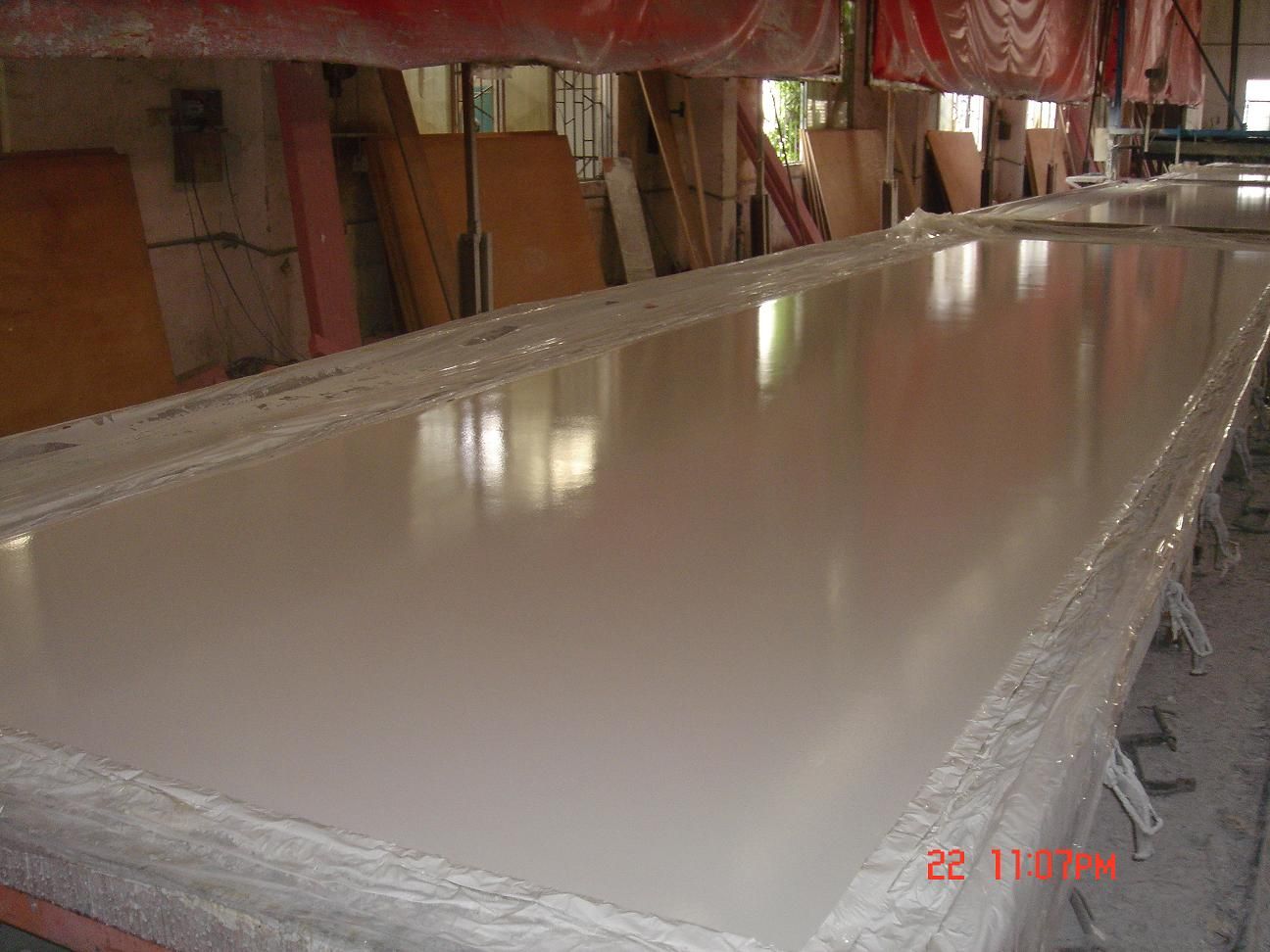

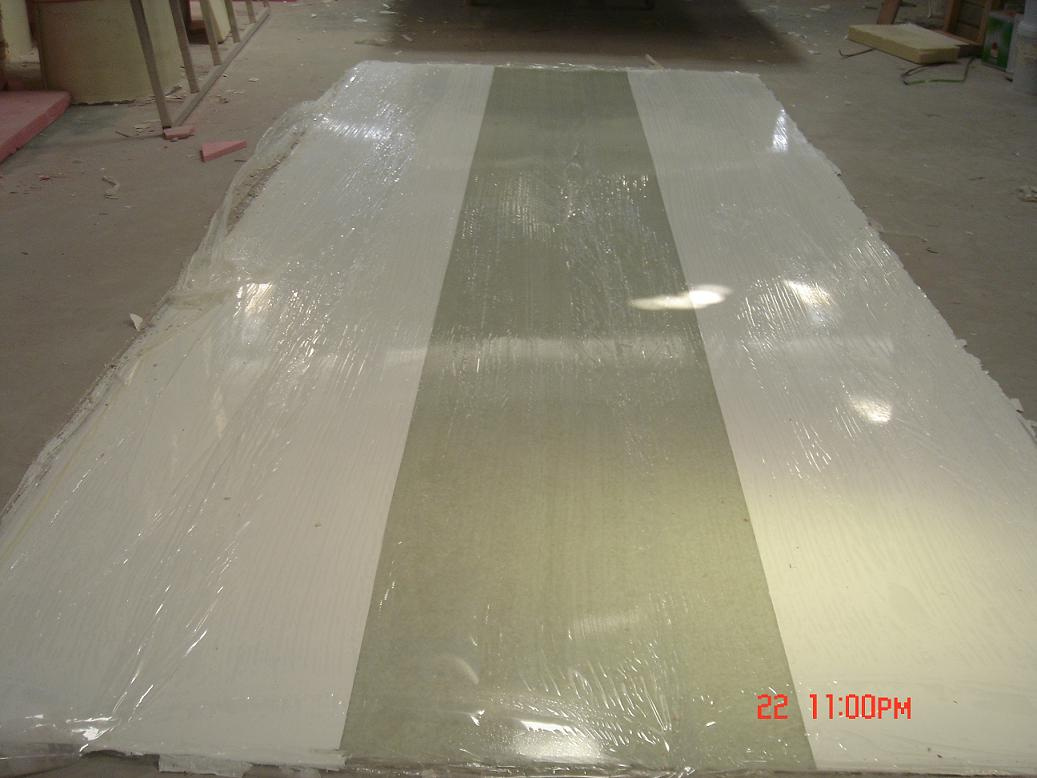

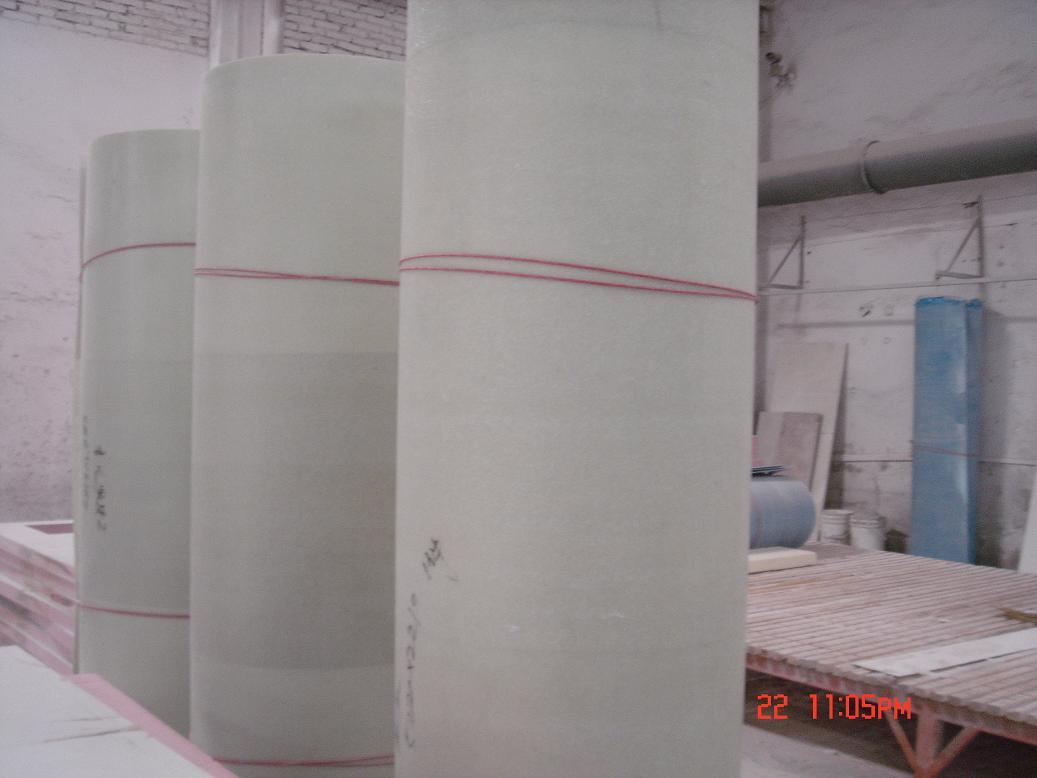

FRP Sheet
PROPERTIES
The exceptional quality of our FRP sheet is guaranteed by the use of high grade raw materials and by the gelcoat obtained from high elastic isophthalic resins that are resistant to yellowing and impermeability to water vapor and condensation.
FRP sheet provides complete panel protection from humidity to the panel's sensitive elements, be they expanded insulations or wood stratifications. Insulation features are unaltered.
Typical general feature
1. Light-weight &high-intensity
2. Fire resistant optional
3. anti-impact &scratch 4. Corrosion resistant
5. easy to clean & install 6. Anti-mildew, mould, moisture
7. Resilient to weathering and hail 8. Excellent thermal characteristics
| FRP Sheet | |||
| No | Item | Data | |
| 1 | Tensile Strength Mpa≥ | 100 | |
| 2 | Tensile Modulus Mpa≥ | 6.5*10³ | |
| 3 | Bending strength Mpa≥ | 160 | |
| 4 | Tensile Modulus Mpa≥ | 4.5*10³ | |
| 5 | Barcol Hardness≥ | 40 | |
| No | Panel's thickness(mm) | weight(kg/m2) | |
| 1 | 1.5 | 2.5 | |
| 2 | 2.5 | 4.5 | |
| 3 | 3 | 5 | |
