Full Automatic Fruit Chips Packing Machine for Zip Standing Bags
Price: |
US $ 15000-60000/Set |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |
Prod Model: |
GD8-200B |
Pouch Material: |
Laminated Film\PE\PP etc. |
Pouch Pattern: |
Stand-up, Flat, Zipper Bag |
Pouch Size: |
W:80-200mm, L:100-350mm |
Dimensions: |
1470*1320*1450mm |
Voltage: |
380V 3phase 50Hz/60Hz |
Total Power: |
4kw |
Material: |
Stainless Steel |
Product Description

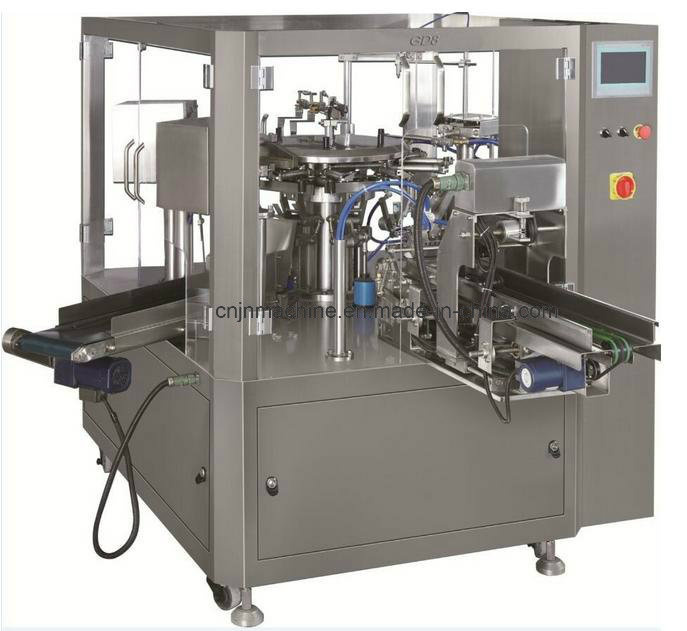

Full Automatic Fruit Chips Packing Machine For Zip Standing Bags
♦ Technical ParametersModel | GD8-200 |
Working position | eight-working position |
Pouch material | Laminated film |
Pouch pattern | Stand-up & Zipper |
Pouch size | W:100-210mm L:100-320mm |
Speed | ≤35pouches/min (The speed depends on the product status and filling weight) |
Weight | 1300KGS |
Voltage | 380V 3phase 50HZ/60HZ |
Total power | 4KW |
Compress air | 0.6m3/min(supply by user) |
10-Head Multied Weigher Specifications: Model | KJL-10 |
Weighing Range | 10-1000G |
Speed | Up to 70 bags/min |
Structure | Stainless Steel - Two levels |
Hopper capacity | 1600ml |
Driving Mode | Stepper Motor |
Preliminary Program | 99 Sets |
Total power | 1.5KW |
Voltage | 220V single-phase 50/60HZ |
Dimension | 1150(L)X950(W)X1129(H) |
Display Screen | Color Display 5.7 Inch LCD digital keypad |

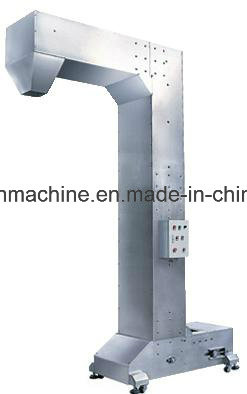

Z&L shape conveyor Function and characteristics: This kind of elevator is used mainly to convey the solid food ,such as rice, chip potato ,candy ,etc.it composes the automatic quantitative packing system combined with the weigher and packing machine, which is applying widely. Be made of 304 stainless steel and plastic (PP) which is hygienicand healthy .the elevator is controlled automatically. Specifications:Model: TSZ-200
Speed: 1 m3/h
Voltage: 220V single phase 50/60Hz
Total weight: 180Kgs Working Platform Function and characteristics:The platform is beautiful ,firm ,skidproof ,and safe .the platform is mainly used to cases the weigher ,which is the general accessorial equipment in packaging system.Samples:
Wenzhou Jienuo Machinery & Technology Co., Ltd. is manufacturing and trading company which is mainly engaged in development, production and related services for Pharmaceutical Industry, Food Industry, cosmetics industry, stationery industry, etc...We do business for Mainland customers, also do exporting our products to a lot of different countries and areas around the world. Such as United States, UK, Mexico, Italy, Australia, Poland, Philippine, South Africa, Malaysia, Thailand, Pakistan, Dubai and so on. It is very popular and interested there.
The main products of machinery and complete line equipments as Rotary Pouch Packing Machine, Premade Bag Packing Machine, Horizontal Pouch Packing Machine, Doy Packer, High-Speed Pillow Packing Machine, Bottle Labeling Machine, Sitcker Label Machine, High Speed Vials Labeler, Multi-Surface Labeling Machine, Capsule Filling Machine, Cartoning Machine, Vertical Packing Machine, AL/PL Blister Packing Machine, Thermoforming vacuum packaging machine, etc...
We provide professional packing solution and do a series of service from beginning to end.
Our strength
1. Equipment make and assemble strictly in accordance with customers' Requires, like CE, ISO9001(certification) etc.
2. We cooperate with some experienced factory, which as our subsidiaries groups. And it' S experience in packing industrial with good after-sale service group.
3. Effective and fast to keep up with customer demand.
4. Professional engineers group could do overseas service if you required.
We don' T sell product only, we sell the solution and service also. Good quality, good service and competitive price. Welcome to work with us to win a mutual benefit future.
