Full Color Indoor LED Mesh Curtain with High Transmitting (P10, P12.5, P20)
| Price: |
US $ 450-600/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
P20-indoor |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Encapsulation: |
SMD3528 |
| Module Size: |
320X320mm |
| Cabinet Size: |
960X960mm |
| Cabinet Material: |
Aluminum |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
CCC |
| Pixel Pitch: |
20mm |
| Pixel Density: |
2500 Dots/Sq.M |
| System Operating Platform: |
Win XP,Win 2000,98,Win7/8/8 |
Product Description
Full Color P20 SMD LED Mesh Indoor Curtain with high light transmittingProduct Features:1.SMD led encapsulation confirm wide view angle, and big pixel pitch ensure the long view distance
2. Mesh design for good heat dissipation and high light transmission
3. Aluminum cabinets ensure light weight and lasting
4.Rental design with locks and aviation plugs,easy to install and dismantle
5. Can be fixed installation or hungl to meet the request of live broadcast, live meeting, banquet, party, stage etc

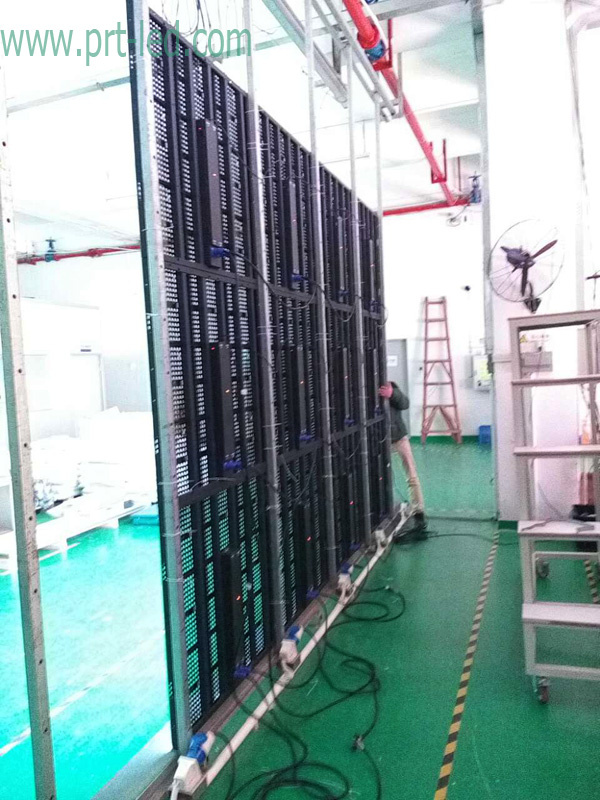

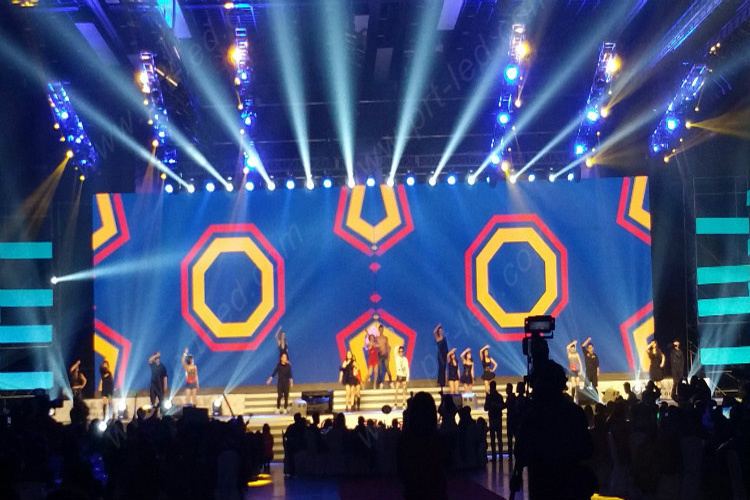

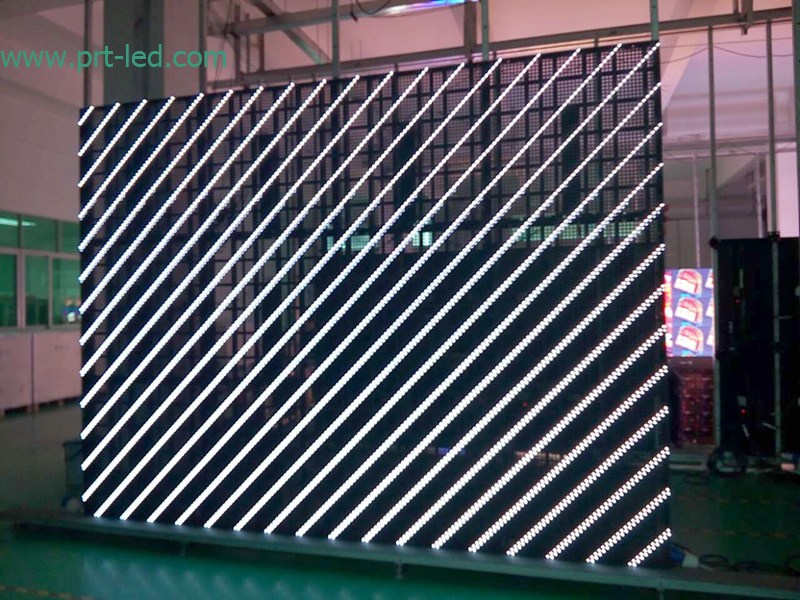

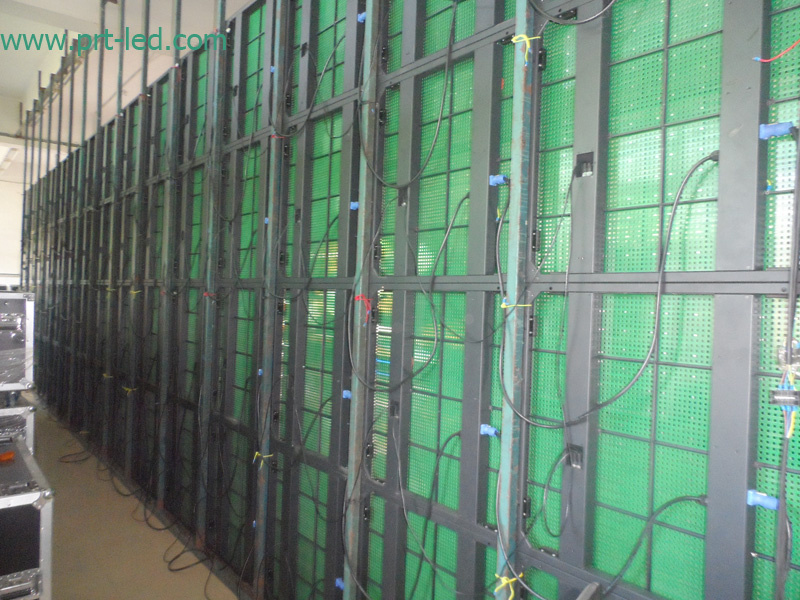

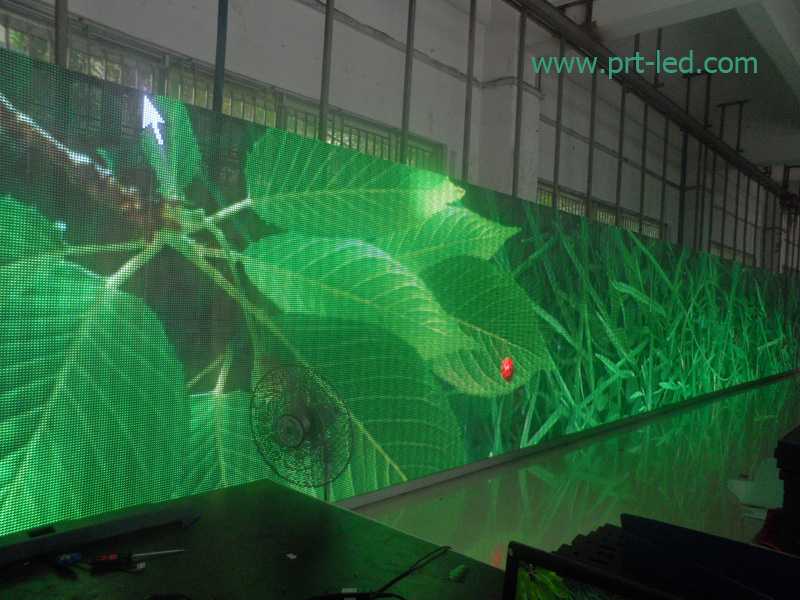

6. Widely used for commercial led display, stage led display, rental led displayMore pictures for reference:
Related parameters for reference as following:| Model No. | P10 | P12.5 | P16 | P20 |
| Pixel pitch | 10mm | 12.5mm | 16mm | 20mm |
| Led type | SMD3528 | SMD3528 | SMD3528 | SMD3528 |
| Resolution(dots/sq.m) | 10000 | 6400 | 3906 | 2500 |
| Brightness(Nits) | ≥1000 | ≥1000 | ≥1000 | ≥800 |
| Drive mode | 1/8 | 1/8 | 1/4 | 1/4 |
| Module size(mm) | 320×320 | 400×200 | 256×256 | 320×320 |
| Panel size (mm) | 640×640 | 800×800 | 1024×768 | 960×960 |
| Panel resolution(dots) | 64×64 | 64X64 | 64×48 | 48×48 |
| Cabinet weight(KGS) | 10 | 10 | 12 | 10 |
Power consumption
Max./Avg. (W/m²) | 500/150 | 350/150 | 400/150 | 250/100 |
| View angle(H/V) | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
| Refresh rate(Hz) | ≥1200 | ≥1200 | ≥1200 | ≥1200 |
| Grey scale | 16Bits | 16Bits | 16Bits | 16Bits |
| Best view distance | 8-50M | 10-50M | 15-50M | 15-50M |
| Protection level(Front/Back) | IP43/IP31 | IP43/IP31 | IP43/IP31 | IP43/IP31 |
| Input Power (V) | 110~240 | 110~240 | 110~240 | 110~240 |
| Working Temperature | -20ºC~+50ºC | -20ºC~+50ºC | -20ºC~+50ºC | -20ºC~+50ºC |
| Working humidity | 10% ~90% | 10% ~90% | 10% ~90% | 10% ~90% |
| Control | Caste ≤100M, Fiber optical≤10000 |
PRT OPTOELECTRONIC Co., Ltd is located in Bao'an District of Shenzhen city, specializing in R&D, manufacturing Full Color LED display for outdoor and indoor advertising with many different pixel pitches, and many different design, owned 5 new-automatic production lines and advanced test equipments to control quality ensure high quality. And got the international standard certificates of ISO9001-2000 and 14001, CE, CCC, FCC, RoHS, gurantee high quality!
Our main products include Outdoor LED display, Indoor LED display, Rental LED Display, Stage backbround LED screen, LED Curtain, Sport stadium perimeter LED screen, Mobile LED screen, LED display modules etc. Also supply LED professional stage lights based as customer's requests.
As the growing, we have more than 150 staffs, mostly with rich working experience in this area for many years, and several professional engineers for production and after sale service.
We got a strong team for exporting business, members with rich exporting experience over ten years, to introduce better solutions based on customers' requirements professionally, and guarantee the products to be shipped out in time and smoothly, so we can provide our clients high quality products with competitive prices and excellent service, and have obtained a good reputation from our customers.
Our company's operating philosophy, "Quality is everything, Service is the key to success ", because our purpose is to let business done easily and trustingly, to save customer's searching time and purchase cost, solve problem on customer's position, to let everything to be "PERFECT"(abbreviated to"PRT" )!
PRT is a developing company, need hard work of our staffs, also need your large positive support, let us do business and develop together, "sincere cooperation, mutual benefit and common development" is our principle.
Please send your e-mail to us and call us directly, we will answer you as soon as we can.
