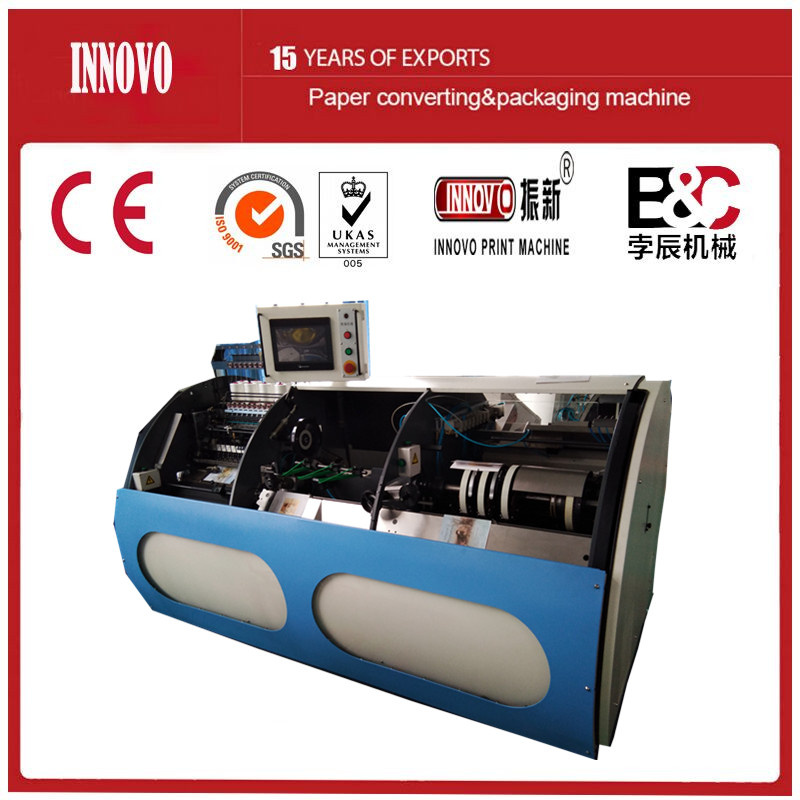

Fully Automatic Book Sewing Machine
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
ZXSX-160 |
| Max Machine Speed: |
160/Min |
| Min Size Signatures: |
75×120mm |
| Max Size Singnature: |
320×430mm(320X510) |
| Machine Type: |
Sewing Machine |
| Computerized: |
Computerized |
Product Description
Packaging & Delivery Packaging Details:standard wooden package Delivery Detail:20 daysIntroduction:1.ZXSX-160 fully automatic sewing machine, there are two different models, 43-and 51-type,43type max size of 320mmx430mm,and 51type, compared with 320mmx510mm.ZSX-160/51type sewing machine performance, can be a variety of different sizes of signatures for sewing process.(Such as double this,large format pictures) - Mitsubishi HMI using the latest PLC,configure a Taiwan Willen 10inchtouchscreen that canrotate 360degrees for easy operation personnel can operate in any orientation.
Programs can rotate 360degress for easy operation personnel can operate in any orientation.Programs can store up to 20 different types of sewing program,and can be called repeatedly.Shows,the production output,running speed,equipment and alarm messages. - There are different types of production by the signatures,the program has automatic transmission feature.Automatic adjustment of production speed (eg,a book with a thin thread or post sets page,the machine will automatically height and hit quote wheel down speeding,Signatures has finished a location automatically accelerate to normal speed thereby improve overall production efficiency,reduce downtime)
- automatic adjustment for functional (simply enter the book size, the number of stickers and other parameters. Machine will automatically adjust to the appropriate location)
5.All pneumatic handling systems are machine Japan CKD brands.CKD Corporation:the world's largest manufacturer of pneumatic components.6.ZXSX-160,160/51 graphic novel detection system can be installed,the machine uses the latest intelligent analog video technology. 7.Conveyor will send the signatures over exposing page ,up and down the four vacuum nozzle,to meet the different requirement of exposing page.In case of a ring lining posts or posts.Specially designed hair allowed signatures with suction after a produce an air cushion signatures,thus effectively eliminating the phenomenon of suction double sheets. 8.Suction device and robots will bottom most signatures and signatures separation,followed by separation of the teeth hundred signatures extracted form the hopper.this performance combined with lower signatures heap,continued feeding signatures tilt helps eliminate the phenomenon Of surface scratches. 9.Taiwan automatic central lubrication system,the use of quantitative reducing valve,equipment maintenance becomes very simple,the system can be set at an appropriate time on the sewing machine oil lubrication points automatically lubricated.No oil pipeline rupture,hydraulic reach the set,the machine will automatically alarm shutdown,trouble shooting before normal production. 10.Sewing needle and looper very short straight,which ensures its easier to insert the threaded hole on the spine needle play.Thus achieving high quality sewing effect,eliminating needle looper phenomenon. - Electrical parts used Mitsubishi PLC and Taiwan Willen latest touch screen, remote Internet monitoring service,free from worry.
- All imports of electrical switches,ensure that equipment runs more stable,more secure,long life.(Japan Mitsubishi PLC,Taiwan Willen touch screen,Schneider electrical switches,etc.)
- If the signatures are not used when the length of edge folding suction signatures can also be separated.In order to meet mortgage page uses,requires a minimum side length of more than 8mm.
- Lock thread needle seat is independent for each component can be replaced individually.If worn without the need to replace the entire lock thread,saving maintenance costs.
15.Front cover,the shutdown automatically when opened,allows the operator to life downtime caused by faults.Start the machine automatically turns Off when the safety cover,reduce labor intensity of operators.Safer and more efficient.Two large oval transparent window is also convenient for the functioning of the device were observed. 16.You can click on the control panel to enter the equipment maintenance interface for electronic and pneumatic components can be checked directly displayed IO interface diagrams and location of electrical switches, circuit diagrams can without overhaul. 17.Suction device imported vacuum generator,compared with the traditional air pump to reduce noise,eliminating the heats generated by the wind pump itself,long-term use of maintenance-free advantages. - Power section complete with imported Italian aluminum motor to achieve high efficiency low energy consumption.Compared with other models,can save energy more than two thirds,the whole power only 2Kw,real energy efficient equipment.
19.The core components of the machine.All of Germany Sa Site steel production by the Taiwan head quarter processing(such as cams,locking thread,etc.)to ensure that equipment precision long wear.Company strength1.15 years factory experience2.10 years export experience3.Over one hundred professional factory workers4.100% quality guarantee,supply all kinds of certificates5.Good after-sales serive,we send engineers to repair machine overseas.6.Primary products: Automatic High Speed Flute Laminater ZXSCM Book Case Making Machine 650UV Coating Machine ZX-650C Manual Paper Pasting Machine Box Making Machine Hot Melt Gluing Machine and Gluing Machine Table Gluing Machine Paper Pressing Machine.etc
Anhui Innovo Bochen Machinery Manufacturing Co., Ltd. Established in early 21st century, Anhui Innovo Bochen Machinery Manufacturing Co., Ltd. is a professional company integrated with scientific research, designing, manufacturing and service in post-press equipment with rich experience. Equipped with strong technical support, the company has been earned trust from our customers both at home and abroad with high quality and comfortable after-sales service. The product is in great demand throughout the country, exported to Southeast Asia, the Middle East, America, Australia, and has acquired favorable commend by users. Our main products currently include: Album making machine, laminating machine, glue machine, glue binding machine, paper cutting machine and UV coating machine.
Over the years, "quality of survival, service and development" is the aim of our struggle. The company will continue to the advanced management idea, the spirit of excellence in research and development, scientific production technology and strong technical support and continuously improve the grade and quality. First-class products and service to our new and old customers hand in hand with the new and old customers to create a better future!
