| Prod Model: |
Cat6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wire Gauge: |
7*0.18mm |
| Gold Plating: |
15u |
| Length: |
1m/Customized |
| Color: |
Grey/Blue/Red/Yellow/Customized |
| Application: |
LAN Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PVC |
| Certification: |
ISO |
| Type: |
CAT6 |
| Model: |
CAT6 |
| Brand: |
Yacht |
Product Description

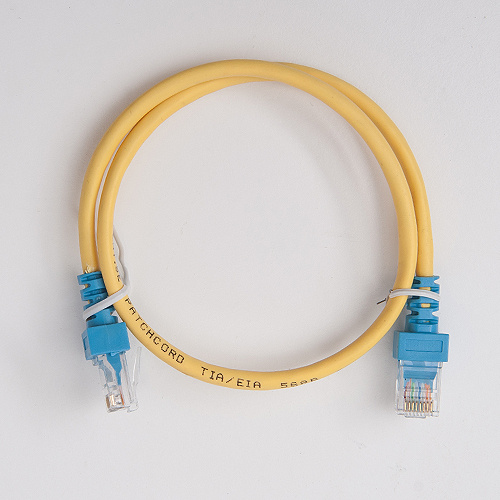

Grey/Blue/Red/Yellow Cat6 Patch Cord
DescriptionUTP cat6 patch cord uses multi-strand 24-26AWG flexible cable structure, tongue-type duckbilled injection molding structure, provides a high standard performance margin, ensures the entire cabling end-to-end transmission performance.

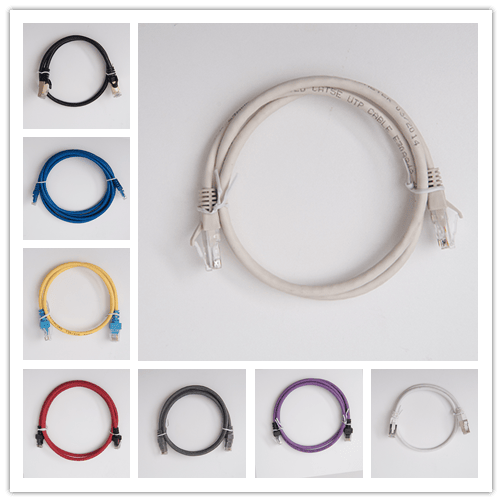

Similar ProductsUTP cat5e patch cord
FTP cat5e patch cord
UTP cat6 patch cord
FTP cat6 patch cord
UTP cat3 patch cord

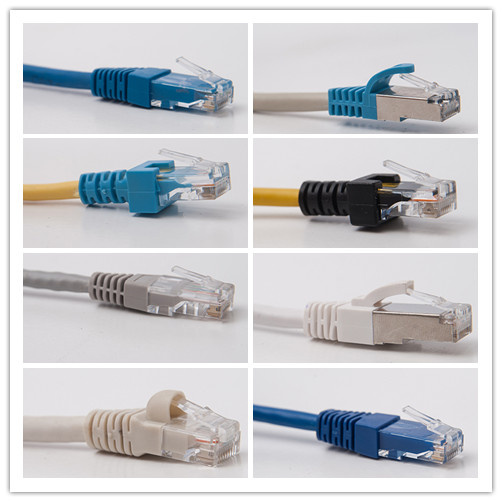

Different Injection Molding Types
Application10 BASE-T Ethernet
100 BASE-TX Fast Ethernet
1000 BASE-TX Gigabit Ethernet
155 Mbit ATM & 622 Mbit ATM
Other transmission rate 2.4Gbps LAN
Material| Type | Sheath | Insulation | Plug |
Plug
Spring Leaf |
Plug
Jacket |
Conductor |
Conductor
Wire Gauge |
PVC | PVC | HDPE |
Flame-retardant
Polycarbonate |
Phosphor-bronze
gilding |
PVC |
Bare
Copper |
Multi-strand
24AWG |
LSZH | LSZH PE | LSZH |
Flame-retardant
Polycarbonate |
Phosphor-bronze
gilding |
LSZH PE |
Bare
Copper |
Multi-strand
24AWG |
Transmission PerformanceFrequency
(MHz) | NEXT (2M)
dB(Min) | NEXT (5M)
dB(Min) | NEXT (10M)
dB(Min) | Return Loss
dB(Min) |
| 10 | 65.0 | 64.5 | 62.9 | 22.8 |
| 20 | 60.1 | 58.6 | 57.2 | 23.7 |
| 25 | 58.1 | 56.8 | 55.4 | 24.0 |
| 31.25 | 56.2 | 54.9 | 53.6 | 23.0 |
| 62.5 | 50.4 | 59.2 | 48.1 | 20.0 |
| 100 | 46.4 | 45.3 | 44.4 | 18.0 |
| 125 | 44.5 | 43.5 | 42.7 | 17.0 |
| 150 | 43.0 | 42.1 | 41.4 | 16.2 |
| 175 | 41.8 | 40.9 | 40.2 | 15.5 |
| 200 | 40.6 | 39.8 | 39.3 | 15.0 |
| 225 | 39.7 | 38.9 | 38.4 | 14.5 |
| 250 | 38.8 | 38.1 | 37.6 | 14.0 |
(All dates above are lab testing results, the actual testing results are not the same as these dates,
based on the actual testing results.)
Company profileCenyarak is a high-tech enterprise specialized in manufactureing computer network cables, connectors, fiber optic transmissions and other communication products. Cenyarak has a rich experience in providing services to top tier insistutions in the enterprise, health-care, education and carrier industries.
We have our own independent import and exports rights and we design and produce the products according to customer's requests. The prices of our products are evidently lower than the others which are the same grade on the condition of high quality.
Established in 2013, Jiangsu Cenyarak Electrical Co., Ltd is a manufacturer and trader specialized in research, development and production of all types of Fiber Optic Patch Cords and related products(). We are located in Jiangsu Nanjing, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets through the world.
Covering an area of 800 square meters, our company have own instrument processing center, manufacturing workshop, so that customized is available.
Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received _ISO90012008.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching North America, South East Asia, Europe, Africa ect.
Our company promises: High quality, reasonable prices, ample supply, timely delivery. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationship with new clients around the world in the near future.
