| Prod Model: |
P6-outdoor |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Encapsulation: |
SMD3535 |
| Module Size: |
192X192mm |
| Module Resolution: |
32X32dots |
| Brightness: |
>5000nits |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Certification: |
CCC |
| Pixel Pitch: |
6mm |
| Pixel Density: |
27777dots/Sq.M |
| Application: |
Advertising, Stage Performance, Rental |
Product Description

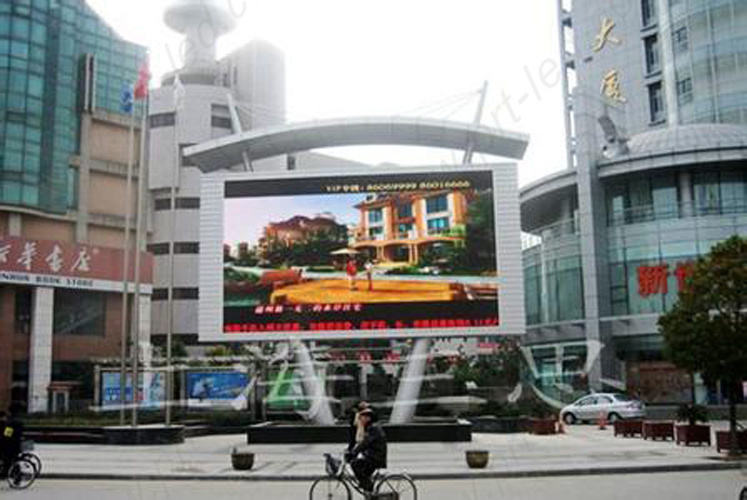

High Density Outdoor P6 Full Color LED Moving Sign for permanet install or rental use
1.SMD led encapsulation confirm wide view angle and high brightness,
2. Good waterproof IP65, suit to any weather outdoor, long life span>100000hours
3. High pixel density, Long distance, High definition, Good uniformity
4.Cabinets with fast locks and aviation plugs,easy and quick to assemble without tools in short time
5. Low power consumption, low noise created, low transportation costs, and low installation costs.
6. Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network, also can remoto control with asynchronous system.
7. Widely used for commercial led display, advertising led display, stage led display, mobile led display. Traffic led display, rental led display, sports led display etc.
| Outdoor P6 Full Color LED Display Main Parameters |
| Visual Characteristics | Unit | Value |
| Pixel Pitch | mm | 6.0 |
| Pixel Density | Dots/sq.m | 27777 |
| Pixel Configuration | | SMD3535 |
| Cabinet Resolution | dots | 128×128 |
| Refresh Rate | Hz | ≥1800 |
| View Angle(H/V) | ° | 140/140 |
| Brightness | nits | ≥6000 |
| Gray Scale | Bit | 16 |
| IP Rating | | 65 |
| Power Consumption(Max/Avg) | W/sq.m | 1200/400 |
| Input Voltage(AC) | V | 110~240 |
| Modular Characteristics |
| Cabinet Size(W×H×D) | mm | 768×768 |
| Cabinet Material | | Iron |
| Cabinet Weight | Kg | 35 |
| Module Size(W×H) | mm | 192×192 |
| Environment |
| Operation Temperature | ºC | -20~+40 |
| Operating Humidity | | 10%~90% |
| Driving Mode | | 1/8 Scan |
| Control Distance | Cat 5E <100m,Single mode fiber<10Km |
PRT OPTOELECTRONIC Co., Ltd is located in Bao'an District of Shenzhen city, specializing in R&D, manufacturing Full Color LED display for outdoor and indoor advertising with many different pixel pitches, and many different design, owned 5 new-automatic production lines and advanced test equipments to control quality ensure high quality. And got the international standard certificates of ISO9001-2000 and 14001, CE, CCC, FCC, RoHS, gurantee high quality!
Our main products include Outdoor LED display, Indoor LED display, Rental LED Display, Stage backbround LED screen, LED Curtain, Sport stadium perimeter LED screen, Mobile LED screen, LED display modules etc. Also supply LED professional stage lights based as customer's requests.
As the growing, we have more than 150 staffs, mostly with rich working experience in this area for many years, and several professional engineers for production and after sale service.
We got a strong team for exporting business, members with rich exporting experience over ten years, to introduce better solutions based on customers' requirements professionally, and guarantee the products to be shipped out in time and smoothly, so we can provide our clients high quality products with competitive prices and excellent service, and have obtained a good reputation from our customers.
Our company's operating philosophy, "Quality is everything, Service is the key to success ", because our purpose is to let business done easily and trustingly, to save customer's searching time and purchase cost, solve problem on customer's position, to let everything to be "PERFECT"(abbreviated to"PRT" )!
PRT is a developing company, need hard work of our staffs, also need your large positive support, let us do business and develop together, "sincere cooperation, mutual benefit and common development" is our principle.
Please send your e-mail to us and call us directly, we will answer you as soon as we can.
